Problems installing a GXP crankset

Hopefully Iím doing something stupid and itís an easy fix but Iím having one hell of a time. I have a SRAM S900 crankset. Up until recently it had a Quarq spider on it. The Quarq died and I purchased a new one, Quarq removed the spider and sent the crank arms back to me.

So, I purchased a new Origin 8 spider and installed it on the crank arms. Now when I go to install it Iím having a problem with rubbing at the bottom bracket. Iíve tried several different combinations of spacers and the wavy washer.

Any thoughts?

__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Old 02-20-20, 05:03 AM
  #2
trailflow1
Senior Member

Join Date: Jan 2015
Posts: 424
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
What frame ? And what BB, pressfit or threaded ?
trailflow1 is offline
Old 02-20-20, 05:45 AM
  #3
LowCel
Throw the stick!!!!
Thread Starter

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,112

Bikes: GMC Denali

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by trailflow1 View Post
What frame ? And what BB, pressfit or threaded ?
Fuji Norcom Straight. Press fit.



__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Old 02-21-20, 12:54 PM
  #4
LowCel
Throw the stick!!!!
Thread Starter

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,112

Bikes: GMC Denali

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 14 Times in 8 Posts
I just removed the crankset off of one of my road bikes to see if it would install without any issues. It works perfect.

__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Old 02-21-20, 01:04 PM
  #5
redlude97
Senior Member

Join Date: Sep 2011
Posts: 4,656
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 178 Times in 130 Posts

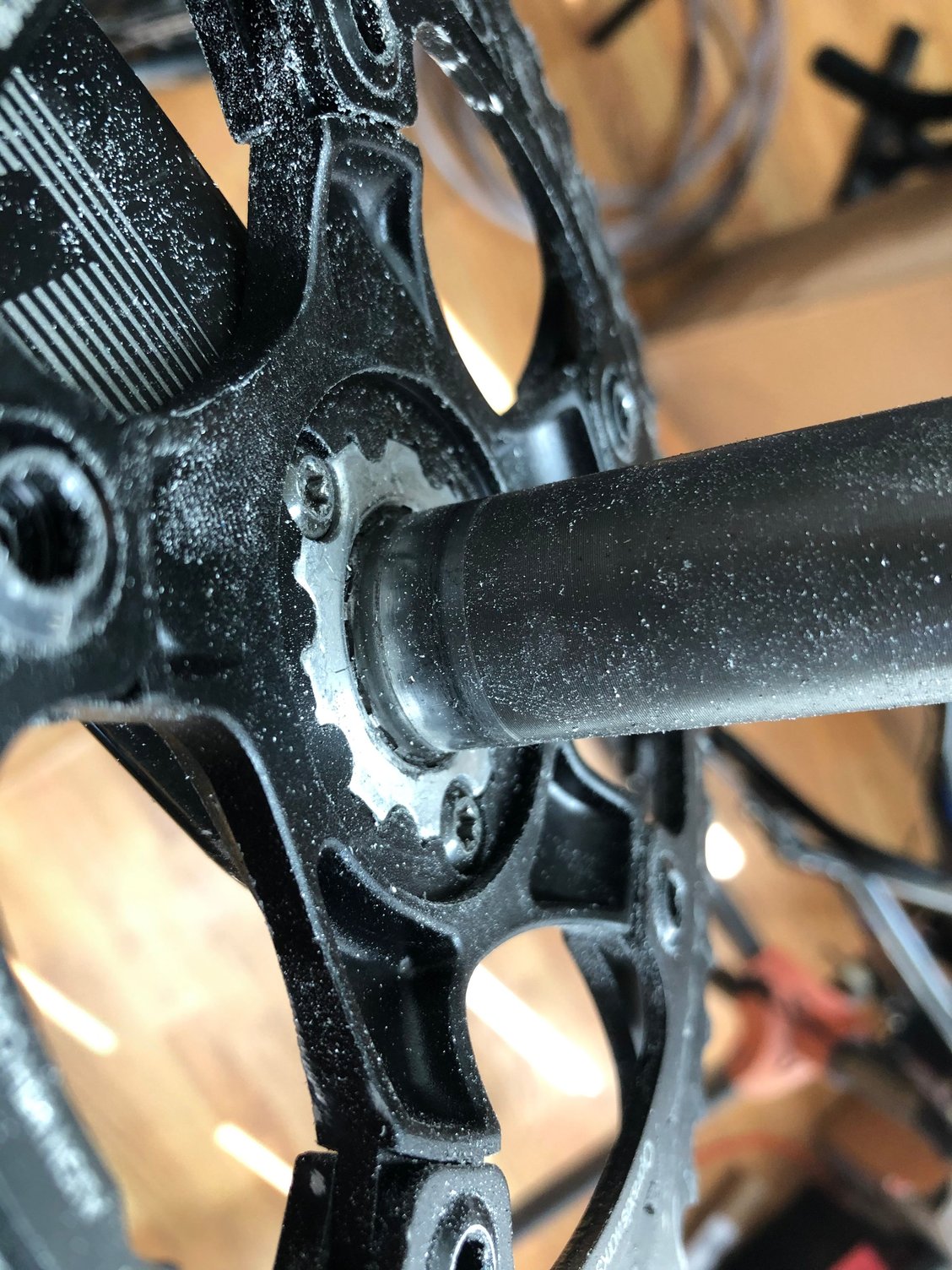

shouldn't the silver part of the spider be flush with the bolts?
redlude97 is offline
Likes For redlude97:
Old 02-21-20, 01:09 PM
  #6
LowCel
Throw the stick!!!!
Thread Starter

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,112

Bikes: GMC Denali

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by redlude97 View Post
shouldn't the silver part of the spider be flush with the bolts?
Youíre exactly right. This spider just wonít let that happen. Thank you!


__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Old 02-21-20, 01:56 PM
  #7
LowCel
Throw the stick!!!!
Thread Starter

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,112

Bikes: GMC Denali

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 14 Times in 8 Posts

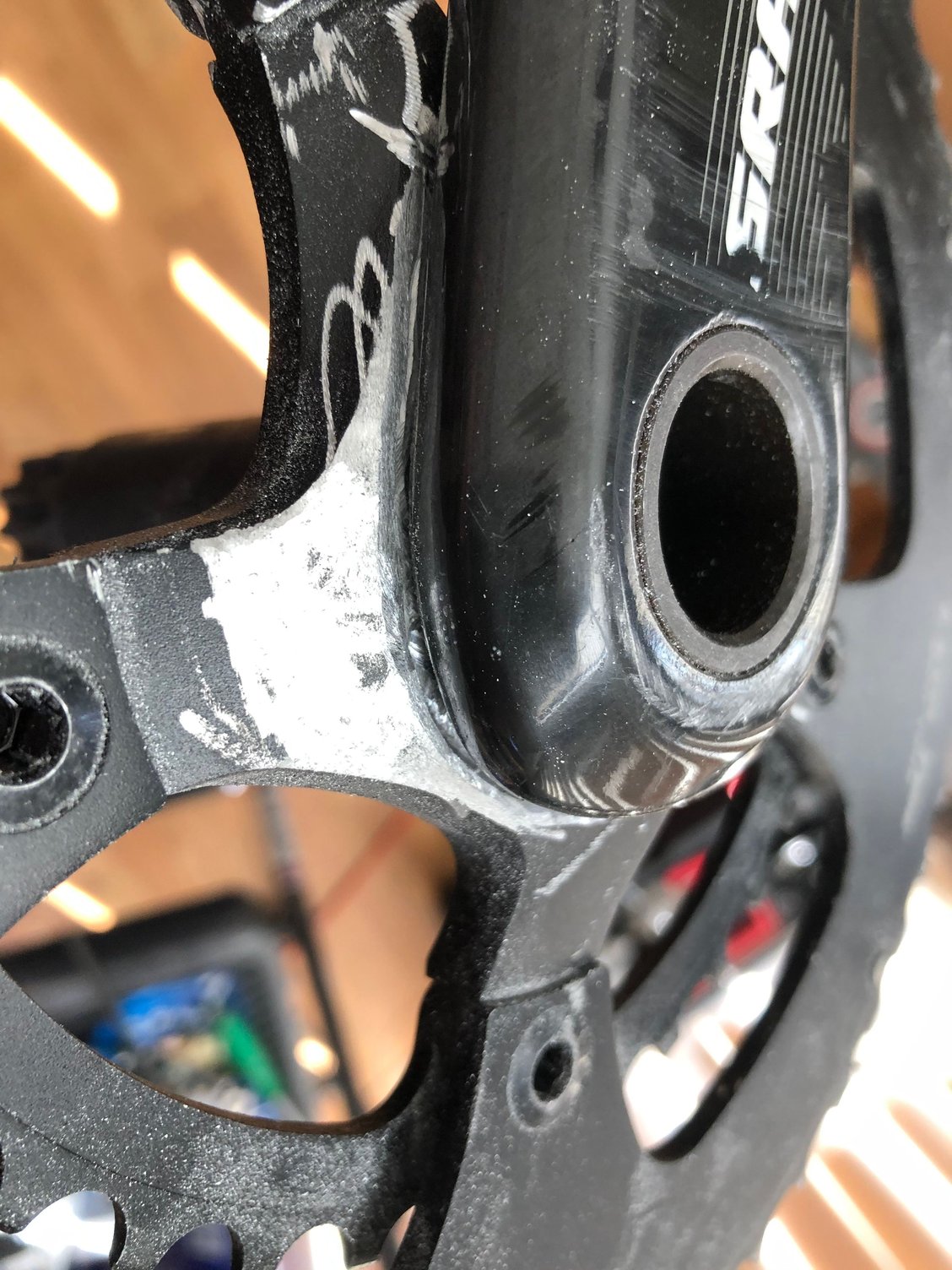

Figured out that the crank cutout (indention) on the outside of the crank wasnít wide enough for the crank arm. I did some quick grinding and it works like a charm. Iíll smooth it out and paint it later on.




__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Old 02-22-20, 11:45 AM
  #8
LowCel
Throw the stick!!!!
Thread Starter

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,112

Bikes: GMC Denali

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 14 Times in 8 Posts

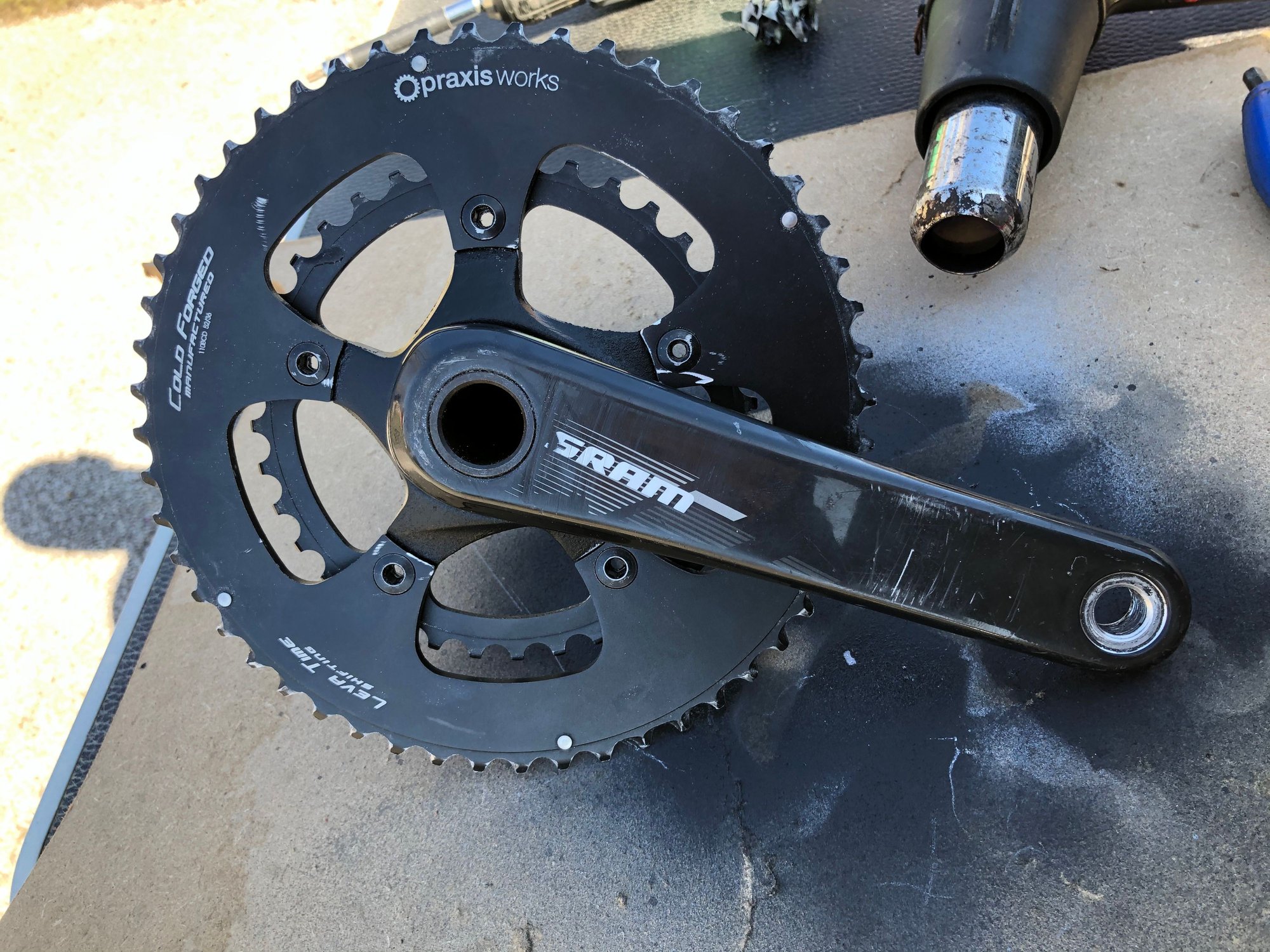

All done.

__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Likes For LowCel:
Old 02-23-20, 07:31 PM
  #9
smashndash
Senior Member

Join Date: Feb 2018
Posts: 993

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 170 Times in 125 Posts
Just to clarify, this was an issue with the origin8 spider? And you ground it to make room for the crankarm to sit more inboard?
smashndash is offline
Old 02-23-20, 07:32 PM
  #10
LowCel
Throw the stick!!!!
Thread Starter

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,112

Bikes: GMC Denali

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by smashndash View Post
Just to clarify, this was an issue with the origin8 spider? And you ground it to make room for the crankarm to sit more inboard?
Yes, it didnít take much.
__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
