Bike shop inventory cleaned out, so I rebuilt my old bike instead!

Notices
Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Bike shop inventory cleaned out, so I rebuilt my old bike instead!

Old 06-07-20, 02:05 PM
  #1
pullings
Member
Thread Starter

Join Date: Jun 2020
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
Bike shop inventory cleaned out, so I rebuilt my old bike instead!

My bike was tired. Many components were toast after 5000 miles.
New bike deals not to be found, prices selling higher than list, so I rebuilt my old bike instead!
For the rebuild I kept frame/crankset/fork/seat/bars/clips. Everything else was replaced.
Summary: I went with a 1X drive-train, aero carbon wheelset, new Ultegra components.

Original factory bike:
2014 Giant Advance Defy-1 M/L Alux (aluminum)
Base Giant P-R2 Aluminum wheelset
2x10sp Shimano 105 Groupset
Shimano Tiagra, 10-speed 12-30T cassette
2X Chainrings: 34 50T

I found I rarely used the small ring, so I opted to go with a wider range 11sp 11-32T cassette matched up with a 44T 1X SRAM configuration.
I took a gamble and bought Superteam carbon wheelset: 11Speed 50mm deep (23mm wide) V-brake road bike set.

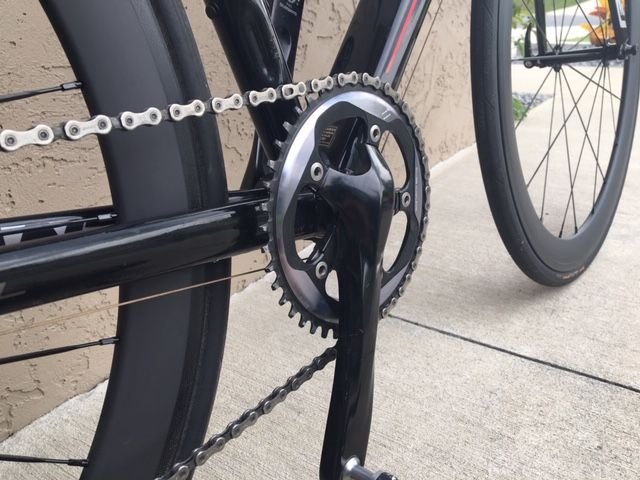

For 1X setup I simply bought the 44T narrow/wide chainring with 5X screw spacing that my stock crankset uses, screw set spaced for 1X ring, No need for new crankset or spindle.

Upgrade/rebuild Expenses:
$43 Shimano 105 CS-R7000 11-Speed Cassette 11-32T
$55 SRAM 44T Chainring X-Sync 1x11 Speed 110BDC 5-bolt
$229 Shimano Ultegra ST-R8000 Road Brake Shifter STI Levers
$70 Shimano Ultegra RD-R8000 GS Mid Cage Road Bike Rear Derailleur 11sp
$23 SRAM PC-1130 11 Speed Chain
$350 Superteam 60mm Carbon Wheelset 700c Clincher 23mm
$39 Continental Ultra Sport II Folding Road Tire 700x25c Black
$15 Butyl Road Bike Inner Tubes - 700x18/25C Presta 80mm stem
$18 MARQUE Hex Bicycle Handlebar Tape
-- Took apart crankset, brakes, pedals and cleaned/lubed.
-- New ultegra cables for brakes and shifter.

Total upgrade cost: $842






PROS: After 500 miles, I can state that results exceeded expectations.
The gearing I settled on is great for my riding.
NOT ONCE has chain come off the 1X chainring.
I have shredded my PB average speeds for all five of my routes by over 1MPH.
Average speeds for zone2 rides are up by about .75MPH.
Aero wheelset for the most part performs very well....crosswinds not a big issue.
Ultegra shifter and derailleur perform well. Dialed in with no troubles and shifting is precise.
Wheelset came with spare spokes and brake shoes.

CONS: Carbon wheel braking is below expectations.
Rear brake shoes got chain oil on them which would not clean off.
I had to take a mm of braking surface off them to restore rear braking performance (which was sub-par to begin with).
Ultegra shifter cable coatings clumped up inside cable housings and had to be cleaned out.

Last edited by pullings; 06-07-20 at 02:58 PM.
pullings is offline
Likes For pullings:
Old 06-07-20, 04:04 PM
  #2
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,574

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 353 Times in 222 Posts
Just a suggestion for the brakes, KoolStop Salmon, orange, pads. They work.
delbiker1 is offline
Likes For delbiker1:
Old 06-07-20, 05:10 PM
  #3
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,268

Bikes: Custom Winter Cycles flat bar road bike, Trek Domane SL6, Rivendell Sam Hillborne, Brompton S/M3L (modified)

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 460 Post(s)
Liked 161 Times in 114 Posts
Nice job! Must feel like a completely different bike.
blakcloud is offline
Likes For blakcloud:
Old 06-07-20, 09:03 PM
  #4
pullings
Member
Thread Starter

Join Date: Jun 2020
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
Originally Posted by delbiker1 View Post
Just a suggestion for the brakes, KoolStop Salmon, orange, pads. They work.
Thanks for the tip. I will definitely be looking into them.
pullings is offline
Old 06-08-20, 02:06 PM
  #5
ridethecliche
Village Idiot

Join Date: Jan 2007
Location: Dirty Jerz
Posts: 20,484
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 91 Times in 66 Posts
I'm curious what you did to your old bike to wear out all the parts in 5k miles!
ridethecliche is offline
Likes For ridethecliche:
Old 06-08-20, 02:14 PM
  #6
mgopack42
Senior Member

Join Date: Apr 2018
Location: Los Banos, CA
Posts: 612

Bikes: 2020 Argon 18 Krypton Pro, 2012 Pinarello FP Quatro, 1994 Specialized Allez, 1985 Masi 3V Volumetrica.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 219 Post(s)
Liked 132 Times in 89 Posts
^^^^ what he said^^^^
My Chorus groupset is still going strong after over 20,000 miles. replaced chain regularly, and cassette once. replacing bike so I can enjoy newer tech, because I want wider tires etc.
mgopack42 is offline
Old 06-08-20, 02:29 PM
  #7
RGMN
Senior Member

Join Date: Feb 2018
Location: Western 'burbs of TC,MN
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 91 Times in 67 Posts
Originally Posted by delbiker1 View Post
Just a suggestion for the brakes, KoolStop Salmon, orange, pads. They work.
I wouldn't recommend salmons on carbon rims. SwissStop Yellow King or Black Prince on carbon rims.
RGMN is offline
Likes For RGMN:
Old 06-08-20, 03:15 PM
  #8
pullings
Member
Thread Starter

Join Date: Jun 2020
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
Originally Posted by ridethecliche View Post
I'm curious what you did to your old bike to wear out all the parts in 5k miles!
Did I say I wore out all the parts??
The last time I checked the old stuff that was still good (like the shifters, derailleurs, cables) would not work for a 1X11 anyway. :-)
These are the things that needed work
Cables......both shifter cables where fraying...brakes cables were sub-par braided steel that sucked since new.
Big ring......teeth rounded down and thin.
Chain......
Tires....tubes....I never keep old patched tubes when I replace tires.
Wheels....not worn out. But repaired on three separate times (never let you adult kids borrow your nice stuff).
Rear 105 derailleur....Needed some TLC...nylon idler gears have seen better times. Chain cage bent/repaired.
Front 105 Derailleur.....rarely used small ring...seized up.

Last edited by pullings; 06-08-20 at 08:54 PM.
pullings is offline
Old 06-08-20, 03:57 PM
  #9
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,574

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 353 Times in 222 Posts
Originally Posted by RGMN View Post
I wouldn't recommend salmons on carbon rims. SwissStop Yellow King or Black Prince on carbon rims.

My bad, I apologize. I read what the components are and then posted that incorrect info unintentionally. I will cite my getting old brain syndrome for that. Thanks much for the correction.
delbiker1 is offline
Old 06-08-20, 04:02 PM
  #10
RGMN
Senior Member

Join Date: Feb 2018
Location: Western 'burbs of TC,MN
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 91 Times in 67 Posts
Originally Posted by delbiker1 View Post
My bad, I apologize. I read what the components are and then posted that incorrect info unintentionally. I will cite my getting old brain syndrome for that. Thanks much for the correction.
No biggie, I figured as much. Salmon are my go-to on any rim brake with alloy rims. But they are a bit aggressive for carbon rims.
RGMN is offline
Old 06-08-20, 08:11 PM
  #11
ridethecliche
Village Idiot

Join Date: Jan 2007
Location: Dirty Jerz
Posts: 20,484
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 91 Times in 66 Posts
Originally Posted by pullings View Post
Did I say I wore out all the parts??
The last time I checked the old stuff that was still good (like the shifters, derailleurs, cables) would not work for a 1X11 anyway. :-)
These are the things that needed work
Cables......both shifter cables where fraying...brakes cables were sub-par braided steel that sucked since new.
Big ring......teeth rounded down and paper thin.
Chain......
Tires....tubes....I never keep old patched tubes when I replace tires.
Wheels....not worn out. But repaired on three separate times (never let you adult kids borrow your nice stuff).
Rear 105 derailleur....Needed some TLC...nylon idler gears have seen better times. Chain cage bent/repaired.
Front 105 Derailleur.....rarely used small ring...seized up.
I'm not one to question upgrade-itis but I'm honestly shocked that your chain and big ring were gone that quickly. Eh, chain maybe.

My 105 RD has seen better days. I got a new RD and FD coming in soon (shadow rear). Oh... and the R7000 group I just got!
ridethecliche is offline
Old 06-08-20, 08:50 PM
  #12
pullings
Member
Thread Starter

Join Date: Jun 2020
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
Originally Posted by ridethecliche View Post
I'm not one to question upgrade-itis but I'm honestly shocked that your chain and big ring were gone that quickly. Eh, chain maybe.
My 105 RD has seen better days. I got a new RD and FD coming in soon (shadow rear). Oh... and the R7000 group I just got!
The excessive wear on chainring probably due to cross-chaining?....I rarely used my small ring. That is one of the reasons I went with a 1X setup. :-)
I really enjoyed updating my old bike......the build process is as fun as the ride!
Here are the original transplanted guts off the bike.
https://ocala.craigslist.org/bop/d/h...133785829.html
If your in the area Ill give you a good deal. :-)

Last edited by pullings; 06-08-20 at 08:58 PM.
pullings is offline
Old 06-08-20, 10:18 PM
  #13
Dean V
Senior Member

Join Date: Oct 2009
Posts: 2,629
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 934 Post(s)
Likes: 0
Liked 122 Times in 80 Posts
Looks nice and a good choice of components.
I did something a bit similar with my base model 2019 Defy advanced which I converted to 1x.
Also upgraded the wheels, brakes, saddle, and bars.
Dean V is offline
Old 06-14-20, 07:15 PM
  #14
pullings
Member
Thread Starter

Join Date: Jun 2020
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
Originally Posted by Dean V View Post
Looks nice and a good choice of components.
I did something a bit similar with my base model 2019 Defy advanced which I converted to 1x.
Also upgraded the wheels, brakes, saddle, and bars.
Which bars did you go with?......I just sold my leftover stock 105 groupset for $175. :-)
pullings is offline
Old 06-14-20, 09:18 PM
  #15
Dean V
Senior Member

Join Date: Oct 2009
Posts: 2,629
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 934 Post(s)
Likes: 0
Liked 122 Times in 80 Posts
Carbon 3t Aeronova.
Not a cheap option but I had a spare one laying around.
Zipp sl80 is what I have on most of my bikes.
Dean V is offline
