Removing Supersix wheel

Notices
Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Removing Supersix wheel

Old 06-27-20, 06:52 PM
  #1
Viceroy
Senior Member
Thread Starter

Join Date: Sep 2006
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Removing Supersix wheel

I know this is a stupid question. But I've recently got a Cannondale Supersix Evo and, for the life of me, cannot figure out how you would take off + replace the wheel. I've only ever had bikes with quick release or through axles, or a nut-and-bolt system that was self-explanatory. It's also my first carbon bike, and of course I am paranoid about doing any damage at this early date. Do I just need two allen wrenches, one for either side?
Again sorry for the dumb question, just could not figure it out from Youtube and the Cannondale manual is way too generic to address this.
Also, maybe someone smart can explain why there isn't a quick release since it seems much easier!
Thanks!
Viceroy is offline
Old 06-27-20, 09:30 PM
  #2
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
What year supersix Evo? Rim brake or disc? From the factory all the rim brake bikes comes with a standard quick release and drop outs. The new 2020 Evo with disc brakes have thru axles with Mavic's speed release (not sure about the prior year disc). It works essentially like a standard thru axles but you don't have to remove the axle completely for the wheel to drop but you can if you want.
bet1216 is offline
Old 06-27-20, 09:35 PM
  #3
adamhenry
MUP World Champ

adamhenry's Avatar

Join Date: Jun 2012
Location: Oceanside, CA
Posts: 419

Bikes: '19 Trance 3, '17 Defy Adv 2, DK Legend, Electra Verse 21D

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 33 Times in 24 Posts
I think you have a
.
adamhenry is offline
Old 06-27-20, 09:52 PM
  #4
Viceroy
Senior Member
Thread Starter

Join Date: Sep 2006
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by adamhenry View Post
I think you have a Speed release axle.

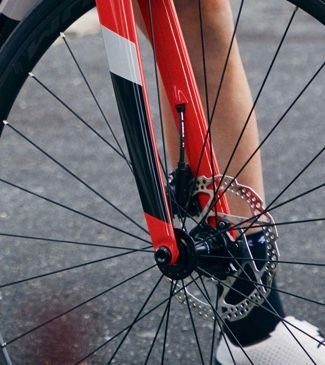

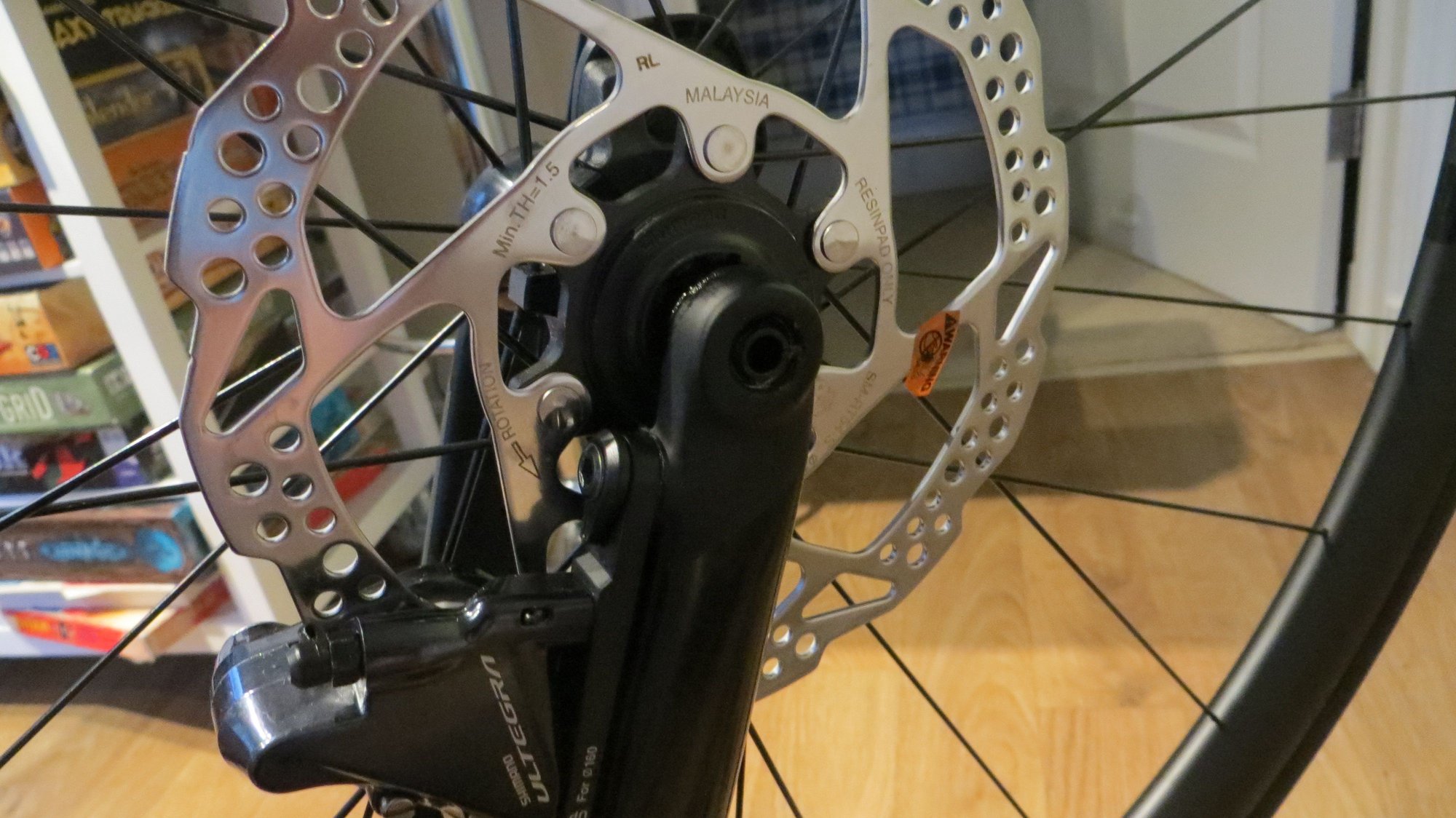

It's a 2020 disc. Here are pictures of the front wheel - both sides. I don't see any handles that look like a quick release, but maybe I am missing something?


Viceroy is offline
Old 06-27-20, 09:55 PM
  #5
Viceroy
Senior Member
Thread Starter

Join Date: Sep 2006
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by bet1216 View Post
What year supersix Evo? Rim brake or disc? From the factory all the rim brake bikes comes with a standard quick release and drop outs. The new 2020 Evo with disc brakes have thru axles with Mavic's speed release (not sure about the prior year disc). It works essentially like a standard thru axles but you don't have to remove the axle completely for the wheel to drop but you can if you want.
Thanks for replying! It's a 2020 but I posted pictures, and don't see anything that looks a through axle or quick release - let me know what you think.
Viceroy is offline
Old 06-27-20, 10:04 PM
  #6
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Mavic Speed release thru axles (they are used the Topstone also). No handles. It just takes an allen key (6mm I think) into the end on the top picture. Turn it just like a handled thru axle. When it unscrews from the other end you just have to pull the axle a little and it will drop down. It's a great system. I can take a picture of the axle tomorrow if you want to see it out of the wheel.
bet1216 is offline
Old 06-27-20, 10:05 PM
  #7
Viceroy
Senior Member
Thread Starter

Join Date: Sep 2006
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by bet1216 View Post
Mavic Speed release thru axles (they are used the Topstone also). No handles. It just takes an allen key (6mm I think) into the end on the top picture. Turn it just like a handled thru axle. When it unscrews from the other end you just have to pull the axle a little and it will drop down. It's a great system. I can take a picture of the axle tomorrow if you want to see it out of the wheel.
That would be great. I was looking for a standard quick-release handle like the video above. It looked like an Allen key solution, but wasn't sure what side and didn't want to damage anything (did I mention I'm paranoid about that so far?) It seems odd they wouldn't just have a handle/lever as shown above on the SystemSix, or again I might be missing something.
Viceroy is offline
Old 06-28-20, 07:28 AM
  #8
waters60
Senior Member

waters60's Avatar

Join Date: Sep 2010
Posts: 438
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 61 Times in 33 Posts
One thing to look for when putting the wheel back in is to make sure it is centered. The system is nice because you don’t need to remove the axle entirely, but it also introduces a little play, somewhat analogous to a regular QR. Regular thru axles don’t have this “ problem”. Enjoy your SuperSix. After getting the kinks worked out I love mine. It is night and day from the Synapse. Dealers should insist on people test riding both so they can feel the difference.
waters60 is offline
Old 06-28-20, 08:54 AM
  #9
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,628

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1049 Post(s)
Liked 455 Times in 330 Posts
Originally Posted by bet1216 View Post
Mavic Speed release thru axles (they are used the Topstone also). No handles. It just takes an allen key (6mm I think) into the end on the top picture. Turn it just like a handled thru axle. When it unscrews from the other end you just have to pull the axle a little and it will drop down. It's a great system. I can take a picture of the axle tomorrow if you want to see it out of the wheel.
Not having a QR is great ?
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 06-28-20, 09:35 AM
  #10
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Homebrew01 View Post
Not having a QR is great ?
Not having the handle is great...i just have to add a small allen wrench to my repair kit. I also think no QR is much better on disc brake bikes. The stiffness of the axle is much better than any QR. No QR is a pain when I have to haul my bikes around because I only haul them inside my vehicles and I have to take off the front wheel so have to get the allen wrench out both times. The Speed Release is much better than traditional thru axles because you don't have to take the axle out and risk getting dirt on the grease.
bet1216 is offline
Old 06-28-20, 09:42 AM
  #11
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Well it seems since I don't post much I can't post a picture until I have 10 post
bet1216 is offline
Old 06-28-20, 09:43 AM
  #12
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
When I have 10 I will post the pictures
bet1216 is offline
Old 06-30-20, 02:59 PM
  #13
markynels
Junior Member

Join Date: Oct 2019
Location: Montreal, CA
Posts: 14

Bikes: Crit: CAAD13 / Track: TipoPista / Trials: Evolve

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 2 Times in 2 Posts
This is not the correct, or at least OE from Cannondale.
The latest gen SuperSix, CAAD etc all come with the speed release through axles with the attached lever for quick release, I'm not sure why yours would be equipped differently? Call Cdale customer support, they should be able to send you one (source: they replaced mine )

Page 20, item 'T': cannondale.com/-/media/files/manual-uploads/manuals/019_137369_OMS%20MY20%20SUPERSIX_EN.pdf (sorry, can't post direct links yet..)
markynels is offline
Old 06-30-20, 04:02 PM
  #14
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Posts: 16,007
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 2490 Post(s)
Liked 1,855 Times in 1,039 Posts
Originally Posted by waters60 View Post
It is night and day from the Synapse. Dealers should insist on people test riding both so they can feel the difference.
What are the differences?
big john is offline
Old 06-30-20, 06:48 PM
  #15
waters60
Senior Member

waters60's Avatar

Join Date: Sep 2010
Posts: 438
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 61 Times in 33 Posts
Originally Posted by big john View Post
What are the differences?
If you have a chance to ride both you can find out. The Supersix is more responsive and a better climber. It is more fun.
waters60 is offline
Likes For waters60:
Old 06-30-20, 06:51 PM
  #16
waters60
Senior Member

waters60's Avatar

Join Date: Sep 2010
Posts: 438
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 61 Times in 33 Posts
Originally Posted by markynels View Post
This is not the correct, or at least OE from Cannondale.
The latest gen SuperSix, CAAD etc all come with the speed release through axles with the attached lever for quick release, I'm not sure why yours would be equipped differently? Call Cdale customer support, they should be able to send you one (source: they replaced mine )

Page 20, item 'T': cannondale.com/-/media/files/manual-uploads/manuals/019_137369_OMS%20MY20%20SUPERSIX_EN.pdf (sorry, can't post direct links yet..)
I can tell you mine is a 2020 Supersix and needs the Allen key. It is no different than any of the other 2020 Supersixes.


Last edited by waters60; 07-01-20 at 08:55 AM.
waters60 is offline
Old 07-01-20, 09:19 AM
  #17
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by markynels View Post
This is not the correct, or at least OE from Cannondale.
The latest gen SuperSix, CAAD etc all come with the speed release through axles with the attached lever for quick release, I'm not sure why yours would be equipped differently? Call Cdale customer support, they should be able to send you one (source: they replaced mine )

Page 20, item 'T': cannondale.com/-/media/files/manual-uploads/manuals/019_137369_OMS%20MY20%20SUPERSIX_EN.pdf (sorry, can't post direct links yet..)
My Supersix Evo did not come with a lever. Neither did the 2020 Topstone Carbon. Both bikes use the same speed release thru axle.
bet1216 is offline
Old 07-01-20, 09:28 AM
  #18
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I have the pictures to post showing every thing...however I still can't post them...very frustrating...and you can only post 5 times a day max. grrrr
bet1216 is offline
Old 07-01-20, 09:31 AM
  #19
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Here the pictures are:

Removed speed release thru axle from a 2020 Supersix Evo. Notice the notice that allows for the wheel to come out without removing the axle completely.




Allen key to remove thru axle on 2020 Cannondale Topstone Carbon that uses the same thru axle and speed release. As you can see with no lever or QR end it is very clean set up.



How far you have to pull out the axle to drop the wheel off.

Last edited by bet1216; 07-01-20 at 09:38 AM.
bet1216 is offline
Old 07-01-20, 09:35 AM
  #20
bet1216
Junior Member

Join Date: Oct 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 1 Time in 1 Post
more:

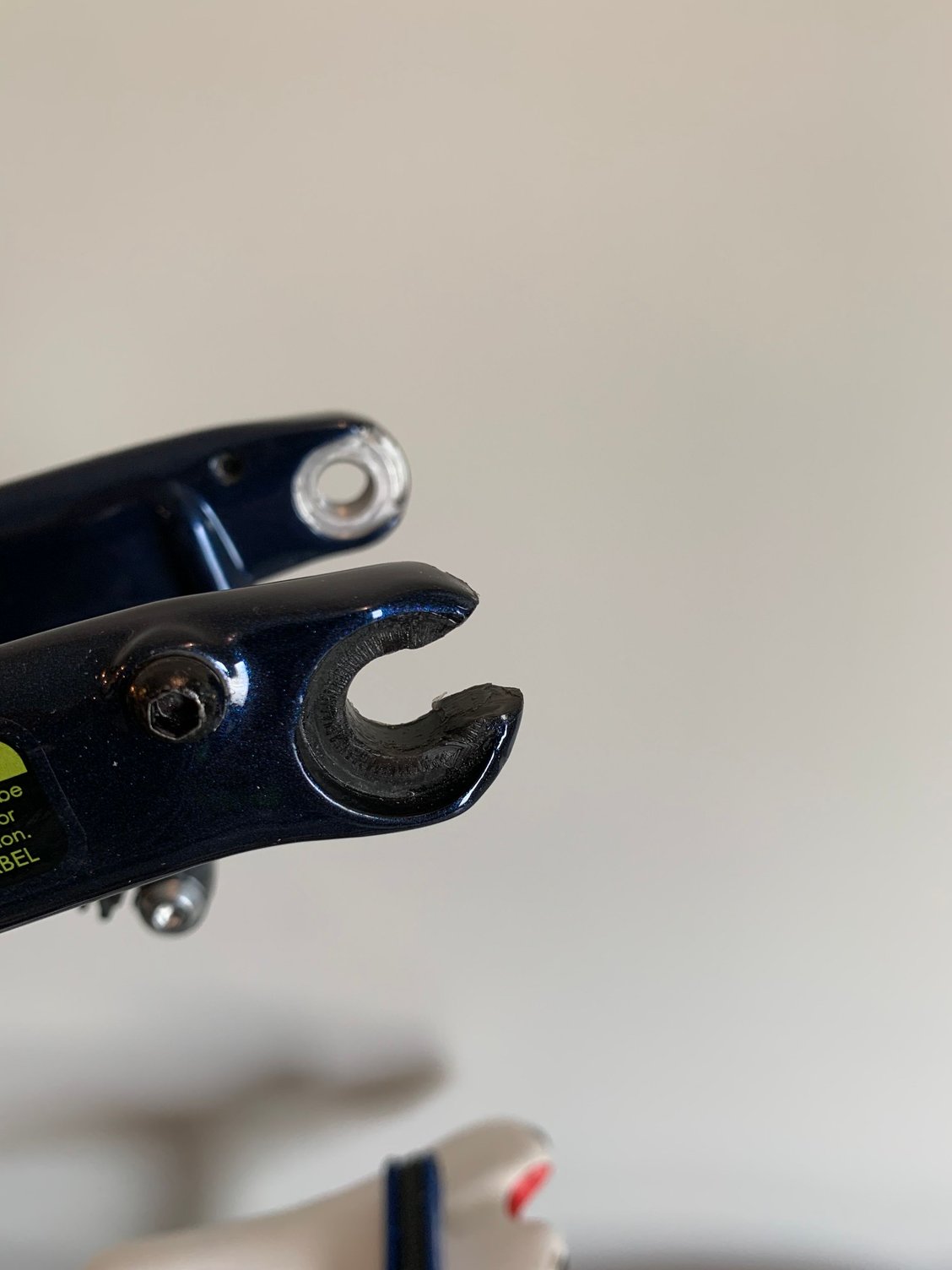

Front fork with wheel removed. The notched dropout is where the notch in the thru axle goes. A slick system compared to the normal thru axles that require you to remove the axle completely.

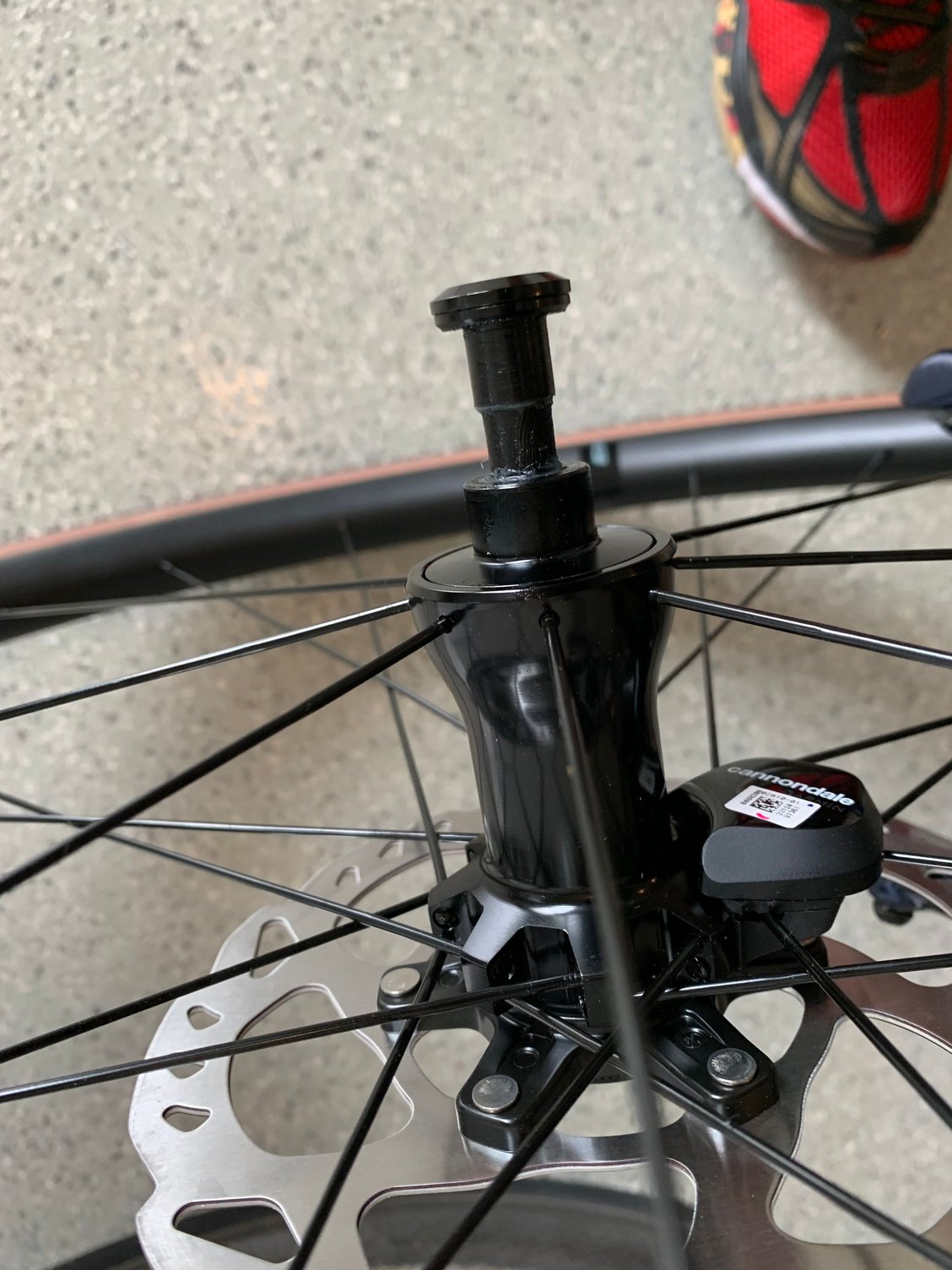

Thru axle still on the wheel after taking it off (the axle isn't pulled out any more than in the other picture with the wheel still on). You can see how the notch goes into the dropout, then you screw it in the thicker part of the axle in the notched part of the drop out so it will not come out.
bet1216 is offline
Old 07-01-20, 05:52 PM
  #21
markynels
Junior Member

Join Date: Oct 2019
Location: Montreal, CA
Posts: 14

Bikes: Crit: CAAD13 / Track: TipoPista / Trials: Evolve

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by waters60 View Post
I can tell you mine is a 2020 Supersix and needs the Allen key. It is no different than any of the other 2020 Supersixes.
I'm shocked! I've yet to see a CAAD or SuperSix with standard thru axles here locally so far this year, whether in the LBS or at group rides. My fleet have standard non-quick release thru axles and so I thought these were a major selling feature of the latest cdale TBH..

[insert image here....] embed.widencdn.net/img/dorelrl/glyuti7ntj/2000px@1x/C20_C13300M_CAAD13_Disc_105_MAT_PD.png
markynels is offline
Old 07-01-20, 05:55 PM
  #22
markynels
Junior Member

Join Date: Oct 2019
Location: Montreal, CA
Posts: 14

Bikes: Crit: CAAD13 / Track: TipoPista / Trials: Evolve

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 2 Times in 2 Posts
... I mean this is clearly the speed release pn referenced in the manual for the MY2020 super six- what am i missing?

cannondalespares.com/Cannondale-CAAD13--Supersix-EVO--Supersix-EVO-NEO--SystemSix-Front-Speed-Release-Thru-Axle--100x12--K83019/product_detail/3-44334
markynels is offline
Old 07-02-20, 04:46 AM
  #23
waters60
Senior Member

waters60's Avatar

Join Date: Sep 2010
Posts: 438
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 61 Times in 33 Posts
Just a couple of people with 2020 Supersixes showing pictures of their Speed Release axles plus my image from Cannondale’s website....
waters60 is offline
Old 08-16-20, 06:05 PM
  #24
Viceroy
Senior Member
Thread Starter

Join Date: Sep 2006
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by bet1216 View Post
Here the pictures are:


Removed speed release thru axle from a 2020 Supersix Evo. Notice the notice that allows for the wheel to come out without removing the axle completely.





Allen key to remove thru axle on 2020 Cannondale Topstone Carbon that uses the same thru axle and speed release. As you can see with no lever or QR end it is very clean set up.





How far you have to pull out the axle to drop the wheel off.

Thanks for the pictures! Used them today when I got a flat already and had to remove the wheel (am starting to think this hype about tubeless is nonsense) and actually find this quick release system really annoying compared to a handle. But anyway, when I went to reinstall the wheel, the disc brake seems to fit in the slot and the wheel is in the dropouts, wheel spins easily both in freewheel and when turning the pedals, but I can't get the whole axle in. It just looks like your image above with a bit sticking out because it doesn't go right through to the other side. Obviously something isn't lined up but what?
Viceroy is offline
Old 08-16-20, 07:10 PM
  #25
Viceroy
Senior Member
Thread Starter

Join Date: Sep 2006
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Photos:



Viceroy is offline
