BSA Bottom Bracket Won't Thread - Damaged Threads?

Hey guys -

So today I went to replace the GXP crankset and bottom bracket on my VeloBuild VBR-022 to replace them with a Rotor 3DF crankset and Rotor 30mm BSA bottom bracket. I was able to unscrew the old GXP BB just fine, non-drive side of the new one went in just fine, but the drive side just will not go in. Yes, I am turning it correctly (counter-clockwise), it goes a tiny bit then just completely jams up. Looking at the threads (photos below) it does seem like the first couple threads are almost reversed or damaged? I don't know how this would have happened - I'm the original owner of the bike and I've had the GXP on there for 6 years with no issue. I did have to tighten it a few times - maybe I over-tightened it and messed up the threads? Do they look damaged to you guys?

LBS says they can chase the threads for $45 which kinda sucks and they can't do it for a week so I'll be riding my vintage steel until then, but man are bikes frustrating.



speedyspaghetti is offline
Old 08-14-20, 08:52 PM
  #2
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,886
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4670 Post(s)
Liked 1,804 Times in 977 Posts
First of all, CLEAN YOUR FILTHY BIKE.
noodle soup is offline
Likes For noodle soup:
Old 08-14-20, 08:55 PM
  #3
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,799

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 5614 Post(s)
Liked 2,804 Times in 1,626 Posts
Did you clean the threads? Some wd40 and a toothbrush, wipe it down, then apply grease to the shell and bb threads.
That helps with install and removal.

It doesn't look really bad to me from the pics, but threadijg can be finicky.
mstateglfr is offline
Old 08-14-20, 08:56 PM
  #4
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 145

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Scott Speedster Gravel 30 // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Bianchi JAB 7500 // Trek 820 Mountain Track

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 19 Times in 13 Posts
Originally Posted by noodle soup View Post
First of all, CLEAN YOUR FILTHY BIKE.
Lol I was actually planning on doing that today but then I realized I left my bike cleaner in my apartment (my bike stand is at my parents' house) and so I couldn't clean it.
speedyspaghetti is offline
Old 08-14-20, 08:59 PM
  #5
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 145

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Scott Speedster Gravel 30 // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Bianchi JAB 7500 // Trek 820 Mountain Track

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 19 Times in 13 Posts
Originally Posted by mstateglfr View Post
Did you clean the threads? Some wd40 and a toothbrush, wipe it down, then apply grease to the shell and bb threads.
That helps with install and removal.

It doesn't look really bad to me from the pics, but threadijg can be finicky.
Yeah I tried - I used some brake cleaner, shop rag, WD40, shop rag again, and the PPL-1 Grease on both sides. It threads in a bit and I can turn it with the supplied BB tool but then it gets really tight about 2 or 3 turns in and I feels like if I keep going I'll totally mess up the threads.
speedyspaghetti is offline
Old 08-14-20, 09:12 PM
  #6
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 145

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Scott Speedster Gravel 30 // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Bianchi JAB 7500 // Trek 820 Mountain Track

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 19 Times in 13 Posts
Originally Posted by mstateglfr View Post
Did you clean the threads? Some wd40 and a toothbrush, wipe it down, then apply grease to the shell and bb threads.
That helps with install and removal.

It doesn't look really bad to me from the pics, but threadijg can be finicky.

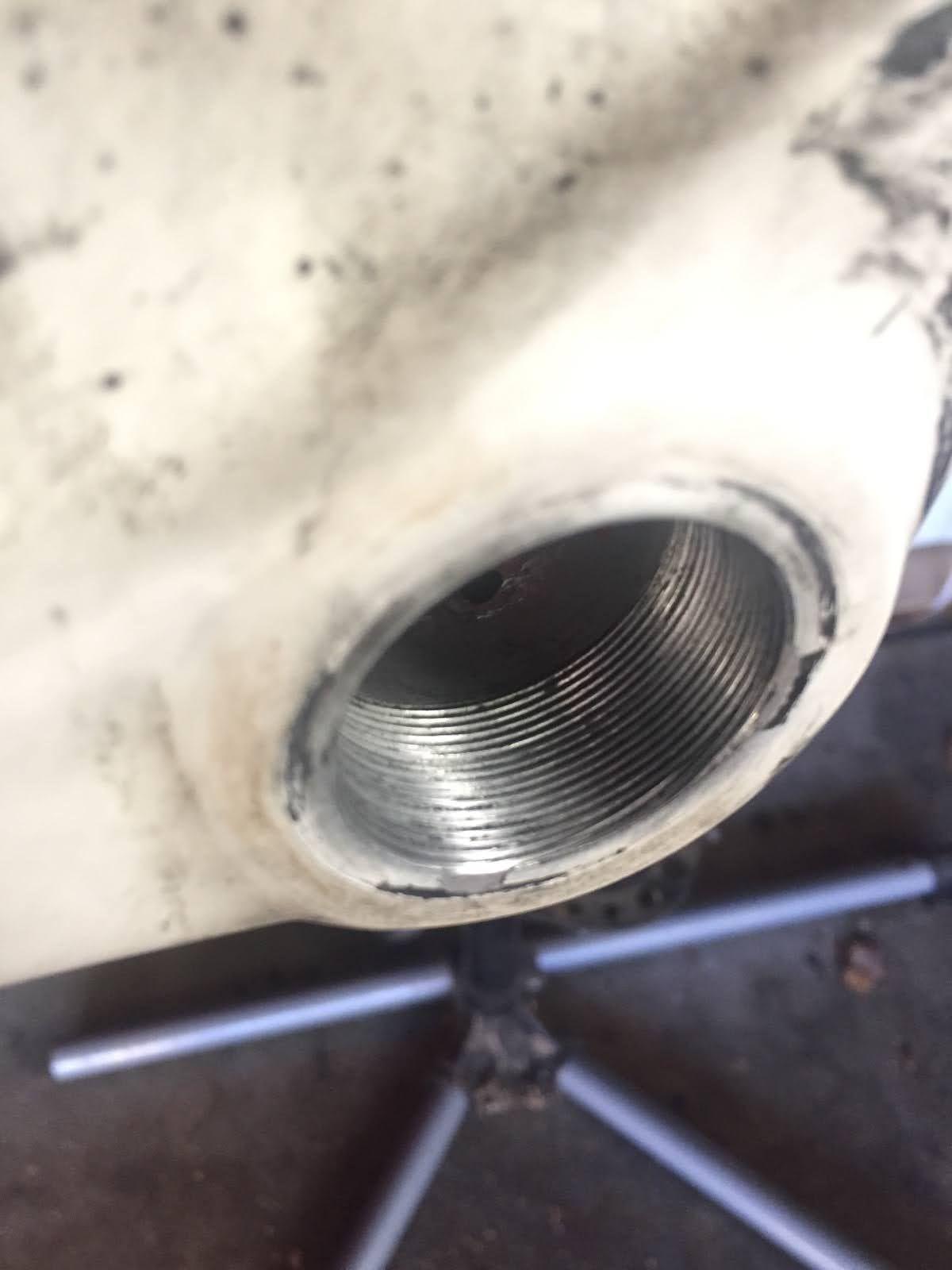

Does this look problematic?

speedyspaghetti is offline
Old 08-14-20, 09:17 PM
  #7
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,886
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4670 Post(s)
Liked 1,804 Times in 977 Posts
Originally Posted by speedyspaghetti View Post
Lol I was actually planning on doing that today but then I realized I left my bike cleaner in my apartment (my bike stand is at my parents' house) and so I couldn't clean it.
the hard part of the cleaning is already done. Now that you removed the crankset, clean it up before it goes to the shop

Originally Posted by speedyspaghetti View Post
Does this look problematic?

Yes, but nothing that can't be fixed.
noodle soup is offline
Likes For noodle soup:
Old 08-14-20, 09:20 PM
  #8
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 145

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Scott Speedster Gravel 30 // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Bianchi JAB 7500 // Trek 820 Mountain Track

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 19 Times in 13 Posts
1. Yeah - I had planned on cleaning it since I was taking it apart anyway but this frustrated me and I gave up on cleaning it today. All the bike shops around here are friggin maxed out because all of a sudden everyone wants to ride so I have a week to give it a nice clean. Matte paint sucks though - at least for cleaning purposes.

2. Cool - hopefully the shop can do it well without any "surprise" fees. They said $45 to chase the threads and I only need one side.
speedyspaghetti is offline
Old 08-15-20, 06:11 AM
  #9
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,347
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 294 Times in 215 Posts
Originally Posted by speedyspaghetti View Post
1. Yeah - I had planned on cleaning it since I was taking it apart anyway but this frustrated me and I gave up on cleaning it today. All the bike shops around here are friggin maxed out because all of a sudden everyone wants to ride so I have a week to give it a nice clean. Matte paint sucks though - at least for cleaning purposes.

2. Cool - hopefully the shop can do it well without any "surprise" fees. They said $45 to chase the threads and I only need one side.
I just came to own an old Bianchi that was acting this way. And its threads looked way worse than yours. Went to install a BB and it was a no-go. But for some reason I decided to try a different BB, went right in. So basically what I did was use that BB that went in to clean up the threads, both in gunk removal and straightening. After that first BB went in easier.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 08-15-20, 07:49 AM
  #10
sdmc530
Heft On Wheels

sdmc530's Avatar

Join Date: Nov 2014
Location: South Dakota
Posts: 2,893

Bikes: Specialized,Cannondale,Argon 18

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 790 Post(s)
Liked 393 Times in 262 Posts
If you can't get it threaded go to your LBS. I had this one time, I messed up the threads and couldn't get it started. My LBS had a tapping thread, ran it though once and it was good as new.
sdmc530 is offline
Old 08-15-20, 08:45 AM
  #11
motorthings
Senior Member

Join Date: Dec 2007
Location: Colorado Springs, CO
Posts: 640
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 9 Times in 5 Posts
Crazy idea here, but could you cut some slots into the old BB perpendicular to the threads to turn it into a kind of tap, then thread it back into the frame to chase the threads yourself.?
https://www.instructables.com/id/Mak...p-from-a-bolt/
motorthings is offline
Likes For motorthings:
Old 08-16-20, 05:25 PM
  #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,705

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2639 Post(s)
Liked 1,303 Times in 815 Posts
Originally Posted by motorthings View Post
Crazy idea here, but could you cut some slots into the old BB perpendicular to the threads to turn it into a kind of tap, then thread it back into the frame to chase the threads yourself.?
https://www.instructables.com/id/Mak...p-from-a-bolt/
Yes, you can. You need to take care that the cup doesn't go crooked as you thread it in. A real piloted bottom bracket tap set ensures that both sides of the shell are tapped coaxially.
Attached Images
File Type: jpg
JohnDThompson is offline
Likes For JohnDThompson:
Old 08-16-20, 06:11 PM
  #13
popeye
Senior Member

Join Date: Nov 2004
Location: Newport Beach, CA
Posts: 1,806

Bikes: S works Tarmac, Felt TK2 track

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 107 Times in 77 Posts
Originally Posted by motorthings View Post
Crazy idea here, but could you cut some slots into the old BB perpendicular to the threads to turn it into a kind of tap, then thread it back into the frame to chase the threads yourself.?
https://www.instructables.com/id/Mak...p-from-a-bolt/
This works. It looks like one last thread is folded over. Get a magnifier, light and a pick if nothing else. You can do this.
popeye is offline
Likes For popeye:
Old 08-16-20, 06:33 PM
  #14
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 145

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Scott Speedster Gravel 30 // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Bianchi JAB 7500 // Trek 820 Mountain Track

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 19 Times in 13 Posts
Thanks for the advice and help everyone - I was able to get it figured out. Unfortunately now I realized that the crankset I bought is not compatible with my frame... soo... yeah.
