Parts needed for Ultegra di2 upgrade.

Notices
Road Cycling ďIt is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.Ē -- Ernest Hemingway

Parts needed for Ultegra di2 upgrade.

Old 09-08-20, 09:58 AM
  #1
Lrdchaos
Senior Member
Thread Starter

Join Date: Feb 2017
Posts: 196
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 18 Times in 13 Posts
Parts needed for Ultegra di2 upgrade.

Iím wanting to upgrade my Ultegra 8000 mechanical to Di2. I have a 52/36 front, and 11-30 rear cassette that I plan on keeping. I know that I will need the 8070 shifters, but what other pieces of equipment will I need?
Lrdchaos is offline
Old 09-08-20, 10:14 AM
  #2
AlgarveCycling
Senior Member

Join Date: May 2020
Location: The Algarve, Portugal
Posts: 208

Bikes: Wilier Zero.6 (2019), Trek Madone SLR 6 (2020), KTM Scarp Sonic (2019)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 137 Times in 75 Posts
https://glorycycles.com/shimano-ulte...0-upgrade-kit/

https://www.bike-discount.de/en/buy/...variant-688419

Something like this I would expect.
AlgarveCycling is offline
Old 09-08-20, 10:21 AM
  #3
popeye
Senior Member

Join Date: Nov 2004
Location: Newport Beach, CA
Posts: 1,857

Bikes: S works Tarmac, Felt TK2 track

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 335 Post(s)
Liked 144 Times in 90 Posts
The only economical way I know to do this is with a resold OEM package. PBK, what Algarve said etc I have done Ultegra and DA with sale packages. I think it was about half retail price.
popeye is offline
Old 09-08-20, 10:21 AM
  #4
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,905
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4692 Post(s)
Liked 1,834 Times in 986 Posts
If you are in the US, Merlin Cycles has everything you need, and they'll have it at your door Saturday

https://www.merlincycles.com/shimano...it-112246.html
noodle soup is offline
Likes For noodle soup:
Old 09-08-20, 10:39 AM
  #5
Lrdchaos
Senior Member
Thread Starter

Join Date: Feb 2017
Posts: 196
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 18 Times in 13 Posts
Originally Posted by popeye View Post
The only economical way I know to do this is with a resold OEM package. PBK, what Algarve said etc I have done Ultegra and DA with sale packages. I think it was about half retail price.

yes sir, Iíve been watching a few FB pages for take offs and such. My main thing is that Iím not sure if I need a medium or long cage rear derailer for a 30 tooth gear.
Lrdchaos is offline
Old 09-08-20, 10:48 AM
  #6
surak
Senior Member

surak's Avatar

Join Date: Nov 2017
Location: Seattle
Posts: 1,610

Bikes: Specialized Roubaix, Canyon Inflite AL SLX, Priority Continuum Onyx, Santana Vision, Kent Dual-Drive Tandem

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 704 Post(s)
Liked 544 Times in 312 Posts
Originally Posted by Lrdchaos View Post
yes sir, Iíve been watching a few FB pages for take offs and such. My main thing is that Iím not sure if I need a medium or long cage rear derailer for a 30 tooth gear.
There is no long cage RD for Ultegra Di2. In any case, if you aren't going more than 30t, the short cage supports it.
surak is offline
Old 09-08-20, 01:55 PM
  #7
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,905
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4692 Post(s)
Liked 1,834 Times in 986 Posts
Originally Posted by surak View Post
There is no long cage RD for Ultegra Di2.
Shimano has a short cage(SS) 30t max, and a medium cage(GS) 34t max Ultegra Di2 derailleur.

BTW, Shimano max cog ratings are usually a little on the conservative side.
noodle soup is offline
Old 09-08-20, 02:23 PM
  #8
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,212

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 788 Times in 477 Posts
Originally Posted by Lrdchaos View Post
I’m wanting to upgrade my Ultegra 8000 mechanical to Di2. I have a 52/36 front, and 11-30 rear cassette that I plan on keeping. I know that I will need the 8070 shifters, but what other pieces of equipment will I need?
Rim brakes ??

Assuming yes, you need Shifters, F derailer, R derailer, A Junction at stem or in end of h-bar (that requires drilling holes in the h-bar or using a bar designed for Di2), B Junction to install near bottom bracket, Battery - usually in the seat post with a shim designed to hold the battery, cables - 2 for the shifters, A Junction to B junction, Battery to B junction, F derailer to B junction, R derailer to B junction.

You can keep/re-use your rim brakes, crank and bottom bracket, chain and cassette.

It’s a bit over $1000, add another $89 for the BT unit.

Texas Cyclesport does good packages and is cost effective.

https://www.texascyclesport.com/shim...-upgrade-kits/

Biggest questions I’ve dealt with are 1) Is the frame designed to route Di2 cables internal, is there an opening near the head tube on the down tube big enough for the Di2 cable connector ?. 2) BSA or Press-fit bottom bracket, that needs removal to route cables and install the B junction ?, or maybe a removable hatch or design at the b-bracket to route cables ?. The B junction can be installed in the seat tube, as BTW.
Steve B. is offline
Likes For Steve B.:
Old 09-08-20, 04:25 PM
  #9
sfrider
Asleep at the bars

sfrider's Avatar

Join Date: May 2006
Location: San Francisco, CA
Posts: 1,703
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked 182 Times in 118 Posts
R8050s are the cable-brake shifters, R8070s are the hydro-brake ones.
__________________
"This 7:48 cycling session burned 5933 calories. Speed up recovery by replacing them with a healthy snack." - Whoop

sfrider is offline
Old 09-09-20, 06:32 AM
  #10
Lrdchaos
Senior Member
Thread Starter

Join Date: Feb 2017
Posts: 196
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 18 Times in 13 Posts
Originally Posted by Steve B. View Post
Rim brakes ??

Assuming yes, you need Shifters, F derailer, R derailer, A Junction at stem or in end of h-bar (that requires drilling holes in the h-bar or using a bar designed for Di2), B Junction to install near bottom bracket, Battery - usually in the seat post with a shim designed to hold the battery, cables - 2 for the shifters, A Junction to B junction, Battery to B junction, F derailer to B junction, R derailer to B junction.

You can keep/re-use your rim brakes, crank and bottom bracket, chain and cassette.

Itís a bit over $1000, add another $89 for the BT unit.

Texas Cyclesport does good packages and is cost effective.

https://www.texascyclesport.com/shim...-upgrade-kits/

Biggest questions Iíve dealt with are 1) Is the frame designed to route Di2 cables internal, is there an opening near the head tube on the down tube big enough for the Di2 cable connector ?. 2) BSA or Press-fit bottom bracket, that needs removal to route cables and install the B junction ?, or maybe a removable hatch or design at the b-bracket to route cables ?. The B junction can be installed in the seat tube, as BTW.
I appreciate the feedback. The bike originally game with DI2, but I bought it as a left over and the shop had taken it off and swapped it to another bike. Which didnít really bother me because I saved about 3k on the deal. The bike has hydraulic disc brakes, so I will need the 8070 shifters, and the other parts. Thanks again for the feedback.
Lrdchaos is offline
Old 09-09-20, 07:29 AM
  #11
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,572

Bikes: Trek Domane SL7, Rivendell Sam Hillborne, Winter Cycles flat bar road bike, Brompton S/M3L (modified)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 333 Times in 214 Posts
These were the steps that I am taking as I am upgrading to Di2 soon.

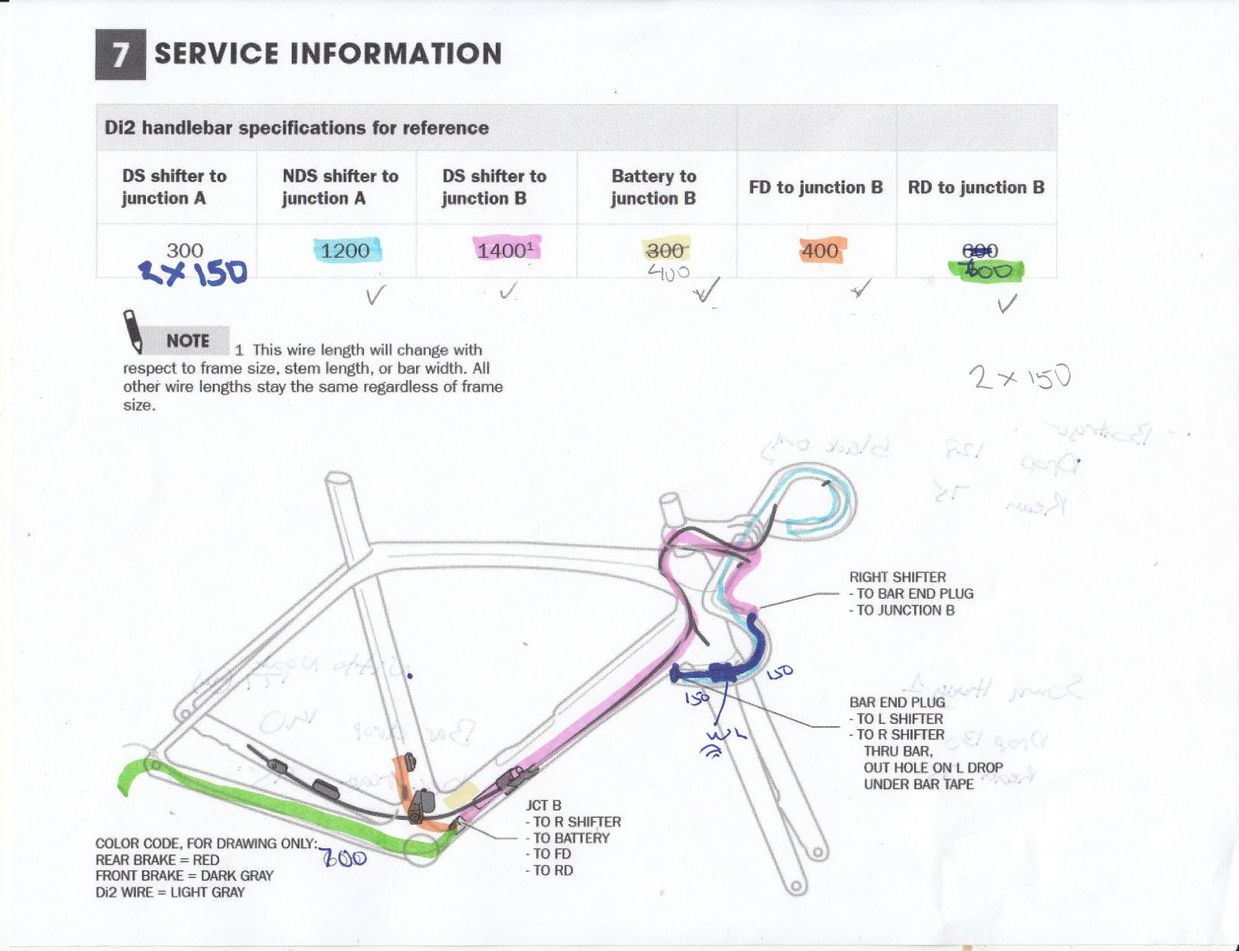

The first thing I did was start a planning sheet. This was to help me determine the lengths of wire I needed. Lucky for me Trek had the sheet listed below. I did change a few things because I wanted to use the wireless unit and I did not wan to use a Y cable in the handlebars. I colour coded each of the wires on the planning sheet. Once I had all the lengths, I ordered them from where ever they had stock.





Like you I am using the 8070 so I just ordered the shifters. I went with the medium cage (GS) rear just in case I ever decide to go to a larger cassette then what I am using now. It can't hurt anything by going longer. The front was a non-issue. I purchased the wireless unit, battery, junction A (handlebar) and B boxes. Found a charger second hand on Facebook Marketplace and bought that.

The last things I purchase was the Park Tool IR 1.2 internal routing kit. These is not essential but will make it easier. Last I purchased a Shimano bleed kit and a disc brake bleed block. Your brakes will have to be bled when you install the new levers. My original idea was to have a shop do it but the back log is still weeks in my area so I figure since I do all of my own wrenching I could attempt the bleed.

Everything is ready to go, I just have to find the motivation to take my bike apart to do the install. Of course you don't have to do what I did, this is just another data point in the execution of an upgrade. Good luck.


blakcloud is offline
Likes For blakcloud:
Old 09-10-20, 12:44 PM
  #12
sfrider
Asleep at the bars

sfrider's Avatar

Join Date: May 2006
Location: San Francisco, CA
Posts: 1,703
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked 182 Times in 118 Posts
There's a small F-F junction under the bars connecting the frame wiring to the bar wiring; I found this the perfect place for the WU111 wireless unit. It just replaced that junction. I mention this because I initially put it in the seat tube, which on occasion would result in dropouts. Right in front, under the computer is perfect. The Di2 connectors in general seem well enough weather sealed.
__________________
"This 7:48 cycling session burned 5933 calories. Speed up recovery by replacing them with a healthy snack." - Whoop

sfrider is offline
Old 09-10-20, 04:40 PM
  #13
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 7,510

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 4031 Post(s)
Liked 1,058 Times in 696 Posts
Di2 threads always allow me to remember and appreciate the simple beauty and purity of the cycling experience.
Sy Reene is offline
Old 09-10-20, 04:53 PM
  #14
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,212

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 788 Times in 477 Posts
Originally Posted by Sy Reene View Post
Di2 threads always allow me to remember and appreciate the simple beauty and purity of the cycling experience.
Is why I love my Di2 system. I’ve done nothing to it for 3 years except I plug it in to charge about every 4 mos.

Last edited by Steve B.; 09-10-20 at 05:54 PM.
Steve B. is offline
Likes For Steve B.:
Old 09-10-20, 04:55 PM
  #15
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 7,510

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 4031 Post(s)
Liked 1,058 Times in 696 Posts
Originally Posted by Steve B. View Post
Is why I live my Di2 system. Iíve done nothing to it for 3 years except I plug it in to charge about every 4 mos.
You must have had an engineering degree (from reading all of the above) to get it set up so soundly! Congrats
Sy Reene is offline
Old 09-10-20, 04:58 PM
  #16
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,905
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4692 Post(s)
Liked 1,834 Times in 986 Posts
Originally Posted by Steve B. View Post
Is why I live my Di2 system. Iíve done nothing to it for 3 years except I plug it in to charge about every 4 mos.
Yep.

I replace worn parts frequently because of the mileage I ride, but cant remember the last time something needed an adjustment(Di2 Hyldraulic Discs).
noodle soup is offline
Old 09-10-20, 05:56 PM
  #17
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,212

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 788 Times in 477 Posts
Originally Posted by Sy Reene View Post
You must have had an engineering degree (from reading all of the above) to get it set up so soundly! Congrats
Ive been assembling bikes since Ď95 or so, I enjoy it. Di2 was a different experience than mechanical, but once set its done forever mostly. Thatís always a surprise.
Steve B. is offline
Old 09-10-20, 08:16 PM
  #18
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,572

Bikes: Trek Domane SL7, Rivendell Sam Hillborne, Winter Cycles flat bar road bike, Brompton S/M3L (modified)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 333 Times in 214 Posts
Originally Posted by Sy Reene View Post
You must have had an engineering degree (from reading all of the above) to get it set up so soundly! Congrats
I certainly get your point. The upgrade path is arduous at best. It certainly would have been simpler to purchase a bike with it pre-installed then it would have been as Steve B says kind of set it and forget it (except for charging).
blakcloud is offline
Old 09-15-20, 11:43 PM
  #19
N2motorsports
Senior Member

Join Date: Mar 2020
Posts: 58
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 47 Times in 16 Posts
Few more tips

1. To eliminate rattling in frame, I used:
https://www.amazon.com/dp/B07FWC1XQZ..._FoAyFb1MYW853

2. When trimming the brakes lines, get the proper tools to cut the hydraulic lines very clean and straight., so it seats properly. Jagwire sells one or use the shimano clamps to cut with razor. Dont over torque hydraulic lines into shifter, you will easily crush the brass olive.

The hardest part for me was wiring all the lines thru a carbon bar, since it wasn't very smooth inside. I've put a few hundred miles on it now, still tweaking front derailleur since I went with a hollowgram cank vs the ultegra. Very happy.
N2motorsports is offline
Old 09-17-20, 06:58 AM
  #20
colnago62
Senior Member

Join Date: Aug 2014
Posts: 2,424
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 737 Post(s)
Liked 406 Times in 226 Posts
Originally Posted by noodle soup View Post
Shimano has a short cage(SS) 30t max, and a medium cage(GS) 34t max Ultegra Di2 derailleur.

BTW, Shimano max cog ratings are usually a little on the conservative side.
I have run a Sram 11-36 on my Ultegra Di2 Med. cage Trek Domane without a problem.
colnago62 is offline
Likes For colnago62:
Old 09-17-20, 08:05 AM
  #21
noodle soup
Senior Member

noodle soup's Avatar

Join Date: Nov 2015
Posts: 8,905
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 4692 Post(s)
Liked 1,834 Times in 986 Posts
Originally Posted by colnago62 View Post
I have run a Sram 11-36 on my Ultegra Di2 Med. cage Trek Domane without a problem.
Shimano is notorious for being conservative with Max cog size capacity. I've used a 32t cassette on my 9000 Di2 that has a 28t max rating,
noodle soup is offline
Old 09-17-20, 02:54 PM
  #22
d4vid
Junior Member

Join Date: Sep 2020
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I recently upgraded 2019 Trek Madone SLR 6 Disc Ultegra mechanical components to Di2's...Here are the parts that I used. Trek Bicycle store only charged me $175.00 for the installation.

ST-R8070 SHIFTER / LEVER 1
RD-R8050-SS REAR DERAILUR 1
FD-R8050 FRONT DERAILUR 1
EW-RS910 JUNCTION (A) 1
EW-JC130-MM JUNCTION (B) 1
SM-JC41 JUNCTION (B) 1
EW-JC200
JUNCTION (B) 1
BT-DN110-A BATTERY 1
EW-WU111 WIRELESS UNIT 1

WIRE

EW-SD50 150MM 1
EW-SD50 350MM 1
EW-SD50 550MM 1
EW-SD50 700MM 1
EW-SD50 950MM 2

Good luck!
d4vid is offline
Old 09-17-20, 07:39 PM
  #23
ShapeGSX
Newbie

Join Date: Sep 2013
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by noodle soup View Post
Shimano has a short cage(SS) 30t max, and a medium cage(GS) 34t max Ultegra Di2 derailleur.

BTW, Shimano max cog ratings are usually a little on the conservative side.
I use my short cage DI2 derailleur with an 11-32 cassette. So long as I donít cross chain from the 52 to the 32, itís no problem whatsoever. I always use Syncro Shift, so it wonít let me select that combo anyway.
ShapeGSX is offline
Old 09-18-20, 01:40 PM
  #24
sfrider
Asleep at the bars

sfrider's Avatar

Join Date: May 2006
Location: San Francisco, CA
Posts: 1,703
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked 182 Times in 118 Posts
I have 50x34 and 11-32t on my C3, with the chain long enough to allow cross chaining 50-32. But on 34-13 if I'm coasting the chain will rattle against the chainstay. R8000 Di2 won't allow shifting into the 11 or 12t while on the 34t. If I took out a link the slight tapping when coasting would stop in the 34-13, but then cross chaining big-big would be iffy. I don't do it much as it's terrible for the chain, but I like to have the option, so it's a trade off that works for me. Just a little 3M protective clear tape on the chainstay and it's of no concern.
__________________
"This 7:48 cycling session burned 5933 calories. Speed up recovery by replacing them with a healthy snack." - Whoop

sfrider is offline
Old 09-18-20, 01:57 PM
  #25
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,212

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 2043 Post(s)
Liked 788 Times in 477 Posts
Originally Posted by sfrider View Post
I. R8000 Di2 won't allow shifting into the 11 or 12t while on the 34t..
Shimano thinks that folks will frig up their systems if they allow cross chain operation so they lock it out with certain crank/cassette settings like 50/34. If you connect with the E-Tube software you can cheat the system to shift small-small (and small-next to small cog) by telling E-Tube you’ve got a 53/39 crank and whatever cassette (I think 12-25 works), then use Manual shift mode (no Syncro) and turn off Gear Position Control. You can then use small-small.

Last edited by Steve B.; 09-18-20 at 03:13 PM.
Steve B. is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
