Cable and Indexing Help

Hey All,
I decided to wash and lube the bike/chain today and when I went to put the rear wheel back on, I noticed that the indexing was way off (e.g., I put it in the smallest cog before removing the wheel, and when I put the wheel back on, I couldn't shift to within 3 gears of the smallest cog).
So I checked the indexing and sure enough, it had gotten way off track (it was indexed prior to me removing the wheel)... I've also noticed this happened last time I removed the wheel.
So I took a closer look at the cabling and noticed this:

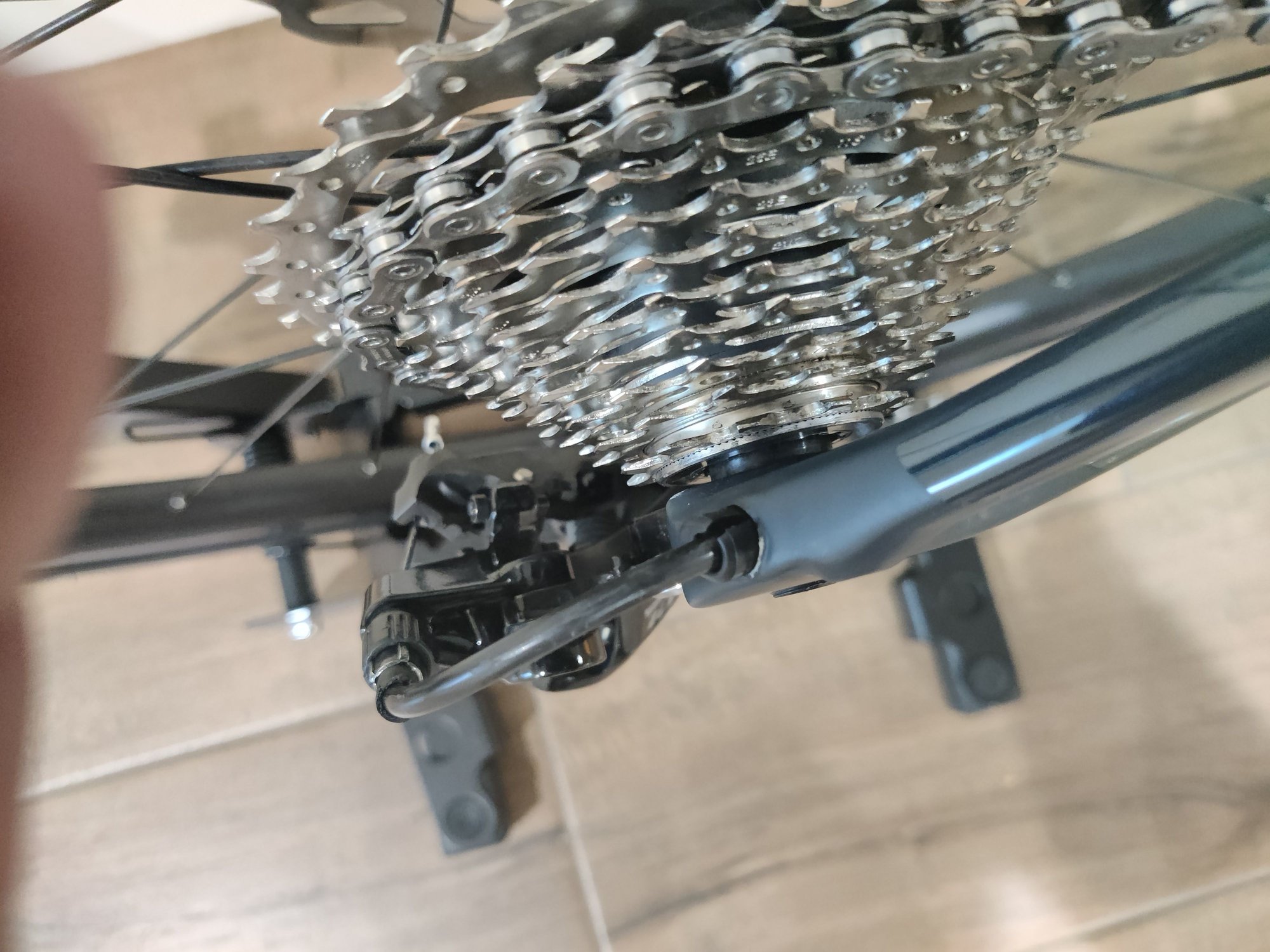

The cable had been pulled back and there was a gap between the cable housing and the housing that sits just on top of the barrel adjuster screw.
Basically it looks like the curve of the cable (from when it exits the frame and enters the RD) is too severe.
I gently pulled on the cable housing and re-inserted it into the housing that sits just on top of the barrel adjuster screw.
I then proceeded to index the gears (and it took an uncomfortable number of turns until I could even get all the gears to engage).

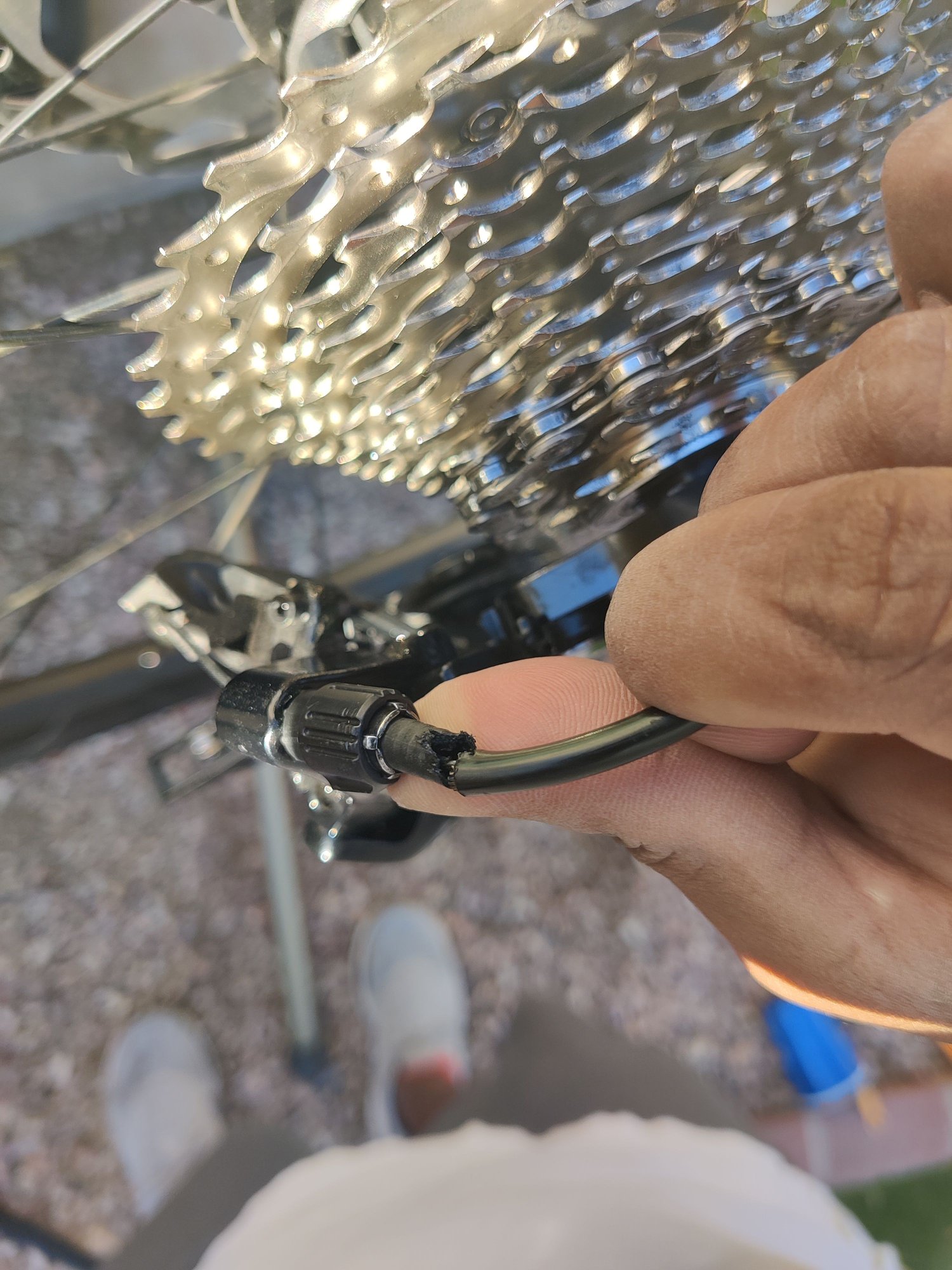

The cable now looks like this with the housing slightly split and frayed.

In addition, there is an additional piece of plastic housing where the cable enters the frame and it is split:




Basically what I think I did was pull too hard on the RD spring when I took the wheel off and it probably compressed/bent the cable housing enough to tear the additional housing around the BA and the one by the frame. (I don't know if this a common thing with guys who don't know what they're doing)
Have I screwed things up? Do I need to take it in to the LBS and have them work on/replace the cables?
From watching YouTube videos, I understand that cables can stretch over time, but how often do they need to be replaced?
Do I need to unscrew the cable completely from the RD and reset it somehow?
The limit screws seem fine (I didn't touch them). Anyway, any advice is appreciated; I'd like to avoid being stranded somewhere due to a broken/snapped shifter cable.
Sorry for all the questions.
Thanks in advance!

Last edited by Metallifan33; 12-15-20 at 06:20 PM.
Metallifan33 is offline
Old 12-15-20, 06:34 PM
  #2
datlas
Beyond Bogus

datlas's Avatar

Join Date: Dec 2007
Location: Malvern, PA (20 miles West of Philly)
Posts: 34,708

Bikes: 1986 Alpine (steel road bike), 2009 Ti Habenero, 2013 Specialized Roubaix

Mentioned: 483 Post(s)
Tagged: 2 Thread(s)
Quoted: 14463 Post(s)
Liked 2,844 Times in 1,445 Posts
I believe you split/broke the ferrule cap. This can likely be replaced with keeping the cable and cable housing. Tough to say for sure but thats what it looks like to me. So put RD in smallest cog, loosen cable at RD, slide off old ferrule cap, put new one on, verify housing end is smooth (or sand it smooth), replace cable in RD.
__________________
Originally Posted by rjones28 View Post
Addiction is all about class.
datlas is offline
Likes For datlas:
Old 12-15-20, 06:36 PM
  #3
ls01
he said member

ls01's Avatar

Join Date: Sep 2008
Location: is everything
Posts: 10,238

Bikes: yes please

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1154 Post(s)
Liked 726 Times in 421 Posts
At worst its probably just a cable replacement. Unless you did something you don't realize. If you don't have the mechanical knowledge to fix it yourself take it to a shop and let them look at it. It might be ok as is or it may need a new cable. Hard to tell from pictures.
ls01 is offline
Likes For ls01:
Old 12-15-20, 09:39 PM
  #4
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 1,374

Bikes: lots

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 668 Times in 382 Posts
You've done an absolutely stellar job cleaning your bike. Hard to imagine you could get it that clean and not notice that housing, but hey...it happens. You might be able to pull the cable back some and trim the end of the housing and then put on a new ferrule.
ETA: Pretty much positive that grommet where the housing goes into the frame is supposed to be split.
cxwrench is offline
Likes For cxwrench:
Old 12-16-20, 10:30 AM
  #5
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 2,133

Bikes: Ti, Mn Cr Ni Mo Nb, Al, C

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 909 Post(s)
Liked 497 Times in 333 Posts
Not sure how indexing got messed up just by taking the wheel off and putting it on. Everything is installed back correctly I assume?
jadocs is offline
Old 12-16-20, 11:59 AM
  #6
topflightpro
Senior Member

topflightpro's Avatar

Join Date: Jul 2007
Posts: 7,271
Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1728 Post(s)
Liked 484 Times in 312 Posts
Replace the housing.

IME, when housing starts to look frayed like that at the ends, it's time to replace it.
topflightpro is offline
Likes For topflightpro:
Old 12-16-20, 12:42 PM
  #7
msu2001la
Senior Member

msu2001la's Avatar

Join Date: Mar 2006
Location: Midwest
Posts: 1,174
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 314 Times in 206 Posts
Wow that is a clean cassette. Nice job.

Have you tried just shoving the housing back into the ferrule to see if it works? Don't get me wrong... it looks like the ferrule and housing should be replaced, but my guess is that it probably shifts fine if you stick it back in.
msu2001la is offline
Likes For msu2001la:
Old 12-16-20, 12:49 PM
  #8
Metallifan33
Senior Member
Thread Starter

Metallifan33's Avatar

Join Date: Dec 2019
Location: Phoenix, AZ
Posts: 243

Bikes: Trek Domane SL 5

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 99 Times in 47 Posts
Originally Posted by jadocs View Post
Not sure how indexing got messed up just by taking the wheel off and putting it on. Everything is installed back correctly I assume?
Yeah... The last two times, I had to reindex after replacing the wheel. Haven't touched the limit screws, but it's pretty clear the indexing gets messed up as I can't even access all the gears when I first put the wheel on. It seems like the cable gets stretched/compressed when I remove/replace the wheel. I think I'm stretching the RD too much when I'm pulling the wheel off.
Metallifan33 is offline
Old 12-16-20, 12:54 PM
  #9
Metallifan33
Senior Member
Thread Starter

Metallifan33's Avatar

Join Date: Dec 2019
Location: Phoenix, AZ
Posts: 243

Bikes: Trek Domane SL 5

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 99 Times in 47 Posts
Originally Posted by msu2001la View Post
Wow that is a clean cassette. Nice job.

Have you tried just shoving the housing back into the ferrule to see if it works? Don't get me wrong... it looks like the ferrule and housing should be replaced, but my guess is that it probably shifts fine if you stick it back in.
Thanks. I've been under the whether this week and I've realized cleaning the bike is a therapeutic thing for me
I'll look up ferrule caps and pick one up.

**Edit** Do these things wear out often? Amazon seems to sell them in packs of 100

Last edited by Metallifan33; 12-16-20 at 12:57 PM.
Metallifan33 is offline
Old 12-16-20, 01:15 PM
  #10
msu2001la
Senior Member

msu2001la's Avatar

Join Date: Mar 2006
Location: Midwest
Posts: 1,174
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 314 Times in 206 Posts
Originally Posted by Metallifan33 View Post
Thanks. I've been under the whether this week and I've realized cleaning the bike is a therapeutic thing for me
I'll look up ferrule caps and pick one up.

**Edit** Do these things wear out often? Amazon seems to sell them in packs of 100
If you go through 100 ferrule caps during your remaining lifetime I'd be seriously impressed.
msu2001la is offline
Old 12-16-20, 07:57 PM
  #11
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 8,888

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1075 Post(s)
Liked 373 Times in 267 Posts
There's an ally ferrule that Shimano does, or did, that's for that position in the barrel adjuster, since the plastic ones are prone to kinking. Works a lot better.
Kimmo is offline
Likes For Kimmo:
Old 12-16-20, 08:51 PM
  #12
cubewheels
Senior Member

Join Date: Jun 2020
Location: Manila, Philippines
Posts: 1,592

Bikes: A really old BMX bike, Phantom 20 kid's MTB, Jackal Mio Gravel Bike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 306 Times in 245 Posts
Originally Posted by Metallifan33 View Post
Hey All,
I decided to wash and lube the bike/chain today and when I went to put the rear wheel back on, I noticed that the indexing was way off (e.g., I put it in the smallest cog before removing the wheel, and when I put the wheel back on, I couldn't shift to within 3 gears of the smallest cog).
You didn't have to remove the rear wheel to clean and lube the drivetrain unless you had other reasons. It just raises the risk of damaging the bike (with one wrong move) in an otherwise simple drivetrain maintenance.
cubewheels is offline
Old 12-17-20, 02:14 AM
  #13
Metallifan33
Senior Member
Thread Starter

Metallifan33's Avatar

Join Date: Dec 2019
Location: Phoenix, AZ
Posts: 243

Bikes: Trek Domane SL 5

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 99 Times in 47 Posts
Originally Posted by cubewheels View Post
You didn't have to remove the rear wheel to clean and lube the drivetrain unless you had other reasons. It just raises the risk of damaging the bike (with one wrong move) in an otherwise simple drivetrain maintenance.
Huh. I didn't realize this. I remove the rear wheel often as I have an indoor trainer and only one bike. It's easier to clean the cassette and wheel with the wheel removed.
Metallifan33 is offline
Old 12-17-20, 03:34 AM
  #14
znomit
Zoom zoom zoom zoom bonk

znomit's Avatar

Join Date: Sep 2006
Location: New Zealand
Posts: 4,243

Bikes: Giant Defy, Trek 1.7c, BMC GF02, Fuji Tahoe, Scott Sub 35

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Liked 412 Times in 203 Posts
Originally Posted by Metallifan33 View Post
only one bike.
See the trouble being underbiked can cause?
znomit is offline
Likes For znomit:
Old 12-17-20, 04:27 AM
  #15
cubewheels
Senior Member

Join Date: Jun 2020
Location: Manila, Philippines
Posts: 1,592

Bikes: A really old BMX bike, Phantom 20 kid's MTB, Jackal Mio Gravel Bike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 306 Times in 245 Posts
Originally Posted by Metallifan33 View Post
Huh. I didn't realize this. I remove the rear wheel often as I have an indoor trainer and only one bike. It's easier to clean the cassette and wheel with the wheel removed.
Many BF members use another (cheap / used) bike for indoor training. It saves you time for many reasons and may save you money in the long run as well.

You should only be removing the wheels for fixing punctures / flats, fixing or inspecting wheel damage (if they do occur), replacing tires, disc rotors, etc. Things that don't usually happen more than once in two months.

No need to remove the wheel for washing. Any bike that is >$1000 can handle clean water without any issues so don't be afraid to get other parts of the bike wet.
cubewheels is offline
Likes For cubewheels:
Old 12-17-20, 07:50 AM
  #16
MoAlpha

MoAlpha's Avatar

Join Date: Jun 2015
Location: Land of Pleasant Living
Posts: 8,025

Bikes: Shmikes

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 5974 Post(s)
Liked 2,638 Times in 1,460 Posts
Originally Posted by Metallifan33 View Post
Huh. I didn't realize this. I remove the rear wheel often as I have an indoor trainer and only one bike. It's easier to clean the cassette and wheel with the wheel removed.
Neither did anyone else. Take the wheel off whenever and as often as you want.
MoAlpha is offline
Likes For MoAlpha:
Old 12-17-20, 09:47 AM
  #17
WhyFi
Senior Member

WhyFi's Avatar

Join Date: Jan 2010
Location: TC, MN
Posts: 33,795

Bikes: R3 Disc, Haanjo

Mentioned: 343 Post(s)
Tagged: 1 Thread(s)
Quoted: 16075 Post(s)
Liked 4,822 Times in 2,544 Posts
Originally Posted by cubewheels View Post
Many BF members use another (cheap / used) bike for indoor training. It saves you time for many reasons and may save you money in the long run as well.

You should only be removing the wheels for fixing punctures / flats, fixing or inspecting wheel damage (if they do occur), replacing tires, disc rotors, etc. Things that don't usually happen more than once in two months.

No need to remove the wheel for washing. Any bike that is >$1000 can handle clean water without any issues so don't be afraid to get other parts of the bike wet.
You come up with weird stuff. Removing a wheel is not a destructive act and removing wheels for washing is quite common (to reach in to the tight spaces), even more so with disc bikes (so that calipers can be covered to avoid pad contamination).
WhyFi is offline
Likes For WhyFi:
Old 12-17-20, 10:18 AM
  #18
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 6,378

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 2483 Post(s)
Liked 1,177 Times in 858 Posts
You mention that several times you removed the wheel and had to re-index it after replacing. If everything is correct on your bike, removing and re-installing the wheel will never result in the need to re-index.

This probably should have been an indicator that something was going amok. I'd suggest your cable housing end never was completely in the end cap. Maybe the end cap wasn't even the right size for that cable.

For what ever reason it happened, you just need to replace the end cap from what I'm seeing in the picture. If the exposed cable ends are bent or loose, then trim a millimeter or two back on the housing.

Whether you do that or get new stuff, before you secure the cable in the holdfast of the DR, make certain every end of the cable housing is securely in their end cap if they use one and also securely in the cable stops where ever that cable is held to the frame.

Cable housing not being properly in their end caps and/or cable stops will give you unreliable shifts.
Iride01 is offline
Likes For Iride01:
Old 12-17-20, 10:31 AM
  #19
Atlas Shrugged
Senior Member

Join Date: Mar 2010
Posts: 452
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked 248 Times in 139 Posts
Originally Posted by cubewheels View Post
You didn't have to remove the rear wheel to clean and lube the drivetrain unless you had other reasons. It just raises the risk of damaging the bike (with one wrong move) in an otherwise simple drivetrain maintenance.
First of all amazing job cleaning your drivetrain. I would pay someone to get mine that clean!

Removing your wheel is not a destructive act and you could do it daily for a lifetime and not affect the bicycle, Riding a bike is more destructive than removing the wheel so not sure where this is coming from.

Looks like you are missing an alloy ferrule which usually terminates at the end of the cable housing. If the cable is a bit short that doesn't help either. Lastly, the rubber grommet is usually split to allow removal without having to thread the cable through.
Atlas Shrugged is offline
Likes For Atlas Shrugged:
Old 12-17-20, 03:47 PM
  #20
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 8,888

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1075 Post(s)
Liked 373 Times in 267 Posts
Originally Posted by cubewheels View Post
No need to remove the wheel for washing. Any bike that is >$1000 can handle clean water without any issues so don't be afraid to get other parts of the bike wet.
If you want to clean something properly, you take it at least somewhat apart.

I'd be far more concerned about water ingress through the poxy seals in the junky cartridge bearings everyone but Shimano and Campy insists on using in even their flashest wheels, rather than any slightly higher possibility of damage from removing the wheels.

Last edited by Kimmo; 12-17-20 at 04:29 PM.
Kimmo is offline
Old 12-17-20, 04:36 PM
  #21
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 8,888

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1075 Post(s)
Liked 373 Times in 267 Posts
Originally Posted by Iride01 View Post
Cable housing not being properly in their end caps and/or cable stops will give you unreliable shifts.
Yep, a good trick is to clamp the cable (not so tight it gets crushed, but tight enough not to slip), and shift the lever without pedalling to load up the cable and seat the housing in all the ferrules properly. Turn the cranks to release the tension without causing damage (releasing the tension via the shifter is a bad idea with escapement mechanisms). Then reclamp the cable, and adjust.

This pretty much eliminates "cable stretch" which isn't actually a thing.
Kimmo is offline
Likes For Kimmo:
Old 12-17-20, 08:58 PM
  #22
msu2001la
Senior Member

msu2001la's Avatar

Join Date: Mar 2006
Location: Midwest
Posts: 1,174
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 314 Times in 206 Posts
I take my wheels off every time I clean my bike. I also frequently swap between multiple wheelsets. I've never had to adjust the derailleur after doing this.
msu2001la is offline
Old 12-17-20, 09:21 PM
  #23
Bigbus
Very Senior Member

Bigbus's Avatar

Join Date: Mar 2018
Location: Always on the Run
Posts: 1,006

Bikes: Giant Quasar & Fuji Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 324 Post(s)
Liked 231 Times in 172 Posts
Originally Posted by msu2001la View Post
If you go through 100 ferrule caps during your remaining lifetime I'd be seriously impressed.
Not sure "impressed" is the word I would use...
Bigbus is offline
Likes For Bigbus:
Old 12-17-20, 10:07 PM
  #24
cubewheels
Senior Member

Join Date: Jun 2020
Location: Manila, Philippines
Posts: 1,592

Bikes: A really old BMX bike, Phantom 20 kid's MTB, Jackal Mio Gravel Bike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 306 Times in 245 Posts
Originally Posted by Atlas Shrugged View Post
First of all amazing job cleaning your drivetrain. I would pay someone to get mine that clean!

Removing your wheel is not a destructive act and you could do it daily for a lifetime and not affect the bicycle, Riding a bike is more destructive than removing the wheel so not sure where this is coming from.

Looks like you are missing an alloy ferrule which usually terminates at the end of the cable housing. If the cable is a bit short that doesn't help either. Lastly, the rubber grommet is usually split to allow removal without having to thread the cable through.
I have clumsy hands when working on stuff (am I the only one?). I have on occassions accidentally dropped a tool on the bike (tools often jump off my hand, probably need magnetic gloves for that), scratched the frame with the disc rotors and so on and so forth.....So I try to minimize any mechanic work as much as possible. Ironically I do all the maintenance, upgrades, parts replacements as the local mechanics are even worse than I am!

It's really my fault as a clumsy mechanic. I've rarely seen another guy who isn't. Women would probably make better mechanics if only they were a bit more into guy stuff.
cubewheels is offline
Likes For cubewheels:
Old 12-17-20, 10:22 PM
  #25
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 1,374

Bikes: lots

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 668 Times in 382 Posts
Originally Posted by cubewheels View Post
Many BF members use another (cheap / used) bike for indoor training. It saves you time for many reasons and may save you money in the long run as well.

You should only be removing the wheels for fixing punctures / flats, fixing or inspecting wheel damage (if they do occur), replacing tires, disc rotors, etc. Things that don't usually happen more than once in two months.

No need to remove the wheel for washing. Any bike that is >$1000 can handle clean water without any issues so don't be afraid to get other parts of the bike wet.
Please...stop making it sound like taking a wheel off is dangerous. YOU are the one that needs training/practice if you can't do it properly. Don't tell others they shouldn't do it.
cxwrench is offline
Likes For cxwrench:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
