Turn a slammed race bike into an endurance bike without touching the stem

...As long as you're a toe pointer.

Kimmo is offline
Old 03-15-21, 05:27 PM
  #2
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 8,181
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 2179 Post(s)
Liked 2,035 Times in 1,104 Posts
#Moisture
shelbyfv is offline
Likes For shelbyfv:
Old 03-15-21, 11:30 PM
  #3
Kimmo
bike whisperer
Thread Starter

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 8,968

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1107 Post(s)
Liked 399 Times in 286 Posts
...?
Kimmo is offline
Old 03-16-21, 12:13 AM
  #4
UCantTouchThis
Senior Member

Join Date: Dec 2020
Posts: 1,145
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 845 Times in 411 Posts
Originally Posted by shelbyfv View Post
#Moisture

UCantTouchThis is offline
Likes For UCantTouchThis:
Old 03-16-21, 09:08 AM
  #5
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 6,660

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 2586 Post(s)
Liked 1,262 Times in 924 Posts
Most road bikes with slammed stems or low stack are still endurance road bikes. Just because you can't endure the position has nothing to do with it. Mostly it's the angle of the seat tube that makes them an endurance bike. Everything else is fit from there.

And where in your video do they explain your title? I've not the time to watch a 12 minute vid for something that doesn't seem related from the get go.
Iride01 is offline
Likes For Iride01:
Old 03-16-21, 09:56 AM
  #6
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,598

Bikes: Schwinn Varsity

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1761 Post(s)
Liked 515 Times in 306 Posts
Could somebody translate the language for me. I don't understand what they are saying.
There has to be some kind of license or test before being allowed to use a video camera.
trailangel is offline
Old 03-16-21, 11:50 AM
  #7
Seattle Forrest
Senior Member

Seattle Forrest's Avatar

Join Date: Mar 2010
Location: Seattle, WA
Posts: 21,749
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 14058 Post(s)
Liked 5,167 Times in 2,930 Posts
I ride a perseverance bike.
Seattle Forrest is offline
Likes For Seattle Forrest:
Old 03-16-21, 11:53 AM
  #8
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,336

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 282 Times in 223 Posts
The author of this video claims a 3-4cm drop in saddle height is appropriate with a midfoot cleat. That sounds like too much to me. I do a lot of out of the saddle pedaling, so midfoot isn't for me.

FWIW, an endurance bike mainly has a taller head tube to produce a more upright position. The seat tube angle has no part in the difference. Fit is determined by reach and stack. The only thing that the STA affects is your choice of seatpost setback.
DaveSSS is offline
Old 03-16-21, 12:59 PM
  #9
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 6,660

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 2586 Post(s)
Liked 1,262 Times in 924 Posts
Originally Posted by DaveSSS View Post
The author of this video claims a 3-4cm drop in saddle height is appropriate with a midfoot cleat. That sounds like too much to me. I do a lot of out of the saddle pedaling, so midfoot isn't for me.

FWIW, an endurance bike mainly has a taller head tube to produce a more upright position. The seat tube angle has no part in the difference. Fit is determined by reach and stack. The only thing that the STA affects is your choice of seatpost setback.
I guess all we can do is agree to disagree.

In general, it was always the seat tube angle that distinguished cruisers, road bikes and time trial bikes. Cruisers being the least vertical and TT bikes the most vertical. Head tube length itself is more about the size of the frame, not endurance. Particularly the old style bikes with horizontal top tube. However stack is what plays a big part in giving you a more aero or aggressive fit, as to a less aero and less aggressive fit. You don't have to have much head tube to have a lot of stack on bikes.

Endurance is nothing to do with how well any particular position you can endure. Just because you can't endure a race fit doesn't mean it's not an endurance bike. Or how else would some people be putting 5K, 10K or 15K a year on them?

At the marketing level for bikes, once you eliminate all the possible things that make it unique, like race, performance, fitness, then endurance is all that is left. But all the others were endurance bikes too. At least by everything I was told and read for all these years starting back with my first Schwinn.
Iride01 is offline
Old 03-16-21, 02:17 PM
  #10
WhyFi
Senior Member

WhyFi's Avatar

Join Date: Jan 2010
Location: TC, MN
Posts: 34,096

Bikes: R3 Disc, Haanjo

Mentioned: 343 Post(s)
Tagged: 1 Thread(s)
Quoted: 16321 Post(s)
Liked 5,040 Times in 2,639 Posts
Originally Posted by DaveSSS View Post
The author of this video claims a 3-4cm drop in saddle height is appropriate with a midfoot cleat. That sounds like too much to me. I do a lot of out of the saddle pedaling, so midfoot isn't for me.

FWIW, an endurance bike mainly has a taller head tube to produce a more upright position. The seat tube angle has no part in the difference. Fit is determined by reach and stack. The only thing that the STA affects is your choice of seatpost setback.
Originally Posted by Iride01 View Post
I guess all we can do is agree to disagree.

In general, it was always the seat tube angle that distinguished cruisers, road bikes and time trial bikes. Cruisers being the least vertical and TT bikes the most vertical. Head tube length itself is more about the size of the frame, not endurance. Particularly the old style bikes with horizontal top tube. However stack is what plays a big part in giving you a more aero or aggressive fit, as to a less aero and less aggressive fit. You don't have to have much head tube to have a lot of stack on bikes.

Endurance is nothing to do with how well any particular position you can endure. Just because you can't endure a race fit doesn't mean it's not an endurance bike. Or how else would some people be putting 5K, 10K or 15K a year on them?

At the marketing level for bikes, once you eliminate all the possible things that make it unique, like race, performance, fitness, then endurance is all that is left. But all the others were endurance bikes too. At least by everything I was told and read for all these years starting back with my first Schwinn.
I can't speak of ye olde road bikes, but when it comes to modern road bikes, I'm with Dave - endurance is generally differentiated by a more upright position (higher stack, shorter reach) along with geometry that's slower/more stable (longer wheelbase/chain stays, slower steering rake/trail, etc.)
WhyFi is offline
Likes For WhyFi:
Old 03-16-21, 02:22 PM
  #11
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,336

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 282 Times in 223 Posts
Originally Posted by Iride01 View Post
I guess all we can do is agree to disagree.

In general, it was always the seat tube angle that distinguished cruisers, road bikes and time trial bikes. Cruisers being the least vertical and TT bikes the most vertical. Head tube length itself is more about the size of the frame, not endurance. Particularly the old style bikes with horizontal top tube. However stack is what plays a big part in giving you a more aero or aggressive fit, as to a less aero and less aggressive fit. You don't have to have much head tube to have a lot of stack on bikes.

Endurance is nothing to do with how well any particular position you can endure. Just because you can't endure a race fit doesn't mean it's not an endurance bike. Or how else would some people be putting 5K, 10K or 15K a year on them?

At the marketing level for bikes, once you eliminate all the possible things that make it unique, like race, performance, fitness, then endurance is all that is left. But all the others were endurance bikes too. At least by everything I was told and read for all these years starting back with my first Schwinn.
Please back up this opinion with some links that compare the geometry of a race frame to an endurance model, in the same brand. About 95% of a longer head tube length goes directly to stack height. A relaxed fit is more upright with a taller stack and often a shorter reach. The steering trail might also be larger. Some brands add 20mm to the stack and others may add up to 40mm.

A good example is the Trek Domane compared to an Emonda. The seat tube angle has nothing to do with the fit. The stack is the main dimension that stands out as different. The 52cm size that I would ride has about a 40mm difference in stack height, while the seat tube angle difference is trivial.

https://www.trekbikes.com/us/en_US/b...-etap/p/33140/

https://www.trekbikes.com/us/en_US/b...-lt-9/p/32579/
DaveSSS is offline
Old 03-16-21, 02:34 PM
  #12
Rides4Beer
Senior Member

Join Date: Oct 2018
Location: SC
Posts: 1,400

Bikes: SuperSix Evo | Revolt

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 702 Post(s)
Liked 748 Times in 391 Posts
So loss of acceleration, unsteady sprinting or climbing out of the saddle, and not mentioned, but obviously increased toe overlap. No thanks.
Rides4Beer is offline
Old 03-16-21, 05:08 PM
  #13
mgopack42
Senior Member

Join Date: Apr 2018
Location: Los Banos, CA
Posts: 675

Bikes: 2020 Argon 18 Krypton Pro, 2012 Pinarello FP Quatro, 1994 Specialized Allez, 1985 Masi 3V Volumetrica.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 198 Times in 115 Posts
Originally Posted by DaveSSS View Post
Please back up this opinion with some links that compare the geometry of a race frame to an endurance model, in the same brand. About 95% of a longer head tube length goes directly to stack height. A relaxed fit is more upright with a taller stack and often a shorter reach. The steering trail might also be larger. Some brands add 20mm to the stack and others may add up to 40mm.

A good example is the Trek Domane compared to an Emonda. The seat tube angle has nothing to do with the fit. The stack is the main dimension that stands out as different. The 52cm size that I would ride has about a 40mm difference in stack height, while the seat tube angle difference is trivial.

https://www.trekbikes.com/us/en_US/b...-etap/p/33140/

https://www.trekbikes.com/us/en_US/b...-lt-9/p/32579/

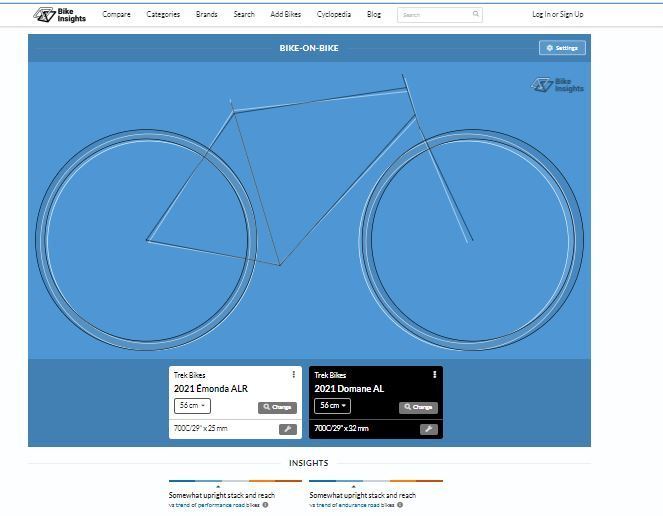

here is a graphical comparison of an Emonda and a Domane ( all the data base had was the AL for the Domane, so I went there with the Emonda)

mgopack42 is offline
Old 03-16-21, 05:20 PM
  #14
Dean V
Senior Member

Join Date: Oct 2009
Posts: 2,751
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Likes: 0
Liked 201 Times in 118 Posts
I ride exactly the same fit on my Emonda and Domane.
The difference in geometry is easily compensated for in stem spacers and length.
Dean V is offline
Old 03-16-21, 05:47 PM
  #15
Kabuto
Senior Member

Kabuto's Avatar

Join Date: Jul 2017
Location: Far East
Posts: 179
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 41 Times in 28 Posts
Originally Posted by Dean V View Post
I ride exactly the same fit on my Emonda and Domane.
The difference in geometry is easily compensated for in stem spacers and length.
Not always. This is only possible if you have no spacers under the Domane's stem and a bunch of spacers under the Emonda stem. You're outta luck if you have spacers under the Domane's stem.
Kabuto is offline
Old 03-16-21, 07:19 PM
  #16
Dean V
Senior Member

Join Date: Oct 2009
Posts: 2,751
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1006 Post(s)
Likes: 0
Liked 201 Times in 118 Posts
Originally Posted by Kabuto View Post
Not always. This is only possible if you have no spacers under the Domane's stem and a bunch of spacers under the Emonda stem. You're outta luck if you have spacers under the Domane's stem.
True, but the point is you need to look at each bike and required fit on a case by case basis rather than using broad generalisations.
In my case the Domane is slammed but the Emonda doesn't need many spacers as they are both H2 and the geometries aren't that different.
Dean V is offline
Old 03-16-21, 07:48 PM
  #17
colnago62
Senior Member

Join Date: Aug 2014
Posts: 2,331
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 330 Times in 199 Posts
I remember Joe Friel advocating this approach a few years back.
colnago62 is offline
Old 03-17-21, 06:00 AM
  #18
redcon1
Senior Member

redcon1's Avatar

Join Date: Aug 2008
Location: South Central PA
Posts: 450

Bikes: Gary Fisher X-Caliber, Focus Arriba, Specialized Roubaix Expert

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 45 Times in 33 Posts
Originally Posted by Dean V View Post
I ride exactly the same fit on my Emonda and Domane.
The difference in geometry is easily compensated for in stem spacers and length.
You are talking about the touch point dimensions, not changing the frame geometry. Rake/Trail, Wheelbase, Chainstay length are all different between your Emonda/Domane. Different geometry, and different handling characteristics... incremental, to be sure, but definitely different.
redcon1 is offline
Likes For redcon1:
Old 03-17-21, 07:50 AM
  #19
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,336

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 282 Times in 223 Posts
While it's possible to match certain fits between a racing and endurance model, you can't buy the same size domane and get the same fit as a slammed Emonda. Slammed is no spacers and a -17 stem. That's how I set up my previous Colnago frames with a 527mm stack, to get a 10cm saddle to bar drop. Just changing to a -6 stem raises the bars by about 2cm. I now have the smallest size Cinelli superstar frames, that have an 18mm lower stack. These frames are set up with a 30mm tall conical headset top, that drops the bars about 3mm lower, using a 10mm longer stem. I left the steering tube longer, to preserve resale value.

Endurance frames are intended to have a more upright fit, with less saddle to bar drop. Trek recommends a 52cm size for the same height range in both models, but obviously, the domane can't be set up as low as an emonda.

Last edited by DaveSSS; 03-17-21 at 08:20 AM.
DaveSSS is offline
Old 03-17-21, 08:10 AM
  #20
Rides4Beer
Senior Member

Join Date: Oct 2018
Location: SC
Posts: 1,400

Bikes: SuperSix Evo | Revolt

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 702 Post(s)
Liked 748 Times in 391 Posts
Originally Posted by redcon1 View Post
You are talking about the touch point dimensions, not changing the frame geometry. Rake/Trail, Wheelbase, Chainstay length are all different between your Emonda/Domane. Different geometry, and different handling characteristics... incremental, to be sure, but definitely different.
Excellent point. I've had the same touch point fit on four different bikes, 2018 Fuji Transonic, 2019 Tarmac SL6, 2020 Giant Defy, and now a 2021 SuperSix Evo. All four bikes rode/handled differently, even tho my "fit" was the same. And none of them handle like the SuperSix, geometry definitely matters.
Rides4Beer is offline
Likes For Rides4Beer:
Old 03-17-21, 10:18 AM
  #21
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 6,660

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 2586 Post(s)
Liked 1,262 Times in 924 Posts
Originally Posted by DaveSSS View Post
Please back up this opinion with some links that compare the geometry of a race frame to an endurance model, in the same brand. About 95% of a longer head tube length goes directly to stack height. A relaxed fit is more upright with a taller stack and often a shorter reach. The steering trail might also be larger. Some brands add 20mm to the stack and others may add up to 40mm.
I probably can't. My thinking on the subject comes from things back in the old days before websites we know today. We just didn't do an archie search for such stuff even when the 90's brought us a popular search engine.

I do have to admit that the overwhelming degree of specializing and categorizing things today is probably against me. But still I'll don't see a road race bike any less endurance than road bike frames only categorized as endurance.

What is or isn't endurance is the fit. A person that is properly fitted on either can be comfortable for a long time to endure the miles ahead. The moniker of endurance is another misleading term to me that make newbs and uninformed automatically think that an aggressive position is uncomfortable. Just as race itself makes many think that position isn't for them. So there gets to be a stigma with the terms that sub-consciously keep people away from one or the other for the wrong reasons.

Head tube length really only plays a part in stack as you go bigger in frame size of the same model bike. Endurance bikes in their geometry typically get part of their extra stack by having more BB drop. The less reach part also gets handled by head tube angle, where not much makes a big difference to reach and wheel base. Fork design also make head tube length not so important to stack. a fork with more crown and longer blades will let you get more stack with a more normal looking head tube size.

The old vintage frame geometries, had bikes with long head tube and high stack. But they were also very large for anyone bike frame. Bike manufacturers started changing geometries up when they noticed people had started shoving longer seat posts in them and using much smaller frames than suggested sizing so they could get the low stack they wanted for their size. And they road them on long rides that were called endurance rides. That is the time when road bikes also began to take on the same meaning and also became known as endurance bikes. Maybe just for me and my thinking only, but there it is.

I'll try not to change the worlds thinking on this so much any more, just so we get past this. But please don't tell me that endurance means I'll be more comfortable on long rides than a properly fitted road bike with a race fit.

Last edited by Iride01; 03-17-21 at 10:22 AM.
Iride01 is offline
Old 03-17-21, 10:53 AM
  #22
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,336

Bikes: TWO Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 282 Times in 223 Posts
Originally Posted by Iride01 View Post
I'll try not to change the worlds thinking on this so much any more, just so we get past this. But please don't tell me that endurance means I'll be more comfortable on long rides than a properly fitted road bike with a race fit.
That's exactly what the manufacturers are telling their customers. An enduranance bike's geometry is NOT intended to produce the same fit as a race bike. It's intended to have less reach and drop. Not everyone wants a race fit. I rarely see people posting pictures of bike's with the 10cm saddle to bar drop that I use. For a 5'-6" rider, that a lot of drop. More often, I see a stack of spacers and a positive rise stem. At age 67, I'm fine with my race fit for up to 3.5 hours, but if I was riding centuries, or any longer casual paced rides, I'd use less saddle to bar drop.

A common mistake is thinking that BB drop affects the stack. It does not, since stack is measured from the center of the BB.

Last edited by DaveSSS; 03-17-21 at 11:00 AM.
DaveSSS is offline
Old 03-17-21, 08:18 PM
  #23
scott967
Senior Member

Join Date: Oct 2013
Location: Oahu, HI
Posts: 1,282

Bikes: 89 Paramount OS 84 Fuji Touring Series III New! 2013 Focus Izalco Ergoride

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 248 Post(s)
Likes: 0
Liked 39 Times in 32 Posts
But most marketed "endurance" bikes also feature more compliance, via wider tire, rubber suspension bits, etc. even if you can get identical fit.

scott s.
.
scott967 is offline
Likes For scott967:
Old 03-18-21, 06:32 AM
  #24
redcon1
Senior Member

redcon1's Avatar

Join Date: Aug 2008
Location: South Central PA
Posts: 450

Bikes: Gary Fisher X-Caliber, Focus Arriba, Specialized Roubaix Expert

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 45 Times in 33 Posts
Originally Posted by Iride01 View Post

I do have to admit that the overwhelming degree of specializing and categorizing things today is probably against me. But still I'll don't see a road race bike any less endurance than road bike frames only categorized as endurance.

I'll try not to change the worlds thinking on this so much any more, just so we get past this. But please don't tell me that endurance means I'll be more comfortable on long rides than a properly fitted road bike with a race fit.
(I believe that I read you have ridden both your Tarmac and a comparable Roubaix). Whether or not you think one is more 'comfortable'-- a completely subjective opinion- is irrelevant. I have ridden both a new Tarmac and I purchased my new Roubaix - partly because of 'comfort' - and my definition of that, for me. But based on the frame geometries, there were real-world handling differences between the T and the R that were very noticeable-- due to the objective differences between the two, and based on the Geometry differences of the frame/fork. Did you notice any on your test rides? How many miles did you put on each?

The fact you can't see a difference is your problem - not everyone else's. The clear distinction exists--whether or not you acknowledge it, or even perceive it.

Last edited by redcon1; 03-18-21 at 07:10 AM.
redcon1 is offline
Old 03-18-21, 06:54 AM
  #25
colnago62
Senior Member

Join Date: Aug 2014
Posts: 2,331
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 330 Times in 199 Posts
Trek’s Project One used to allow buyers to choose a head tube height. People have different levels of flexibility and body dimensions. What one finds comfortable, another might not. I am not sure what the real argument is but a taller head tube does not automatically make a bike an endurance bike. Really, any bike you race is a race bike. I believe Thor Hushvold rode a Roubaix for awhile.
colnago62 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
