Di2 Ultegra 6870 parts

Old 05-11-21, 04:52 AM
  #1
AngelPedaller
Junior Member
Thread Starter

Join Date: May 2021
Posts: 14

Bikes: Giant Defy 3, Cannondale CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Di2 Ultegra 6870 parts

Hi team,

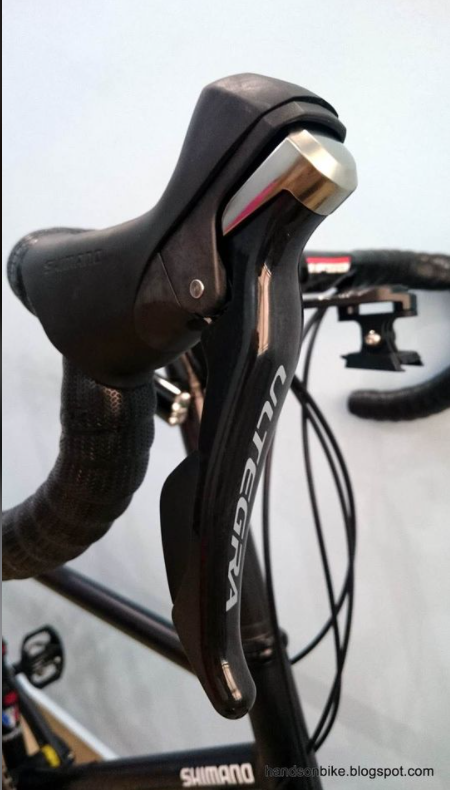

I found the below shifters in Marketplace for 100EUR and I was wondering what else I need to make it a complete Groupset. I understand the standard parts like Derailleurs, brakes and Crank set but I believe there is more (cables, batteries etc.). I am running on brand new R7000 105 full group set (bought as one set) so does it worth the change or can I make any mix of the two?

Thank you


AngelPedaller is offline
Old 05-11-21, 09:06 AM
  #2
MidTNBrad
Senior Member

Join Date: Mar 2017
Location: Franklin, TN
Posts: 345

Bikes: 2016 Cervelo R3 & 1999 Litespeed Tuscany

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 89 Times in 49 Posts
I have Ultegra 6870 on my bike and it works great. It came that way so I didn't build it myself, though. My advice is to go to the Shimano Technical Document web site here. In the search bar type in 6870 and look for document DM-UL0001-04-ENG.pdf. That's the dealer's manual on setup. Starting around page 17 it shows you all of the electronic bits you need to be concerned with and how to wire them up. Crank, brakes, casette, chain, etc... are standard stuff and don't necessarily need to be replaced.

--Brad
MidTNBrad is offline
Likes For MidTNBrad:
Old 05-11-21, 09:24 AM
  #3
colnago62
Senior Member

Join Date: Aug 2014
Posts: 2,362
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 702 Post(s)
Liked 351 Times in 208 Posts
In terms of equipment to switch to di2, you are only at the tip of the iceberg. Derailleurs, cables, battery, junction box, charger is all I can think off the top of my head.
colnago62 is offline
Old 05-11-21, 10:56 AM
  #4
popeye
Senior Member

Join Date: Nov 2004
Location: Newport Beach, CA
Posts: 1,734

Bikes: S works Tarmac, Felt TK2 track

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Liked 95 Times in 67 Posts
Add up what all the parts cost compared to a grey market group set. In the past it was 50% pre-covid.
popeye is offline
Likes For popeye:
Old 05-12-21, 01:00 AM
  #5
AngelPedaller
Junior Member
Thread Starter

Join Date: May 2021
Posts: 14

Bikes: Giant Defy 3, Cannondale CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Originally Posted by MidTNBrad View Post
I have Ultegra 6870 on my bike and it works great. It came that way so I didn't build it myself, though. My advice is to go to the Shimano Technical Document web site here. In the search bar type in 6870 and look for document DM-UL0001-04-ENG.pdf. That's the dealer's manual on setup. Starting around page 17 it shows you all of the electronic bits you need to be concerned with and how to wire them up. Crank, brakes, casette, chain, etc... are standard stuff and don't necessarily need to be replaced.
Thank you very much,
Great document but I am already lost with the junction boxes.
Can you give me a list of items and codes that your bike has in order to get a start?

Originally Posted by colnago62 View Post
In terms of equipment to switch to di2, you are only at the tip of the iceberg. Derailleurs, cables, battery, junction box, charger is all I can think off the top of my head.
This is what I am afraid of. I checked the document from Shimano given by MidTNBrad and I got lost.
If I get the derailleurs and the shifters, what is in the middle? (for a simple setup)on CAAD12. Anyone has part codes?

Last edited by AngelPedaller; 05-12-21 at 01:04 AM.
AngelPedaller is offline
Old 05-12-21, 04:29 AM
  #6
Greatestalltime
Senior Member

Greatestalltime's Avatar

Join Date: Apr 2013
Posts: 246

Bikes: Tcr advanced sl & Protos

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 99 Post(s)
Liked 39 Times in 24 Posts
Originally Posted by AngelPedaller View Post
Thank you very much,
Great document but I am already lost with the junction boxes.
Can you give me a list of items and codes that your bike has in order to get a start?


This is what I am afraid of. I checked the document from Shimano given by MidTNBrad and I got lost.
If I get the derailleurs and the shifters, what is in the middle? (for a simple setup)on CAAD12. Anyone has part codes?
Wires, the battery ( BT-DN110), and junction A and B.

Get the d-fly wireless junction which makes possible using the app to make software updates to your parts and tune the system. This will serve as your b junction which connects your front and rear mech to your battery and to your junction A and the shifters.

As long as they are all connected—they work.

The RS-910 bar end junction is my preference as the A junction and “control center”
Greatestalltime is offline
Old 05-12-21, 09:18 AM
  #7
MidTNBrad
Senior Member

Join Date: Mar 2017
Location: Franklin, TN
Posts: 345

Bikes: 2016 Cervelo R3 & 1999 Litespeed Tuscany

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 89 Times in 49 Posts
Here are the part numbers I have on my bike, both the ones that came with it at purchase time and what's currently on it now (I have only replaced the battery). This doesn't include the wires to connect everything together. Hope this helps.

MidTNBrad is offline
Old 05-12-21, 09:54 AM
  #8
AngelPedaller
Junior Member
Thread Starter

Join Date: May 2021
Posts: 14

Bikes: Giant Defy 3, Cannondale CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Originally Posted by MidTNBrad View Post
Here are the part numbers I have on my bike, both the ones that came with it at purchase time and what's currently on it now (I have only replaced the battery). This doesn't include the wires to connect everything together. Hope this helps.

Missing part is "Shimano SM-JC41 Junction Box for Di2"
For wires, I see in the manual that all are the same except the RD connecting one which has EW-SD50(-I) designation. I presume however that it is no different than the others as I couldn't find anything on internet with this designation.
For the rest I see they are the same only with different lengths were I have to measure and order accordingly.

Thank you all very much for the effort. I go now seeking and see what I can find (and how much) as long as the shifters are not sold also...
Cheers to all

Last edited by AngelPedaller; 05-12-21 at 10:01 AM.
AngelPedaller is offline
Old 05-17-21, 01:37 AM
  #9
TerryDi2C
Di2 fanatic

TerryDi2C's Avatar

Join Date: Aug 2019
Location: The Netherlands
Posts: 93
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 29 Times in 19 Posts
EW-SD50-I is not actually an electric wire - it's a pack of Di2 "cable ties" that can be used to stop the wires from rattling around (in the downtube for example) ;-)
TerryDi2C is offline
Likes For TerryDi2C:
Old 05-17-21, 01:56 AM
  #10
Kabuto
Senior Member

Kabuto's Avatar

Join Date: Jul 2017
Location: Far East
Posts: 203
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 44 Times in 31 Posts
Originally Posted by AngelPedaller View Post
I am running on brand new R7000 105 full group set (bought as one set) so does it worth the change or can I make any mix of the two?
A brand new R7000 105 full group set is pretty damn good. Unless you absolutely must have electronic shifting, just save your money and stick with R7000. Even better, spend the money you saved by sticking with R7000 on a new jersey, bib shorts, shoes, and... you get the idea
Kabuto is offline
Likes For Kabuto:
Old 05-17-21, 09:11 AM
  #11
AngelPedaller
Junior Member
Thread Starter

Join Date: May 2021
Posts: 14

Bikes: Giant Defy 3, Cannondale CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
no you are right. I just did a market research since I found the shifters for 100EUR. I cannot find the rear derailleur used ANYWHERE on a decent price so project is already aborted... the guy who has the shifters eventually cracked and admitted that he bought them hoping to find the parts but...
I almost got in his position...

Last edited by AngelPedaller; 05-17-21 at 12:06 PM.
AngelPedaller is offline
Old 05-18-21, 05:24 AM
  #12
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,116

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1162 Post(s)
Liked 432 Times in 312 Posts
For the bare minimum required to do Di2, you could check out this thread. Derailers, shifters, battery, A-junction, 3 wires and a bunch of soldering.
