Wahoo Speedplay Zero - Spring Quality Issue

Notices
Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Wahoo Speedplay Zero - Spring Quality Issue

Old 05-29-21, 11:06 AM
  #1
jstluise
Member
Thread Starter

Join Date: Mar 2011
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Wahoo Speedplay Zero - Spring Quality Issue

I wanted to share an issue I discovered with my new set of Wahoo Speedplay Zero pedals. This is my first set of Speedplays so I was excited to try them out, but it looks like that will have to wait. I installed the cleats and pedals by the book (proper shims to ensure a flat base plate, all bolts torqued per spec) but when it came time to clip in I had a heck of a time. My right foot was the worst - I could only get it a successful clip-in every 10 or so tries. Figured it was my lack of technique, but I was able to get much better results with my left foot by clipping in nearly every try.

I did some quick research and it seems improper shims and overtightening were the main reasons for people struggling to clip in. I suspect either of these situations would bind the spring. However, I checked mine and the spring was free to move within the housing just fine. A little more troubleshooting and I noticed the spring on my right foot (problem foot) did not seem to open as far as the spring on the left. I disassembled the housing and discovered the right-side spring had an extra feature on the outside that was not removed during manufacturing (see image below). This was hitting the housing and preventing the spring from fully opening.

Anyway, this would be worth checking if you run across this thread and are having similar issues. I could probably get away carefully grinding (slowly, keeping it cool) away the extra bit, but I'll just wait for a replacement.

jstluise is offline
Likes For jstluise:
Old 05-29-21, 03:27 PM
  #2
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 7,957

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 4277 Post(s)
Liked 1,242 Times in 817 Posts
So nothing wrong with the pedals? It's the cleats? Did you query Wahoo directly, or just wherever you bought them?
Sy Reene is offline
Old 05-30-21, 08:05 AM
  #3
jstluise
Member
Thread Starter

Join Date: Mar 2011
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Sy Reene View Post
So nothing wrong with the pedals? It's the cleats? Did you query Wahoo directly, or just wherever you bought them?
Nothing wrong with the pedals. The defect is on one of the cleat springs. I did send a message off to Wahoo just for their awareness, but I'll likely just exchange them with the local retailer I purchased them from for a quicker turnaround.
jstluise is offline
Old 05-30-21, 08:11 AM
  #4
Bald Paul
Senior Member

Bald Paul's Avatar

Join Date: Sep 2017
Location: Upstate SC
Posts: 1,022
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 476 Post(s)
Liked 934 Times in 432 Posts
Good catch. I hope they will exchange/replace the spring without any issues for you.
I just switched from Shimano SPD-SL pedals to the Wahoo Speedplay. Very happy with them!
Bald Paul is offline
Old 05-30-21, 01:33 PM
  #5
bruce19
Senior Member

bruce19's Avatar

Join Date: Jul 2006
Location: Lebanon (Liberty Hill), CT
Posts: 8,207

Bikes: CAAD 12, MASI Gran Criterium S, Colnago World Cup CX & Guru steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 1621 Post(s)
Liked 1,096 Times in 639 Posts
Thank you for posting. I am a long time Speedplay Zero user. This could save me a lot of time figuring out a problem.
bruce19 is offline
Old 05-30-21, 08:02 PM
  #6
jstluise
Member
Thread Starter

Join Date: Mar 2011
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Bald Paul View Post
I just switched from Shimano SPD-SL pedals to the Wahoo Speedplay. Very happy with them!
Don't laugh, but I'm coming from eggbeaters with not so stiff mtb shoes, so I'm definitely looking forward to the improved performance!

Originally Posted by bruce19 View Post
Thank you for posting. I am a long time Speedplay Zero user. This could save me a lot of time figuring out a problem.

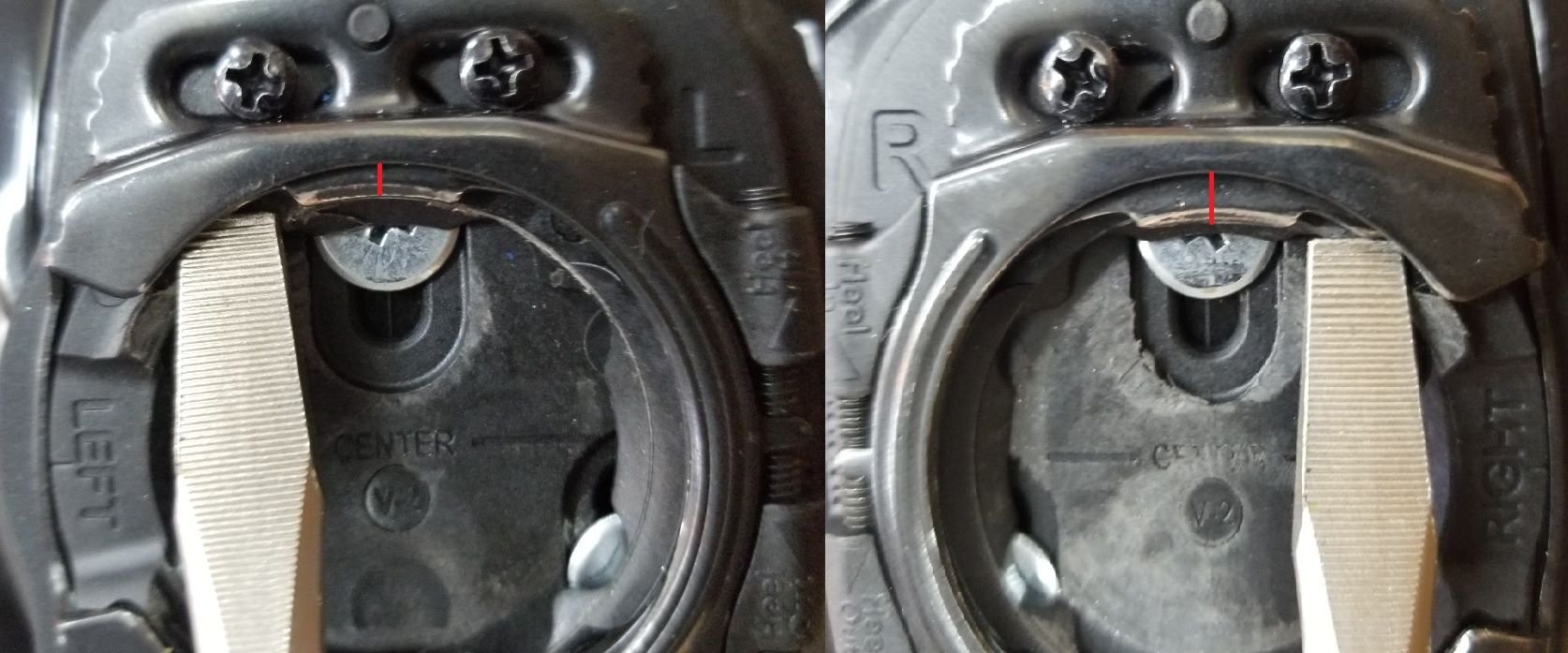

Here's a picture of the left and right cleat with the spring depressed with a screwdriver. You can see the defective right cleat spring doesn't move into the housing as far as the left (i.e. doesn't open as far to accept the pedal). I added the red lines to show the difference. Depressing the spring on any Speedplay cleat install is probably a good idea, mainly to make sure the spring isn't binding in the housing from improper shims or bolt torques. But it would also expose an issue like mine.

jstluise is offline
Old 05-30-21, 08:53 PM
  #7
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,456

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1473 Post(s)
Liked 688 Times in 486 Posts
Chuck it in a vise and hit it with a file, piece of piss.
Kimmo is offline
Likes For Kimmo:
