Silver's Custom CNC Wood Road Bike Project

Hi all,

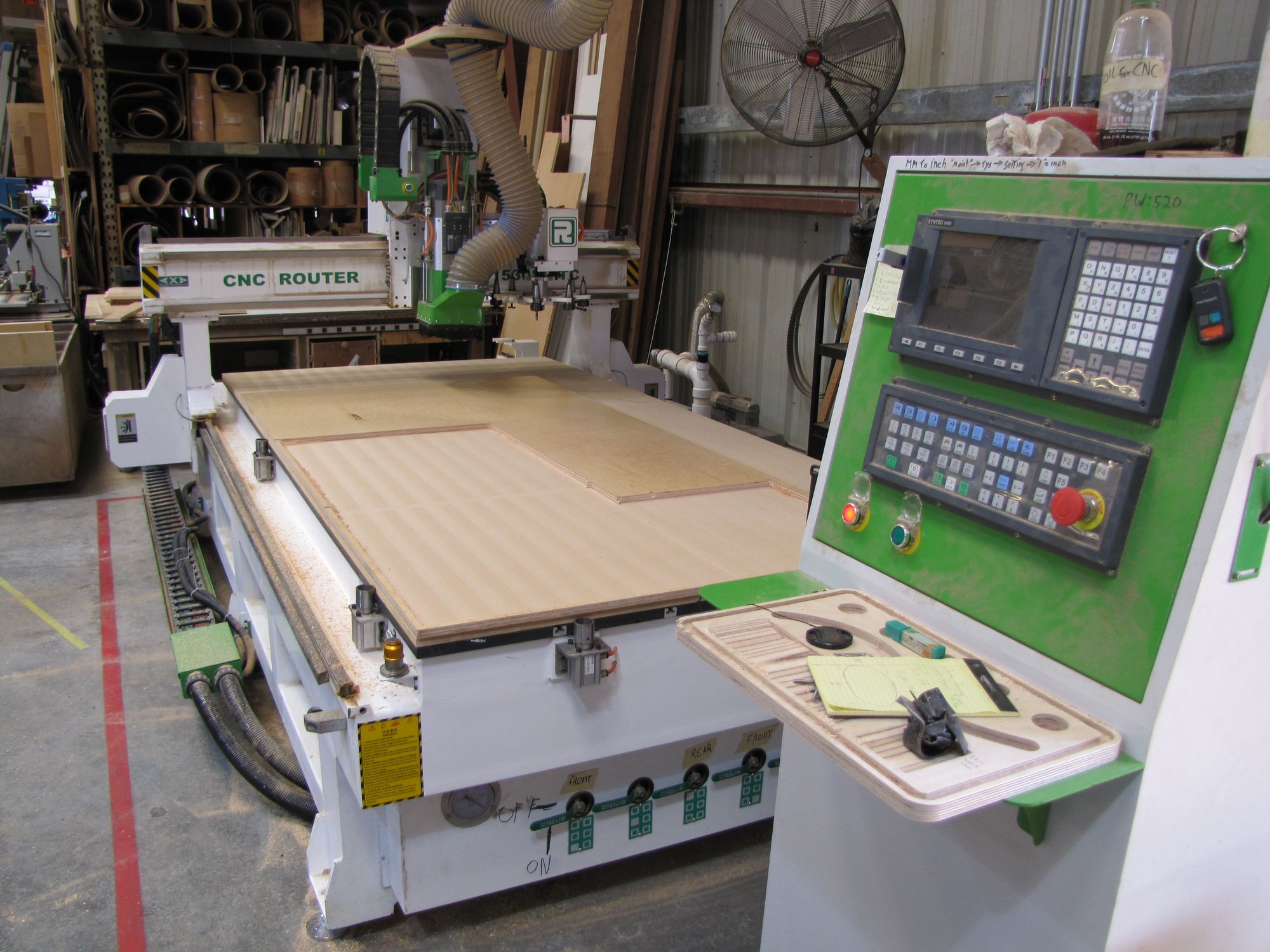

I am starting a custom road bike project. I started working at a wood shop recently and they have a large Roctech 1530ATC CNC machine. I am going to design, fabricate and build a wood road bike. Frame, forks, cranks, wheels, all planned to be made from wood. The bike will be belt drive with standard Shimano or similar components like disc brakes, Alfine rear hub, pedals etc. The design is unique, intended to be something unusual, functional, and still uphold performance characteristics of strength, weight, and quality. This thread will follow the development of the bike from start to finish.

I have been an engineer for years and will implement things like CAD design, FEA stress simulation for rigidity and strength, CNC programming, and various wood assembly methods. I am far from a bike expert, but have enough experience with bikes to get by and there will be learning along the way. Feel free to offer suggestions, constructive criticism, and just enjoy along the way.

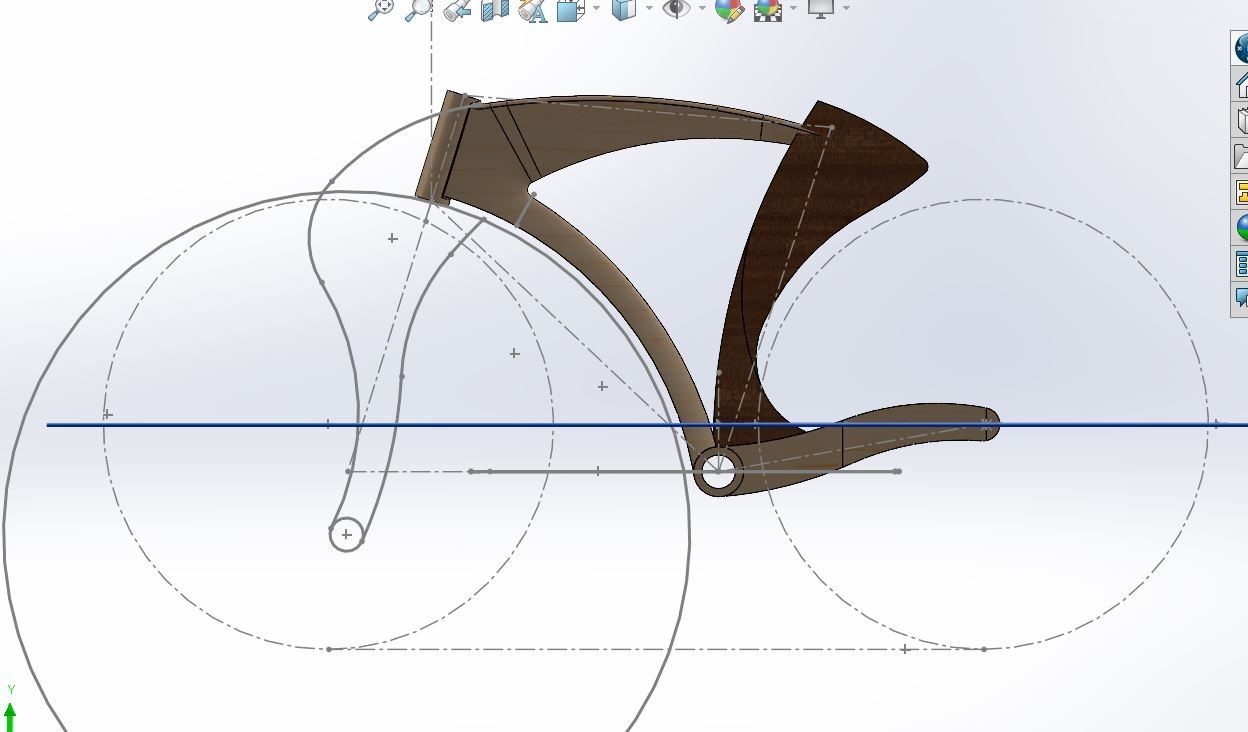

Just starting the CAD model attached.


Starting the CAD design

Last edited by SilversSpeed; 09-30-21 at 12:55 PM.
SilversSpeed is offline
Old 09-30-21, 12:26 AM
  #2
Symox
Senior Member

Join Date: Jul 2020
Posts: 408

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 202 Post(s)
Liked 115 Times in 70 Posts
Great idea and interesting project. However I suspect you will be better served using conventional wheels as they rely on tension of spokes to build up strength- something you likely can't do with wood. I suggest Jobst Brandt's classic Wheelbuilding book. You might be able to make the rims out of wood but the spokes likely need to be metal.
Symox is offline
Old 09-30-21, 12:29 AM
  #3
Symox
Senior Member

Join Date: Jul 2020
Posts: 408

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 202 Post(s)
Liked 115 Times in 70 Posts
i also suspect the drivetrain components will be more effective in metal due to the stresses involved.

The frame and fork I see no reason why it can't be made from wood.
Symox is offline
Old 09-30-21, 12:56 AM
  #4
Dean V
Senior Member

Join Date: Oct 2009
Posts: 2,813
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Likes: 0
Liked 227 Times in 135 Posts
Renovo made some very nice looking wooden frames.
Seems they are no longer in business now.
Dean V is offline
Old 09-30-21, 01:18 PM
  #5
SilversSpeed
Junior Member
Thread Starter

Join Date: Jul 2021
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 6 Times in 3 Posts
Originally Posted by Symox View Post
Great idea and interesting project. However I suspect you will be better served using conventional wheels as they rely on tension of spokes to build up strength- something you likely can't do with wood. I suggest Jobst Brandt's classic Wheelbuilding book. You might be able to make the rims out of wood but the spokes likely need to be metal.

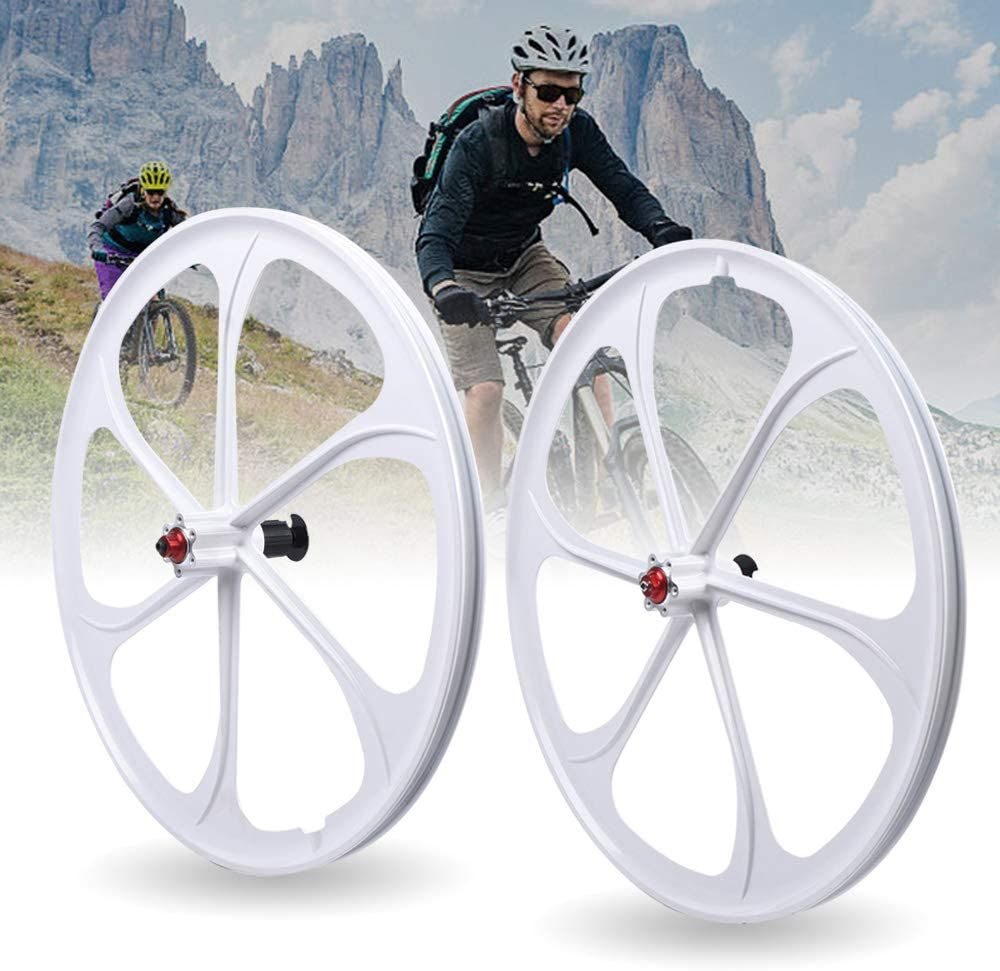

I will look into the book! I plan to build full wood wheels that are non-spoked. Also, all high ware/stress components like crank spindle, hubs, and neck will be metal or standard Shimano components. The wheels will be something similar to this:

SilversSpeed is offline
Old 10-02-21, 09:43 PM
  #6
jayp410
Senior Member

Join Date: Aug 2009
Location: Germantown, MD
Posts: 357
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 21 Times in 14 Posts
I've worked with wood enough as a tinkerer (I'm not quite an amateur woodworker, but have made quite a few odds and ends out of wood). I'm not convinced that this concept will work, as the biggest challenge would be splitting of the end grain, particularly in areas of high forces close to the exiting end grain, such as bottom bracket and axles. The rest of the frame would worry me as well, where it curves, due to end grain exiting there as well. Wood has decent compression and tensile stength, but very little strength against delamination. Some species are better than others, obviously - would need a fine grained wood for sure, like maple perhaps? I wish you luck though, and it will be worthwhile as an experiment and a work of art at least.
jayp410 is offline
Old 10-02-21, 09:47 PM
  #7
bampilot06
Senior Member

Join Date: Dec 2019
Location: 757
Posts: 4,405

Bikes: Cervélo C2, Ritchey Breakaway

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3855 Post(s)
Liked 1,779 Times in 778 Posts
seems sweet, can’t wait to see the finished model.
bampilot06 is offline
Old 10-03-21, 07:59 AM
  #8
waters60
Senior Member

waters60's Avatar

Join Date: Sep 2010
Posts: 465
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 67 Times in 37 Posts
The material for nearly all of this project needs to be laminated wood. There may be a couple of places where non-laminated wood will work but the strength for most of this needs to be multi directional and regular wood does not have that.
waters60 is offline
Old 10-03-21, 10:43 AM
  #9
Zaskar
Senior Member

Join Date: Sep 2008
Posts: 593
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 146 Times in 92 Posts
My only advice: Don't get the wood from Home Depot or Lowes ;-)

Seriously, this looks like a very cool project - I'm along for the ride!
Zaskar is offline
Old 10-04-21, 11:04 PM
  #10
SilversSpeed
Junior Member
Thread Starter

Join Date: Jul 2021
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 6 Times in 3 Posts
Originally Posted by waters60 View Post
The material for nearly all of this project needs to be laminated wood. There may be a couple of places where non-laminated wood will work but the strength for most of this needs to be multi directional and regular wood does not have that.
I have 2 versions I plan to make, 1 is a plywood based version that is made from multi-directional hardwood plywood. Likely marine grade plywood or similar. That will be easier to setup and machine, also to work out any errors. Then a hardwood version which is made from sections of solid high quality hardwood like maple or sapele. The wood will be oriented to consider the directional strength variation of the wood.
SilversSpeed is offline
Old 10-05-21, 07:42 AM
  #11
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,521

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6551 Post(s)
Liked 1,661 Times in 914 Posts
Enough on the BF. Get thee to thy mill, craftsman. We want to see progress pictures.

Seriously hope you do keep us updated. Really interesting project.
Maelochs is offline
Old 10-05-21, 10:55 AM
  #12
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,479

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 558 Post(s)
Liked 619 Times in 346 Posts
I'm very interested in how this turns out - however, don't overestimate the capabilities of wood. For example, I honestly don't see how you can make wood cranks that won't simply splinter on the first hill - there just won't be enough material of sufficient hardness at the stress points (BB and pedal attachments) unless you radically reimagine what a crank looks like.
Years ago I made a new rudder for my racing dinghy - solid teak, slim, smooth - a thing of beauty. Other sailors (who knew better) regarded this work of art with some skepticism. Long story short - it snapped tight off on the first decent wind and we had to be towed in. The next rudder was a big thick piece of marine ply - not pretty, but up to the task at hand.
Litespud is offline
Old 10-05-21, 02:41 PM
  #13
SilversSpeed
Junior Member
Thread Starter

Join Date: Jul 2021
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 6 Times in 3 Posts
Understood, I am aware of the strength concerns and will design accordingly. The cranks are going to be hybrid aluminum and wood. The spindle mounts and pedal mounts will be aluminum, and the crank reinforced with a metal plate. Things like the wheel mounts will also be aluminum.
SilversSpeed is offline
Old 10-08-21, 08:47 PM
  #14
SilversSpeed
Junior Member
Thread Starter

Join Date: Jul 2021
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 6 Times in 3 Posts

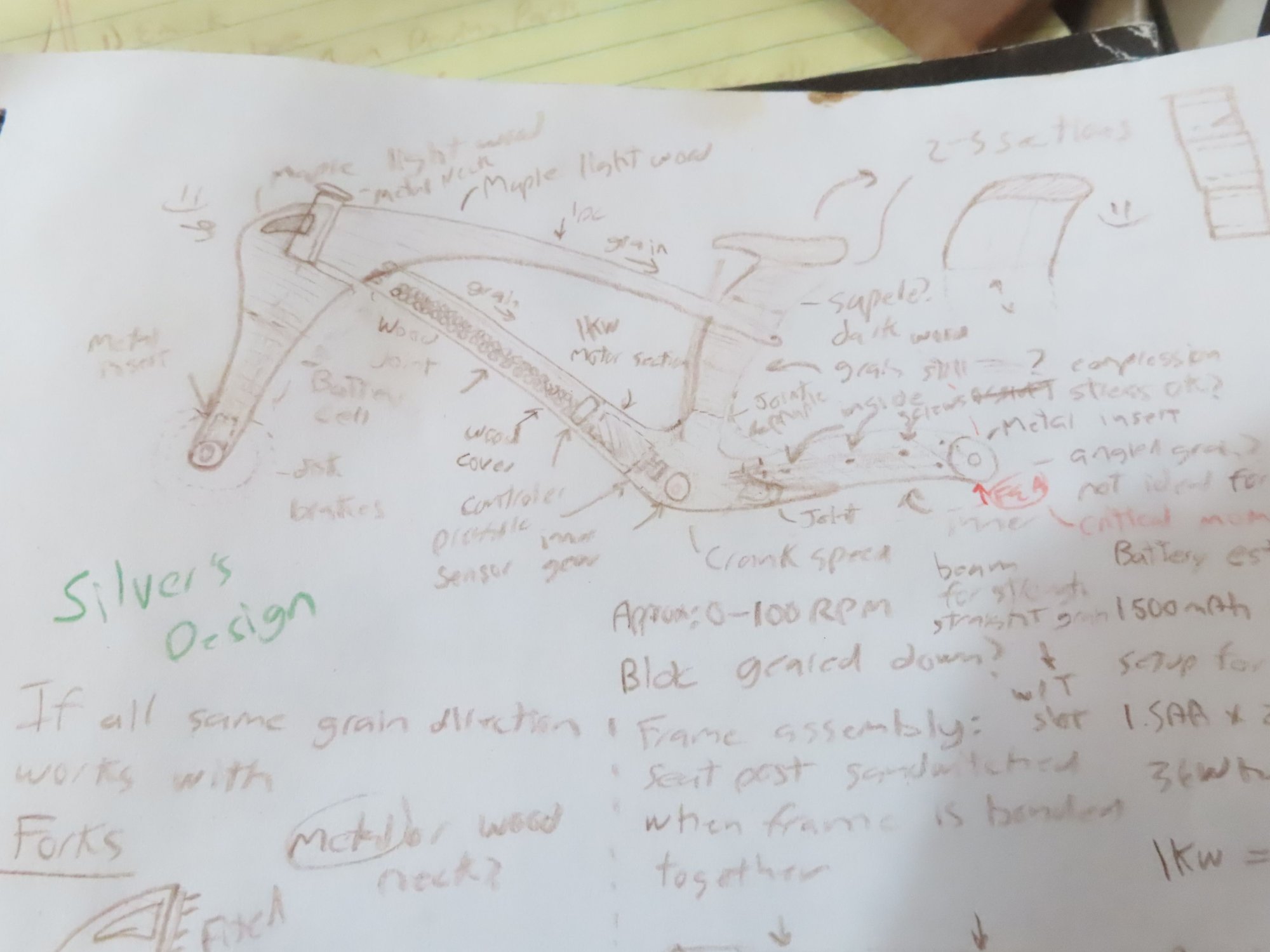

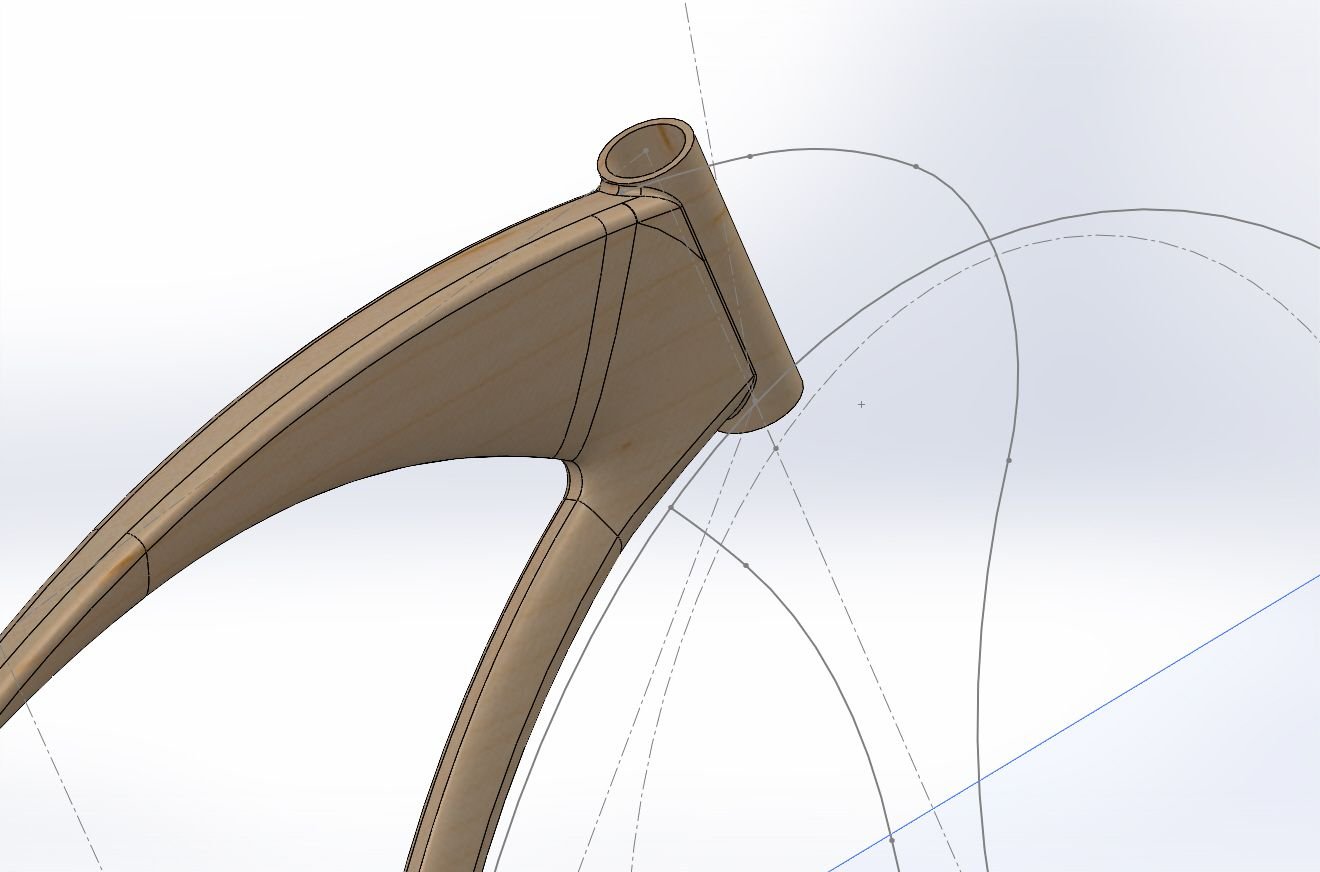

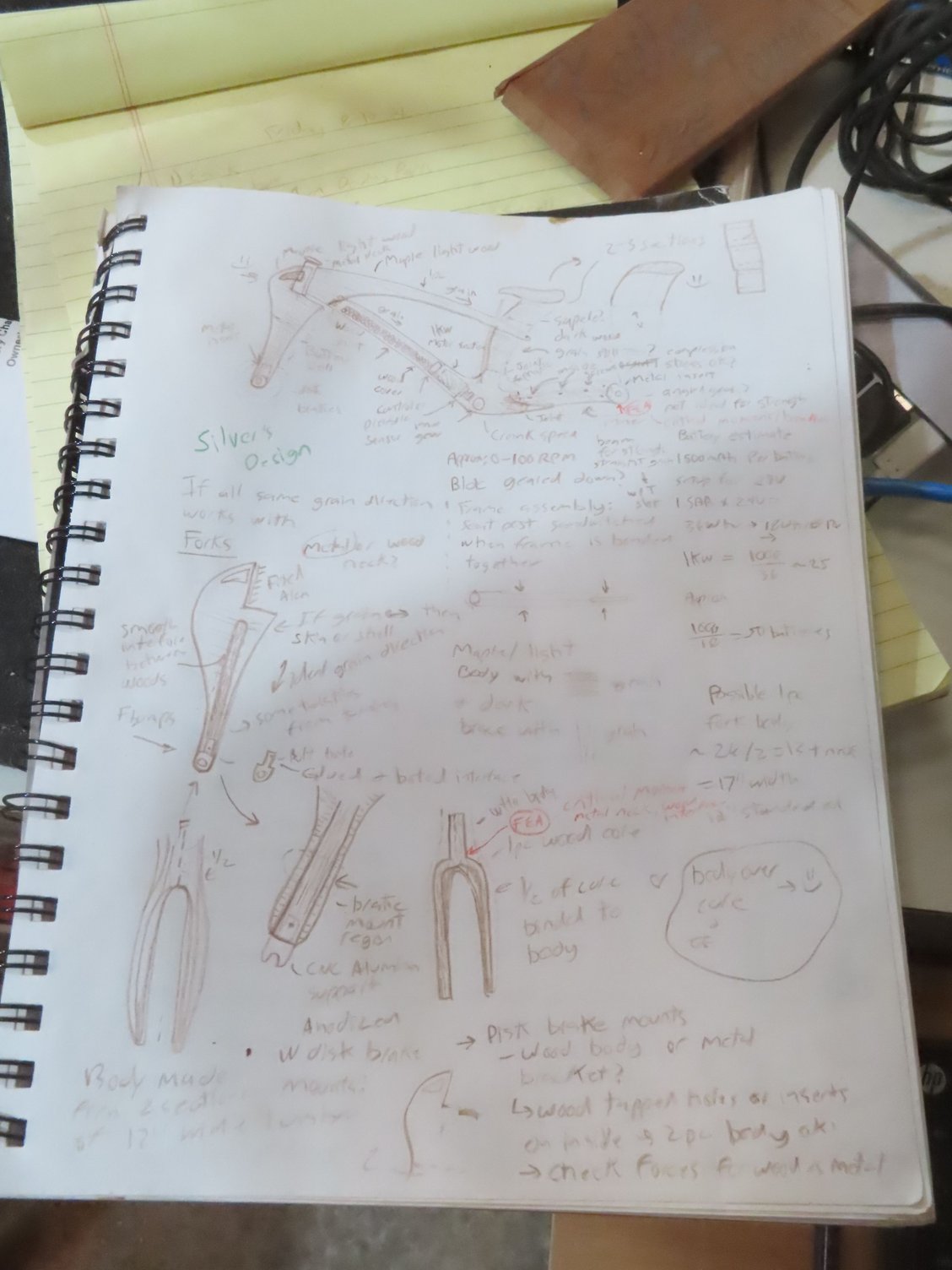

Update

Progress update

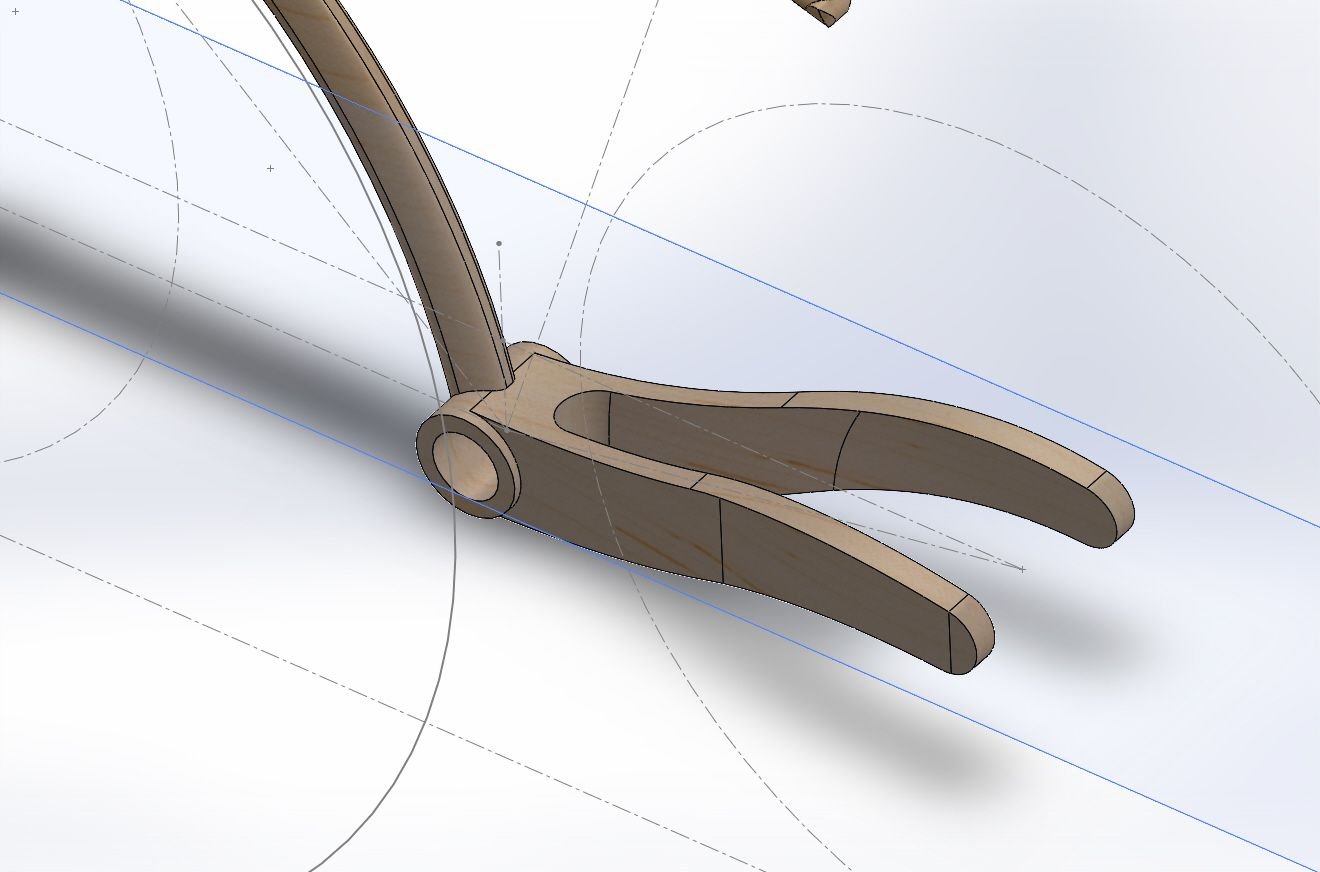

I've spend a lot of time trying to figure out how to shape the spindle section. Because of the frame design, it requires some wide supports at the base for the chain stays. I am working on a geometry that is strong but doesn't look bulky. Also adding curvature to the base shape of the frame. Also see some of the original hand drawings and details. The Bike will have integrated headlights, and tail lights. Also a picture of the large 5'x10' bed CNC machine.







Last edited by SilversSpeed; 10-11-21 at 07:42 PM.
SilversSpeed is offline
Likes For SilversSpeed:
Old 10-09-21, 07:01 PM
  #15
Carbonfiberboy
just another gosling

Carbonfiberboy's Avatar

Join Date: Feb 2007
Location: Everett, WA
Posts: 17,868

Bikes: CoMo Speedster 2003, Trek 5200, CAAD 9, Fred 2004

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 3114 Post(s)
Liked 1,027 Times in 778 Posts
I've designed and built a number of high speed wood watercraft. I started with some known stresses and the DA Wood Handbook and just calculated the heck out of it. I suspect that there's no published stress data for road bikes. You might think about reverse engineering a metal road bike, cutting it up to get sections. Wood isn't isotropic which is both its huge advantage and the difficulty of engineering with it. Grain direction and species are very important. Custom carbon is much easier because on can simply add tows if an area isn't stiff enough. Wood is a little bulky for that.
__________________
Results matter
Carbonfiberboy is online now
Old 10-10-21, 07:00 PM
  #16
Maelochs
Senior Member

Maelochs's Avatar

Join Date: Oct 2015
Posts: 13,521

Bikes: 2015 Workswell 066, 2017 Workswell 093, 2014 Dawes Sheila, 1983 Cannondale 500, 1984 Raleigh Olympian, 2007 Cannondale Rize 4, 2017 Fuji Sportif 1 LE

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 6551 Post(s)
Liked 1,661 Times in 914 Posts
Dude, you had all weekend .... I expected you to be done by now. Where are the pics?
Maelochs is offline
Old 10-10-21, 10:41 PM
  #17
jayp410
Senior Member

Join Date: Aug 2009
Location: Germantown, MD
Posts: 357
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 21 Times in 14 Posts
One thing that could help with strength (if you don't mind the appearance) is to layer over the wood with thin fiberglass / epoxy in places. They use fiberglass over things like canoe paddles and wooden boats to keep the wood from splitting. I've used 4 oz / yd fiberglass, and when wet out with clear epoxy, it becomes almost transparent with 1 layer, and slightly more translucent with 2 layers. I believe they make even lighter fiberglass (but I haven't used anything lighter than 4 oz). Something like that would affect the finish though. Also, would want to use UV-resistant epoxy if doing that.

Last edited by jayp410; 10-10-21 at 10:45 PM.
jayp410 is offline
Old 10-10-21, 11:21 PM
  #18
znomit
Zoom zoom zoom zoom bonk

znomit's Avatar

Join Date: Sep 2006
Location: New Zealand
Posts: 4,351

Bikes: Giant Defy, Trek 1.7c, BMC GF02, Fuji Tahoe, Scott Sub 35

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 503 Times in 253 Posts
Originally Posted by Maelochs View Post
Dude, you had all weekend .... I expected you to be done by now. Where are the pics?
CNC machine... should be riding the fourth prototype surely.
znomit is offline
Old 10-11-21, 12:14 PM
  #19
Carbonfiberboy
just another gosling

Carbonfiberboy's Avatar

Join Date: Feb 2007
Location: Everett, WA
Posts: 17,868

Bikes: CoMo Speedster 2003, Trek 5200, CAAD 9, Fred 2004

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 3114 Post(s)
Liked 1,027 Times in 778 Posts
Originally Posted by jayp410 View Post
One thing that could help with strength (if you don't mind the appearance) is to layer over the wood with thin fiberglass / epoxy in places. They use fiberglass over things like canoe paddles and wooden boats to keep the wood from splitting. I've used 4 oz / yd fiberglass, and when wet out with clear epoxy, it becomes almost transparent with 1 layer, and slightly more translucent with 2 layers. I believe they make even lighter fiberglass (but I haven't used anything lighter than 4 oz). Something like that would affect the finish though. Also, would want to use UV-resistant epoxy if doing that.
That protects from casual surface damage, but doesn't add strength or stiffness because fiberglass stretches more easily than wood - that is unless you use a lot of it and the wood is just core. Glass and epoxy also adds a good bit of weight.
__________________
Results matter
Carbonfiberboy is online now
Old 10-11-21, 07:45 PM
  #20
SilversSpeed
Junior Member
Thread Starter

Join Date: Jul 2021
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 6 Times in 3 Posts
The bike will be made from wood, certain sections bonded with epoxy. Fiberglass is not in the scope of the project. The wood will get finished with protective clear coat or a hybrid paint/clear scheme. Progress will likely be slow as I have several other projects going on. But I will try to keep a weekly update pace.
SilversSpeed is offline
Likes For SilversSpeed:
