New Saddle Adjustment

Notices
Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

New Saddle Adjustment

Old 02-28-22, 12:07 AM
  #1
TSawyerLV
Junior Member
Thread Starter

Join Date: Mar 2020
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 1 Time in 1 Post
New Saddle Adjustment

My bike fitter put an ISM PL 1.1 on my bike for me to test out. I have had it for a while and I am ready to change it to the saddle that was always the end game - SQ Labs 612 Ergo Active. The problem is my fitter only seems to be available before 3:30pm M-F which doesn’t work with my work schedule.

With the two saddles being shaped so differently, does anyone have any suggestions on how to replace it on my own and put it in the right position?
TSawyerLV is offline
Old 02-28-22, 09:31 AM
  #2
Rdmonster69
Shawn of the Dead

Join Date: Apr 2021
Posts: 578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Liked 448 Times in 216 Posts
I'm just an old rebel that does things by looking. Soooooo ....with that caveat in mind ....if it was me.... I would best guess where my sit bones touch the old saddle and use a tape measure to get the distance from that point to the handlebars. Measure a couple of times to get your best ball park. Translate that number to the seating surface of the other saddle. You will be in the general vicinity and can then adjust as needed till it feels right.

or pay your fitter.

I used a similar method to set up a new build with a slightly different frame size geo and got things very close to the feel of my other bikes. Time and riding will show what changes I need to make.
Rdmonster69 is offline
Old 02-28-22, 10:27 AM
  #3
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,181

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4993 Post(s)
Liked 3,500 Times in 2,427 Posts
Can't you just put it on and then see whether it feels good or not?

If it doesn't feel right then move it a little. Fore, aft, nose up, nose down... your choice.

When you can get time with your fitter, then get to them to see what they think of where you set the saddle position.

Make certain your saddle clamp is for the new saddle. You might can damage the rails.

Last edited by Iride01; 02-28-22 at 10:32 AM.
Iride01 is offline
Old 02-28-22, 10:39 AM
  #4
Rdmonster69
Shawn of the Dead

Join Date: Apr 2021
Posts: 578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Liked 448 Times in 216 Posts
Originally Posted by Iride01 View Post
Can't you just put it on and then see whether it feels good or not?

If it doesn't feel right then move it a little. Fore, aft, nose up, nose down... your choice.

When you can get time with your fitter, then get to them to see what they think of where you set the saddle position.

Make certain your saddle clamp is for the new saddle. You might can damage the rails.
This is what I do after I ball park it with a tape measure. Sometime what "feels right" isn't what one would expect on set up.
Rdmonster69 is offline
Old 02-28-22, 10:48 AM
  #5
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,554

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 606 Post(s)
Liked 945 Times in 614 Posts
Originally Posted by TSawyerLV View Post
My bike fitter...
Don't be afraid, your bike fitter is not ridding your bike. You can always put it back where it was at. Often I have exaggerated and made extreme adjustments to find out where I am at in bicycle fit, and then went back to where I was... And then... There you are... Ha
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Likes For zandoval:
Old 02-28-22, 11:02 AM
  #6
cyclezen
OM boy

cyclezen's Avatar

Join Date: Jul 2005
Location: Goleta CA
Posts: 4,164

Bikes: a bunch

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 434 Post(s)
Liked 508 Times in 352 Posts
Originally Posted by Rdmonster69 View Post
I'm just an old rebel that does things by looking. Soooooo ....with that caveat in mind ....if it was me.... I would best guess where my sit bones touch the old saddle and use a tape measure to get the distance from that point to the handlebars. Measure a couple of times to get your best ball park. Translate that number to the seating surface of the other saddle. You will be in the general vicinity and can then adjust as needed till it feels right.
...
Pretty much, This ^...
I measure from where my sitzbones to the center of the stem cap, but ultimately the length to the bars is the setting you want - but if you're not changing the stem... either is fine.
use a level to measure your current saddle tilt, and translate that to your old saddle, This may slightly change if there's some difference in saddle front/back profiles.
Measure center bottom bracket to top of saddle along the seattube/post or to bottom of level... that gets your seat extension set handgrenade close...
Then tweak...
Ride On
Yuri
cyclezen is offline
Old 02-28-22, 11:25 AM
  #7
TSawyerLV
Junior Member
Thread Starter

Join Date: Mar 2020
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 1 Time in 1 Post
I should have been a little clearer. I have already paid him so the money isn’t an issue. My main issue with scheduling time with him is he rarely has availability during a time when I am off work.

Given the rather odd shape of the saddle currently on my bike, I am wondering if there is a way to get it close. I will look into it this week before the weather gets really nice.
TSawyerLV is offline
Old 02-28-22, 11:51 AM
  #8
Rdmonster69
Shawn of the Dead

Join Date: Apr 2021
Posts: 578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Liked 448 Times in 216 Posts
Originally Posted by TSawyerLV View Post
I should have been a little clearer. I have already paid him so the money isn’t an issue. My main issue with scheduling time with him is he rarely has availability during a time when I am off work.

Given the rather odd shape of the saddle currently on my bike, I am wondering if there is a way to get it close. I will look into it this week before the weather gets really nice.
My post and the other will get you close for sure. Try it ...you may be pleasantly surprised and can save a inconvenient trip until a more convenient time.
Rdmonster69 is offline
Likes For Rdmonster69:
Old 02-28-22, 12:04 PM
  #9
genejockey
Klaatu..Verata..Necktie?

genejockey's Avatar

Join Date: May 2007
Location: SF Bay Area
Posts: 12,910

Bikes: Litespeed Ultimate, Ultegra; Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 7251 Post(s)
Liked 7,731 Times in 3,939 Posts
Originally Posted by Rdmonster69 View Post
I'm just an old rebel that does things by looking. Soooooo ....with that caveat in mind ....if it was me.... I would best guess where my sit bones touch the old saddle and use a tape measure to get the distance from that point to the handlebars. Measure a couple of times to get your best ball park. Translate that number to the seating surface of the other saddle. You will be in the general vicinity and can then adjust as needed till it feels right.

or pay your fitter.

I used a similar method to set up a new build with a slightly different frame size geo and got things very close to the feel of my other bikes. Time and riding will show what changes I need to make.
This. Get the height and fore/aft in the same neighborhood, within a few mm. Set it dead level, unless you know this saddle is meant to be set otherwise. Ride it and try to feel whether you feel like you're either reaching out for the bars or pushing back off them. Feel whether you're having to reach with your toes at the bottom of the stroke or like you're 'flatfooted'. Adjust accordingly. Then adjust your seat angle so you don't feel like your perineum is being crushed when you're in the drops, but not so far nose down that you feel like you have to keep sliding your butt back.
__________________
"Don't take life so serious-it ain't nohow permanent."

"Everybody's gotta be somewhere." - Eccles
genejockey is offline
Old 02-28-22, 02:25 PM
  #10
HookUp
Member

Join Date: Dec 2021
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 8 Times in 5 Posts
Originally Posted by Rdmonster69 View Post
I'm just an old rebel that does things by looking. .
Ditto.

Just fitted a new used bike to my omaph lompah body and it rides nice. Did have to swap out the seat because it had a slit in the middle to cool off lady parts and my man parts kept getting stuck in it.
HookUp is offline
Old 02-28-22, 02:27 PM
  #11
Rdmonster69
Shawn of the Dead

Join Date: Apr 2021
Posts: 578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Liked 448 Times in 216 Posts
Originally Posted by HookUp View Post
Ditto.

Just fitted a new used bike to my omaph lompah body and it rides nice. Did have to swap out the seat because it had a slit in the middle to cool off lady parts and my man parts kept getting stuck in it.
Lol !!! All my seats have the relief down the middle. No man parts getting stuck. Maybe you should quit riding commando !!
Rdmonster69 is offline
Likes For Rdmonster69:
Old 02-28-22, 08:25 PM
  #12
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,554

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 606 Post(s)
Liked 945 Times in 614 Posts
Many or us would ride Commando if we could ride Commando... Ha
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Likes For zandoval:
Old 03-02-22, 07:48 AM
  #13
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,907

Bikes: Cinelli superstar disc, two Yoeleo R12

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 901 Post(s)
Liked 464 Times in 373 Posts
I can usually tell quickly if the reach to the bars feels too close or too far, compared to my previous setup. I've never paid a dime to a fitter. Some believe in KOP. I'm usually further back. Once set, I measure the setback of the saddle nose to the BB center, so I can replicate it on another bike. Last, I record the saddle tip to center of bars dimension. Saddle height above the rails varies too. It's important to check from the BB center to the area where you contact saddle, but there's always some trial and error involved.
DaveSSS is offline
Old 03-02-22, 10:12 AM
  #14
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,181

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4993 Post(s)
Liked 3,500 Times in 2,427 Posts
Originally Posted by zandoval View Post
Many or us would ride Commando if we could ride Commando... Ha
Well some do. Even here in the states!

google naked cycling
Iride01 is offline
Likes For Iride01:
Old 03-02-22, 03:34 PM
  #15
RNAV
Flyin' under the radar

RNAV's Avatar

Join Date: Jun 2010
Location: O'Fallon, IL
Posts: 830

Bikes: '15 LeMond Washoe custom painted, '06 LeMond Croix de fer custom painted, '18 Specialized Crux

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 57 Times in 23 Posts

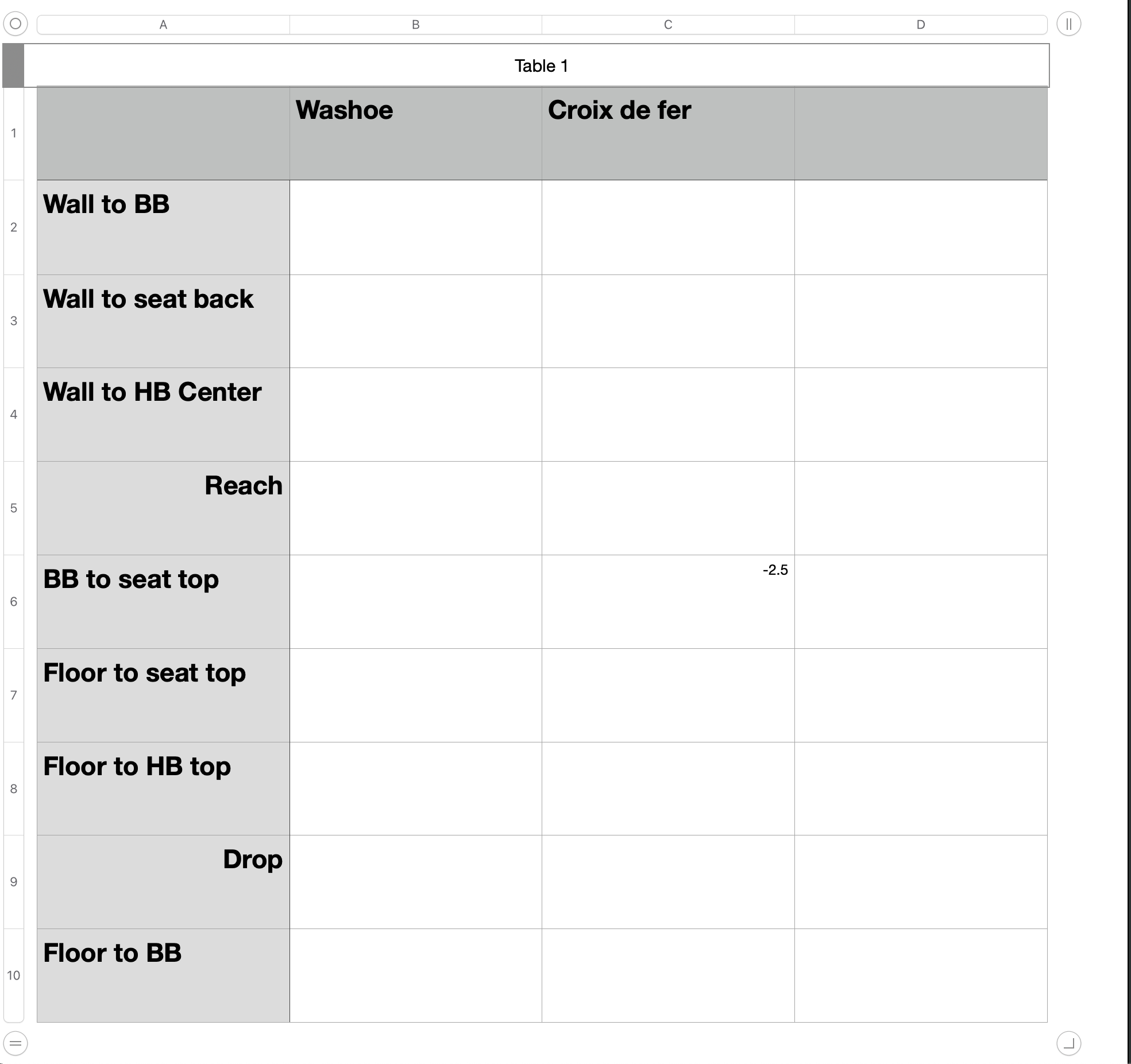

Here's the system I use which enables me to duplicate measurements from one bike to another down to the mm. I stand the bike up vertically and place the rear wheel perpendicular (i.e. right angle) to a wall. All measurements are taken from either the floor or the wall (I can then use the wall to bottom bracket and floor to bottom bracket measurements to compensate for differences in tire size, chain stay length, and bottom bracket drop between different bikes, but that's beyond the scope of what you need).

Since you're using the same bike, all you need to do is mark where on your current saddle your sit bones are located. Measure the distance from the wall to this location (B4 measurement). Measure from the floor to the top of the saddle at your sit bone location (B7 measurement). These are effectively your seat height and setback (X, Y coordinates) measurements.

Then mark approximately where your sit bones are located on your new saddle and install the saddle on your bike. Make whatever setback (fore/aft)/ saddle height adjustments you need to make such the the sit bone location on the new saddle gives you the same B4 and B7 measurements you recorded with your previous saddle.

Because I'm anal retentive, for repeatability I ensure the bike is perfectly vertical by placing a level against the rear wheel (otherwise, your floor to seat top measurement can be off if the bike is tilting one way or the other).
RNAV is offline
