Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Immersive waxing / it should be more popular

Old 09-11-22, 11:55 PM
  #401
Symox
Senior Member

Join Date: Jul 2020
Posts: 641

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Liked 206 Times in 130 Posts
Originally Posted by SoSmellyAir View Post
I clamp an old wooden broom handle in my Feedback Sports Ultralight work stand, rotate the clamp so that the broom handle is horizontal (and parallel to the ground). I drape the chain over the broom handle and drag the chain over the broom handle while holding both ends of the chain. Flip chain over and repeat.
Tried it, this works great thanks!
Symox is offline
Old 09-12-22, 09:26 AM
  #402
procrit
carbon is too light

procrit's Avatar

Join Date: Jul 2008
Location: Texas
Posts: 1,138

Bikes: Yes.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 140 Times in 81 Posts
Originally Posted by Symox View Post
what color was the wax in the pot before you put the chain in? It’s possible the wax was dirty in which case you should probably start over.

also, I think it is possible to overheat the wax. Not sure if that could cause this though.
Honestly, it was hard to tell. Darkish for sure, but also the color of the crockpot is black so I didn't think anything of it. I set the chain on top of the cold wax and turned the crock pot on. When I came to get it out like 45 mins later it was that color...
procrit is offline
Old 09-12-22, 09:41 AM
  #403
holytrousers
hoppipola

holytrousers's Avatar

Join Date: Aug 2016
Posts: 401

Bikes: fausto coppi

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 484 Post(s)
Liked 215 Times in 153 Posts
How many miles does a waxed chain perform better before it needs rewaxing ?
holytrousers is offline
Old 09-12-22, 09:54 AM
  #404
terrymorse
climber has-been

terrymorse's Avatar

Join Date: Dec 2004
Location: Palo Alto, CA
Posts: 4,828

Bikes: Scott Addict R1

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1403 Post(s)
Liked 1,272 Times in 674 Posts
Originally Posted by holytrousers View Post
How many miles does a waxed chain perform better before it needs rewaxing ?

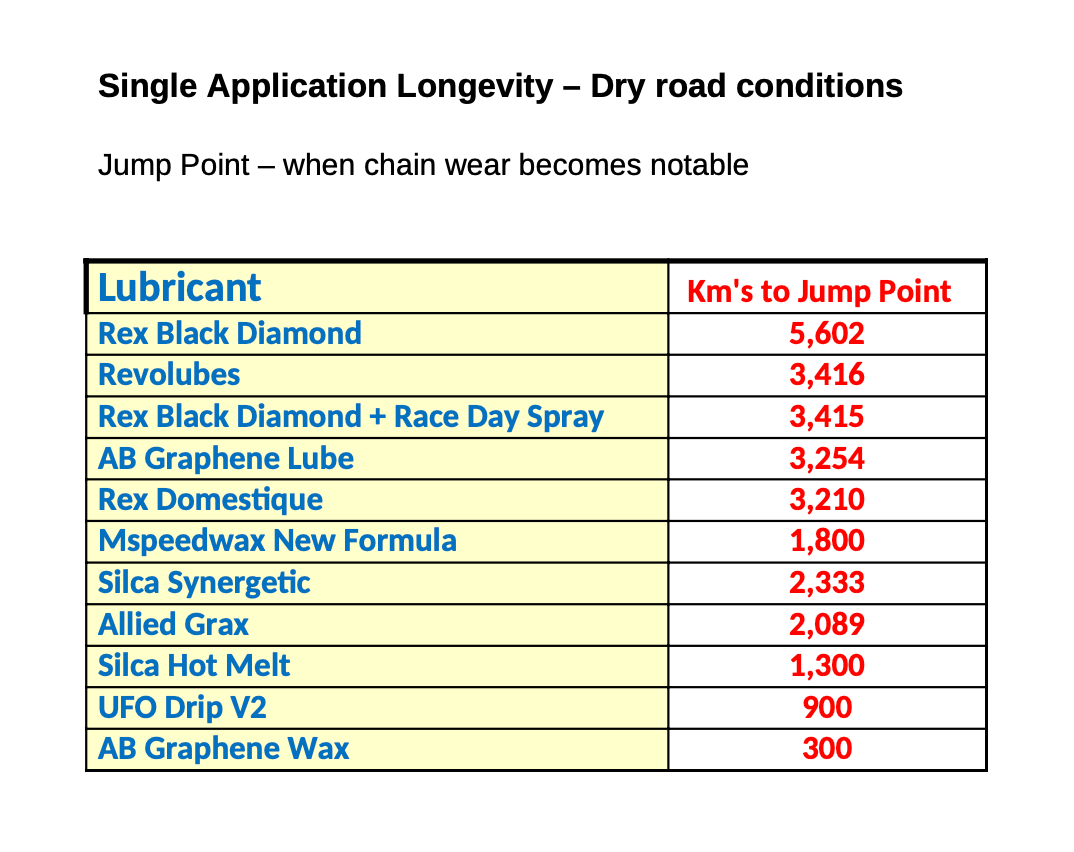

This is an excerpt from Zero Friction Cycling - Lubricant Testing:




...the "JUMP POINT". This is the moment in the test where the chain wear rate measures change from zero or minimal wear, to a notable wear jump. This signifies when the lubricant treatment is effectively done. Whilst it may continue for some hundreds of km's from that point until it reaches wear rate limit, this JUMP POINT denotes when there will be a marked increase in friction losses for that lubricant. Once hardened steel parts begin to wear at a noticeable rate - friction losses have jumped.
__________________
Ride, Rest, Repeat

terrymorse is offline
Likes For terrymorse:
Old 09-12-22, 09:57 AM
  #405
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,634
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2626 Post(s)
Liked 1,755 Times in 1,112 Posts
After reading through the thread, not as easy as this:

seypat is offline
Old 09-12-22, 10:21 AM
  #406
holytrousers
hoppipola

holytrousers's Avatar

Join Date: Aug 2016
Posts: 401

Bikes: fausto coppi

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 484 Post(s)
Liked 215 Times in 153 Posts
Originally Posted by terrymorse View Post
This is an excerpt from Zero Friction Cycling - Lubricant Testing:




...the "JUMP POINT". This is the moment in the test where the chain wear rate measures change from zero or minimal wear, to a notable wear jump. This signifies when the lubricant treatment is effectively done. Whilst it may continue for some hundreds of km's from that point until it reaches wear rate limit, this JUMP POINT denotes when there will be a marked increase in friction losses for that lubricant. Once hardened steel parts begin to wear at a noticeable rate - friction losses have jumped.
which one of them would correspond to plain paraffin wax ? The AB graphene wax ? Aren't these tests made in a clean environment?
holytrousers is offline
Old 09-12-22, 01:44 PM
  #407
datlas
Should Be More Popular

datlas's Avatar

Join Date: Dec 2007
Location: Malvern, PA (20 miles West of Philly)
Posts: 39,402

Bikes: 1986 Alpine (steel road bike), 2009 Ti Habenero, 2013 Specialized Roubaix

Mentioned: 535 Post(s)
Tagged: 2 Thread(s)
Quoted: 19060 Post(s)
Liked 5,811 Times in 2,850 Posts
This thread is lasting longer than a waxed chain!

__________________
Originally Posted by rjones28 View Post
Addiction is all about class.
datlas is offline
Likes For datlas:
Old 09-12-22, 01:55 PM
  #408
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,634
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2626 Post(s)
Liked 1,755 Times in 1,112 Posts
Originally Posted by datlas View Post
This thread is lasting longer than a waxed chain!

Still some wick left.
seypat is offline
Likes For seypat:
Old 09-12-22, 02:22 PM
  #409
Polaris OBark
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 1,938
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1108 Post(s)
Liked 1,603 Times in 895 Posts
Originally Posted by procrit View Post
Haven’t used this wax for almost two years. It’s just been sitting in the crock pot. It used to come out sorta opaque white, today it came out brown and sorta crusty… What happened?? Yes, my chain was and stripped from all grease prior to this.

You are supposed to take the beef stroganoff out of the crock pot before you put your block of wax in it.
Polaris OBark is offline
Likes For Polaris OBark:
Old 09-12-22, 03:11 PM
  #410
Branko D
Senior Member

Join Date: Feb 2018
Posts: 753
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
Liked 393 Times in 240 Posts
Originally Posted by holytrousers View Post
which one of them would correspond to plain paraffin wax ? The AB graphene wax ?
None. Plain paraffin wax without any additives is worse than the tested waxes.
Branko D is offline
Likes For Branko D:
Old 09-12-22, 09:17 PM
  #411
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,634
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2626 Post(s)
Liked 1,755 Times in 1,112 Posts
Originally Posted by procrit View Post
Haven’t used this wax for almost two years. It’s just been sitting in the crock pot. It used to come out sorta opaque white, today it came out brown and sorta crusty… What happened?? Yes, my chain was and stripped from all grease prior to this.
For those of us that haven't tried waxing, what kind of a result is this? How close is it to a good job?
seypat is offline
Old 09-12-22, 10:21 PM
  #412
Symox
Senior Member

Join Date: Jul 2020
Posts: 641

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Liked 206 Times in 130 Posts
Originally Posted by Branko D View Post
None. Plain paraffin wax without any additives is worse than the tested waxes.
There are different grades of Paraffin wax. The purer (less mineral oil content) the better for this application and the more expensive it is. Food grade wax (like Gulf Wax used for canning) has been used by many with good results. I don't know how it compares to recipes with additives.

Candle wax is cheaper and has more mineral oil in it but doesn't perform as well for chains. I don't recall why I just know that is one of the issues with DIY waxing.

Lab grade wax I read is the purest and supposedly is what some of the pre made chain waxing products are based on.
Symox is offline
Old 09-13-22, 12:03 AM
  #413
yaw
I ride
Thread Starter

Join Date: Feb 2022
Posts: 157

Bikes: 22 Emonda

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 95 Times in 48 Posts
Originally Posted by procrit View Post
Haven’t used this wax for almost two years. It’s just been sitting in the crock pot. It used to come out sorta opaque white, today it came out brown and sorta crusty… What happened??
Any chance the paraffin base overheated? I recall that yellowing is a sign of ruined wax through overheating and loses its properties.

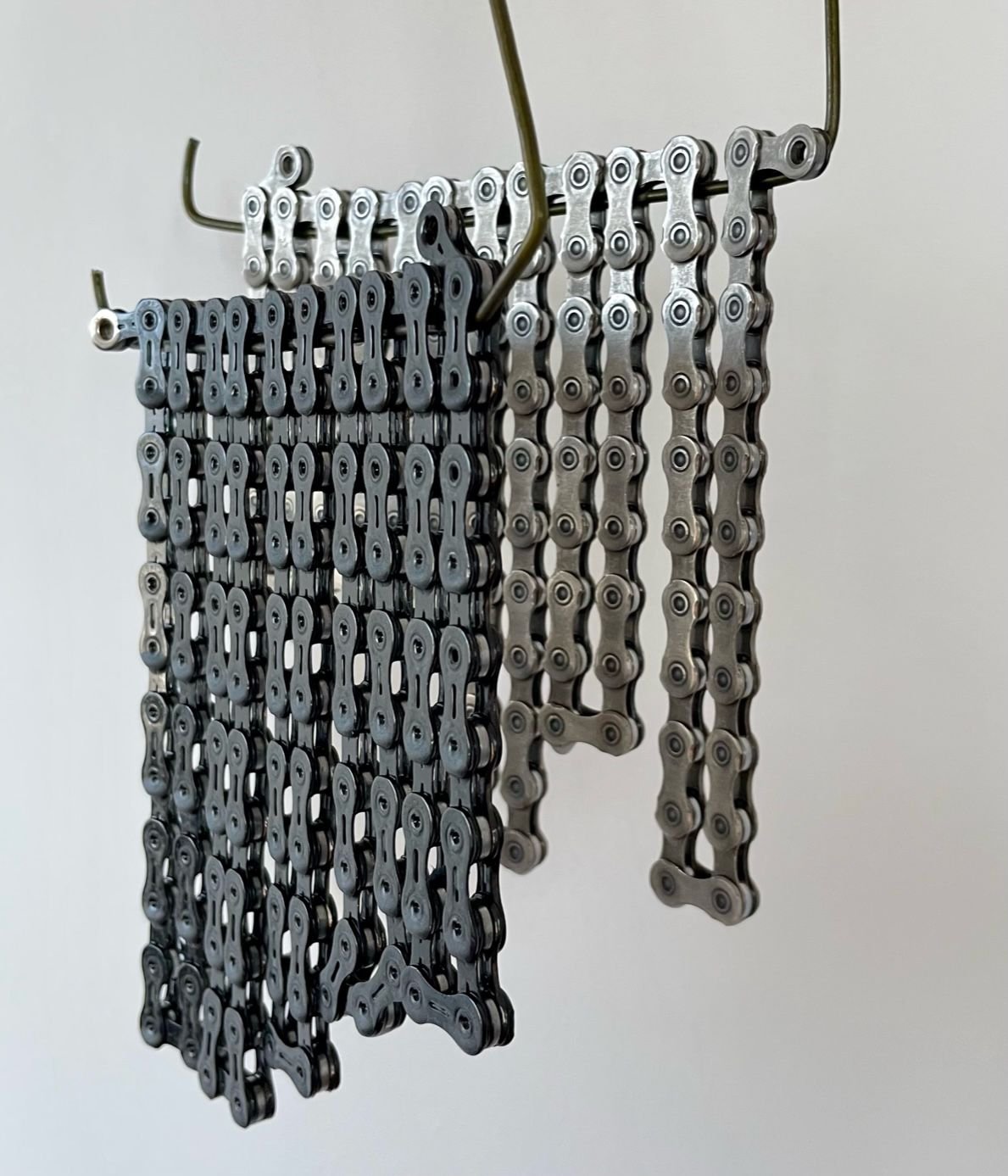

Here is a pic of two freshly waxed and dried chains




Originally Posted by Symox View Post
Haven’t ridden it yet but I found the process of cleaning/degreasing the drive train and chain a lot of work. The waxing of the chain wasn’t too bad actually but the loosening of the “frozen” waxed chain was annoying. The part that really was a pain was attaching the waxed quick link. I found I had to scrape off wax from several tight spots to get it to lock. Even then it took quite a while to get it to lock properly. I was using a KMC quick link. I tried and failed using SRAM’s quick link supplied with the chain.
Degreasing chains sucks, but fortunately this is a one-off process.

To loosen the chain you can run it over a round piece of wood or plastic, like a broom handle, much quicker and easy on your hands if you have too much wax on the chain. If it's pulled out and dripped hot then breaking the links is much easier. As you can see in the image above, there aren't any long stalactites or fat drops forming at the bottom and the surface is coated but not caked.

I never wax the quick links. The hole the pins go into is waxed with the chain and will lubricate that link. If you don't wax these then you won't have to scrape the little grooves free and can just go ahead and connect it up.

To reduce the amount of flaking on your freshly coated chain, pull it from the hot wax and let it drip off immediately while the wax is very liquid. Some people do some semi-cooled pull-out or double dip method to get as much wax onto it as possible but that's just an external mess and won't change how much wax is retained inside as that is coated and stays in place even if you pull it out at its hottest. If you are doing that anyway then the amount of residue is just what you will have to live with, just don't backpedal it all off at home as it will fall off on the first ride anyway and then you can just brush the chainstays and RD to get rid of the flakes that landed there if they bother you.

Last edited by yaw; 09-13-22 at 12:25 AM.
yaw is offline
Old 09-13-22, 12:37 AM
  #414
yaw
I ride
Thread Starter

Join Date: Feb 2022
Posts: 157

Bikes: 22 Emonda

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 95 Times in 48 Posts
Originally Posted by seypat View Post
For those of us that haven't tried waxing, what kind of a result is this? How close is it to a good job?
It is absolutely abnormal, see my picture above how a normal waxed chain looks like. It also leaves the cassette and chainrings clean and does not change in appearance over time (i.e., does not darken or discolour).

Last edited by yaw; 09-13-22 at 12:50 AM.
yaw is offline
Likes For yaw:
Old 09-13-22, 12:50 AM
  #415
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 2,014

Bikes: Cannondale Synapse, Cannondale CAAD4, Trek FX 2

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 634 Times in 481 Posts
Don't Wax the Quick Link?

Polaris OBark yaw If I don't wax the chain with the Quick Link in place, would there be too much wax on the inner plates for me to install the Quick Link later?

For reference, I am using plain Gulf Wax with no additives. I also bought a bag of Silca Secret Chain Blend but have not opened it since the Gulf Wax seems to be doing OK.
SoSmellyAir is offline
Old 09-13-22, 01:00 AM
  #416
yaw
I ride
Thread Starter

Join Date: Feb 2022
Posts: 157

Bikes: 22 Emonda

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 95 Times in 48 Posts
Originally Posted by SoSmellyAir View Post
Polaris OBark yaw If I don't wax the chain with the Quick Link in place, would there be too much wax on the inner plates for me to install the Quick Link later?

For reference, I am using plain Gulf Wax with no additives. I also bought a bag of Silca Secret Chain Blend but have not opened it since the Gulf Wax seems to be doing OK.
You can just push the quick link pins through and it will push out any wax that may have dried in there out the other side. That usually does not get anything into the quick link pin grooves either but if your Gulf Wax (I am not familiar) is a bit softer/stickier than the commercial bike wax stuff and gunks up the grooves still then just use the back of a toothpick to clear the wax from the last roller out before popping in the quick link pin. That's what I did before I discovered that I can just skip that step and push the quick link through without issues. I never tried waxing the quick links because I read one shouldn't do it when researching the topic precisely because it blocks it up. Just try leaving them out and you'll see that what stays inside the chain (after you popped out the wax plug from the last pin) will suffice to lubricate it perfectly and it's just going to pop on without complaints.
yaw is offline
Old 09-13-22, 01:04 AM
  #417
Polaris OBark
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 1,938
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1108 Post(s)
Liked 1,603 Times in 895 Posts
I've never waxed the quick-link. I just remove the wax from the ends, put the pins in a few times to push out the residual wax, and then close it with the Park tool.
Polaris OBark is offline
Old 09-13-22, 02:47 AM
  #418
holytrousers
hoppipola

holytrousers's Avatar

Join Date: Aug 2016
Posts: 401

Bikes: fausto coppi

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 484 Post(s)
Liked 215 Times in 153 Posts
Hmmm, it doesn't look like an interesting lubricant if i need to rewax twice a week then..
holytrousers is offline
Old 09-13-22, 03:57 AM
  #419
yaw
I ride
Thread Starter

Join Date: Feb 2022
Posts: 157

Bikes: 22 Emonda

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 95 Times in 48 Posts
Originally Posted by holytrousers View Post
Hmmm, it doesn't look like an interesting lubricant if i need to rewax twice a week then..
What distance do you ride per week?
yaw is offline
Old 09-13-22, 04:06 AM
  #420
holytrousers
hoppipola

holytrousers's Avatar

Join Date: Aug 2016
Posts: 401

Bikes: fausto coppi

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 484 Post(s)
Liked 215 Times in 153 Posts
Originally Posted by yaw View Post
What distance do you ride per week?
I commute 90km, which averages to 450km weekly.
holytrousers is offline
Old 09-13-22, 04:20 AM
  #421
yaw
I ride
Thread Starter

Join Date: Feb 2022
Posts: 157

Bikes: 22 Emonda

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 95 Times in 48 Posts
Originally Posted by holytrousers View Post
I commute 90km, which averages to 450km weekly.
You could run a number of chains and batch wax them once every few weeks if you would like to go that way. Unless you also commute a lot in the wet, then it would be annoying.
yaw is offline
Old 09-13-22, 04:39 AM
  #422
holytrousers
hoppipola

holytrousers's Avatar

Join Date: Aug 2016
Posts: 401

Bikes: fausto coppi

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 484 Post(s)
Liked 215 Times in 153 Posts
Originally Posted by yaw View Post
You could run a number of chains and batch wax them once every few weeks if you would like to go that way. Unless you also commute a lot in the wet, then it would be annoying.
Conditions are mostly hot, dry and dusty, so waxing sounds like the better alternative, but if it's benefits were to last for a day or two, it does discourage me as i feel lazy after commuting to spend time for chain maintenance.
If i follow your method, i would need two slow cookers, one for the dirty chain, one with clean wax, and two more chains, that's a lot of money to invest. Is it really worth it? i might consider it some day... the idea does look promising.
holytrousers is offline
Old 09-13-22, 05:16 AM
  #423
datlas
Should Be More Popular

datlas's Avatar

Join Date: Dec 2007
Location: Malvern, PA (20 miles West of Philly)
Posts: 39,402

Bikes: 1986 Alpine (steel road bike), 2009 Ti Habenero, 2013 Specialized Roubaix

Mentioned: 535 Post(s)
Tagged: 2 Thread(s)
Quoted: 19060 Post(s)
Liked 5,811 Times in 2,850 Posts
Originally Posted by Polaris OBark View Post
I've never waxed the quick-link. I just remove the wax from the ends, put the pins in a few times to push out the residual wax, and then close it with the Park tool.
I don't see what you did there.
__________________
Originally Posted by rjones28 View Post
Addiction is all about class.
datlas is offline
Likes For datlas:
Old 09-13-22, 05:28 AM
  #424
yaw
I ride
Thread Starter

Join Date: Feb 2022
Posts: 157

Bikes: 22 Emonda

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 95 Times in 48 Posts
Originally Posted by holytrousers View Post
Conditions are mostly hot, dry and dusty, so waxing sounds like the better alternative, but if it's benefits were to last for a day or two, it does discourage me as i feel lazy after commuting to spend time for chain maintenance.
If i follow your method, i would need two slow cookers, one for the dirty chain, one with clean wax, and two more chains, that's a lot of money to invest. Is it really worth it? i might consider it some day... the idea does look promising.
I use a single pot with multiple chains. I just wipe them with a microfibre (dry or with a couple of sprays of isopropyl on the cloth) to remove surface dust before taking them off the bike. I then store them in a drawer until it is time to wax them all. Then they go on hangers (see pic above) and get swished together and hung up to cool above the pot. I then store the waxed chains and put them on the bike as needed. Even without doing the whole two pot method, the wax will stay good for many months of intense riding. I use 4 of the Molten Speedwax pucks but you can also use less and change more often but the extra fill level makes it easier to chuck a few chains in on top of each other.

If you are still concerned about contamination, you can put a little metal steam rack in to keep the chains off the bottom where all the particles would settle. Every now and then you could also let the wax solidify a bit and collect the top layer, then discard the bottom of the pot wax and put the top layer back in. In practice I can't see a reason for the two pot method unless one has or wants two pots with enough space to just leave them set up side by side on a dedicated wax station.

If you hit the odd wet weather situation, the extra step would be to put the chain in a container and pour some boiling water over it to flush it, then you can just wax it as usual. I flush and wax wet ride chains right away to prevent rust. If that is inconvenient, a hard drying wax lube like the Silca Super Secret or UFO drip will be suitable to coat it for protection until you can get to hot waxing.

As for the multiple chain thing, unless you plan on hanging up your bike shoes any time soon, you will buy these chains anyway. So if you buy them all now and rotate them, you will use them in parallel and make your other drivetrain components last even longer because worn chains are the number one thing eating away on chainrings and cogs. It would take a seriously long time, even with your kms, to get 2-3 waxed chains to the 0.5 replacement mark. In terms of investment, basic crockpots can be had for incredibly low prices but I do use a digital Philips all-in-one multi cooker on 'Slow Cook Low Temp' because it heats up much faster.
yaw is offline
Likes For yaw:
Old 09-13-22, 05:30 AM
  #425
datlas
Should Be More Popular

datlas's Avatar

Join Date: Dec 2007
Location: Malvern, PA (20 miles West of Philly)
Posts: 39,402

Bikes: 1986 Alpine (steel road bike), 2009 Ti Habenero, 2013 Specialized Roubaix

Mentioned: 535 Post(s)
Tagged: 2 Thread(s)
Quoted: 19060 Post(s)
Liked 5,811 Times in 2,850 Posts
This thread could be (a) sticky.

__________________
Originally Posted by rjones28 View Post
Addiction is all about class.
datlas is offline
Likes For datlas:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
