Continental tires real life widths

Notices
Road Cycling ďIt is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.Ē -- Ernest Hemingway

Continental tires real life widths

Old 09-04-22, 06:15 PM
  #1
utoner34
Junior Member
Thread Starter

Join Date: Jul 2014
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Continental tires real life widths

I tried GP 5000 and 4 season both in 32x622 and I find GP 5000 in reality look ~2mm narrower than 4 season, which I didnt really like.

Anybody tried Gatorskin in 32x622? I am wondering how does the width compare?
utoner34 is offline
Old 09-04-22, 06:39 PM
  #2
yaw
I ride

Join Date: Feb 2022
Posts: 157

Bikes: 22 Emonda

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Liked 95 Times in 48 Posts
That's normal. The GP5k are known to be truer to the stated width than the 4ks on the same/suitable rims and these other models may still be using the previous sizing. About 2mm is the usual observation for this size change from memory.
yaw is offline
Old 09-04-22, 06:50 PM
  #3
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 1,486

Bikes: 2021 Domane SL6, Black Beta (Nashbar frame), 2004 Trek 1000C being made an all arounder.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 309 Times in 191 Posts
What is the inside width of your rim used for the measurements and pressure? Rim width is more important. I have GP5000 tube tires. They measure wider on rims 19mm wide inside or wider for 25mm and up tire size. Then to make it more confusing Continental made some changes to narrow the installed tire a few years ago. Last with age they get wider.

Edit. Found some older data on 19mm inside Bontrager Aeolus 5 rim brake.

Conti 5000 25 mm 85 & 67 psi 27.4 mm 19 mm
Conti 5000 28 mm 87 psi 29.0 mm 19 mm

Edit. Just got a new Conti GP5000 and mounted on 23mm inside width Aeolus Pro 51s. At 75 psi with latex tubes they are 29.5mm wide. We will see how they stretch. The old 28mm GP5000 was 31mm when I took it off. Itís in the 19mm rim for trainer duties and is 29.4mm wide at 80 psig.

Last edited by biker128pedal; 10-01-22 at 07:36 AM.
biker128pedal is offline
Old 09-04-22, 07:17 PM
  #4
t2p
Senior Member

Join Date: May 2022
Location: USA
Posts: 916

Bikes: Cannondale - Gary Fisher - Litespeed - Schwinn Paramount - Schwinn (lugged steel) - Trek OCLV

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 354 Times in 236 Posts



25 mm tan/cream wall GP 5000 on Omega 19 rims @ 100 psi are just over 23 mm

32 mm GP4S on Maddux DC 3.0 @ 80 psi are 32 mm

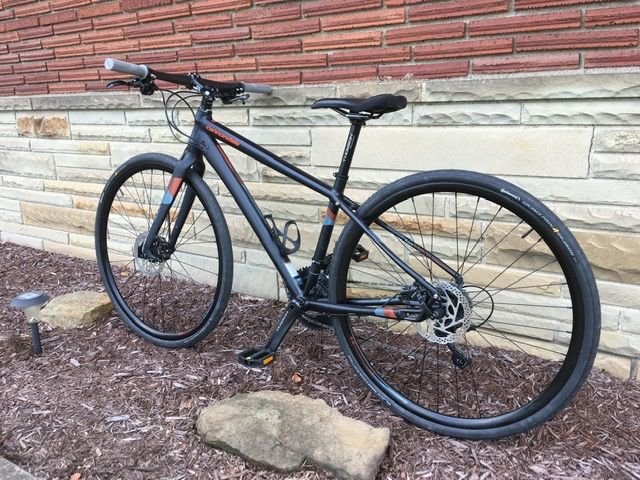

both pictured above
t2p is offline
Old 09-04-22, 08:25 PM
  #5
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,892

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel, Specialized Epic Evo

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 2521 Post(s)
Liked 1,296 Times in 745 Posts
I find tire with is entirely dependent on rim width. My Conti Grand Prix 4 Season 28mm's are 32mm on a 23mm wide rim. My 25mm 5000's on my carbon road bike are 24mm on a 19mm wide rim.
Steve B. is offline
Likes For Steve B.:
Old 09-05-22, 04:22 AM
  #6
utoner34
Junior Member
Thread Starter

Join Date: Jul 2014
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Originally Posted by biker128pedal View Post
What is the inside width of your rim used for the measurements and pressure? Rim width is more important. I have GP5000 tube tires. They measure wider on rims 19mm wide inside or wider for 25mm and up tire size. Then to make it more confusing Continental made some changes to narrow the installed tire a few years ago. Last with age they get wider.

Edit. Found some older data on 19mm inside Bontrager Aeolus 5 rim brake.

Conti 5000 25 mm 85 & 67 psi 27.4 mm 19 mm
Conti 5000 28 mm 87 psi 29.0 mm 19 mm
I am too lazy to measure that now, but I didnt though rim width could affect tire width.

I still think gp 5000 are narrower when I look them in my hands side to side regardless of the rim.
utoner34 is offline
Old 09-05-22, 05:15 AM
  #7
datlas
Should Be More Popular

datlas's Avatar

Join Date: Dec 2007
Location: Malvern, PA (20 miles West of Philly)
Posts: 39,436

Bikes: 1986 Alpine (steel road bike), 2009 Ti Habenero, 2013 Specialized Roubaix

Mentioned: 535 Post(s)
Tagged: 2 Thread(s)
Quoted: 19105 Post(s)
Liked 5,841 Times in 2,860 Posts
Originally Posted by biker128pedal View Post
What is the inside width of your rim used for the measurements and pressure? Rim width is more important. I have GP5000 tube tires. They measure wider on rims 19mm wide inside or wider for 25mm and up tire size. Then to make it more confusing Continental made some changes to narrow the installed tire a few years ago. Last with age they get wider.

Edit. Found some older data on 19mm inside Bontrager Aeolus 5 rim brake.

Conti 5000 25 mm 85 & 67 psi 27.4 mm 19 mm
Conti 5000 28 mm 87 psi 29.0 mm 19 mm
Originally Posted by utoner34 View Post
I am too lazy to measure that now, but I didnt though rim width could affect tire width.

I still think gp 5000 are narrower when I look them in my hands side to side regardless of the rim.
Probably true but as above rim width is a factor so as usual, the correct answer is ďit depends.Ē
__________________
Originally Posted by rjones28 View Post
Addiction is all about class.
datlas is offline
Likes For datlas:
Old 09-10-22, 08:50 PM
  #8
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 3,018

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 130 Times in 112 Posts
It used to be that the gp4k and gp4s models ran wider than the label when mounted to modern wide rims. Continental recognized this and made the new gp5k narrower to compensate for modern wide rims. Not sure about the newer gp4s.
tFUnK is offline
Old 09-11-22, 09:41 AM
  #9
woodway
Squeaky Wheel

woodway's Avatar

Join Date: Nov 2008
Location: Newcastle, WA
Posts: 1,607
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 62 Times in 33 Posts
I just mounted up a brand new GP5000 700x32 tire onto the front wheel of my bike (DT Swiss rim, 20mm internal width) and it measure 31mm @ 65psi. The tire has not been ridden on yet.

On the rear wheel of the bike is a GP5000 700x32 tire that has been ridden a little more than 1500 miles. Same rim as the front. It measures 33mm @ 65psi.
woodway is offline
Old 09-11-22, 09:42 AM
  #10
Iride01
Plz hurry Dec 22!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,911

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4880 Post(s)
Liked 3,400 Times in 2,356 Posts
Wait a thousand miles or so and measure the width again.
Iride01 is offline
Old 09-12-22, 08:05 PM
  #11
Carbonfiberboy
just another gosling

Carbonfiberboy's Avatar

Join Date: Feb 2007
Location: Everett, WA
Posts: 18,661

Bikes: CoMo Speedster 2003, Trek 5200, CAAD 9, Fred 2004

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 3479 Post(s)
Liked 1,469 Times in 1,068 Posts
Does it matter as long as they fit your bike? You either like how they ride or you don't. Of course rim width changes tire width a little. The difference in ride quality between a 5000 and a Gatorskin is a heckuva lot larger than any measurement of precise tire width.
__________________
Results matter
Carbonfiberboy is offline
Likes For Carbonfiberboy:
Old 09-19-22, 04:19 PM
  #12
edomalley
Newbie

edomalley's Avatar

Join Date: Apr 2019
Location: Boulder, CO
Posts: 5

Bikes: Felt IA, Bianchi Alloro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by utoner34 View Post
I tried GP 5000 and 4 season both in 32x622 and I find GP 5000 in reality look ~2mm narrower than 4 season, which I didnt really like.

Anybody tried Gatorskin in 32x622? I am wondering how does the width compare?
I run very different widths than you, but on my Roval CLX64 wheels which have a wide internal dimension, the GP5000 (regular, not TL) 700x25 measure 27.5mm at 87psi.
When I was running GP4000 the 700x23 also measured 27.5mm on the same wheel at the same pressure.
edomalley is offline
Old 09-19-22, 05:53 PM
  #13
Symox
Senior Member

Join Date: Jul 2020
Posts: 641

Bikes: '07 Specialized Roubaix Comp Triple, '12 Gravity Fixie, '21 Liv Rove 4, '06? Giant EB Spirit

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Liked 210 Times in 132 Posts
28mm measures 27mm GP5000

This is on Mavic Open Pro clincher rims
Using GP5000 standard clincher (not tubeless ready) tires
Symox is offline
Old 09-20-22, 11:11 AM
  #14
masonv45
Junior Member

Join Date: Nov 2014
Location: Arlington, TN
Posts: 129

Bikes: 2005 Giant OCRc2, 2016 GT Aggressor Expert

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 54 Times in 29 Posts
Just installed GP5000 on my rims (replacing the same size Gatorskins).

With the Gatorskins, I had to deflate the tires to get the tire past the brake pads.
With the GP5000, I did NOT have to deflate the tires to get the tire past the brake pads - so it appears the GP5000's are a bit narrower.
masonv45 is offline
Old 09-22-22, 01:05 PM
  #15
Shadco
Resident PIA

Shadco's Avatar

Join Date: Jul 2004
Location: City of Oaks, NC
Posts: 522

Bikes: Gunnar Roadie

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 79 Times in 49 Posts
Just installed 25c Conti Ultra sport 3s on Mavic open pro 15mm rims 24mm at 88 lbs pressure.

.
Shadco is offline
Old 09-22-22, 01:17 PM
  #16
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 11,008

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3699 Post(s)
Liked 2,542 Times in 1,662 Posts
For a meaningless data point - the Giro Continental 22c tubulars measure 22.7mm after about a month of inflation at ~100psi. (Tubbies - rim width doesn't matter to tire width at all. Mavic GEL330s for those who care.)
79pmooney is online now
Old 09-22-22, 10:03 PM
  #17
Dean V
Senior Member

Join Date: Oct 2009
Posts: 2,850
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1065 Post(s)
Likes: 0
Liked 255 Times in 151 Posts
Originally Posted by 79pmooney View Post
For a meaningless data point - the Giro Continental 22c tubulars measure 22.7mm after about a month of inflation at ~100psi. (Tubbies - rim width doesn't matter to tire width at all. Mavic GEL330s for those who care.)
Yep, definitely meaningless.
Dean V is offline
Old 09-23-22, 02:15 AM
  #18
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 3,018

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 130 Times in 112 Posts
Yeah the "hack" ten years ago was that you could mount a 25mm Conti to a "wide" 23mm (outer width) rim, and get a nice cushy balloon of 26-27mm. But now Conti has gone back and resized their tires so that they mount truer to size on wide rims. So now if I get a 25mm Conti tire and put it on an old narrow 20mm (outer) rim it might come out to 23-24mm actual width.
tFUnK is offline
Old 09-27-22, 01:09 PM
  #19
ofajen
Cheerfully low end

ofajen's Avatar

Join Date: Jun 2020
Posts: 1,580
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 497 Post(s)
Liked 806 Times in 513 Posts
Between Conti introducing the GP4K and the GP5K, the ETRTO changed the standards for expected rim internal width for the various nominal tire widths, based on the trend that people are running wider rims. Conti made some adjustments, and so the 5K expects a wider rim and runs narrower on narrow rims.

Otto
ofajen is offline
Old 09-30-22, 04:47 PM
  #20
Kanon25
Newbie

Join Date: Sep 2012
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 6 Times in 5 Posts
I use GP5000 TL 32mm tubeless on rims of 25mm internal width. These tyres measure out at exactly 32mm as claimed.
Kanon25 is offline
Likes For Kanon25:
Old 10-01-22, 08:00 AM
  #21
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 1,486

Bikes: 2021 Domane SL6, Black Beta (Nashbar frame), 2004 Trek 1000C being made an all arounder.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 309 Times in 191 Posts
Originally Posted by Kanon25 View Post
I use GP5000 TL 32mm tubeless on rims of 25mm internal width. These tyres measure out at exactly 32mm as claimed.
Thats good to know. I just had to replace my rear tire so since the front was not tubeless went with latex tubes. I knew latex lost air quicker than butyl but Iím not sure Iíll like how much they lose over 4 or 5 hours. Tubeless sealant is somewhat of a hassle. Not hard but I fear having to put a tube in. So Iím still on the fence for tubeless next tire change.
biker128pedal is offline
Old 10-01-22, 09:44 AM
  #22
Kanon25
Newbie

Join Date: Sep 2012
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by biker128pedal View Post
Thats good to know. I just had to replace my rear tire so since the front was not tubeless went with latex tubes. I knew latex lost air quicker than butyl but Iím not sure Iíll like how much they lose over 4 or 5 hours. Tubeless sealant is somewhat of a hassle. Not hard but I fear having to put a tube in. So Iím still on the fence for tubeless next tire change.
Tubeless: best to take it to a bike shop first time and watch what they do.

No hassle with sealant - use valves with removable cores. Easy to refill if needed.

If for some reason you get a flat use a kit with the darts. Forget about tubes entirely- thatís now outdated, as tubeless has reached the point of advancement where itís just a better solution.
Kanon25 is offline
Old 10-02-22, 10:49 AM
  #23
biker128pedal
Senior Member

biker128pedal's Avatar

Join Date: Jan 2007
Location: Eastern VA
Posts: 1,486

Bikes: 2021 Domane SL6, Black Beta (Nashbar frame), 2004 Trek 1000C being made an all arounder.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 309 Times in 191 Posts
I went tubeless on the 35mm GR1 mounted to the OEM wheels (37mm measured) . Did this to run lower pressure, try tubeless and hope they self seal holes. Next time around going tubeless for the road wheels.
biker128pedal is offline
Old 10-11-22, 11:01 PM
  #24
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 4,250

Bikes: 1989 Schwinn Paramount OS - 1982 Trek 720 - 1985 Trek 620 - 1985 Schwinn Voyageur SP - 1989 Cannondale SR

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 1390 Post(s)
Liked 1,473 Times in 756 Posts
I've started a chart that measures a tires bead-to-bead width when laid or pressed flat (non-mounted, of course) to give me a better idea of how wide a tire will be on a certain rim (Open Pro, DA C24, DT Swiss R23, etc), listing pressures as well. Older Continentals seem to be more generous, and newer ones a little 'stingy'. A GP5000 28mm cream wall measures 25mm on the nose on an Open Pro. A GP4000 SII 28mm is 0.5mm narrower than a GP5000 32mm on a Dura-Ace C24 rim. Ultimately, this matters, at least to me, when choosing the largest tire that can fit inside a vintage rim brake or ~2010s carbon rim brake bike, especially if 9000/6800/5800 and newer brake calipers are being used. Not as generous as framesets now, especially if one's city or route is not as smooth as one would like. It's frustrating that companies don't publish overall tire width data or even say "This 28mm tire measures 28mm on a X mm internally wide rim."
RiddleOfSteel is offline
Old 10-12-22, 09:19 AM
  #25
Dean51
Senior Member

Dean51's Avatar

Join Date: Feb 2016
Location: Olympic Peninsula, WA
Posts: 593

Bikes: '82 Ron Cooper, '84 Allez, '86 Tommasini Racing, '86? Klein Quantum, '87 Ciocc Designer 84, '95 Trek 5500, '98 Litespeed Classic, '98 S-Works Mtb

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 207 Post(s)
Liked 202 Times in 91 Posts
'Mounted at new Conti 5000 marked 700-25 (not tubeless) on a DT Swiss 411 rim last night. 18 mm between the rim flanges and the tire measured 25.4mm wide at 100 psi.

Dean
__________________
Roll Me Up and Smoke Me When I Die
Dean51 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
