Is this part critical????

Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Is this part critical????

Old 07-08-09, 11:41 PM
  #1
Neccros
Technically Canadian
Thread Starter

Neccros's Avatar

Join Date: Aug 2005
Location: Redondo Beach, CA
Posts: 829

Bikes: Spec. Enduro/Santa Cruz Chameleon/Franken Road Bike w/ Dura-Ace+Ultegra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Is this part critical????

I'm fed up with trying to fix/replace my 9 speed Brifter and decide to go 10 speed (got a smoking deal)

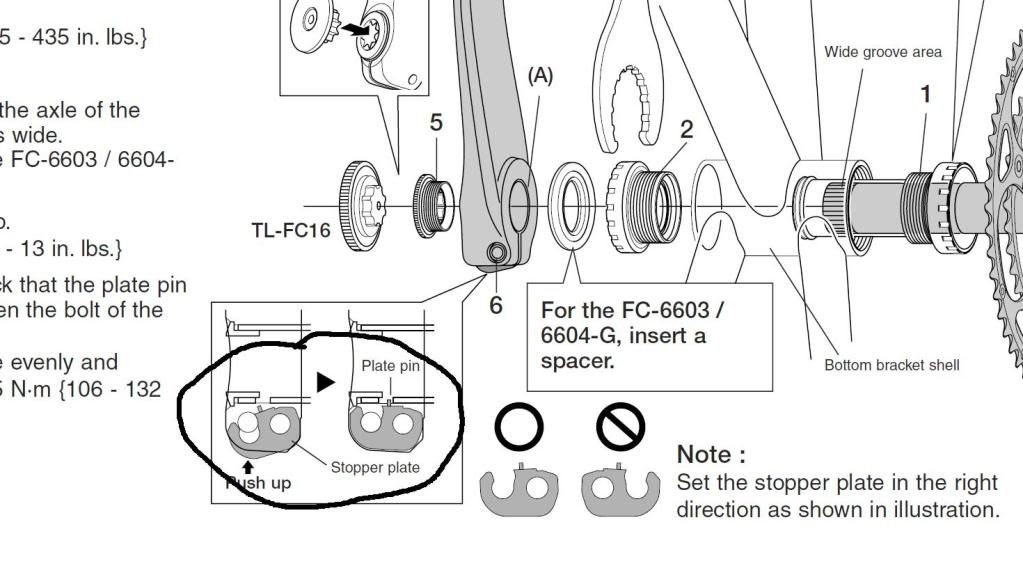

Now I got some used Ultegra cranks, and these will be my first "external" bottom bracket type cranks... Now im missing the small plate that I circled in the picture and I was wondering, Is this a critical part???

Thanks!

__________________
Cant we all just ride along???
Neccros is offline
Old 07-08-09, 11:56 PM
  #2
531Aussie
Aluminium Crusader :-)

Join Date: Apr 2004
Location: Melbourne, Australia
Posts: 10,040
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hmmm, I say no.
I've got using 3 sets of Dura-Ace cranks without it, and 1 set of Ultegra.

I suspect it's just to stop gunk getting in there.
531Aussie is offline
Old 07-08-09, 11:58 PM
  #3
Neccros
Technically Canadian
Thread Starter

Neccros's Avatar

Join Date: Aug 2005
Location: Redondo Beach, CA
Posts: 829

Bikes: Spec. Enduro/Santa Cruz Chameleon/Franken Road Bike w/ Dura-Ace+Ultegra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hmmm OK... It seems like a plate to prevent over torquing of the crank bolts but wasn't sure...
__________________
Cant we all just ride along???
Neccros is offline
Old 07-09-09, 12:04 AM
  #4
531Aussie
Aluminium Crusader :-)

Join Date: Apr 2004
Location: Melbourne, Australia
Posts: 10,040
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yeah, it may be, but I'm confident I can torque them properly (I've done it dozens of times), and I'd hate to think it would prevent enough torque. There have been plenty of cases of the left arm coming off during riding, which is why they now come with the warning sticker, saying something like: "check pinch after the first ride"

However, I could be wrong
531Aussie is offline
Old 07-09-09, 12:12 AM
  #5
Psimet2001
I eat carbide.

Psimet2001's Avatar

Join Date: Jan 2006
Location: Elgin, IL
Posts: 20,592

Bikes: Lots. Van Dessel and Squid Dealer

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 21 Times in 17 Posts
Nah. You don't need it. The reason you don't have one is because the earlier Ultegra cranks didn't have one. They added them later. This was in response to people having their crank arm come off because of improper installation/torque and not rechecking it.

Once torqued in place the plate is pinched and the pin it has protrudes into the spindle of the crank to help prevent it from sliding off the end of the spindle if torque ends up too low.

Just install and torque correctly. In abot 100 miles check the torque on the pinch bolts again. Then you should be OK.
__________________
PSIMET Wheels, PSIMET Racing, PSIMET Neutral Race Support, and 11 Jackson Coffee
Podcast - YouTube Channel
Video about PSIMET Wheels

Psimet2001 is offline
Old 07-09-09, 12:14 AM
  #6
Neccros
Technically Canadian
Thread Starter

Neccros's Avatar

Join Date: Aug 2005
Location: Redondo Beach, CA
Posts: 829

Bikes: Spec. Enduro/Santa Cruz Chameleon/Franken Road Bike w/ Dura-Ace+Ultegra

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ok... I just need to strip my bike of all the 9 speed stuff and prep it for the new stuff....
__________________
Cant we all just ride along???
Neccros is offline
Old 07-09-09, 12:16 AM
  #7
531Aussie
Aluminium Crusader :-)

Join Date: Apr 2004
Location: Melbourne, Australia
Posts: 10,040
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Make sure to do up the two pinch bolts alternately, bit by bit, not one in all the way, then the other.
And don't do the end cap up too tightly (that's done first); it's meant to be done by hand.
It the end cap is too tight, it could cause undue bearing wear and create drag
531Aussie is offline
Old 07-09-09, 08:04 AM
  #8
AEO
Senior Member

AEO's Avatar

Join Date: Jun 2007
Location: A Coffin Called Earth. or Toronto, ON
Posts: 12,258

Bikes: Bianchi, Miyata, Dahon, Rossin

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
yep, it's a bit harder to judge how hard you screw in the preload cap to the cranks.
