Right heel hitting chainstay on Cannondale Road bike

Working on fixing up my dad's sr-400 from the 80's. Most of the work is done, and I took it on its first shakedown ride. My right heal is grazing off the chainstay on the drive side of the bike.

This is my first road bike, and my first set of clipless pedals/shoes as well. Right now, my feet are pretty much parallel to the downtube when I pedal. My natural position is heels in just a little, which would make the heal strike issue even worse.

What can I do about this other than point my big toes at the downtube?

Oh, I wear a size 48 Eu shoe as well ><. I really hope I haven't gotten myself $200+ into a rebuild that I'm not going to be able to ride. (New tires, tubes, chain, brake pads, cables, housings, new gear cable/housings, shoes)
LouisIV is offline
Old 05-12-10, 05:41 PM
  #2
Ygduf
\_(ツ)_/

Ygduf's Avatar

Join Date: Jun 2008
Location: Redwood City, CA
Posts: 10,978

Bikes: aggressive agreement is what I ride.

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 967 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
move the cleats back on the shoe a little bit. that will put your heel forward. put a spacer in the pedal spindle, that would push your foot out a mm or three.
Ygduf is offline
Old 05-12-10, 05:48 PM
  #3
teterider
On the Move

teterider's Avatar

Join Date: Jan 2007
Location: Massachusetts
Posts: 1,219

Bikes: Lots

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
As said, you really will just have to adjust the cleats so you don't hit. That frame has huge straight chain stays and not the best heel clearance to begin with. I think they even had a purposed dent in it so the crank wouldn't hit.

Last edited by teterider; 05-12-10 at 05:54 PM.
teterider is offline
Old 05-12-10, 06:11 PM
  #4
rangerdavid
Senior Member

rangerdavid's Avatar

Join Date: Jun 2009
Location: Boone, North Carolina
Posts: 5,094

Bikes: 2009 Cannondale CAAD9-6 2014 Trek Domaine 5.9

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Ygduf View Post
move the cleats back on the shoe a little bit. that will put your heel forward. put a spacer in the pedal spindle, that would push your foot out a mm or three.


THIS ^^

rangerdavid is offline
Old 05-12-10, 08:35 PM
  #5
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Posts: 21,894
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 6104 Post(s)
Liked 6,053 Times in 3,057 Posts
I use Kneesavers, a 20mm spacer, on my CAAD 5 and my right heel still hits the stay. I do toe-out quite a bit. I don't hit on some other bikes.

Don't try to force your knees to do something they don't want to do.
big john is offline
Old 05-12-10, 08:51 PM
  #6
stien
neits

stien's Avatar

Join Date: Apr 2010
Location: Cape Cod, MA
Posts: 1,667
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
+1 on the cleat adjustment.
My heel comes within mm of my chainstay, but it's bent in to accommodate me. Just me.
stien is offline
Old 05-12-10, 09:41 PM
  #7
bjtesch
Senior Member

Join Date: Aug 2008
Location: Irving, TX
Posts: 358

Bikes: Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Some people have more knee issues than others. I've always put my cleats on the shoes, clipped the shoes to the pedals, then adjusted the cleats so the shoes cleared the chainstays. I've never had any knee problems in over 20 years.

Adjust your cleats to miss the chainstays, and watch to see how your knees do. If you have any sign of knee problems then hit your LBS for some help.
bjtesch is offline
Old 05-12-10, 10:12 PM
  #8
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Posts: 21,894
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 6104 Post(s)
Liked 6,053 Times in 3,057 Posts

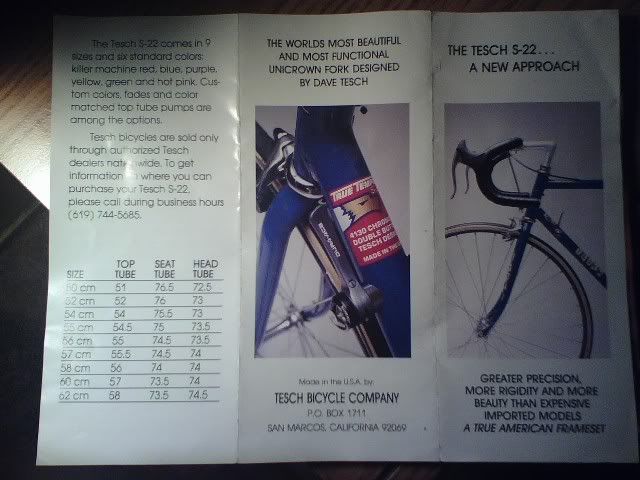

Is your name Tesch?
big john is offline
Old 05-13-10, 03:31 AM
  #9
kleinboogie
Senior Member

Join Date: Mar 2009
Location: San Diego, CA
Posts: 2,606
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
yup, cleats. move them back and/or in. Make sure your knee tracks straight. Zero float cleats will also help.
kleinboogie is offline
Old 05-13-10, 06:07 AM
  #10
Kotts
Recreational Commuter

Join Date: Apr 2006
Location: Central Ohio
Posts: 1,024

Bikes: One brand-less build-up, and a Connondale Synapse Carbon Ultegra Disc. A nicer bike than I need, but it was a good deal, so... ;-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 5 Times in 3 Posts
OP, you didn't mention what cleat/pedal/shoe combination you are using. SPD cleats have some ability to shift left/right, as well as fore/aft and angle.
Kotts is offline
Old 05-13-10, 06:46 AM
  #11
bdcheung
Carpe Diem

bdcheung's Avatar

Join Date: Sep 2006
Location: MABRA
Posts: 13,149

Bikes: 2007 CAAD9; 2014 CAADX; PedalForce CG1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Don't mess with your cleat position - screwing with your pedaling mechanics is a one-way ticket to more problems.

Are you pedaling pigeon-toed? Are your knees 6" away from the top tube? If so, that could be your problem.
__________________
"When you are chewing the bars at the business end of a 90 mile road race you really dont care what gear you have hanging from your bike so long as it works."
ΛΧΑ ΔΞ179 - 15% off your first Hammer Nutrition order!
bdcheung is offline
Old 05-13-10, 08:15 AM
  #12
merlinextraligh
pan y agua

merlinextraligh's Avatar

Join Date: Aug 2005
Location: Jacksonville
Posts: 31,057

Bikes: Willier Zero 7; Merlin Extralight; Calfee Dragonfly tandem, Calfee Adventure tandem; Cervelo P2; Motebecane Ti Fly 29er; Motebecanne Phantom Cross; Schwinn Paramount Track bike

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1322 Post(s)
Liked 495 Times in 265 Posts
Originally Posted by bdcheung View Post
Don't mess with your cleat position - screwing with your pedaling mechanics is a one-way ticket to more problems.

Are you pedaling pigeon-toed? Are your knees 6" away from the top tube? If so, that could be your problem.
I'd basically agree with this, and don't think the OP should adjust the fore/aft position of the cleat to resolve this issue (assuming its already adjusted where it needs to be.)

However, I think the OP should consider moving the cleat inward on the shoe, thereby moving his foot out. That may well do less to compromise his pedaling mechanics, than holding his foot at an unatural angle to compensate for the heel strike.

If moving the cleat laterally doesn't cause him foot pain, its quicker and cheaper than getting spacers or extenders, and accomplishes the same effect.
__________________
You could fall off a cliff and die.
You could get lost and die.
You could hit a tree and die.
OR YOU COULD STAY HOME AND FALL OFF THE COUCH AND DIE.
merlinextraligh is offline
Old 05-13-10, 08:40 AM
  #13
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,721

Bikes: Bottecchia Sprint, GT Timberline 29r, Marin Muirwoods 29er, Trek FX Alpha 7.0

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4972 Post(s)
Liked 3,073 Times in 2,040 Posts
check that you are sitting straight on the saddle. work on your form. many people walk and or pedal a little cockeyed ...
rumrunn6 is offline
Old 05-13-10, 08:49 AM
  #14
LouisIV
Member
Thread Starter

Join Date: Apr 2010
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Using first generation Look Pedals, and Delta Cleats. As I said, this is my first set of clipless. I moved the cleats back, and that seemed to help a little, also put more of my foot over the pedal, which is what I want anyway. I'll do more of a ride once I get my right hand sorted, or else, I'll go for a one handed ride.

I know to make my knees happy first, since cycling is pretty much the only exercise I can do on them. (Knee injury VERY young) I treat my knees as best I can, no doubt! I think the adjustment will actually help them. I defintiely DIDn'T want to point my toes more toward the downtube.

Thanks for the advice everyone. I think I may look into the knee saver things as well once I get a chance to do a more thorough test ride.
LouisIV is offline
Old 05-13-10, 08:53 AM
  #15
bdcheung
Carpe Diem

bdcheung's Avatar

Join Date: Sep 2006
Location: MABRA
Posts: 13,149

Bikes: 2007 CAAD9; 2014 CAADX; PedalForce CG1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Also.

Obligatory.

Get a bike fit, if you haven't already. Especially with prior knee injuries.
__________________
"When you are chewing the bars at the business end of a 90 mile road race you really dont care what gear you have hanging from your bike so long as it works."
ΛΧΑ ΔΞ179 - 15% off your first Hammer Nutrition order!
bdcheung is offline
Old 05-13-10, 09:47 AM
  #16
chavez
Cyclist

Join Date: Aug 2008
Posts: 68

Bikes: Time Speeder, Rival, carbon tubulars

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I had the same problem with Look-style pedals on my Ridley. The chainstays are shaped weird and my heel was clipping every time I went around, but it turned out that a cracked cleat was allowing too much movement on the drive side - replaced cleat, tightened up pedal tension, and the problem was solved.
