Building a Bike Repair Stand

What bike stand do you have? Has anyone hear ever built their own bike repair stand? I've been looking into some, but the stands are way out of my price range. I've been looking at a few just to see if i can execute the imitation, but I'm sure it's more difficult than it looks. Anyone have any input?
billyb0b115 is offline
Old 10-07-11, 12:22 PM
  #2
Jaymadd
Senior Member

Jaymadd's Avatar

Join Date: Jul 2008
Location: Haverhill, MA
Posts: 335

Bikes: 2011 Boardman Team Carbon

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I built my own using pvc pipe and instructions from this website:
https://www.instructables.com/id/PVC-...-Repair-Stand/
Jaymadd is offline
Old 10-07-11, 12:48 PM
  #3
adclark
What's a bike?

adclark's Avatar

Join Date: Sep 2009
Location: USA
Posts: 611

Bikes: Bianchi Veloce

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I built one out of threaded steel pipe. Don't have pictures right now, but might be able to put it together later and take some. I chose pipe because it is collapsible, strong, and lets you just use a simple set of pipe clamp jaws for the clamp. Just bolt a piece of wood with a semicircle cut out into each jaw. Something similar to the link below, but I added some bracing between the legs on the floor and the upright, and used a pipe clamp instead of a spring clamp. That way, I can control the pressure put on the bike.

https://www.instructables.com/id/DIY-...-Repair-Stand/
adclark is offline
Old 10-07-11, 12:55 PM
  #4
zigmeister
Senior Member

Join Date: Mar 2011
Posts: 898
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 2 Times in 1 Post
I built my own using a speaker stand/tripod with some piping. It was ok...but I just ended up spending the $125 for a Park PCS10...best money I spent for my cycling. You will end up throwing away $100 anyway of plumbing and parts to try and build one that won't be as good as one you can buy for about the same price I found. Lesson learned.
zigmeister is offline
Old 10-07-11, 01:02 PM
  #5
Daytrip
Medicinal Cyclist

Daytrip's Avatar

Join Date: Aug 2008
Location: Mohawk Valley/Adks, NYS
Posts: 2,807

Bikes: 2003 Klein Q Carbon Race; 2009 Giant OCR-1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here's what I started with. I later moved it into the basement and hung it from a workbench. Since then I bought a Park work stand and it was worth every penny of the $150 or $200 that I paid, but this got me though a nice stretch when I didn't have the spare cash for a stand. It's made out of 3/4-inch black iron pipe and fittings and uses a piece of aluminum seatpost bolted into a pipe fitting with a carriage bolt and some big washers.

No, removing the seat every time I wanted to work on my bike wasn't a pain in the ass at all. No tougher than removing the seatbag, which is what you have to do with a regular stand.









Daytrip is offline
Old 10-07-11, 01:29 PM
  #6
tanguy frame
Senior Member

tanguy frame's Avatar

Join Date: May 2005
Location: Portland, OR metro area
Posts: 981
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
too much trouble. I hang my bike from the cieling with bungie cords.
tanguy frame is offline
Old 10-07-11, 01:59 PM
  #7
sbxx1985
Senior Member

sbxx1985's Avatar

Join Date: Oct 2009
Location: Colorado
Posts: 12,684
Mentioned: 15 Post(s)
Tagged: 1 Thread(s)
Quoted: 1725 Post(s)
Likes: 0
Liked 151 Times in 98 Posts
I built one last winter with stuff from Home Depot. I think the total cost was around $60.

sbxx1985 is offline
Old 10-07-11, 02:08 PM
  #8
Daytrip
Medicinal Cyclist

Daytrip's Avatar

Join Date: Aug 2008
Location: Mohawk Valley/Adks, NYS
Posts: 2,807

Bikes: 2003 Klein Q Carbon Race; 2009 Giant OCR-1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I like that. How do you connect the seat tube to the stand?
Daytrip is offline
Old 10-07-11, 03:02 PM
  #9
sbxx1985
Senior Member

sbxx1985's Avatar

Join Date: Oct 2009
Location: Colorado
Posts: 12,684
Mentioned: 15 Post(s)
Tagged: 1 Thread(s)
Quoted: 1725 Post(s)
Likes: 0
Liked 151 Times in 98 Posts
Originally Posted by Daytrip View Post
How do you connect the seat tube to the stand?
I don't. Just the post.
sbxx1985 is offline
Old 10-07-11, 06:18 PM
  #10
TromboneAl
Senior Member

TromboneAl's Avatar

Join Date: Jun 2008
Location: Far, Far Northern California
Posts: 2,873

Bikes: 1997 Specialized M2Pro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This works well and was quick and easy to make.




The bike is between my tools and me, but that's not a big issue.
Attached Images
File Type: jpg
WorkStand 003.jpg (83.3 KB, 2 views)
TromboneAl is offline
Old 10-07-11, 07:41 PM
  #11
Right Said Fred
Senior Member

Join Date: Jul 2011
Posts: 459
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

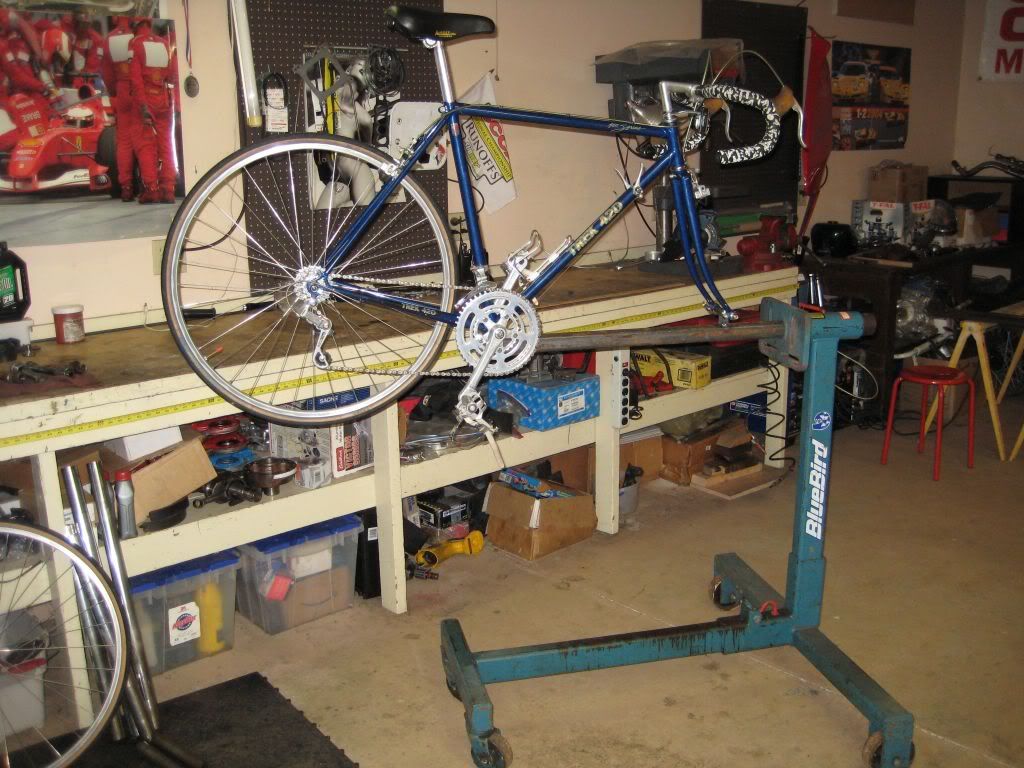

I made this one using some scrap steel I had laying around and an old engine stand. I've since modified it a bit by adding an angle bracket to keep it from rotating, and I might eventually build a separate tripod stand for it. Also may add an attachment to allow hanging a bike by the seat post.

Right Said Fred is offline
