Carbon fork for my steel frame?

Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Carbon fork for my steel frame?

Old 05-22-13, 01:38 PM
  #1
rousseau
Senior Member
Thread Starter

rousseau's Avatar

Join Date: Oct 2005
Location: Southwestern Ontario
Posts: 2,686
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 0 Times in 0 Posts
Carbon fork for my steel frame?

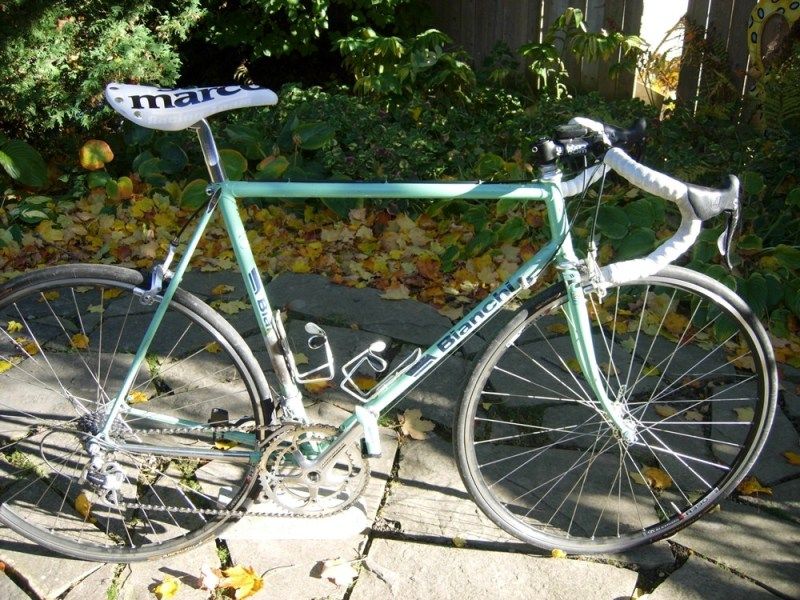

I love this bike. But lately I've been tantalized by thoughts of putting a threadless carbon fork on it for the weight loss and allegedly improved road feel.



Should I? Would the benefits outweigh any aesthetic drawbacks?
rousseau is offline
Old 05-22-13, 01:46 PM
  #2
merlinextraligh
pan y agua

merlinextraligh's Avatar

Join Date: Aug 2005
Location: Jacksonville
Posts: 30,331

Bikes: Wilier Zero 7; Merlin Extralight; Co-Motion Robusta; Schwinn Paramount; Motobecane Phantom Cross; Cervelo P2; Motebecane Ti Fly 29er; Calfee Dragonfly Tandem

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 870 Post(s)
Likes: 0
Liked 2 Times in 1 Post
You can drop a pound or more in weight. And it will likely improve the handling by stiffening the front end. You could get it painted celeste if you wanted.
__________________
You could fall off a cliff and die.
You could get lost and die.
You could hit a tree and die.
OR YOU COULD STAY HOME AND FALL OFF THE COUCH AND DIE.
merlinextraligh is offline
Old 05-22-13, 01:54 PM
  #3
rpenmanparker
Senior Member

rpenmanparker's Avatar

Join Date: Dec 2009
Location: Houston, TX
Posts: 28,356

Bikes: 1990 Romic Reynolds 531 custom build, Merlin Works CR Ti custom build, super light Workswell 066 custom build

Mentioned: 103 Post(s)
Tagged: 1 Thread(s)
Quoted: 6310 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Despite having a gorgeous fork with investment cast, fully sloping Cinelli crown, I bought a carbon fork for my custom Romic frame a few years ago. Frame and fork are in the final stages of repainting now. It is a big step, but I think it is the right thing to do, especially if you favor modernizing the group and cockpit also. I did save about 1 lb, and I do like the modified ride feel. To save that much, you have to go to a full carbon model fork. And of course there are extra weight savings with the threadless head set. With my mix of parts, the finishes bike will weight about 16.35 lb. Not bad. My recommendation is go for it. - Robert
rpenmanparker is offline
Old 05-22-13, 02:01 PM
  #4
cyclezen
OM boy

cyclezen's Avatar

Join Date: Jul 2005
Location: Goleta CA
Posts: 3,122

Bikes: a bunch

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
did that with my Marin Treviso - supa smooth ride without any lose of road feel
I likie !
yes, over a pound of weight reduction, and this with the budget Kinesis carbon blade/alloy steerer fork. Traditional curved taper blades, looks very nice. cane creek headset fit great

made a huge difference on road feel - I now ride this most every wkday...
cyclezen is offline
Old 05-22-13, 02:04 PM
  #5
rousseau
Senior Member
Thread Starter

rousseau's Avatar

Join Date: Oct 2005
Location: Southwestern Ontario
Posts: 2,686
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 0 Times in 0 Posts
Got any pics?

The only 1" fork I've found is the Kinesis one at Wiggle.co.uk. I'd be afraid to go with a carbon steerer, as I'm a bigger guy. Don't want the fork to asplode. Or is that silly talk?
rousseau is offline
Old 05-22-13, 02:14 PM
  #6
merlinextraligh
pan y agua

merlinextraligh's Avatar

Join Date: Aug 2005
Location: Jacksonville
Posts: 30,331

Bikes: Wilier Zero 7; Merlin Extralight; Co-Motion Robusta; Schwinn Paramount; Motobecane Phantom Cross; Cervelo P2; Motebecane Ti Fly 29er; Calfee Dragonfly Tandem

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 870 Post(s)
Likes: 0
Liked 2 Times in 1 Post
^ I'm 200lbs. Retrofitted a Kinesis CF fork with a 1" carbon steerer on my Merlin. Been riding it like that for 8 years now, no issues.
__________________
You could fall off a cliff and die.
You could get lost and die.
You could hit a tree and die.
OR YOU COULD STAY HOME AND FALL OFF THE COUCH AND DIE.
merlinextraligh is offline
Old 05-22-13, 02:18 PM
  #7
pallen
Descends like a rock

pallen's Avatar

Join Date: Oct 2010
Location: Fort Worth, TX
Posts: 4,022

Bikes: Scott Foil, Surly Pacer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have a 1" carbon Torelli fork in my Torelli Countach. I love the bike, but the steer tube is a bit noodly. I decided to order the AL steerer version and found the AL to be just as noodly as the carbon. Is this normal for 1" forks, or is it my bike? When I stand up and sprint or climb, the bars rock back and forth quite a bit. The only thing left I can think of to try is to put in a steel fork - basically the opposite of what the OP is considering.
pallen is offline
Old 05-22-13, 02:24 PM
  #8
cyclezen
OM boy

cyclezen's Avatar

Join Date: Jul 2005
Location: Goleta CA
Posts: 3,122

Bikes: a bunch

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rousseau View Post
Got any pics?

The only 1" fork I've found is the Kinesis one at Wiggle.co.uk. I'd be afraid to go with a carbon steerer, as I'm a bigger guy. Don't want the fork to asplode. Or is that silly talk?


don;t feel any difference between this fork or full carbon steerers on my other bikes, similar road feel, solidity...
and nuttin assploded, yet...
Attached Images
File Type: jpg
cyclezen is offline
Old 05-22-13, 02:30 PM
  #9
dtrain
L-I-V-I-N

dtrain's Avatar

Join Date: May 2005
Location: Stafford, OR
Posts: 4,801
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rousseau View Post
Got any pics?

The only 1" fork I've found is the Kinesis one at Wiggle.co.uk. I'd be afraid to go with a carbon steerer, as I'm a bigger guy. Don't want the fork to asplode. Or is that silly talk?
Another option:
http://www.nashbar.com/bikes/Product...79_-1___202441
__________________
"The older you do get, the more rules they're gonna try to get you to follow. You just gotta keep livin', man, L-I-V-I-N." - Wooderson

'14 carbon Synapse - '12 CAAD 10 5 - '99 Gary Fisher Big Sur
dtrain is offline
Old 05-22-13, 03:01 PM
  #10
thehammerdog
Senior Member

thehammerdog's Avatar

Join Date: Dec 2007
Location: NWNJ
Posts: 2,616

Bikes: Road bike is a Carbon Bianchi C2C & Grandis (1980's), Gary Fisher Mt Bike, Trek Tandem & Mongoose SS MTB circa 1992.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Do it!!!!!!!!!
thehammerdog is offline
Old 05-22-13, 03:12 PM
  #11
rpenmanparker
Senior Member

rpenmanparker's Avatar

Join Date: Dec 2009
Location: Houston, TX
Posts: 28,356

Bikes: 1990 Romic Reynolds 531 custom build, Merlin Works CR Ti custom build, super light Workswell 066 custom build

Mentioned: 103 Post(s)
Tagged: 1 Thread(s)
Quoted: 6310 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by dtrain View Post
Yeah, but look what it weighs: 586 g. That's a half pound more than a quality full carbon fork. I don't think 1" full carbon forks are a problem.
rpenmanparker is offline
Old 05-22-13, 03:16 PM
  #12
rpenmanparker
Senior Member

rpenmanparker's Avatar

Join Date: Dec 2009
Location: Houston, TX
Posts: 28,356

Bikes: 1990 Romic Reynolds 531 custom build, Merlin Works CR Ti custom build, super light Workswell 066 custom build

Mentioned: 103 Post(s)
Tagged: 1 Thread(s)
Quoted: 6310 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by rousseau View Post
Got any pics?

The only 1" fork I've found is the Kinesis one at Wiggle.co.uk. I'd be afraid to go with a carbon steerer, as I'm a bigger guy. Don't want the fork to asplode. Or is that silly talk?
My opinion, silly talk, but the concern is understandable. I think you will be okay. No weight limits I have heard of.
rpenmanparker is offline
Old 05-22-13, 03:18 PM
  #13
save10
Arrogant Roadie Punk

save10's Avatar

Join Date: Oct 2005
Location: California
Posts: 2,353
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ritchey also makes a fork which i am gonna use for my evenutal Lemond rebuild

http://ritcheylogic.com/dyn_prodfamily.php?k=451879
if you click on the option its available w/ 1 inch steerer
save10 is offline
Old 05-22-13, 03:18 PM
  #14
rpenmanparker
Senior Member

rpenmanparker's Avatar

Join Date: Dec 2009
Location: Houston, TX
Posts: 28,356

Bikes: 1990 Romic Reynolds 531 custom build, Merlin Works CR Ti custom build, super light Workswell 066 custom build

Mentioned: 103 Post(s)
Tagged: 1 Thread(s)
Quoted: 6310 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by pallen View Post
I have a 1" carbon Torelli fork in my Torelli Countach. I love the bike, but the steer tube is a bit noodly. I decided to order the AL steerer version and found the AL to be just as noodly as the carbon. Is this normal for 1" forks, or is it my bike? When I stand up and sprint or climb, the bars rock back and forth quite a bit. The only thing left I can think of to try is to put in a steel fork - basically the opposite of what the OP is considering.
Usually the noodles are the fork legs, not the steerer. There is very little unsupported length to flex. Are you sure the headet is properly adjusted?
rpenmanparker is offline
Old 05-22-13, 03:27 PM
  #15
pallen
Descends like a rock

pallen's Avatar

Join Date: Oct 2010
Location: Fort Worth, TX
Posts: 4,022

Bikes: Scott Foil, Surly Pacer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rpenmanparker View Post
Usually the noodles are the fork legs, not the steerer. There is very little unsupported length to flex. Are you sure the headet is properly adjusted?
Yep. I adjusted myself twice, then took it to a very reputable LBS and had them check it as well. I'll see if I can capture some video of the flex. Maybe it is the legs - that might mean a different brand for could fix the problem...
pallen is offline
Old 05-22-13, 04:33 PM
  #16
rousseau
Senior Member
Thread Starter

rousseau's Avatar

Join Date: Oct 2005
Location: Southwestern Ontario
Posts: 2,686
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by save10 View Post
Ritchey also makes a fork which i am gonna use for my evenutal Lemond rebuild

http://ritcheylogic.com/dyn_prodfamily.php?k=451879
if you click on the option its available w/ 1 inch steerer
Doesn't seem to be, actually.
rousseau is offline
Old 05-22-13, 04:50 PM
  #17
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 14,973

Bikes: A bunch of old bikes and a few new ones

Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 3564 Post(s)
Liked 29 Times in 27 Posts
Originally Posted by rousseau View Post
Got any pics?

The only 1" fork I've found is the Kinesis one at Wiggle.co.uk. I'd be afraid to go with a carbon steerer, as I'm a bigger guy. Don't want the fork to asplode. Or is that silly talk?
I wouldn't go with a carbon steerer either.
bikemig is offline
Old 05-22-13, 05:06 PM
  #18
cyclezen
OM boy

cyclezen's Avatar

Join Date: Jul 2005
Location: Goleta CA
Posts: 3,122

Bikes: a bunch

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rpenmanparker View Post
Yeah, but look what it weighs: 586 g. That's a half pound more than a quality full carbon fork. I don't think 1" full carbon forks are a problem.
Originally Posted by save10 View Post
Ritchey also makes a fork which i am gonna use for my evenutal Lemond rebuild

http://ritcheylogic.com/dyn_prodfamily.php?k=451879
if you click on the option its available w/ 1 inch steerer
the kicker is - is it worth spending the extra $300+ plus for a full crapon 1" fork? 1" full crapon is spensive...
most aftermarket forks in the under $500 range seem to quote around 375g-425g, so under 220g-1/2 lb difference.

BTW - that ritchey, above, comes with >alloy< steerer in 1 "...

the nashbar and perfbike forks (like the one in the post above) are Kinesis forks - I put one - nashbar - on my son's bike. He tops 220 (Big Boy ... towers over me...) and it deals fine with his assault of the roads around here...
They're nice quality product without any real labeling (at least the one I put on his bike 3 yrs ago), so they tend to fit in well on an old school frame...
The steerer is pretty thick ALU, so I had to squash the star nut a touch, just to get it into the tube. The steerer is really solid and not likely gonna go anywhere south...
it's worth spending the few bucks more on a solid 1" headset, like the Cane Creek, since that becomes the locus of any road pounding...

and when nashbar does their 20% off you can get just under $100 when you put in their exorbitant ship rates and possible sales tax...

unless you're OCP, the nashbar, perfbike or Kinesis forks are look nice on a vintage machine, and ride very nicely. IMO
cyclezen is offline
Old 05-22-13, 05:14 PM
  #19
halfspeed
Senior Member

halfspeed's Avatar

Join Date: Nov 2003
Location: SE Minnesota
Posts: 12,275

Bikes: are better than yours.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rousseau View Post
I love this bike. But lately I've been tantalized by thoughts of putting a threadless carbon fork on it for the weight loss and allegedly improved road feel.



Should I? Would the benefits outweigh any aesthetic drawbacks?
I read somewhere on teh intarwebz that carbon rides like crap and asplodes.
__________________
Telemachus has, indeed, sneezed.
halfspeed is offline
Old 05-22-13, 05:33 PM
  #20
justkeepedaling
Senior Member

Join Date: Jul 2011
Location: Ogden, Utah
Posts: 693

Bikes: CAAD 10, Cervelo P2 SL, Focus RG-700, Quintana Roo #101

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by pallen View Post
I have a 1" carbon Torelli fork in my Torelli Countach. I love the bike, but the steer tube is a bit noodly. I decided to order the AL steerer version and found the AL to be just as noodly as the carbon. Is this normal for 1" forks, or is it my bike? When I stand up and sprint or climb, the bars rock back and forth quite a bit. The only thing left I can think of to try is to put in a steel fork - basically the opposite of what the OP is considering.
I have a Kinesis 1" fork on my Quintana Roo and the thing is stiff as hell. No flex at all, though that being said, the fork is probably 500 grams
justkeepedaling is offline
Old 05-22-13, 05:42 PM
  #21
Nerull
Senior Member

Join Date: May 2010
Location: Madison, WI
Posts: 1,099
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by pallen View Post
I have a 1" carbon Torelli fork in my Torelli Countach. I love the bike, but the steer tube is a bit noodly. I decided to order the AL steerer version and found the AL to be just as noodly as the carbon. Is this normal for 1" forks, or is it my bike? When I stand up and sprint or climb, the bars rock back and forth quite a bit. The only thing left I can think of to try is to put in a steel fork - basically the opposite of what the OP is considering.
Are you sure it's related to the fork at all?

26.0 handlebars are common on steel bikes and they're known for being pretty noodly.
Nerull is offline
Old 05-22-13, 06:46 PM
  #22
StanSeven
Administrator

Join Date: Feb 2005
Location: Delaware shore
Posts: 13,056

Bikes: Cervelo C5, Guru Photon, Waterford, Specialized CX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 576 Post(s)
Liked 25 Times in 23 Posts
I got a 1" Reynolds Ouzo Pro and Criss King headset on an old Waterford. It saved 1.5 lbs and the bike handles much better. I had Waterford paint the fork and it matches the 21 year old frame perfectly.
StanSeven is offline
Old 05-22-13, 06:49 PM
  #23
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Posts: 5,131
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Liked 69 Times in 52 Posts
I have steel bikes with both steel and carbon forks. The bikes ride differently but I don't know that I can tell what part of that is the fork. If it was my classic celeste Bianchi, I'd keep the steel. In fact if that is a threaded to threadless adapter, I'd replace it with a nice silver quill stem! You can always buy a generic carbon bike if you feel moved in that direction.
shelbyfv is offline
Old 05-22-13, 06:56 PM
  #24
roccobike
Bike Junkie

roccobike's Avatar

Join Date: Jun 2005
Location: South of Raleigh, North of New Hill, East of Harris Lake, NC
Posts: 9,553

Bikes: Specialized Tarmac, Specialized Roubaix, Giant OCR-C, Specialized Stumpjumper FSR, Stumpjumper Comp, 88 & 92Nishiki Ariel, 87 Centurion Ironman, 92 Paramount, 84 Nishiki Medalist

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Got to agree with shelbyfv. I've got carbon bikes and steel bikes. The ride on both is very smooth. If you want to spend some $$$ on something where you'll notice the performance, I'd replace the wheels. The wheels on the red Bianchi in my avatar have been replaced with Mavic Ksyrium Elite. Made a major difference in the feel and handling of the bike over those entry level Mavics that it came with.
__________________
Roccobike BF Official Thread Terminator
roccobike is offline
Old 05-22-13, 07:08 PM
  #25
marqueemoon
or tarckeemoon, depending

marqueemoon's Avatar

Join Date: Dec 2005
Location: the pesto of cities
Posts: 7,020

Bikes: Davidson Impulse, Merckx Titanium AX, Bruce Gordon Rock & Road, Cross Check custom build, On-One Il Pomino, Shawver Cycles cross, Zion 737, Mercian Vincitore, Brompton S1L, Charge Juicer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I love the ride of a nice steel fork.

Just leave it alone and n+1.
marqueemoon is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
