Conventional freewheel hub instead of track hub

Notices
Singlespeed & Fixed Gear "I still feel that variable gears are only for people over forty-five. Isn't it better to triumph by the strength of your muscles than by the artifice of a derailer? We are getting soft...As for me, give me a fixed gear!"-- Henri Desgrange (31 January 1865 - 16 August 1940)

Conventional freewheel hub instead of track hub

Old 04-23-21, 08:25 PM
  #1
Gresp15C
Senior Member
Thread Starter

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,710
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 549 Times in 356 Posts
Conventional freewheel hub instead of track hub

One of the bikes in the family fleet is an old Schwinn converted to single speed by replacing the multi speed cluster with a threaded single speed freewheel. So far so good. If we re-dish the wheel so the flanges are more or less equidistant from the centerline, it will improve the chainline, and I have the spacers needed to make it work. Other than the relative weakness of the longer axle, which is already a solid axle, is there any major downside to doing this, as opposed to using a real track hub? This is a "campus bike" so we don't want to throw a lot of new components at it, but still it rides pretty nice and is worth some attention.
Gresp15C is offline
Old 04-23-21, 08:36 PM
  #2
ofajen
Cheerfully low end

Join Date: Jun 2020
Posts: 757
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 307 Times in 206 Posts
Originally Posted by Gresp15C View Post
One of the bikes in the family fleet is an old Schwinn converted to single speed by replacing the multi speed cluster with a threaded single speed freewheel. So far so good. If we re-dish the wheel so the flanges are more or less equidistant from the centerline, it will improve the chainline, and I have the spacers needed to make it work. Other than the relative weakness of the longer axle, which is already a solid axle, is there any major downside to doing this, as opposed to using a real track hub? This is a "campus bike" so we don't want to throw a lot of new components at it, but still it rides pretty nice and is worth some attention.
Should be fine. I have thousands of miles on a similar Schwinn SS conversion. The one difference is I have Superbe QR hubs, not solid axle.

Total weight of about 200 pounds and most miles are on mellow trails plus a few bits of road. Lots of rough trail bridge crossings and no issues. But I ride very light and unweight the saddle for any spot with the least roughness. And I ride fully taped touring bars so I have a lot of flexibility about hand and body position.

Otto
ofajen is offline
Old 04-23-21, 11:02 PM
  #3
Gresp15C
Senior Member
Thread Starter

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,710
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 549 Times in 356 Posts
Thanks! The bike came with a bent axle, and the solid axle is what we had in the bin. Oddly enough, I looked up the mechanical engineering formulas, and a solid axle isn't really much stronger than a hollow one.
Gresp15C is offline
Old 04-24-21, 04:10 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,541

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2572 Post(s)
Liked 1,203 Times in 762 Posts
Originally Posted by Gresp15C View Post
One of the bikes in the family fleet is an old Schwinn converted to single speed by replacing the multi speed cluster with a threaded single speed freewheel. So far so good. If we re-dish the wheel so the flanges are more or less equidistant from the centerline, it will improve the chainline, and I have the spacers needed to make it work. Other than the relative weakness of the longer axle, which is already a solid axle, is there any major downside to doing this, as opposed to using a real track hub?
No. If you're running a single freewheel, a track hub will not offer any real advantage. A track hub allows you to safely run a fixed sprocket with a lockring to prevent it from loosening. A freewheel doesn't need this. Track hubs also offer slightly better lateral bracing by putting the non-drive side hub flange directly over the bearing race rather than offset slightly inboard, but that's unlikely to be an issue with the type of riding you describe. Be aware that even a single freewheel requires some dish, so don't just assume you can have the flanges equidistant from the locknuts.
JohnDThompson is offline
Likes For JohnDThompson:
Old 04-24-21, 05:14 PM
  #5
Gresp15C
Senior Member
Thread Starter

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,710
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 549 Times in 356 Posts
Thanks for the note about dishing. We'll follow the "make no assumptions" approach. I'm thinking, take care of the chainline and clearance of the cog first, then dish the wheel to put the rim where it needs to be.
Gresp15C is offline
Old 04-24-21, 07:09 PM
  #6
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,350

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1516 Post(s)
Liked 876 Times in 470 Posts
I too have done this. I believe I changed the cone to locknut spacers too. (less on drive side, more on the non-drive side. After re-dishing, the wheel is actually stronger than when it was dished farther out for the multi-cog freewheel.
AlmostTrick is offline
Old 04-24-21, 07:21 PM
  #7
ofajen
Cheerfully low end

Join Date: Jun 2020
Posts: 757
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 307 Times in 206 Posts
Originally Posted by AlmostTrick View Post
I too have done this. I believe I changed the cone to locknut spacers too. (less on drive side, more on the non-drive side. After re-dishing, the wheel is actually stronger than when it was dished farther out for the multi-cog freewheel.
Yeah, I did this about a year ago for my Schwinn. Not only is the wheel virtually un-dished and stronger, but it had been a bit out of round and true beforehand, and now after the re-dish it seems to be round and true.

I seem to recall moving the chainline about 6mm and Iím using a chainring on the inner side of a 2x crank arm.

Itís a 126mm spacing hub and I think there is still room to run a 5-speed cluster if I ever want to go back to that.

Otto
ofajen is offline
Old 05-04-21, 06:21 AM
  #8
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,661

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 689 Post(s)
Liked 387 Times in 242 Posts

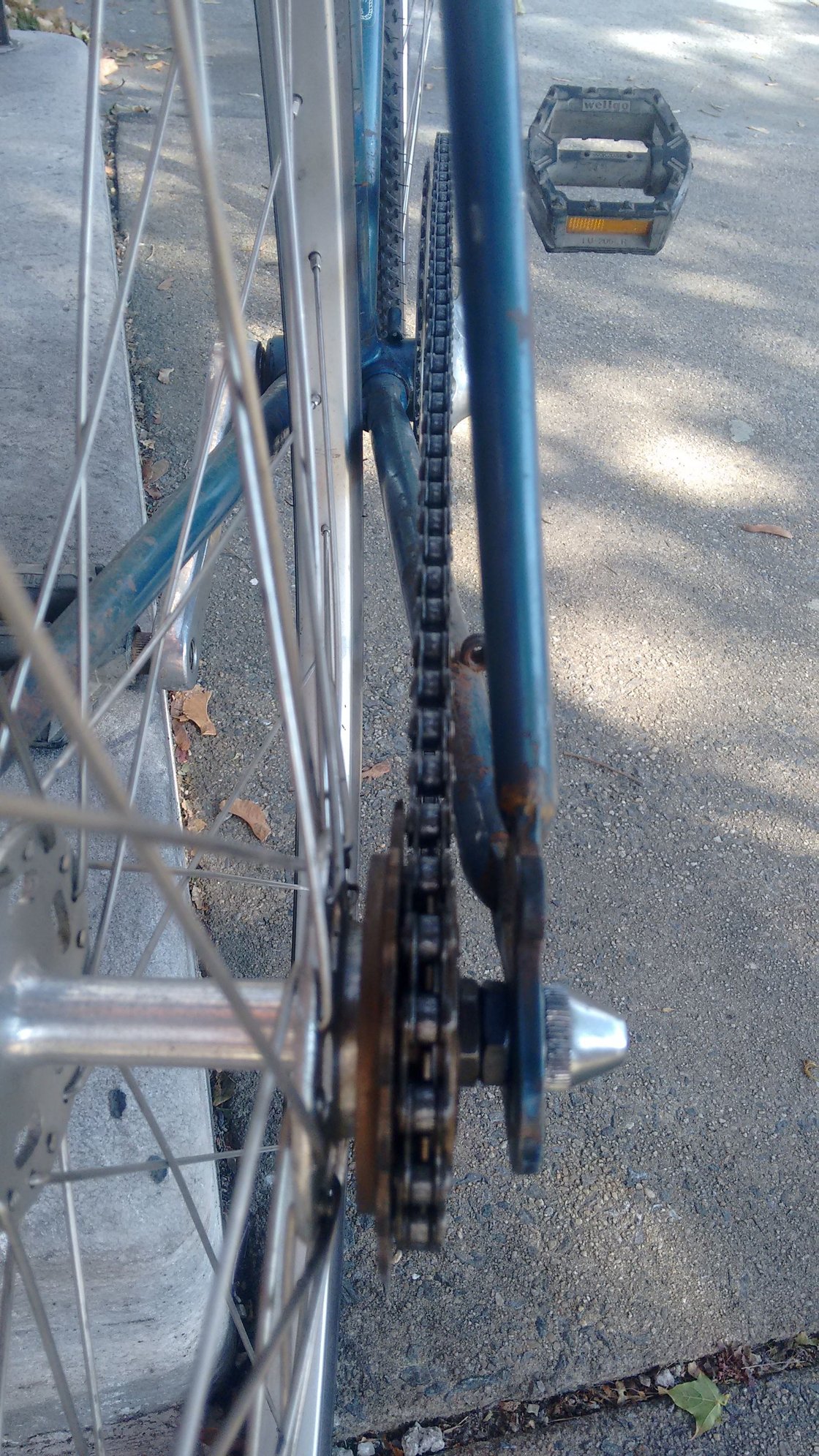

This was a 6 speed 27" wheel on an old step thru bike here in Cambodia that I took to the US after I had recentered the hub.
It is now a dingle speed.


bwilli88 is offline
Likes For bwilli88:
Old 05-05-21, 05:37 PM
  #9
stevel610
Senior Member

Join Date: Aug 2006
Location: Valley Forge: Birthplace of Freedom
Posts: 1,003

Bikes: Novara Safari, CAAD9, WABI Classic

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 214 Times in 129 Posts
I think RJ the Bike Guy has a video on doing just that.
__________________
Be watchful, stand firm in the faith, act like men, be strong. Let all that you do be done in love.
stevel610 is online now
Old 06-04-21, 04:22 PM
  #10
Gresp15C
Senior Member
Thread Starter

Gresp15C's Avatar

Join Date: Sep 2014
Posts: 3,710
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 549 Times in 356 Posts
Report: Success! It was easier than expected. I un-dished the wheel by loosening all of the spokes and starting from scratch with tensioning and truing. The wheel is pretty beaten up, so perfect truth was not a goal, but I think it's better than it was. Then I added enough width of spacer between the locknut and cone on each side, to match the dropout spacing on the frame of roughly 121 mm. Chainline is spot on, wheel centering likewise.
Gresp15C is offline
Likes For Gresp15C:
