recommend an inexpensive front brake for a conversion?

Notices
Singlespeed & Fixed Gear "I still feel that variable gears are only for people over forty-five. Isn't it better to triumph by the strength of your muscles than by the artifice of a derailer? We are getting soft...As for me, give me a fixed gear!"-- Henri Desgrange (31 January 1865 - 16 August 1940)

recommend an inexpensive front brake for a conversion?

Old 08-25-21, 06:31 PM
  #1
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts
recommend an inexpensive front brake for a conversion?

I'm finishing up converting my 77 Raleigh super course to a fixed gear. The original wienman brakes are center pull and in my opinion kind of big and clunky for a nice sleek fixed gear. I'd like to install a basic aluminum side pull front brake and run it to the top of the bars to a short lever.

Can anyone recommend a brake+lever set? I forget what the diameter of the old road drops are near the stem but I can always measure that.

I've had good luck with origin8 stuff but to be honest with you I've also had good luck with sunlite stuff. I'm really not fancy. I like stuff to be durable, not flashy, and inexpensive as possible.

Thanks for any help!

Jack
cyrano138 is offline
Old 08-25-21, 07:58 PM
  #2
acoustophile
Senior Member

acoustophile's Avatar

Join Date: Jun 2008
Location: Calgary
Posts: 186
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 71 Times in 31 Posts
If it's an old road conversion then you probably need long reach brakes. I usually use Tektro R559 for my conversions.
acoustophile is offline
Old 08-25-21, 08:11 PM
  #3
SkinGriz
Live not by lies.

Join Date: Nov 2020
Posts: 594

Bikes: BigBox bikes.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 257 Times in 196 Posts
I would measure the reach and get the Tektro that works. I think the tektro dual pivot is worth the extra 10$ or whatever on Amazon. And kool stop pads.
SkinGriz is offline
Likes For SkinGriz:
Old 08-25-21, 10:58 PM
  #4
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts
Originally Posted by acoustophile View Post
If it's an old road conversion then you probably need long reach brakes. I usually use Tektro R559 for my conversions.
That's what I wound up going with!

Originally Posted by SkinGriz View Post
I would measure the reach and get the Tektro that works. I think the tektro dual pivot is worth the extra 10$ or whatever on Amazon. And kool stop pads.
Do you guys have a lever you'd recommend? Something for the top of the drop bars.
cyrano138 is offline
Old 08-26-21, 01:05 AM
  #5
SkinGriz
Live not by lies.

Join Date: Nov 2020
Posts: 594

Bikes: BigBox bikes.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 257 Times in 196 Posts

[size=16px]Tektro fl750? They look nice. Seem to be for short pull, non linear pull brakes. No barrel adjuster. Have not used myself.[/size]


I am running the tektro bmx levers. I am going to run dia-Comp ss6 levers next. They look like the levers are a little longer giving more leverage/power.
SkinGriz is offline
Old 08-26-21, 10:34 AM
  #6
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts
Originally Posted by SkinGriz View Post

[size=16px]Tektro fl750? They look nice. Seem to be for short pull, non linear pull brakes. No barrel adjuster. Have not used myself.[/size]


I am running the tektro bmx levers. I am going to run dia-Comp ss6 levers next. They look like the levers are a little longer giving more leverage/power.

I like them but it seems like they only make them for 22.2 bars. My bars are 24mm (near the stem where I'd mount it).
I remember going into this rabbit hole before. I miss the early 2000s when everyone and their mom was riding fixed gears and you could get whatever you wanted. Now there's so little to choose from -- especially in the older style. Seems like now it's heavier frames, wider tires, and 48inch bars. Mountain bike-y. No judgement, just not for me. Of course, the 12inch bars back in the day were pretty dumb.
cyrano138 is offline
Old 08-26-21, 12:00 PM
  #7
IAmSam
Senior Member

Join Date: Oct 2012
Posts: 1,480
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 144 Times in 72 Posts
Originally Posted by cyrano138 View Post
My bars are 24mm (near the stem where I'd mount it).
Tektro, and its companions Cane Creek and Soma, offer 24mm inline levers. Good luck...
IAmSam is offline
Old 08-26-21, 04:12 PM
  #8
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts
Originally Posted by IAmSam View Post
Tektro, and its companions Cane Creek and Soma, offer 24mm inline levers. Good luck...
Thank you. I always figured cane creek and soma were out of my price range, but their stuff doesn't look too bad.
cyrano138 is offline
Old 08-26-21, 08:06 PM
  #9
SkinGriz
Live not by lies.

Join Date: Nov 2020
Posts: 594

Bikes: BigBox bikes.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 257 Times in 196 Posts
Originally Posted by cyrano138 View Post
I like them but it seems like they only make them for 22.2 bars. My bars are 24mm (near the stem where I'd mount it).
I remember going into this rabbit hole before. I miss the early 2000s when everyone and their mom was riding fixed gears and you could get whatever you wanted. Now there's so little to choose from -- especially in the older style. Seems like now it's heavier frames, wider tires, and 48inch bars. Mountain bike-y. No judgement, just not for me. Of course, the 12inch bars back in the day were pretty dumb.
Shoot. I missed the 24mm part. Sorry.
SkinGriz is offline
Old 08-26-21, 08:39 PM
  #10
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts
Originally Posted by SkinGriz View Post
Shoot. I missed the 24mm part. Sorry.
No worries!
cyrano138 is offline
Old 08-27-21, 07:32 AM
  #11
tommymc
Senior Member

Join Date: Sep 2012
Location: Central Florida
Posts: 53

Bikes: Many, mostly old & low tech

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 13 Times in 6 Posts
Too bad the FL750's only come with 22.2 clamps. They are cheap, elegantly simple and have nice long levers for a good pull on old brakes. They solved a problem I had with cantilevers and a Velo Orange Crazy bar 22.2 ends. On my fixed conversion with Origin8 Tiki bars (mustache type in road diameters) I tried inline levers but they seem to lack power and feel for my old center-pull calipers. Incidentally, the long reach versions of the Weinmann center-pull or Dia-Compe 750 copies have enough reach for 700c wheels on an old 27" frame and have a nice vintage look. Now I've switched the conversion back to a regular drop bar and old style road levers. The only drop bars I know of with 22.2 ends are Soma Gators.
tommymc is offline
Old 08-27-21, 07:46 AM
  #12
TugaDude
Senior Member

TugaDude's Avatar

Join Date: Nov 2010
Posts: 2,724
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 307 Times in 222 Posts
Brakes are not something to try to save money on in my opinion. Whatever you do, don't sacrifice function for looks or for budget.
TugaDude is offline
Old 08-27-21, 04:03 PM
  #13
TMonk
Not actually Tmonk

TMonk's Avatar

Join Date: Jun 2007
Location: San Diego, CA
Posts: 12,054

Bikes: road, track, mtb

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1278 Post(s)
Liked 1,124 Times in 598 Posts
Used dura ace 7800 brakes on Ebay FTW. But only if they're long enough
__________________
"Your beauty is an aeroplane;
so high, my heart cannot bear the strain." -A.C. Jobim, Triste
TMonk is offline
Likes For TMonk:
Old 08-28-21, 11:43 PM
  #14
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts
Originally Posted by tommymc View Post
Too bad the FL750's only come with 22.2 clamps. They are cheap, elegantly simple and have nice long levers for a good pull on old brakes. They solved a problem I had with cantilevers and a Velo Orange Crazy bar 22.2 ends. On my fixed conversion with Origin8 Tiki bars (mustache type in road diameters) I tried inline levers but they seem to lack power and feel for my old center-pull calipers. Incidentally, the long reach versions of the Weinmann center-pull or Dia-Compe 750 copies have enough reach for 700c wheels on an old 27" frame and have a nice vintage look. Now I've switched the conversion back to a regular drop bar and old style road levers. The only drop bars I know of with 22.2 ends are Soma Gators.
I agree, I really wanted them. I feel like this is kind of what I was talking about above. There was a time when fixing up 70s and 80s road bikes and/or converting then to fixed was very popular. I think now that's it's essentially gone out of style it's harder to find stuff made to fit those vintage bikes. Take bottom brackets -- it used to be easy and cheap to get basic, unsealed, brackets but now it's all sealed. You can find a sealed cartridge that fits, but it's bit the same stuff.

Originally Posted by TugaDude View Post
Brakes are not something to try to save money on in my opinion. Whatever you do, don't sacrifice function for looks or for budget.
Maybe I'm just lucky, but I've ridden a lot of cheap ass bikes with cheap ass components in the last 35 years and I've yet to have a brake fail. I understand paying for a certain threshold of quality, but that threshold has always been pretty low for me. In almost 4 decades of riding I've never crashed from anything but user error. I appreciate the advice though.

Originally Posted by TMonk View Post
Used dura ace 7800 brakes on Ebay FTW. But only if they're long enough
I'll check this out, thanks!

Last edited by cyrano138; 08-28-21 at 11:47 PM.
cyrano138 is offline
Old 08-29-21, 04:56 AM
  #15
tommymc
Senior Member

Join Date: Sep 2012
Location: Central Florida
Posts: 53

Bikes: Many, mostly old & low tech

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 13 Times in 6 Posts
I had a Super Course of about the same vintage as yours. I believe that the center pulls on it are Weinmann 610's with spec;d reach of 50 to 65mm. Those nice Dura Ace calipers only go to 49mm so will probably not reach on your frame. A bigger problem on an old frame is the lack of a recessed mounting in the fork crown. I don't know of many dual pivot calipers with a long enough bolt and nut option except Tektro R539 and R559's.

I tend to agree with you about braking needs in certain situations. A single-geared bike is not likely to carry a heavy luggage load in hilly terrain. And as you're in Florida (where I spend most of the year) the steepest descents are likely on a short bridge. So if I had a total front brake failure I guess it would be time for a skid stop. But while I'm temporarily in Upstate New York with a fixed bike I do feel the need for good brakes on both ends.
tommymc is offline
Old 08-29-21, 04:40 PM
  #16
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts

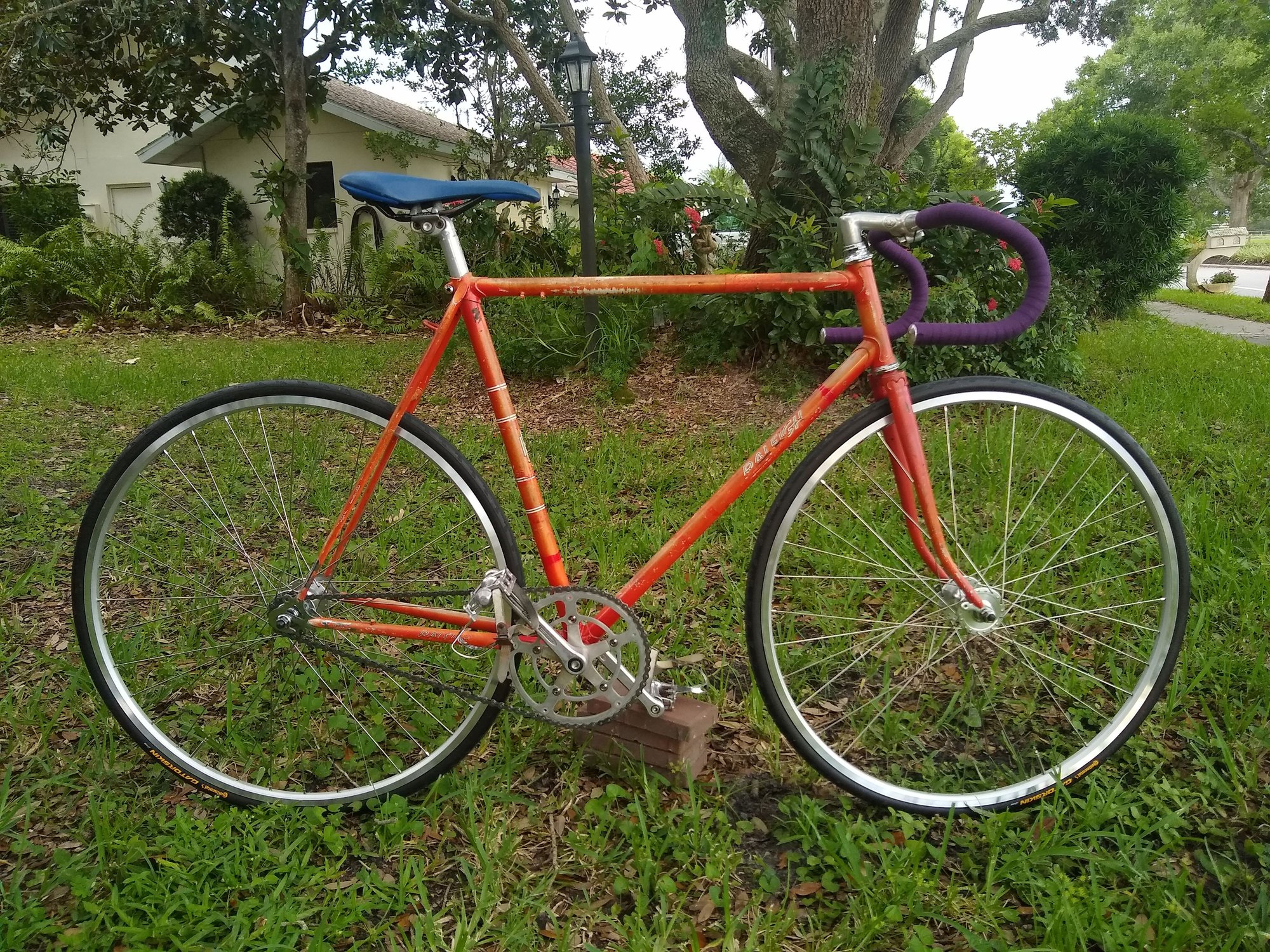

Finally basically done. Honestly it didn't involve much real mechanic work. I bought a set of fixed hub wheels, and stripped everything off.

The chain line was already spot on. Didn't have to re-dish, or swap out for a shorter bb spindle length. Years ago, before I knew how, I had a friend replace the bb and he put a 122mm in. It was actually too short by a hair because the inner ring rubbed slightly on the chain stay which I'm thrilled about now because it saved me the trouble for this conversion.

I kept the original cranks and chainring (just removed the inner chainring), bought a 14 tooth cog for the rear, out a nice shiny 3/32 chain on, and did a basic service on the headset bearings and cleaned er up.
cyrano138 is offline
Old 08-29-21, 04:44 PM
  #17
cyrano138
Senior Member
Thread Starter

cyrano138's Avatar

Join Date: Aug 2008
Location: Venice, FL
Posts: 572

Bikes: 1986 Schwinn LeTour, 1977 Raleigh Super Course (converted to fixed gear), 199X GT outpost

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 47 Times in 31 Posts
Originally Posted by tommymc View Post
I had a Super Course of about the same vintage as yours. I believe that the center pulls on it are Weinmann 610's with spec;d reach of 50 to 65mm. Those nice Dura Ace calipers only go to 49mm so will probably not reach on your frame. A bigger problem on an old frame is the lack of a recessed mounting in the fork crown. I don't know of many dual pivot calipers with a long enough bolt and nut option except Tektro R539 and R559's.

I tend to agree with you about braking needs in certain situations. A single-geared bike is not likely to carry a heavy luggage load in hilly terrain. And as you're in Florida (where I spend most of the year) the steepest descents are likely on a short bridge. So if I had a total front brake failure I guess it would be time for a skid stop. But while I'm temporarily in Upstate New York with a fixed bike I do feel the need for good brakes on both ends.
The fact that I'm in Florida really opens up the possibilities for just what constitutes adequate brakes. Can I stop in time to avoid running that alligator over? Yes? Perfect.
I rode my first fixed gear, a 2007 Fuji track that I'll never forgive myself for selling, without brakes successfully for almost a year before I put one on at the behest of a mechanic buddy.

I ordered one that had a range of 59 to 69 I think. I measured the weinmans at just about 60mm.
