How do you remove this type of brake?

Notices
Singlespeed & Fixed Gear "I still feel that variable gears are only for people over forty-five. Isn't it better to triumph by the strength of your muscles than by the artifice of a derailer? We are getting soft...As for me, give me a fixed gear!"-- Henri Desgrange (31 January 1865 - 16 August 1940)

How do you remove this type of brake?

Old 04-25-08, 01:19 PM
  #1
jilla82
Senior Member
Thread Starter

Join Date: Jun 2007
Location: Chicago
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How do you remove this type of brake?

https://www.bianchiusa.com/07_san_jose.html

im about to switch handle bars and add different brakes...but I never looked at the brake lever on the San Jose...how do I take it off w/o ripping everything apart?
jilla82 is offline
Old 04-25-08, 01:24 PM
  #2
johnce
Senior Member

Join Date: Mar 2008
Posts: 101
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hello,
If you push your brake lever down and look inside the hood you'll see an allen bolt under there, loosen this bolt and the band that holds the lever on will come off...quite simple really....good luck
johnce is offline
Old 04-25-08, 01:27 PM
  #3
Hobartlemagne
Spelling Snob

Hobartlemagne's Avatar

Join Date: Dec 2005
Location: Plano, Texas
Posts: 2,862

Bikes: Panasonic DX4000, Bianchi Pista

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 2 Times in 1 Post
you click this link and buy a different model:
https://www.bianchiusa.com/08_pista.html
__________________

The first rule of flats is You don't talk about flats!
Hobartlemagne is offline
Old 04-25-08, 01:28 PM
  #4
homEsick
Senior Member

Join Date: Mar 2008
Posts: 100
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
what makes the san jose brake lever any different than any other brake lever?
just loosen the brake cable, and unscrew behind the lever when it's fully depressed


or is the san jose just that much different?


edit: got beat to it d:

Last edited by homEsick; 04-25-08 at 01:37 PM.
homEsick is offline
Old 04-25-08, 01:35 PM
  #5
jilla82
Senior Member
Thread Starter

Join Date: Jun 2007
Location: Chicago
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
dunno if its any differnt...I just didnt know where the bolt was...johnce took care of that


thanx!
jilla82 is offline
Old 04-25-08, 02:51 PM
  #6
doofo
thomas masini lives

Join Date: Sep 2006
Location: i aint dh no mo'
Posts: 3,495
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
when you say you are going to put a different brake on you mean an invisible one dont you
?
doofo is offline
Old 04-25-08, 04:18 PM
  #7
jilla82
Senior Member
Thread Starter

Join Date: Jun 2007
Location: Chicago
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
sooooo....how do I seperate the brake wire from the lever? hmmmm
jilla82 is offline
Old 04-25-08, 04:42 PM
  #8
cyates
Member

Join Date: Feb 2008
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
push the cable through the front of the lever. if it's corroded and stuck, you might have to pry it out with a screwdriver, and/or use wd-40.

Last edited by cyates; 04-25-08 at 06:17 PM.
cyates is offline
Old 04-25-08, 04:55 PM
  #9
jilla82
Senior Member
Thread Starter

Join Date: Jun 2007
Location: Chicago
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
https://www.canecreek.com/drop-v-brake-levers.html

im talking about taking the housing and wire out of this lever...the end of the wire has a metal ball holding it in place...i dont see how to take that out so that I can keep the housing and brake wire intact
jilla82 is offline
Old 04-25-08, 06:20 PM
  #10
cyates
Member

Join Date: Feb 2008
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
like i said, push the cable through the front of the lever. you need to loosen the cable at the brake so you can do this.
cyates is offline
Old 04-25-08, 06:26 PM
  #11
GP
Senior Member

GP's Avatar

Join Date: May 2004
Posts: 7,630
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 0 Times in 0 Posts
What kind of brakes are you going to put on?
GP is offline
Old 04-25-08, 06:27 PM
  #12
jim-bob
hateful little monkey

jim-bob's Avatar

Join Date: May 2003
Location: oakland, ca
Posts: 5,274
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

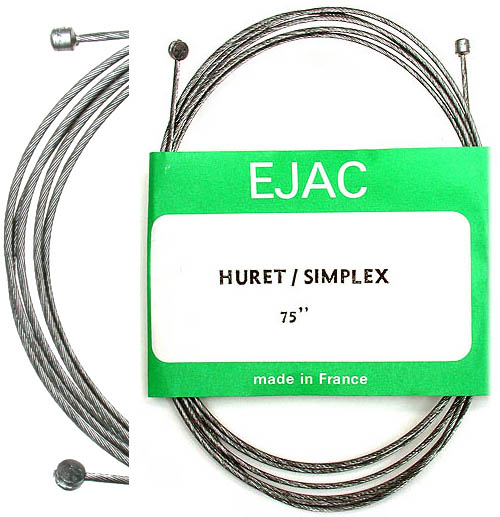

If you're going to flat/riser bars and mtb levers, you're going to need new cables anyway, those levers want a sort of sideways barrel instead of the cable end that road levers like.

Top is road-style, bottom is mtb-style.
jim-bob is offline
Old 04-25-08, 06:28 PM
  #13
Thetank
Senior Member

Thetank's Avatar

Join Date: Apr 2008
Posts: 1,041
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
you have to remove the bar tape and release the wire from the brake caliper. Once its loose you can pull the whole wire from the front of the brake lever by pulling that little metal ball you're talking about, that's the head of the brake cable.
Thetank is offline
Old 04-25-08, 06:53 PM
  #14
jilla82
Senior Member
Thread Starter

Join Date: Jun 2007
Location: Chicago
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Thetank View Post
you have to remove the bar tape and release the wire from the brake caliper. Once its loose you can pull the whole wire from the front of the brake lever by pulling that little metal ball you're talking about, that's the head of the brake cable.
ok...and on the other end of the line there is a cable cap (the end thats connected to the caliper)..am I supposed to take that off so that it can be pulled thru the line?
jilla82 is offline
Old 04-25-08, 07:15 PM
  #15
jilla82
Senior Member
Thread Starter

Join Date: Jun 2007
Location: Chicago
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
ended up taking it off...I see I need a pair of wire cutters though to get the wire through so that the wire is tight enough to get back through the housing
jilla82 is offline
Old 04-25-08, 07:18 PM
  #16
thedirt
Junior Member

Join Date: Jun 2007
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
you might be able to just re twist it with your fingers.
thedirt is offline
Old 04-25-08, 07:25 PM
  #17
jilla82
Senior Member
Thread Starter

Join Date: Jun 2007
Location: Chicago
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jim-bob View Post
If you're going to flat/riser bars and mtb levers, you're going to need new cables anyway, those levers want a sort of sideways barrel instead of the cable end that road levers like.

Top is road-style, bottom is mtb-style.
im going to bullhorns w/ TT levers...i didnt even notice that the levers opening was different...guess ill be hittin up the lbs tomorrow
jilla82 is offline
