Spline Hub to Single Speed?

I searched... Any way to convert a spline hub (freehub) to a single speed? The idea here is to essentially remove the other gears on cassette and just have one gear.


Spline Hub (freehub)

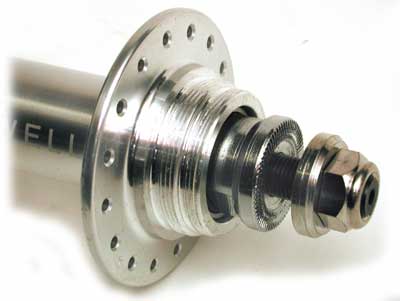

Threaded Hub

You would have to remove the cassette and slide on the splined single speed gear and have a lockring/spacer of sorts to keep the gear in place.

Last edited by DOOMhisname; 10-27-08 at 10:49 AM.
DOOMhisname is offline
Old 10-27-08, 10:55 AM
  #2
streetlightpoet
Banned.

Join Date: Mar 2007
Location: Lexington, KY
Posts: 668

Bikes: Masi Speciale Fixed, Surly 1x1, 2 70's Bianchi folders, Swingbike, Columbia Cruiser 3 spd, Specialized Big Hit and P.2, Cove G-Spot, Xtracycled Bianchi San Jose.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
yep, they make singlespeed spacer kits to do just that. It's also been done with PVC pipe cut to length.
streetlightpoet is offline
Old 10-27-08, 11:04 AM
  #3
DOOMhisname
Make a crispy
Thread Starter

DOOMhisname's Avatar

Join Date: Jul 2008
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
K. Found them here. http://www.jensonusa.com/store/produ...pacer+Kit.aspx.

Now the question, where do you find a single spline gear? Grind it off of a cassette?
DOOMhisname is offline
Old 10-27-08, 11:09 AM
  #4
DOOMhisname
Make a crispy
Thread Starter

DOOMhisname's Avatar

Join Date: Jul 2008
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
http://www.pedalpowered.com/servlet/...splined/Detail

Nevermind, thanks.
DOOMhisname is offline
Old 10-27-08, 11:10 AM
  #5
Iser@n
Worst mechanic ever

Iser@n's Avatar

Join Date: Nov 2007
Posts: 84
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nope, just buy a bmx cog. http://www.jensonusa.com/store/produ...y+Bmx+Cog.aspx

If you buy one, be careful the base isn't too narrow, or it will cut into the body.

EDIT: see you found out yourself already, however please take notice off my second remark! The cog in your link is cheap and will do the job, but there's a big chance it will cut into the body if its aluminum.
Iser@n is offline
Old 10-27-08, 01:19 PM
  #6
DOOMhisname
Make a crispy
Thread Starter

DOOMhisname's Avatar

Join Date: Jul 2008
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
http://www.jensonusa.com/store/produ...y+Bmx+Cog.aspx

Aha, this one is wider.
DOOMhisname is offline
Old 10-27-08, 01:43 PM
  #7
fivehoursfree
Senior Member

Join Date: Aug 2007
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Most cassetts are just held together by a skinny long screw. Take the cassette off and look at the back, there should be at least 1 (maybe 2) hex bolts screwing into the cassette. It's really small, so you may not notice it right away. Like .5mm small. The smallest hex wrench you can buy small. Just unscrew and the cassette will fall apart.
fivehoursfree is offline
Old 10-27-08, 03:26 PM
  #8
skeem
Senior Member

Join Date: Feb 2008
Location: pittsburghadelphia
Posts: 288

Bikes: types that go fast

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
got a free and easy way to do it. you take your casette and put the larger cogs on first and then put the cog you want on so it lines up with the chainline and then you put on the smaller ones (say 12-15 teeth) and then just re lock the lockring on and it works. i have done it to 2 bikes over the last 3 months for friends and its fine. sometimes i needed to steal parts and spacers from older cassettes to make the spacing work, but its free if you have at least one old cassette
skeem is offline
Old 10-27-08, 03:54 PM
  #9
wearyourtruth
Ride for Life

wearyourtruth's Avatar

Join Date: Jun 2004
Location: Houston
Posts: 2,741
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fivehoursfree View Post
Most cassetts are just held together by a skinny long screw. Take the cassette off and look at the back, there should be at least 1 (maybe 2) hex bolts screwing into the cassette. It's really small, so you may not notice it right away. Like .5mm small. The smallest hex wrench you can buy small. Just unscrew and the cassette will fall apart.
i was going to say the same thing. then you will have spacers and cogs.... though you usually need 2 cassettes to get enough spacers, but it works just fine.
