Singlespeed & Fixed Gear "I still feel that variable gears are only for people over forty-five. Isn't it better to triumph by the strength of your muscles than by the artifice of a derailer? We are getting soft...As for me, give me a fixed gear!"-- Henri Desgrange (31 January 1865 - 16 August 1940)

Need help with bottem bracket

Old 07-22-09, 07:59 PM
  #1
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Need help with bottem bracket

I have an old frame and am building it up. I have everything but my crank set. I have no idia what size bottem bracket to get for my bike. im looking to buy the crank set off ebay and the bottom bracket off the web nashbar probobly. Takeing it to my LBS is out of the qwuestion they have horrible customer service.




Thanks for any help
Jordan5 is offline
Old 07-22-09, 08:12 PM
  #2
caRpetbomBer
Senior Member

Join Date: Oct 2005
Location: Toronto
Posts: 97

Bikes: Pista concept, Leader 735TR

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

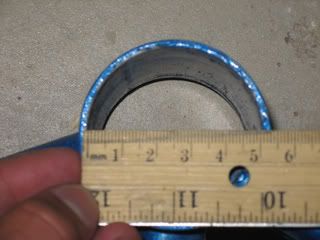

Looks like a BMX bottom braket. You can get a converter for a Euro type bottom bracket.

caRpetbomBer is offline
Old 07-22-09, 08:48 PM
  #3
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Is that possible it's on a road bike
Jordan5 is offline
Old 07-22-09, 09:39 PM
  #4
dayvan cowboy
Senior Member

Join Date: Dec 2007
Location: Athens, Ohio
Posts: 1,568

Bikes: Fuji Track, Half built 70s Azuki

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Jordan5 View Post
Is that possible it's on a road bike
by bmx he means american bottom bracket. they were used on low end bikes with one piece cranks. in order to run modern 3 piece cranks you need an adapter like the one pictured above.

I don't know much about the adapters, but the cranks you buy will determine was size bb you need to get chainline right.
dayvan cowboy is offline
Old 07-22-09, 10:12 PM
  #5
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
so if the cranks i buy need a 108mm spindle i need to get an adapter to fit that?
Jordan5 is offline
Old 07-22-09, 10:25 PM
  #6
time bandit
¡Senor Member!

time bandit's Avatar

Join Date: Jul 2007
Location: South Philly
Posts: 1,710
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
no, the adapters are all the same.

the bottom bracket you need will have a 108 spindle. good luck.
time bandit is offline
Old 07-23-09, 07:43 AM
  #7
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks very much
Jordan5 is offline
Old 07-23-09, 12:38 PM
  #8
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
i dont want to put another tire thread in the section for there a tons of them so i will ask my qwuestion here. were is a good place to buy 700c x20mm tires and tubes. nashbar dosent carey any.
Jordan5 is offline
Old 07-23-09, 12:40 PM
  #9
time bandit
¡Senor Member!

time bandit's Avatar

Join Date: Jul 2007
Location: South Philly
Posts: 1,710
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
try your local bike shop? you might have a hard time finding 20mm tires anywhere. just go for the 23mm.
time bandit is offline
Old 07-23-09, 12:43 PM
  #10
Retem
Paste Taster

Retem's Avatar

Join Date: May 2006
Location: Sacramento, CA
Posts: 4,392

Bikes: , Jury Bike, Moto Outcast 29, Spicer standard track frame and spicer custom steel sprint frame.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by caRpetbomBer View Post
Looks like a BMX bottom braket. You can get a converter for a Euro type bottom bracket.

this is the part you need it is an ashtabula bb or you could go one piece
Retem is offline
Old 07-23-09, 12:54 PM
  #11
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
will a 700c x 23mm work on these? or only the 700c x20mm?

http://cgi.ebay.com/NEW-RED-VUELTA-T...3A1%7C294%3A50
Jordan5 is offline
Old 07-23-09, 12:56 PM
  #12
time bandit
¡Senor Member!

time bandit's Avatar

Join Date: Jul 2007
Location: South Philly
Posts: 1,710
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
you can probably run up to 28s on those just fine. 25 fo sho.
time bandit is offline
Old 07-23-09, 01:02 PM
  #13
Retem
Paste Taster

Retem's Avatar

Join Date: May 2006
Location: Sacramento, CA
Posts: 4,392

Bikes: , Jury Bike, Moto Outcast 29, Spicer standard track frame and spicer custom steel sprint frame.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
23 will work but you should run something fatter and more comfy
Retem is offline
Old 07-23-09, 01:20 PM
  #14
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,019

Bikes: Yes

Mentioned: 273 Post(s)
Tagged: 0 Thread(s)
Quoted: 1725 Post(s)
Liked 7 Times in 6 Posts
I'm guessing the 20mm size specified refers to the width of the rim, and probably the exterior width which isn't a particularly useful measurement. I've got a rim that's 18.5mm wide that I run 35s on for cyclocross.

What crank are you looking at that uses a 108mm bottom bracket? Is that to give you a 42mm chainline?
Andy_K is online now
Old 07-23-09, 01:28 PM
  #15
Raiden
Senior Member

Join Date: Feb 2007
Location: Central CA
Posts: 1,408

Bikes: A little of everything

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What frame is that, exactly? Those bottom brackets only come on old low-end bikes. For the price of that adapter, you could probably buy a new frame.
Raiden is offline
Old 07-23-09, 01:28 PM
  #16
Retem
Paste Taster

Retem's Avatar

Join Date: May 2006
Location: Sacramento, CA
Posts: 4,392

Bikes: , Jury Bike, Moto Outcast 29, Spicer standard track frame and spicer custom steel sprint frame.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
20mm is either the bead with on the inside or the over brake surface width it is non specific but it gives you a good idea irregardless
Retem is offline
Old 07-23-09, 02:09 PM
  #17
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,019

Bikes: Yes

Mentioned: 273 Post(s)
Tagged: 0 Thread(s)
Quoted: 1725 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by Raiden View Post
What frame is that, exactly? Those bottom brackets only come on old low-end bikes. For the price of that adapter, you could probably buy a new frame.
You can get the TruVativ adapter for under $20, so you might be able to buy the same frame for that.
Andy_K is online now
Old 07-24-09, 10:13 PM
  #18
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How do iknow how long the spindle needs to be for the chain line then?
Jordan5 is offline
Old 07-24-09, 10:24 PM
  #19
TheBikeRollsOn
Senior Member

TheBikeRollsOn's Avatar

Join Date: Feb 2009
Location: NC
Posts: 1,298
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I was thinking of posting my BB troubles in a new thread but I'll just ask here. I am upgrading my conversion with a new crank and need to straighten my chainline. I don't want to buy an entire new bottom bracket so I was thinking I could buy a 107mm spindle, something like this http://www.icyclesusa.com/catalog/ri...et-spindle.htm and just replace that and use the existing BB. Is this right? I have a 1980 schwinn traveler so I'm assuming it's a standard sized bb and not oversized.
TheBikeRollsOn is offline
Old 07-27-09, 08:22 AM
  #20
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
How can i tell what size i would need? the e-bay seller said a 103mm would be nice but a 108mm would work aswell. dose this seem right?
Jordan5 is offline
Old 07-27-09, 08:46 AM
  #21
Raiden
Senior Member

Join Date: Feb 2007
Location: Central CA
Posts: 1,408

Bikes: A little of everything

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Depends on the crankset.
Raiden is offline
Old 07-28-09, 07:47 AM
  #22
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
So if i got this crank set what size spindle would you get and how did you determin that?

http://cgi.ebay.com/NEW-FIXED-GEAR-T...d=p3286.c0.m14
Jordan5 is offline
Old 07-28-09, 08:31 AM
  #23
Soil_Sampler
A little North of Hell

Join Date: Mar 2006
Posts: 4,892
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Jordan5 View Post
So if i got this crank set what size spindle would you get and how did you determin that?

http://cgi.ebay.com/NEW-FIXED-GEAR-T...d=p3286.c0.m14
they recommend 103-107

http://www.origin-8.com/product_deta...+ARMS+%26+SETS
Soil_Sampler is offline
Old 07-28-09, 08:42 AM
  #24
Jordan5
Member
Thread Starter

Join Date: Mar 2009
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
would it make a differnce if i went with a 108? i cant find a 107
Jordan5 is offline
Old 07-28-09, 08:50 AM
  #25
Soil_Sampler
A little North of Hell

Join Date: Mar 2006
Posts: 4,892
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Jordan5 View Post
would it make a differnce if i went with a 108? i cant find a 107
not much.

plenty 107's, if you look.

http://www.harborcountrybike.com/Pro...ST1996&click=2
Soil_Sampler is offline
