Bikepacking Gravel Tandem Project

Fresh off an inaugural two week back country ride across gravel and forest service roads thru Colorado on our new tandem, I wanted to share our latest tandem build in case the details help others with similar goals/build in mind. Our racing gravel tandem is "Coyote" So we dubbed the packing bike "El Burro" and went with a Mexican falsa blanket color scheme.

Our criteria were:
  • 35 pounds,
  • approx $10,000 budget
  • Increased tire width from our current gravel racing from for packing tandem for 29x2.3 and for sand/rocky riding we do in AZ also fit 27.5x3.0
  • Reconfigure how frame bags and bottles fit
  • Non-suspension, non mountain bike geometry. IE: 50mm Bottom Bracket drop, straight not bent top tube, 427AC non suspension fork.
  • Something bomb proof and drive train that works for long stretches in the back country..
I started by looking at stock tandems but none suited the criteria we set. I believe Co-Mo is coming out with a gravel specific tandem for their anniversary that might be close to these criteria. We went with a "direst to buyer" outfit Granite Tandem Designs where David Lafferty did a great job engineering, applying novel and thoughtful design ideas, and helping with the most tricky parts of the spec and build. I prefer direct to buyer relationship because I've had so many tandems and have a good idea of what I want it's nice to work with someone able to address those needs. The spec sheet in the google doc link below includes all the build and component data, along with my basis of decision making for nearly all components. Feel free to comment on any of those ideas.

Here’s the link to the build spec: https://docs.google.com/spreadsheets...iOF-KBFQjHgPP0
The highlights in my mind, or special custom applications are:
  • Tight Q-factor road cranks. 156mm Q-Factor while still clearing large tires. Worked wonders on knee comfort
  • Eagle 12 with right side timing chain, tight timing chain line: Increase reliability, no need to recharge electric shifting for long stretches in back country, right side drive has better efficiency tranfering captains power than left side timing
  • BB 386 EVO 86.5mm bottom bracket shell gives good base for chain stays.
  • Granite tandem custom proprietary eccentric
  • 65mm offset ti fork from Blacksheep works well on washboard
  • custom Dean Bikes 240mm stoker stem
  • JPak custom bolt on bags
  • I’ll refine the numbers, but in round figures 35# ready to ride bare bike, 45# with all the empty bags, bottles, and electronic navigation and lighting, 55# loaded with gear, rain gear, safety shelter, tools, first aid, etc. add 10 pounds for food and a big water day (we usually harvest water along the way and try not to over carry) comes to 65# fully laden.

With lavender bushes showing 27.5x3.0 setup



with aspen trees how we ride back country in Colorado with 29x2.3 tires
  • Inspiration image for the bag design:








Last edited by Turbotandem; 07-16-18 at 01:00 PM. Reason: added more photos
Turbotandem is offline
Reply With Quote
Old 07-16-18, 12:10 PM
  #2
colotandem
Senior Member

colotandem's Avatar

Join Date: Oct 2007
Location: Golden, CO
Posts: 363

Bikes: n+1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Such a well thought out build! You guys have outdone yourself Andy!

I just realized that you had to use a Eagle shifter on the top of your handlebars. Did you encounter many times when you were in the drops or on the hoods (braking) when you needed to shift? Hopefully not many.

It certainly gives me some ideas for future builds. But I am not sure that we would use a bike like this the way that you two do!!

Either way - you and Kami are inspiring! You need to share with the group your route, miles & vertical that you recently rode to break in El Burro.
colotandem is offline
Reply With Quote
Old 07-16-18, 12:42 PM
  #3
Turbotandem
Senior Member
Thread Starter

Turbotandem's Avatar

Join Date: Nov 2011
Location: Boulder, CO
Posts: 233

Bikes: Paketa V2r di2, C-Dale MT 3000, Teesdale, 1963 Huffy Daisey

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Originally Posted by colotandem View Post
Such a well thought out build! You guys have outdone yourself Andy!

I just realized that you had to use a Eagle shifter on the top of your handlebars. Did you encounter many times when you were in the drops or on the hoods (braking) when you needed to shift? Hopefully not many.

It certainly gives me some ideas for future builds. But I am not sure that we would use a bike like this the way that you two do!!

Either way - you and Kami are inspiring! You need to share with the group your route, miles & vertical that you recently rode to break in El Burro.
I played with the shifter location for a month before settling (and before finishing the leather wraps that essentially lock in the set up). I could not find a good location that could be controlled from the hoods. But I can actually reach the shifter from the drops with my thumb. That's nice because after long mulit-days sometimes my hamstrings do better stretched riding in the drops. We had a beater gravel bike for many years with the shifter on the tops like this so I got pretty used to a quick reach for them. I could see if we did more technical riding where that 1 second shift with one hand off the bar might be hard to control, but it would be climbing not braking that I'd imagine the most urgent need for a shift. Our riding while lengthy, it's generally pretty tame with maybe 15% of our miles on something really rough and narrow.

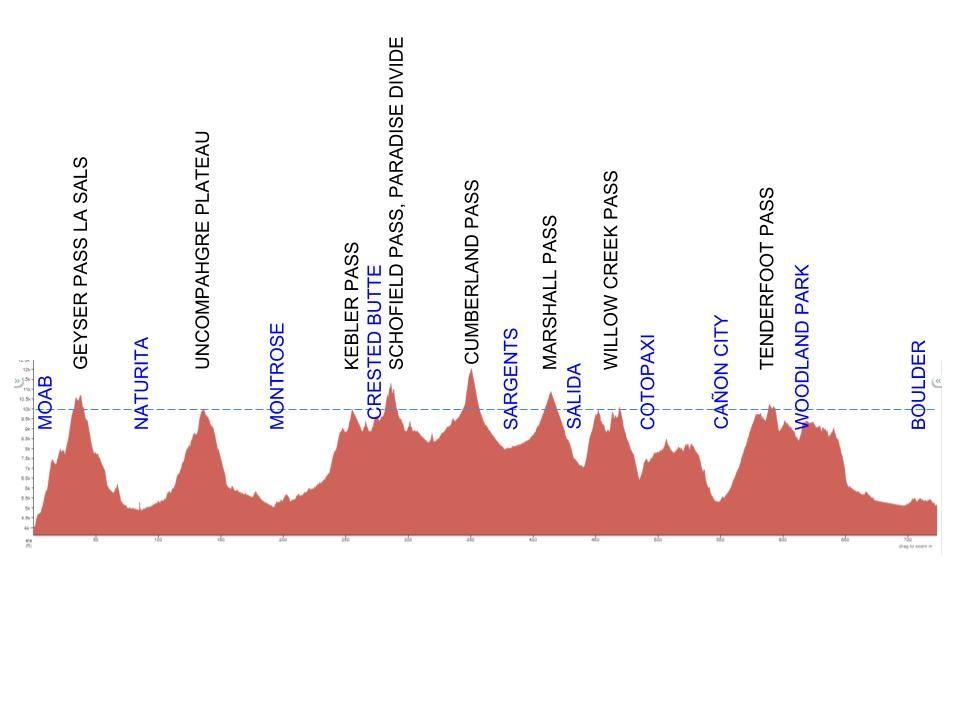

A short summary of El Burro's first big trip, which was a good proof of concept. We'd ridden her for a month before the trip including some really rough stuff in sante fe area. The main trip we just finished was 13 days of riding from Moab to Boulder 85% off-pavement, 715 miles, 54,100 feet of climbing, 80 hours in motion and some 96.5 hours on the road including lunch breaks. Two broken spokes, both in the front, both right at the end spoke end of the nipple: I think the spokes weren't threaded/cut well. One de-laminated tire. One crash on a back-country plank bridge with the planks running parallel to the direction of travel with gaps and uneven placement between them. Below is a map of the ride and profile and one picture. I don't know how long our spotwalla track will persist, but this link is shows our route and re-route to Boulder and you can zoom it to see more detail (this one does not show our track just the route): https://spotwalla.com/tripViewer.php...85b10bc7f61362

our route this year in pink

Turbotandem is offline
Reply With Quote
Old 07-16-18, 12:54 PM
  #4
Turbotandem
Senior Member
Thread Starter

Turbotandem's Avatar

Join Date: Nov 2011
Location: Boulder, CO
Posts: 233

Bikes: Paketa V2r di2, C-Dale MT 3000, Teesdale, 1963 Huffy Daisey

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
I added frame development pictures to first post, and here are some detail shots:

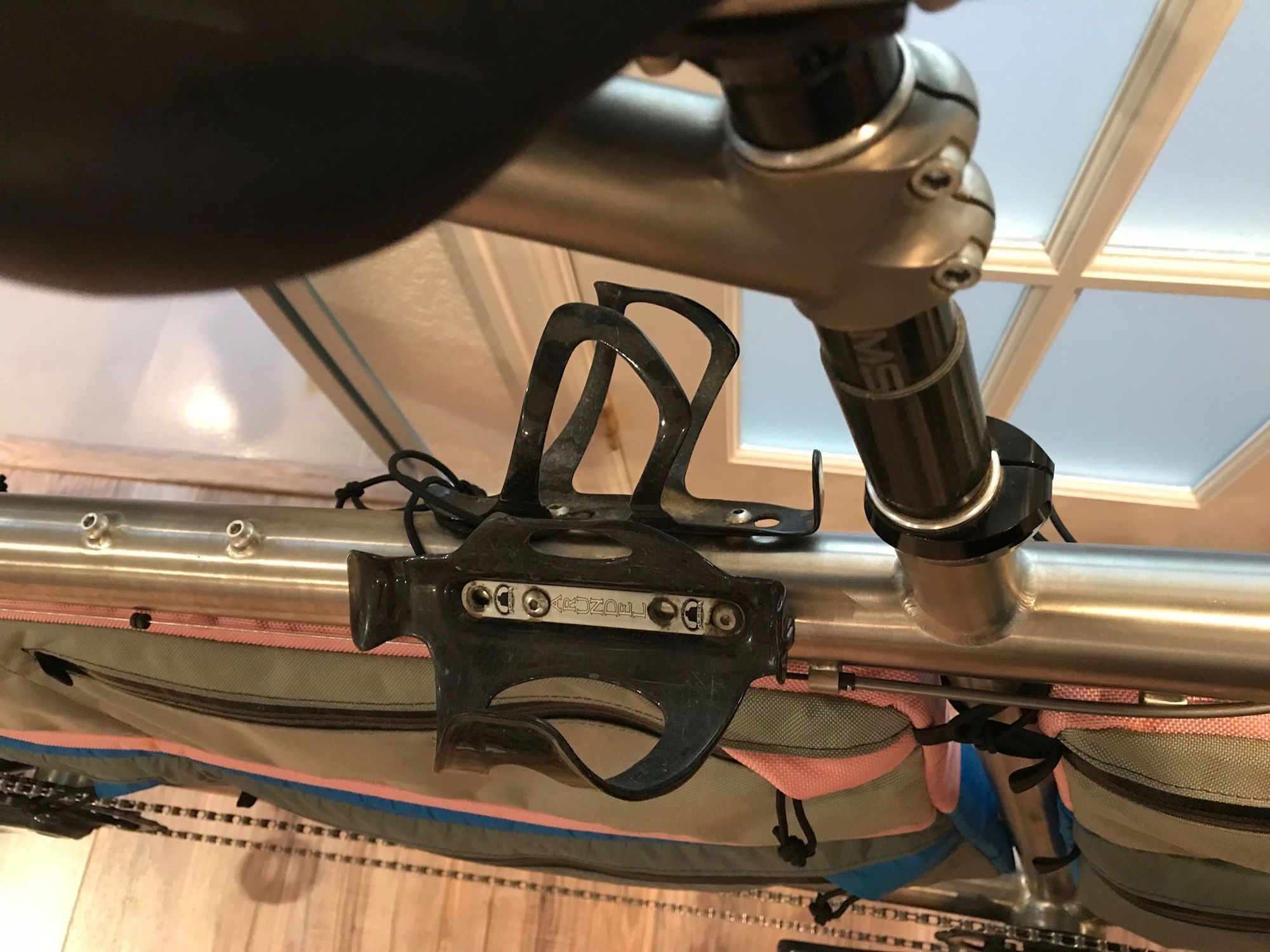

bags over chain, tool bottles in chain line

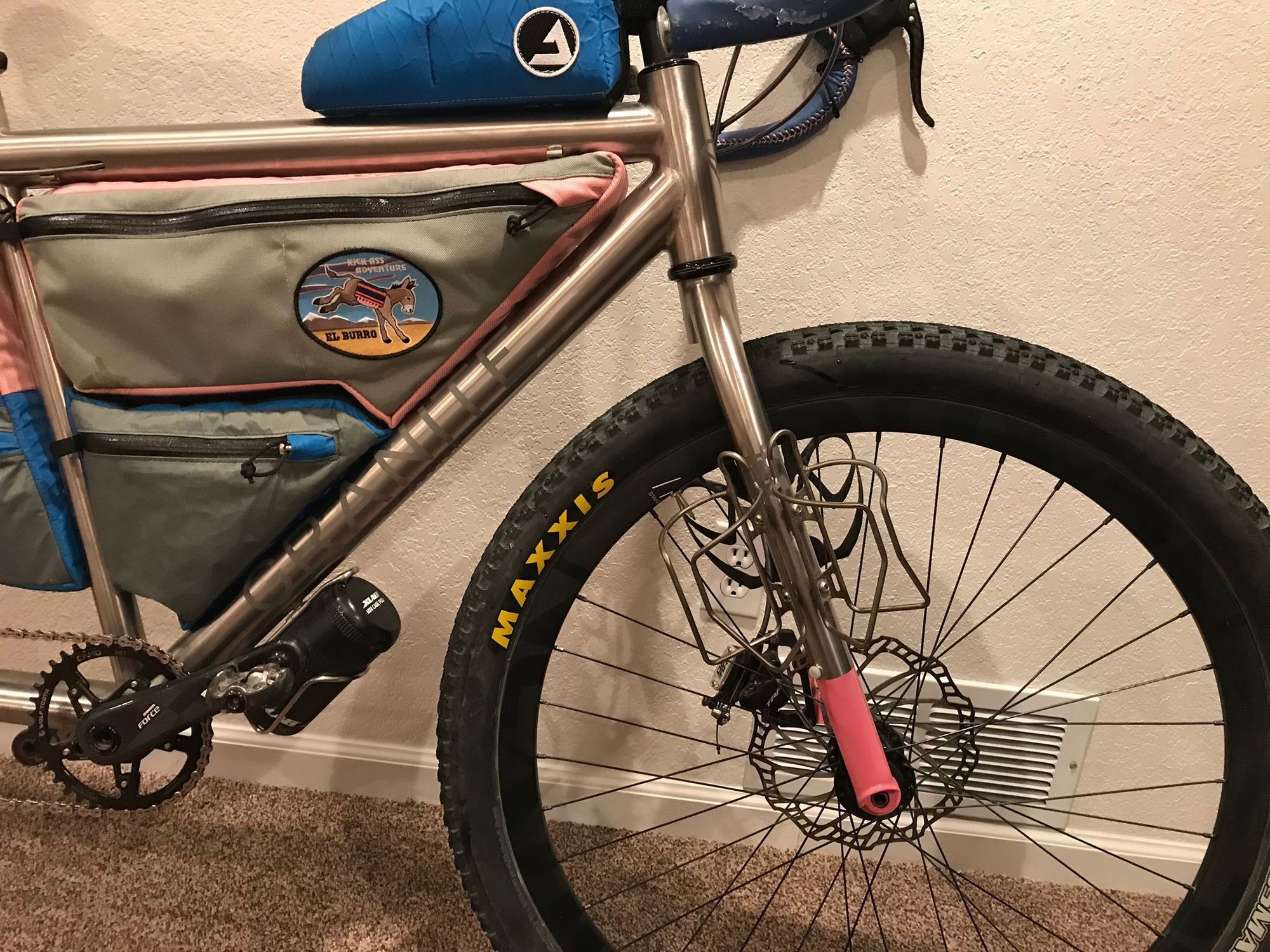

65mm offset fork by Blacksheep

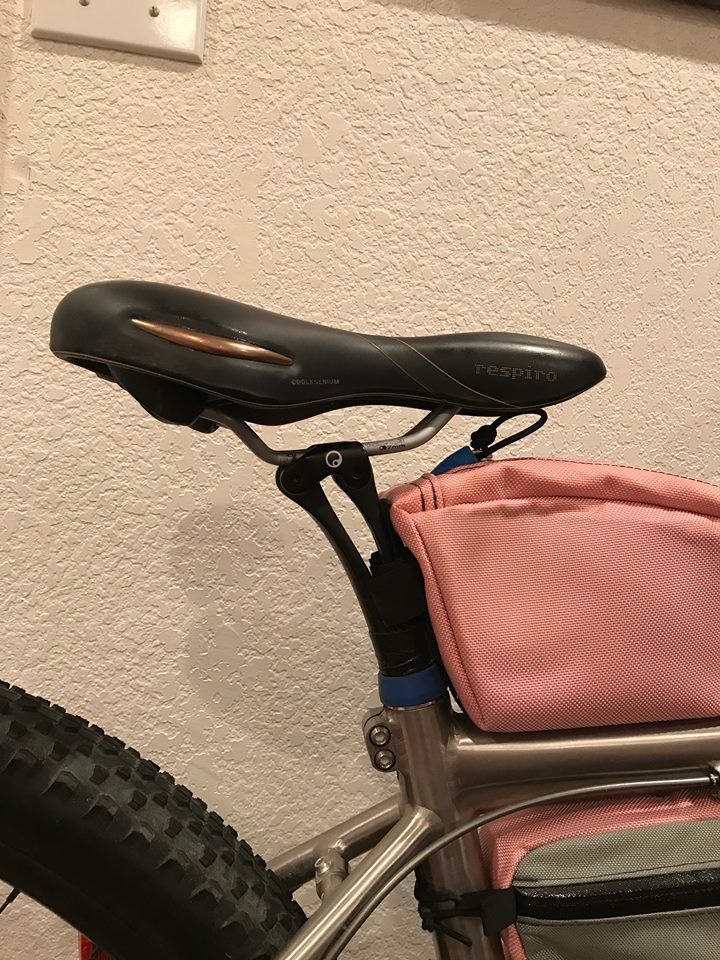

ergon post stack height (the little blue collar is rubber decoration)

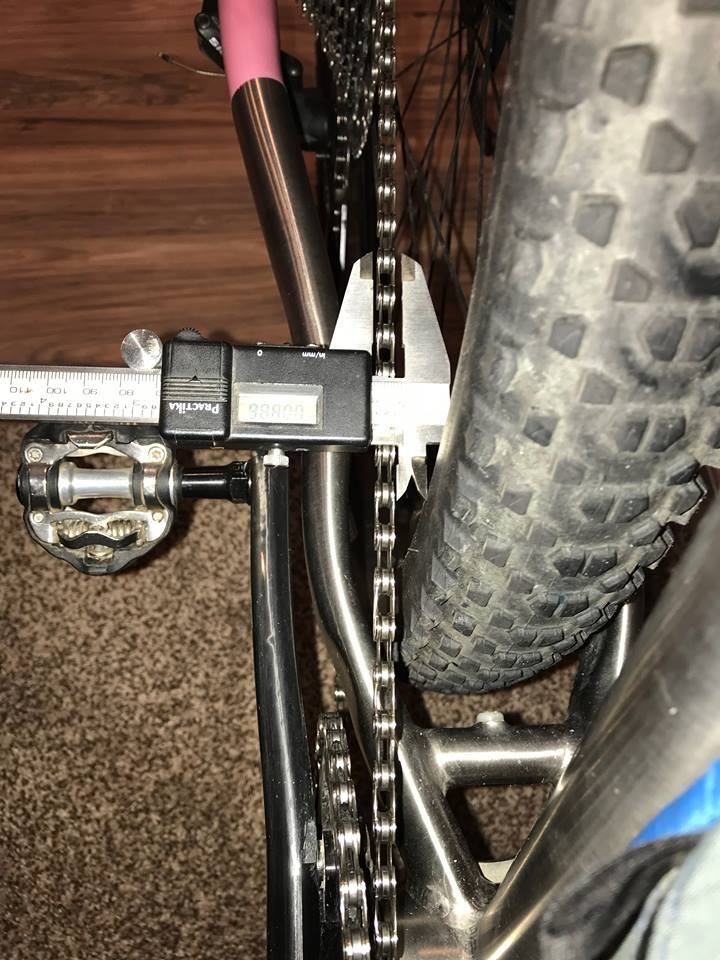

alternate narrower spider with 26t chainring clearance at 3.0x27.5 tire 2.5mm

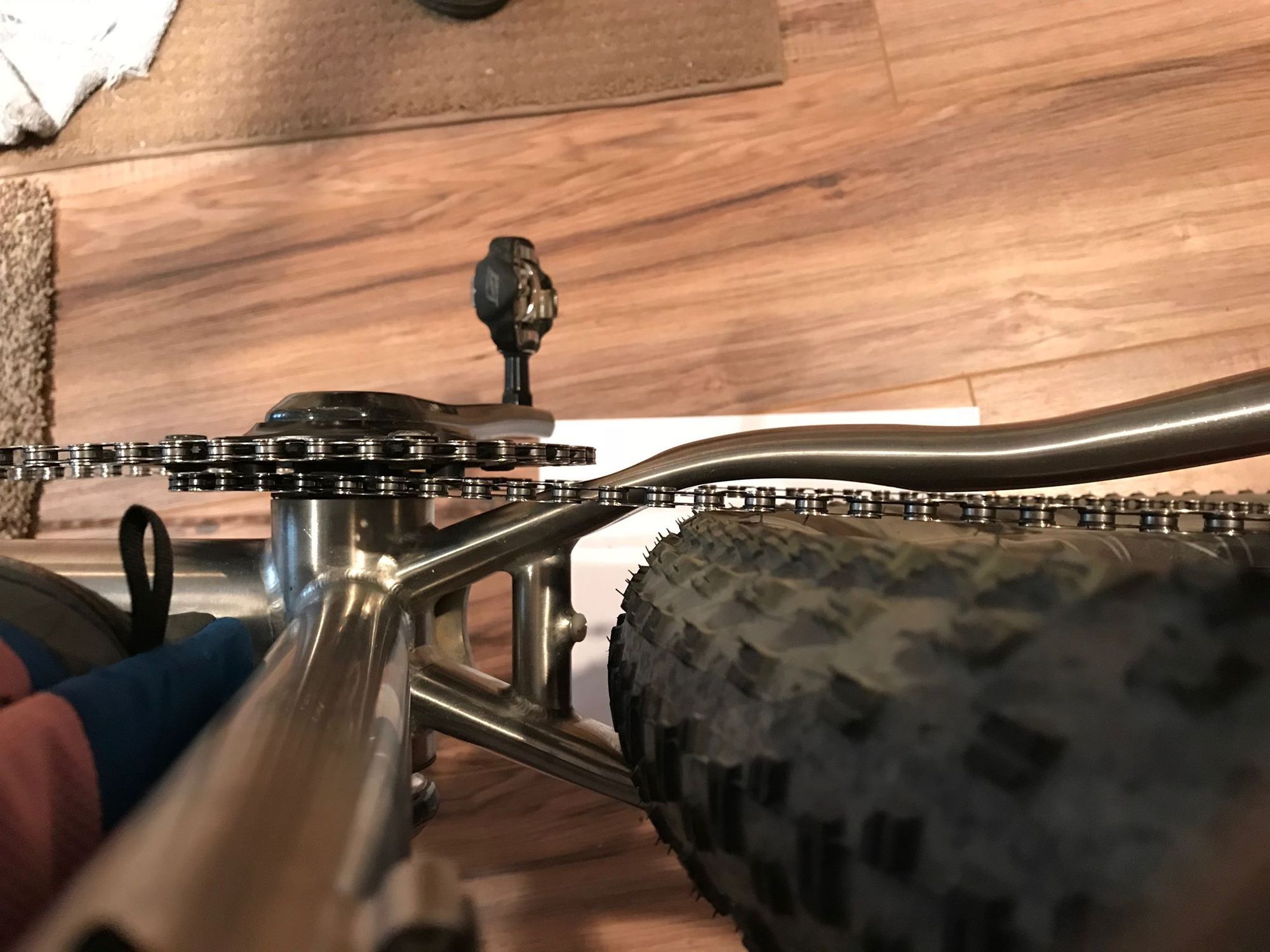

alternate narrower spider with 26t chainring clearance at 2.3x29 tire

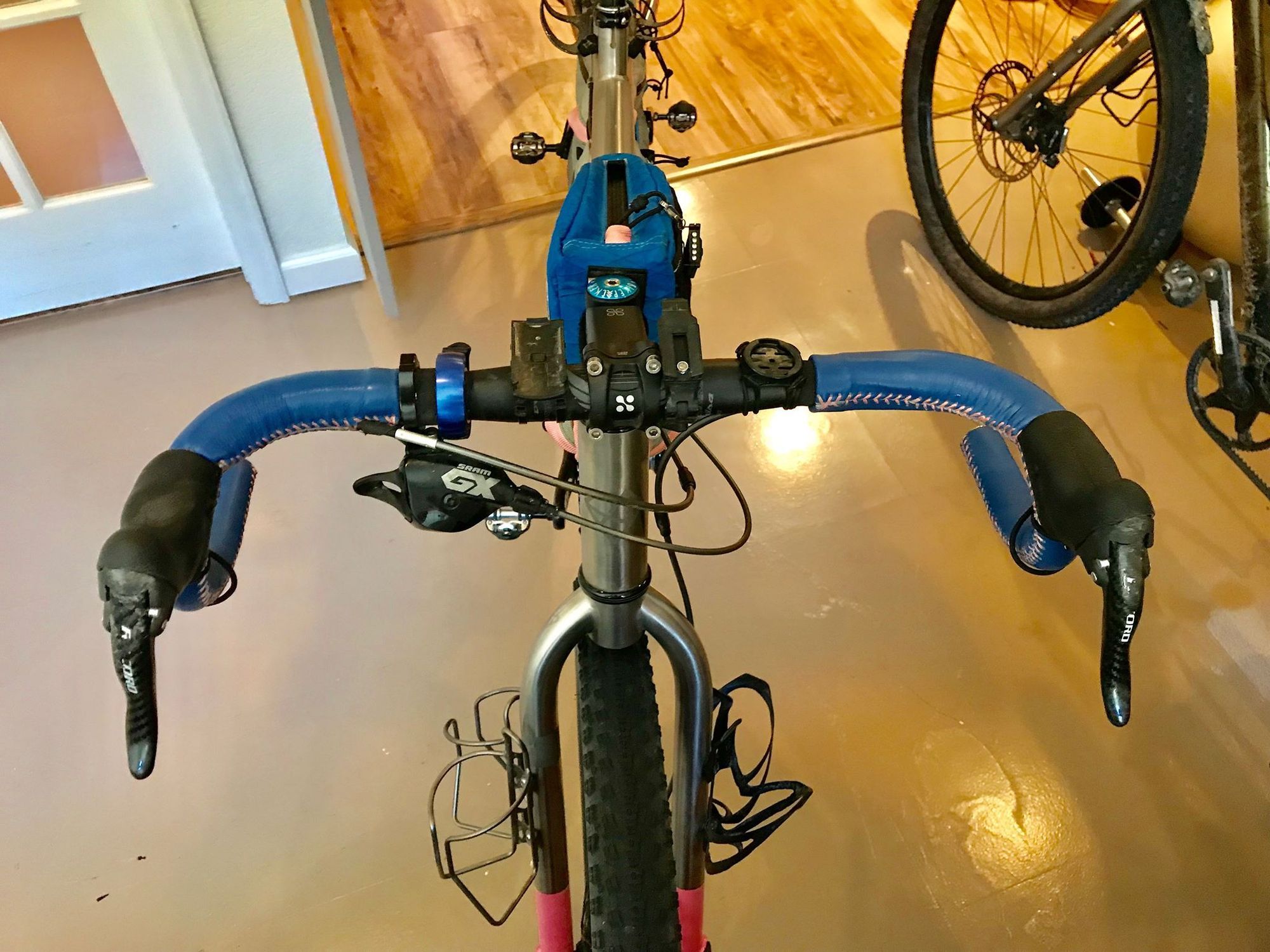

bar set up

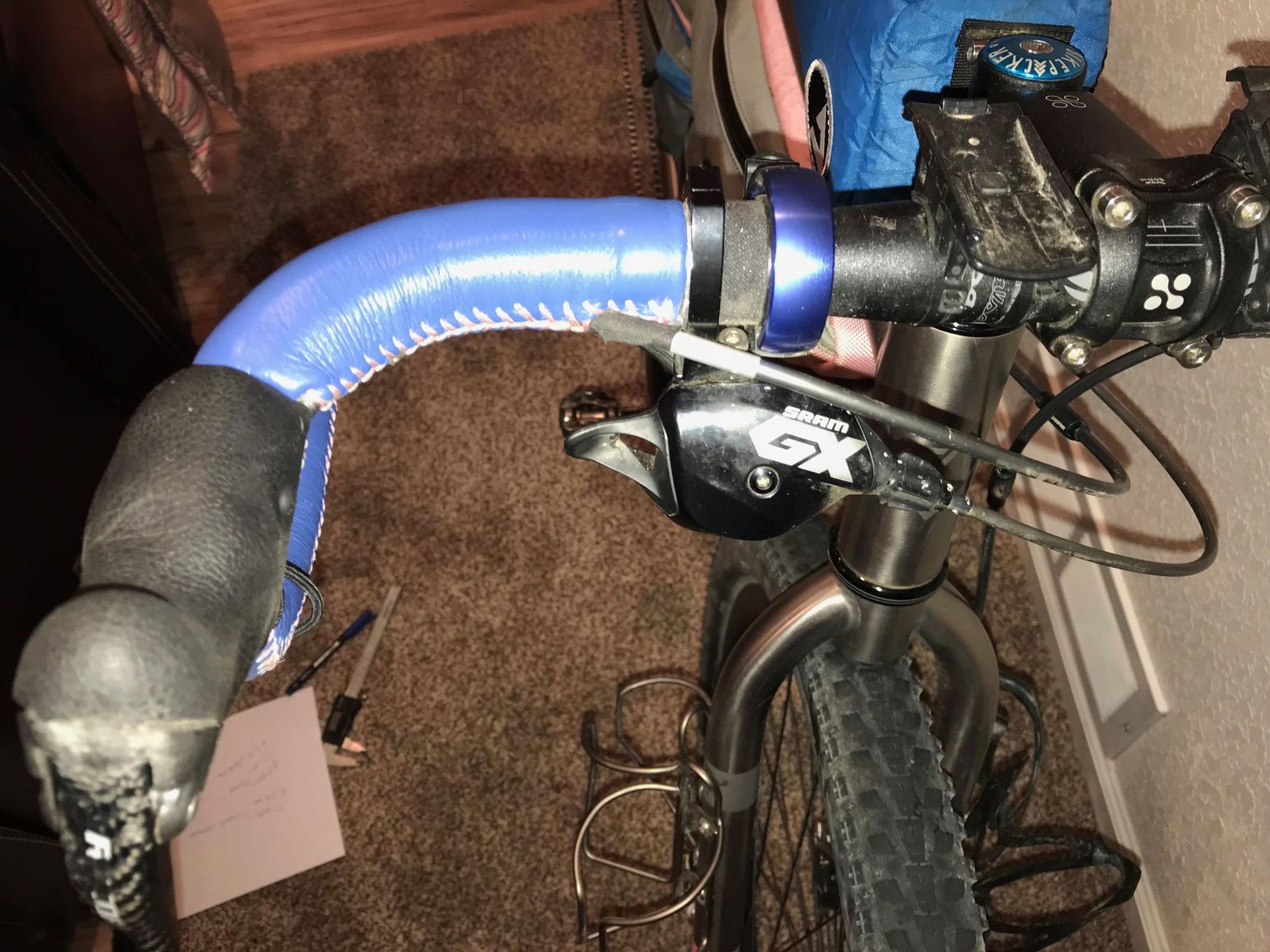

shifter set up
