Touring with a Shimano 105 Road Triple

This is just some advice for anyone who wants to tour with a road-bike triple and what I learned from the experience.

Firstly, I toured Spain and Italy for 5 weeks last summer with my bicycle (Charge Plug 4 2014 - 10-speed 105 kit) configured 50/34 and 12-28 (1.21 turn ratio, 32.7 gear inches). Some mountains were killer and I had to walk up but overall I survived, with some painful knees at times.

By last winter I'd changed to a 50/39/30 and 12-30 Tiagra cassette for my tour in South America (1:1 - 27 gi). It was much better but climbing some mountains was real tough, though I'd managed to go as high as 1250m on a very hot day with lots of horseflies buzzing around to motivate me to keep going, it was tough.

Upon my return I reversed the b-screw on my short-cage rear derailleur and successfully fitted an 11-32 SRAM cassette (0.93 - 25.4 gi). A recent weekend in the Welsh mountains made me reconsider my options... I was climbing better, but still there were some places just too steep to handle, and that's carrying no gear! So recently I decided to see if I could change my granny ring from 30 to 26 - success!

So to summarise with a standard 10-speed 105 triple, if you need more gearing you can get from the official 30/30 front/rear short cage limit to 26/32 (0.81 ratio - 21.9 gear inches)

I think that's probably the maximum one can get out of a road-triple, but I'd like too see if anyone improves on it.

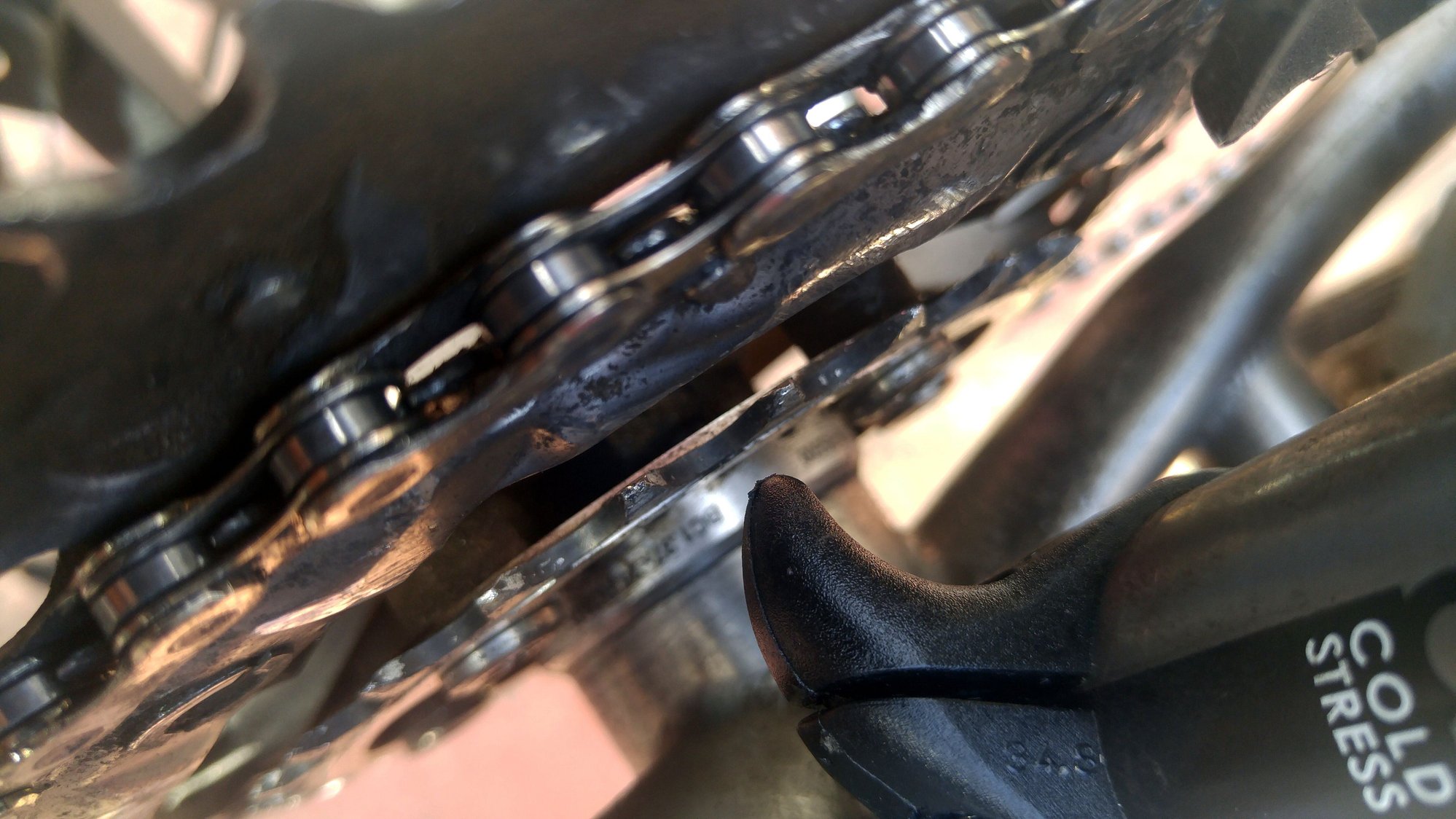

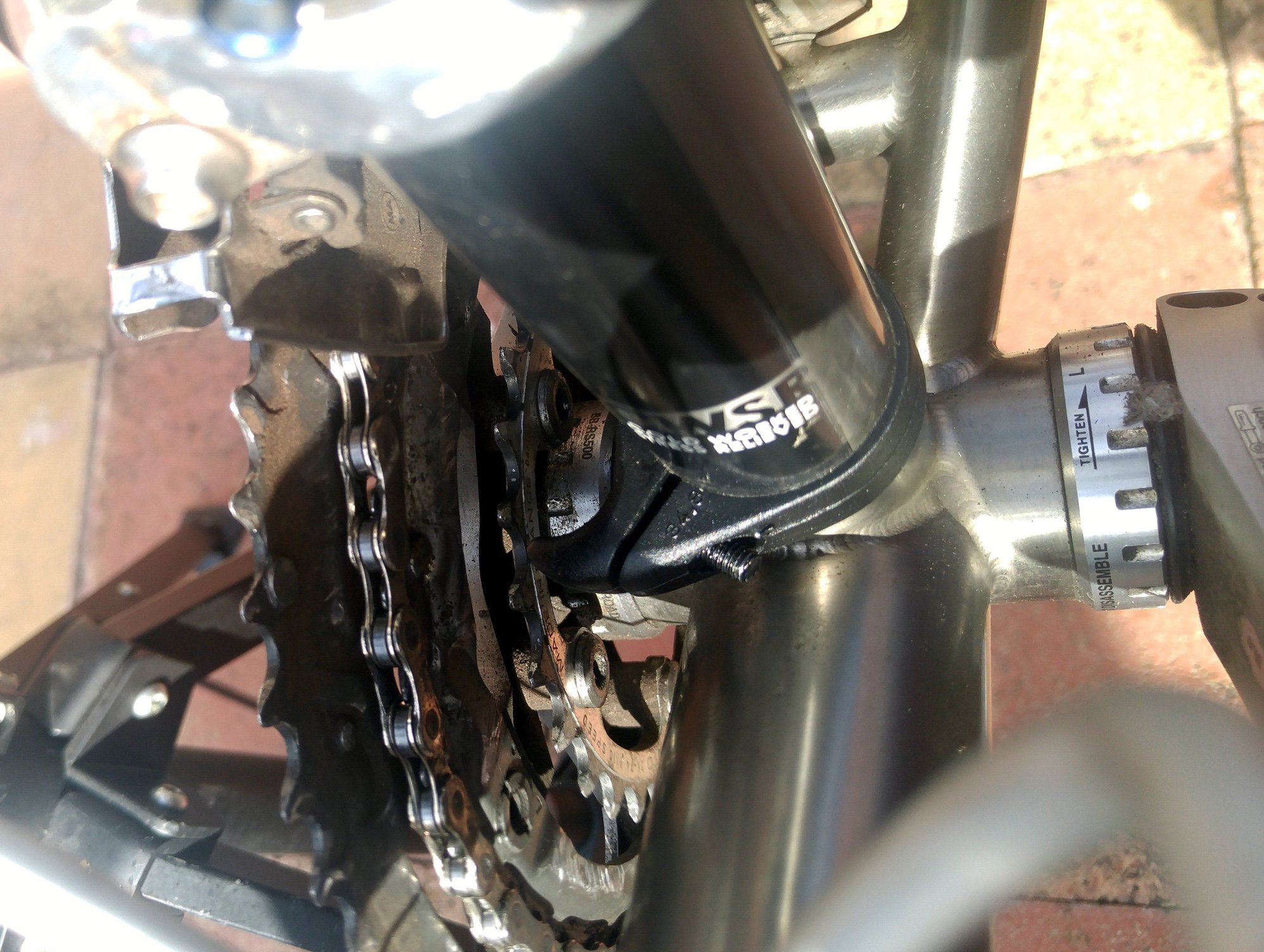

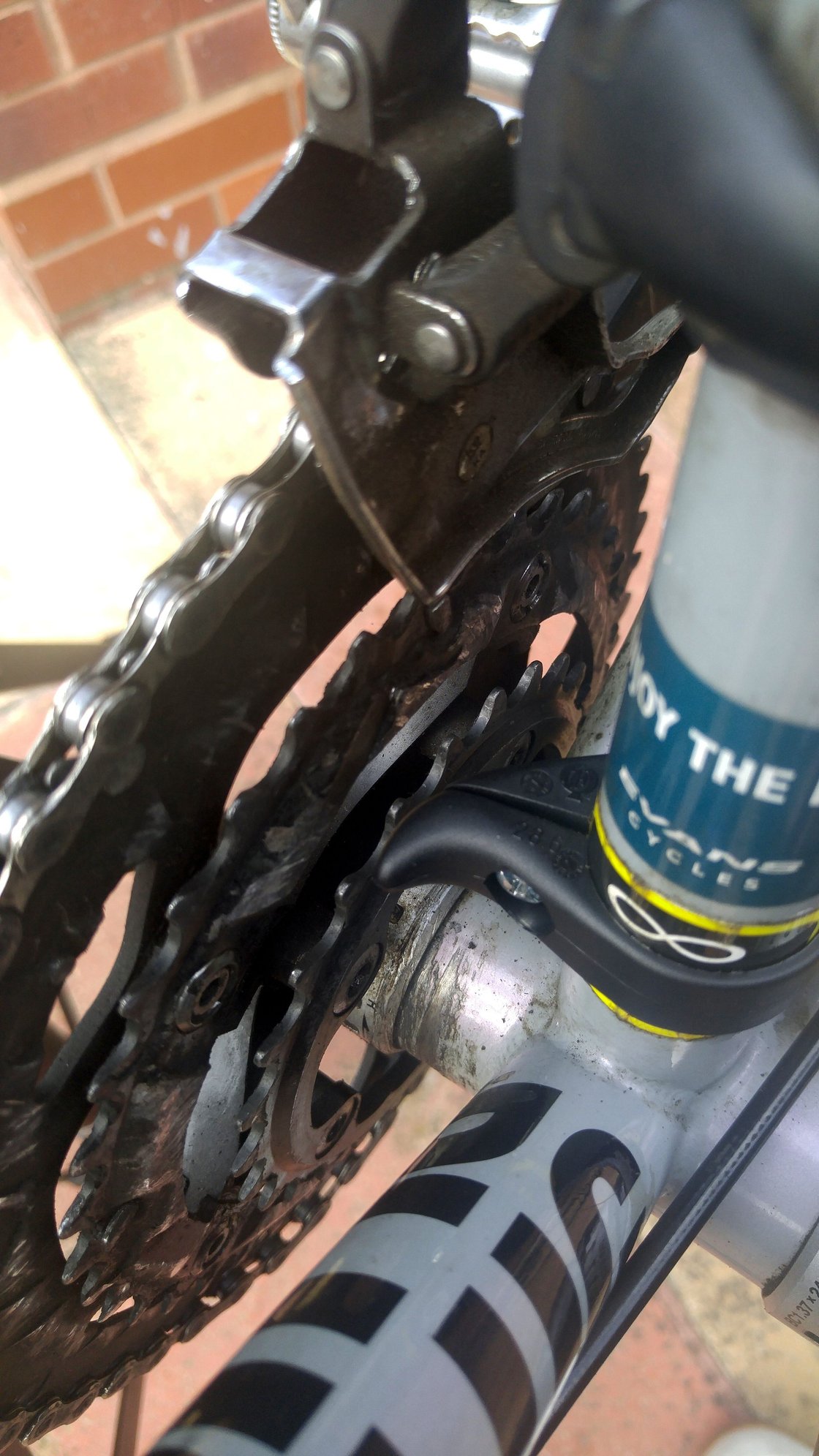

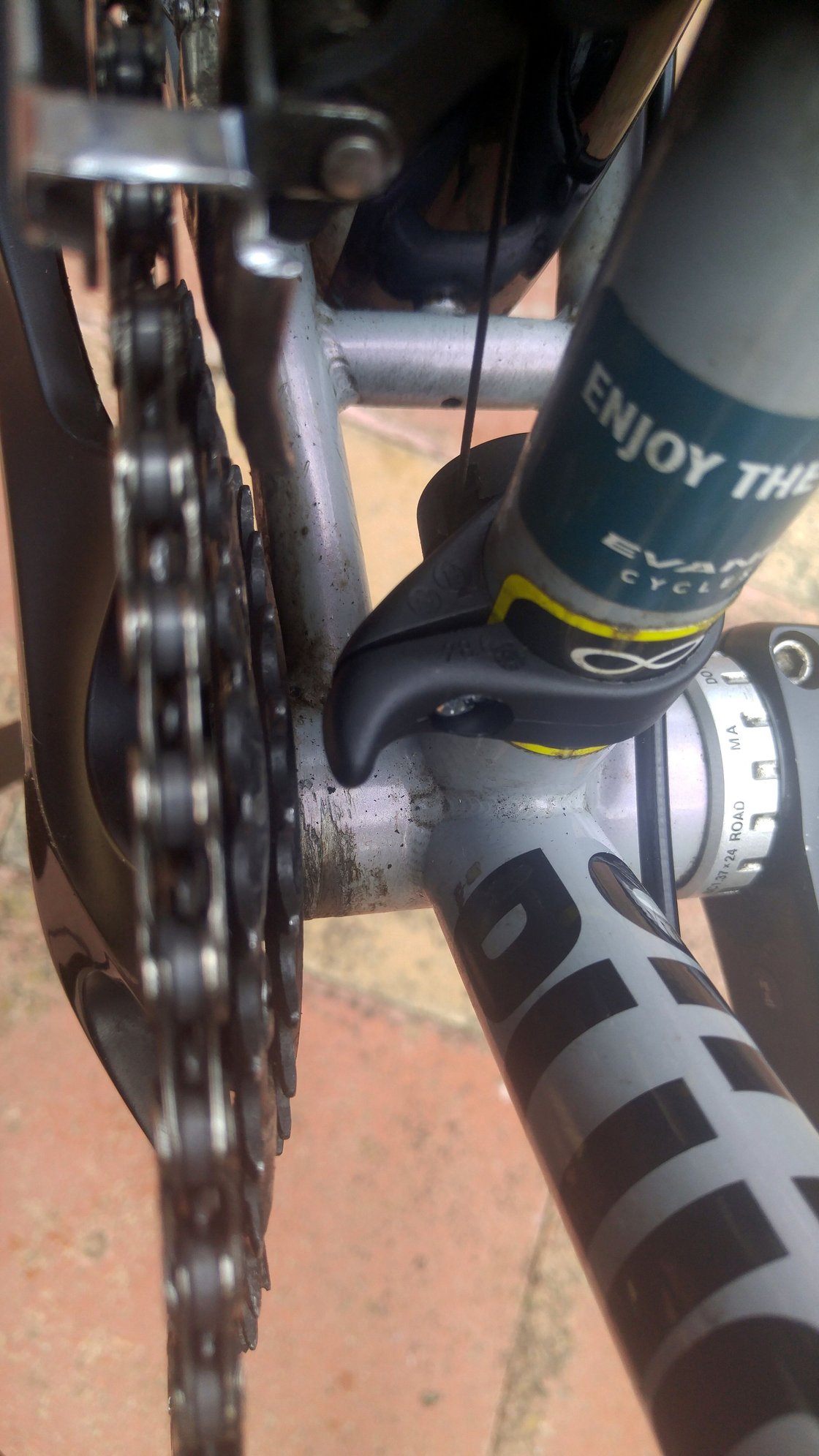

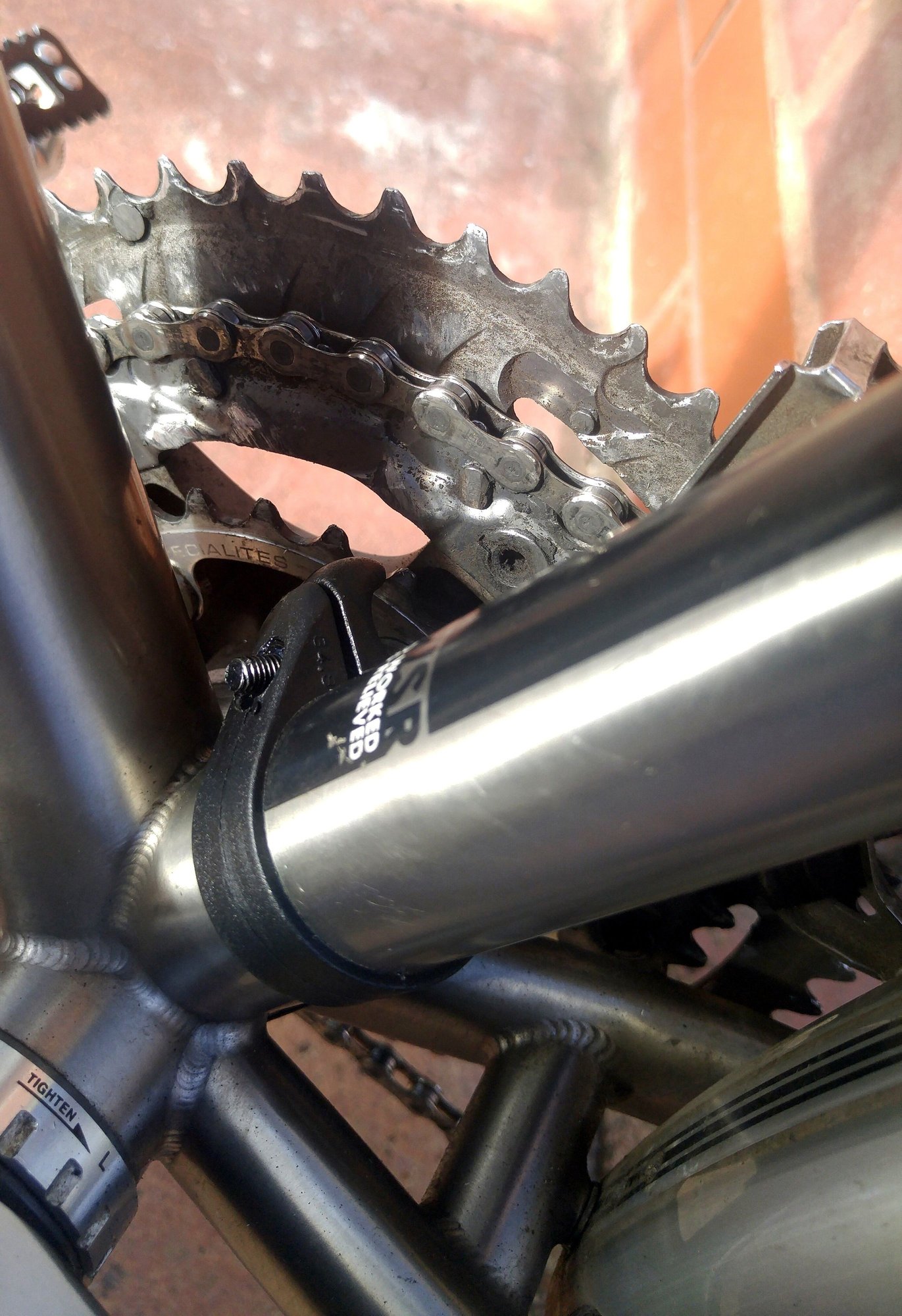

Obligatory bike photo attached with current setup.


Vijay
Attached Images
vijinho is offline
Old 10-06-15, 04:06 PM
  #2
timdow
Pie Smuggler

timdow's Avatar

Join Date: Oct 2011
Location: San Diego
Posts: 353

Bikes: 2010 LHT (Blue), 2000 Jamis Aurora, 2005 Giant Ranier, 1998 Schwinn Moab (converted for commuting), 1994 Trek 1220

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
I would first go with a 105 GS RD, or even a SGS 9-speed mountain RD to get it to 34 or 36 cog.

For my 8,9 speed bikes instead of the 74/130mm crankset I would simply go with a 74/110mm crankset, but on 10 speed this may be problematic. Shedon Brown says older cranksets will work with 10-speed, but I would want to put in some research before trying it.

Touring Triple Cranks and Cranksets for Bicycles 110-74 BCD

Last edited by timdow; 10-06-15 at 04:08 PM. Reason: added link
timdow is offline
Old 10-06-15, 04:35 PM
  #3
skye
Senior Member

skye's Avatar

Join Date: Mar 2010
Posts: 894
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 0 Times in 0 Posts
Yup. You're better off touring with touring gears.
skye is offline
Old 10-06-15, 06:38 PM
  #4
gerryl
Senior Member

Join Date: Aug 2014
Posts: 440
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Likes: 0
Liked 12 Times in 12 Posts
After my first tour, I came to the conclusion that there is no such thing as too low.
gerryl is offline
Old 10-07-15, 04:45 AM
  #5
chasm54
Banned.

Join Date: May 2010
Location: Uncertain
Posts: 8,651
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I've done credit-card tours with a 105 50/39/30 triple and 11-28 cassette. With no more than about 10lbs in a saddlebag, I found I could get up most things. It's much higher gearing than I would use for fully-loaded touring, but significantly lower than I normally run on my other road bike, when my lowest would be 36/27.

So it boils down to what sort of experience you want. Go ultralight and you can manage with taller gearing, but it is certainly a higher speed, less relaxed trip than one gets with a more traditional touring-specific setup.
chasm54 is offline
Old 10-07-15, 04:53 AM
  #6
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 16,805

Bikes: A bunch of old bikes and a few new ones

Mentioned: 138 Post(s)
Tagged: 0 Thread(s)
Quoted: 4436 Post(s)
Liked 725 Times in 527 Posts
You can go as low as a 24 tooth on a 130/74 bcd crank. That means you'll get a 15 tooth drop from the middle chain ring to the small (from a 39 to a 24) which is tough for a lot of front derailleurs to handle. I picked up a 2009 fuji touring bike recently that came stock with a 130/74 bcd crank and I'm going to swap it out before I go touring with that bike.

Shimano has done a poor job in recent years of providing gear for touring cyclists which tells you that touring is a small piece of the market.

The deore trekking crank is a better choice for touring than a road triple.

The deore 9 speed rear derailleur is a better choice for touring than a ultegra/105/tiagra long cage rear.
bikemig is offline
Old 10-07-15, 08:05 AM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,863

Bikes: 8

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 7134 Post(s)
Liked 642 Times in 426 Posts
It has been done.. riding across the country without asking on this forum too..

Build factories fit components as shipped to them at the best price.. in volume.

Its up to the buyer to seek out non standard parts substitutions , if that is what they want.
fietsbob is offline
Old 10-07-15, 04:14 PM
  #8
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 2,991

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 383 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Vijay;

I suggest that you get a 11-36 cassette (9 or 10 speed) and a Shimano M592 RD, along with your 26T granny ring.
nfmisso is offline
Old 10-08-15, 12:53 PM
  #9
vijinho
Senior Member
Thread Starter

vijinho's Avatar

Join Date: Oct 2013
Location: Homeless
Posts: 70

Bikes: Self-built Kinesis Tripster ATR setup for touring.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Some interesting points to think about from everyone, thanks. I think I'm going to be just fine with this new 26t granny ring - will report after the next tour
