Anyone use the Wolftooth B-Rad system to multiply bottle capacity?

Touring Have a dream to ride a bike across your state, across the country, or around the world? Self-contained or fully supported? Trade ideas, adventures, and more in our bicycle touring forum.

Anyone use the Wolftooth B-Rad system to multiply bottle capacity?

Old 01-02-19, 08:07 AM
  #1
revcp
Senior Member
Thread Starter

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,122

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
Anyone use the Wolftooth B-Rad system to multiply bottle capacity?

Just looking for a report on whether people on the forum have used this and how it worked. On my 1985 Trek 720, in addition to the seat tube and the inside of the downtube, there are bottle cage bosses on the wheel side of the downtube. I would like to make use of the last, but a full size water bottle sit a bit high, even having switched from 27" to 700C wheels. I would use the B-Rad system to drop the cage by a couple inches, which would give enough clearance for a bottle. I'm also considering using their 2 bottle adapter on both sides of the downtube, which would allow me to carry 5 bottles for this summer's tour.

https://www.wolftoothcomponents.com/...cessory-device

https://www.wolftoothcomponents.com/...e-cage-adapter
__________________
Don't complain about the weather and cower in fear. It's all good weather. Just different.

Last edited by revcp; 01-02-19 at 09:42 AM. Reason: pasted in urls
revcp is offline
Old 01-02-19, 11:22 AM
  #2
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 5,234

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Pink Klein MTB, Phil Wood VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1177 Post(s)
Liked 41 Times in 29 Posts
Yes, I am using it currently and it works quite well. I have had two PDW Lucky Cat cages on my road bike for almost a year now and no real issues. Occasionally I get a touch of foot rub but that is not a fault of the system but me having to run those two cages lower then needed to clear a frame bag.

Pretty much everything from WTC I have used is of great quality and will happily continue using their stuff till they stop making it or if the quality ever goes down.
veganbikes is offline
Old 01-02-19, 12:39 PM
  #3
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 5,801

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1238 Post(s)
Likes: 0
Liked 11 Times in 10 Posts

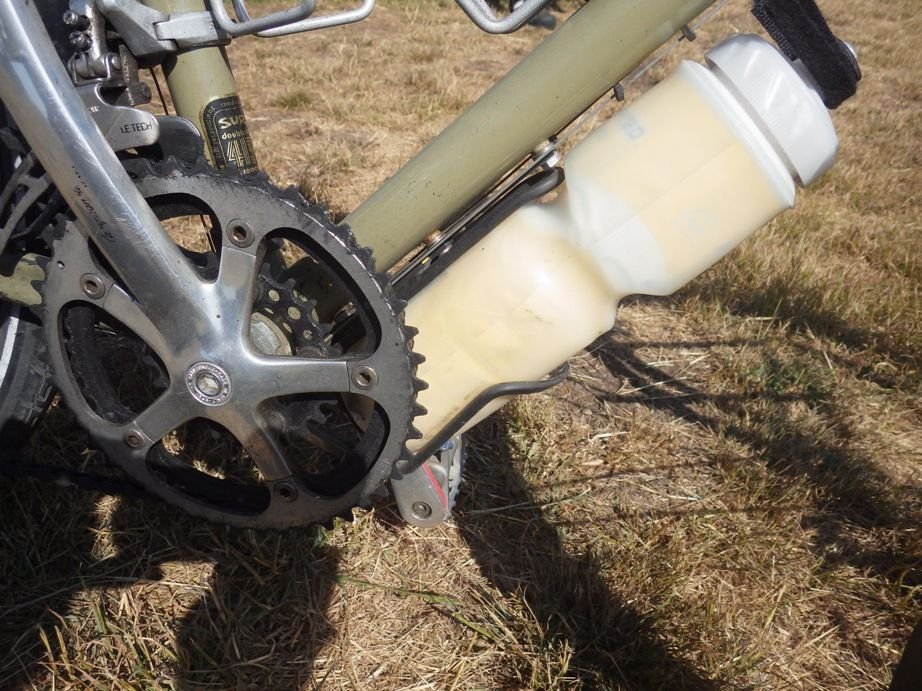

For the single cage, about a half decade ago I used a short piece of steel bar stock with a few holes drilled in it to lower the below-downtube water bottle cage on a LHT I used to have. That gave me more room for a larger bottle. I was unaware that there was such an adapter available. I also used a piece of double sided velcro to make sure that the bottle did not slip out of place.

In the photo, the bar stock that I added is a bit hard to see, it is directly behind the rear derailleur cable which confuses the photo.

Tourist in MSN is offline
Old 01-02-19, 02:19 PM
  #4
seeker333
-

seeker333's Avatar

Join Date: Feb 2004
Posts: 3,752

Bikes: yes!

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Liked 9 Times in 8 Posts
Originally Posted by revcp View Post
Just looking for..
There are several ways to carry water on a bike. Those B-rad devices definitely look like a solution.

Another option is to use a drill & bit, rivnut (rivet-nut) rivnut tool to add a bottle cage boss higher or lower on the frame tube located the correct distance from existing boss. Cannondale (and other aluminum) bikes used Al rivnuts for bottle bosses for many years. Rivnuts and tool are sold as kit and individually. Bottle bosses typically are brazed on steel frames, but steel rivnut could work too. I suggest using same material rivnut to avoid "dissimilar metal" / galvanic corrosion.

Backpacking-style hydration bladders work too (carried in bag or on rack) for storing and/or dispensing water, several are fitting-compatible with popular water filters, and some convert to showers:

https://www.rei.com/c/hydration-reservoirs

https://www.ortlieb.com/us/water-sack

There's a few oversize bottle cages available which permit carry of large bottles inside main triangle such as Topeak, Minoura and BBB, most now discontinued. There are likely other providers of odd-sized cages of which I am unfamiliar given the proliferation of bike forks with multiple bosses for fitting of such devices. Water can be carried on forks of these bikes, such as newer Surly Troll, Ogre, Bridge Club, etc.

https://www.amazon.com/Topeak-Modula.../dp/B000FIE51M

http://www.minoura.jp/english/accessory/accessory.html

https://salsacycles.com/components/c.../anything_cage
seeker333 is offline
Old 01-02-19, 02:25 PM
  #5
revcp
Senior Member
Thread Starter

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,122

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
Originally Posted by veganbikes View Post
Yes, I am using it currently and it works quite well. I have had two PDW Lucky Cat cages on my road bike for almost a year now and no real issues. Occasionally I get a touch of foot rub but that is not a fault of the system but me having to run those two cages lower then needed to clear a frame bag.

Pretty much everything from WTC I have used is of great quality and will happily continue using their stuff till they stop making it or if the quality ever goes down.
Thanks. This is helpful.
__________________
Don't complain about the weather and cower in fear. It's all good weather. Just different.
revcp is offline
Old 01-02-19, 08:22 PM
  #6
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 5,234

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Pink Klein MTB, Phil Wood VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1177 Post(s)
Liked 41 Times in 29 Posts
Originally Posted by revcp View Post
Thanks. This is helpful.
No worries happy to help. I can also highly recommend their chainring bolts, they come in colors and are dual hex so no need for a chainring nut spanner which is a horrible tool that I would love to do away with. Of course on a triple you might not be able to use them quite the same but you can use them as outer bolts if nothing else. Save the nuts for something else.
veganbikes is offline
Old 01-02-19, 08:51 PM
  #7
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 6,746

Bikes: Nekobasu, Pandicorn

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 3589 Post(s)
Liked 156 Times in 117 Posts
B-RAD 4, Double Barrel adapter, accessory mount (for saddlebag, since replaced with Wolftooth Roll-Top bag,) two Arundel side-loaders. Only on the bike about 4 months out of the year, but man is it worth it. Usually enough for at least 3 hours on +100º days.

__________________
DrIsotope is offline
Old 01-02-19, 10:20 PM
  #8
Mitkraft
Senior Member

Join Date: Aug 2018
Posts: 122
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 3 Times in 3 Posts

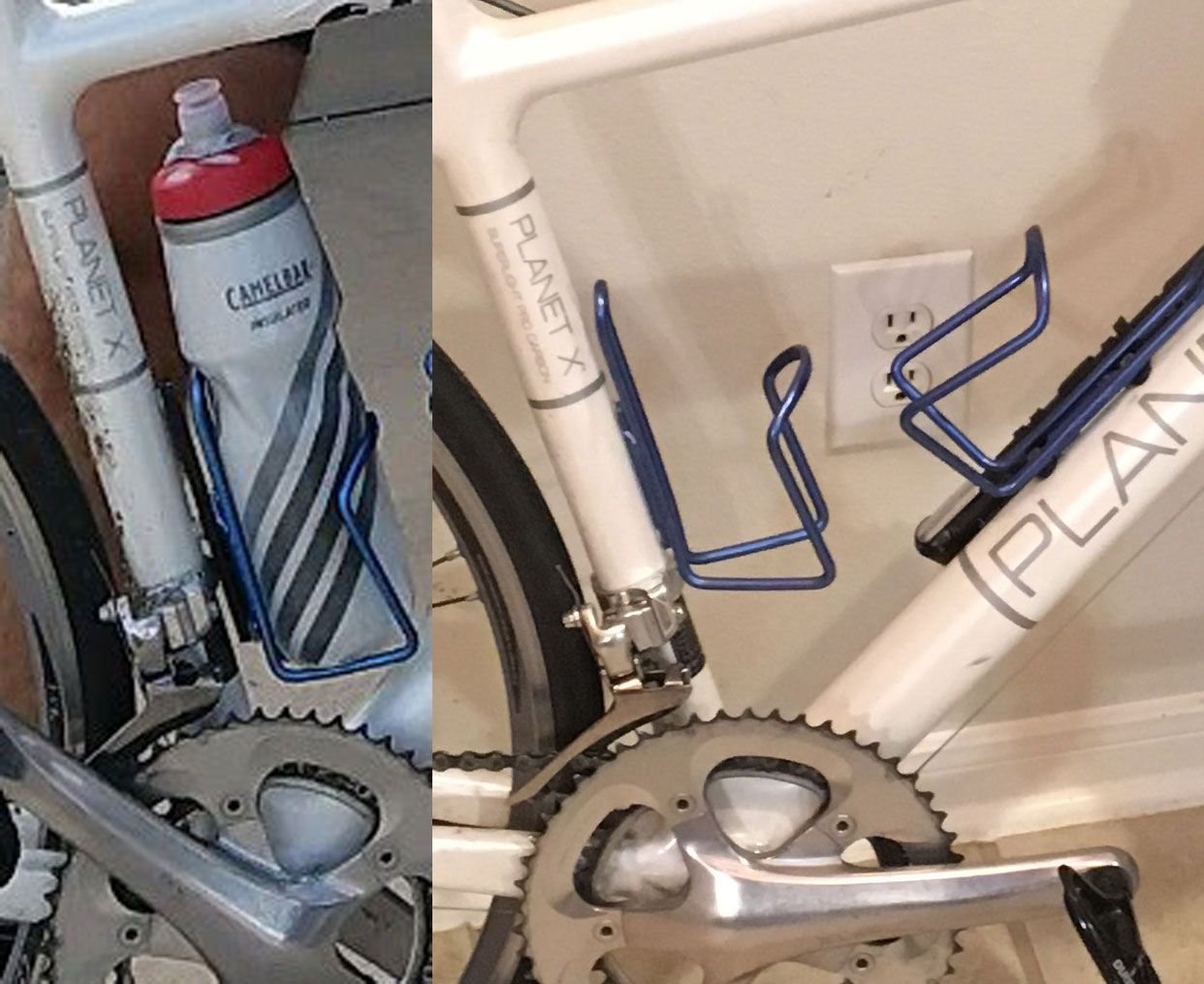

I have a compact frame and my 25oz Podium Chill was too tall in the seat tube cage so I used the b-rad adapter to lower it. Works great and hasn’t had any issues whatsoever. Seems a little pricey for as simple as it is, but it certainly was the most elegant and easy solution. For carrying more than two bottles (or more than one on the MTB) I got a Minoura behind the saddle double cage mount but haven’t had a chance to use it yet.

After and Before pic:


Last edited by Mitkraft; 01-02-19 at 10:24 PM.
Mitkraft is offline
Old 01-03-19, 06:44 AM
  #9
revcp
Senior Member
Thread Starter

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,122

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
Originally Posted by DrIsotope View Post
B-RAD 4, Double Barrel adapter, accessory mount (for saddlebag, since replaced with Wolftooth Roll-Top bag,) two Arundel side-loaders. Only on the bike about 4 months out of the year, but man is it worth it. Usually enough for at least 3 hours on +100º days.

Thank you.
revcp is offline
Old 01-03-19, 06:45 AM
  #10
revcp
Senior Member
Thread Starter

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,122

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
Originally Posted by Mitkraft View Post
I have a compact frame and my 25oz Podium Chill was too tall in the seat tube cage so I used the b-rad adapter to lower it. Works great and hasn’t had any issues whatsoever. Seems a little pricey for as simple as it is, but it certainly was the most elegant and easy solution. For carrying more than two bottles (or more than one on the MTB) I got a Minoura behind the saddle double cage mount but haven’t had a chance to use it yet.

After and Before pic:

Looks good. Thanks.
revcp is offline
Old 01-03-19, 06:50 AM
  #11
revcp
Senior Member
Thread Starter

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,122

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
Originally Posted by fietsbob View Post
My 2 Built in person,* touring bikes, I had put 2 bottles on top of the top tube , 1 under it, + 1 on the seat tube, so I had 4..

one under was usually having stove petrol in it..

*as opposed to just buying a factory bike , I put in work in building the frame..





...
Good for you, although I was asking about an attachment for a bike, not about a bike for attachments.
revcp is offline
Old 01-03-19, 10:29 AM
  #12
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6836 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
And So, why not try it yourself, now..?? it will be 2 bottles wide, of course ..
fietsbob is offline
Old 01-03-19, 10:40 AM
  #13
HobbesOnTour
Senior Member

Join Date: Jul 2016
Location: NB, NL
Posts: 169

Bikes: 90's Trek 800 Sport, setup for Fully Loaded Touring

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 1 Time in 1 Post
I have a couple of these on my MTB conversion to allow 2 * XL bottle cages within the triangle.
https://mountskidmore.com.au/shop/ad...-cage-adapter/

Simple idea, very effective.
HobbesOnTour is offline
Old 01-03-19, 11:01 AM
  #14
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 5,801

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1238 Post(s)
Likes: 0
Liked 11 Times in 10 Posts

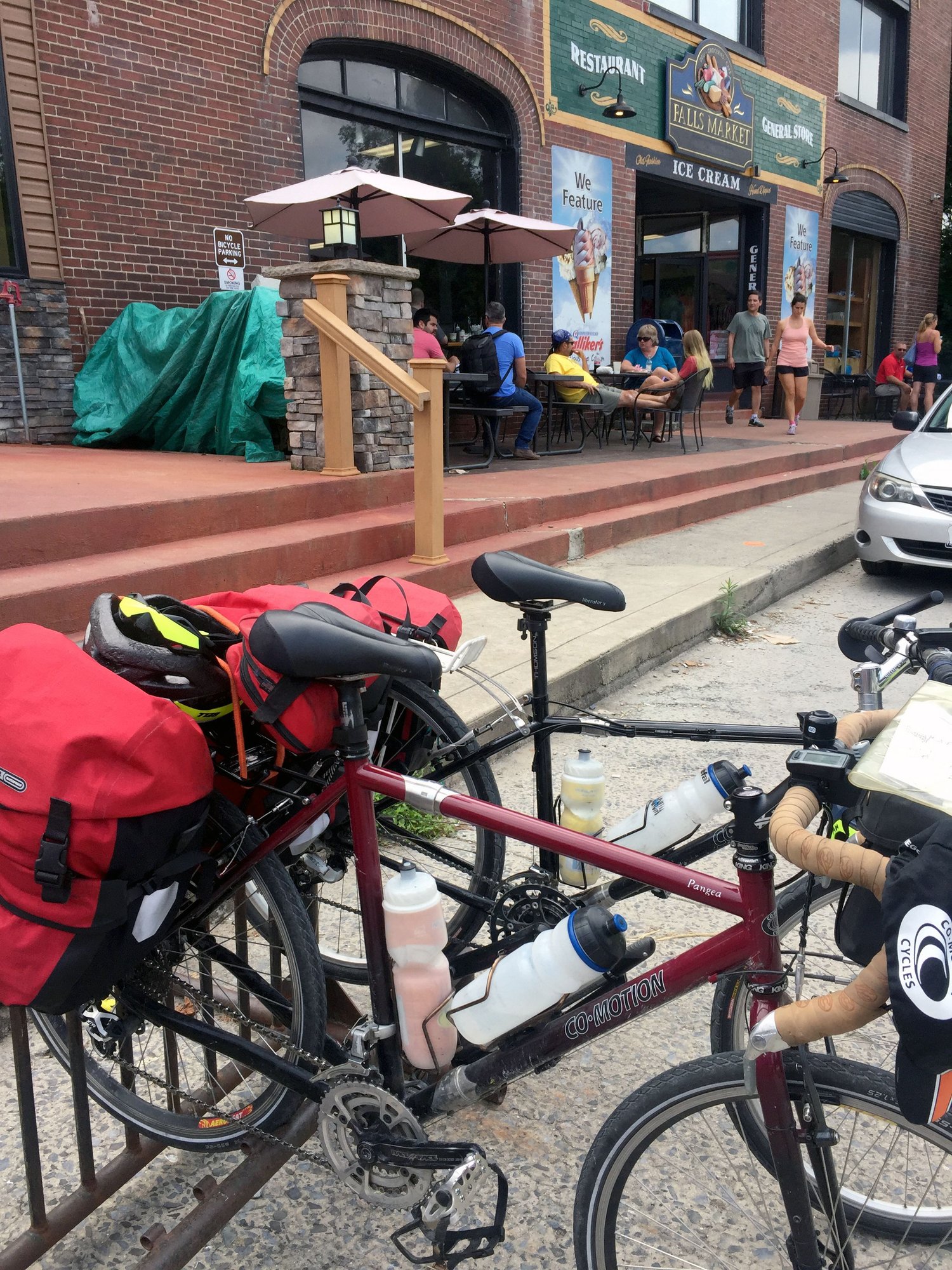

Or use one liter sized bottles. The one liter sized Smartwater brand bottles fit regular cages, some other brands do too. The smaller Smartwater bottles do NOT fit.

Sorry the photo is somewhat dark.

Tourist in MSN is offline
Old 01-03-19, 11:15 AM
  #15
revcp
Senior Member
Thread Starter

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,122

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
To clarify

There are many ways of carrying additional water, from using bladders strapped to the back to purchasing one of many ingenious products to rigging imaginative DIYs to building up a frame bristling with braze ons. As indicated in the OP, I'm interested in hearing from folk who make use of the Wolftooth items.
revcp is offline
Old 01-03-19, 11:50 AM
  #16
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6836 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
A Bikepacking widget Do you use a Bike packing bag system?
fietsbob is offline
Old 01-03-19, 11:58 AM
  #17
revcp
Senior Member
Thread Starter

Join Date: Oct 2012
Location: Twin Cities, Minnesota, USA
Posts: 1,122

Bikes: 2011 Surly Troll, 2015 Borealis Yampa, 1985 Trek 720

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 15 Times in 12 Posts
Originally Posted by fietsbob View Post
A Bikepacking widget Do you use a Bike packing bag system?
For my fatbike, yes, but not for my touring bike. One of the widgets would allow me to move the cage location down on the underside of the down tube. At present it is high enough that a large bottle rubs the tire (my 1985 Trek 720 was manufactured before the advent of the larger bottles). The second widget would allow for two cages in place of one. A similar arrangement on the inside of the down tube would also double bottle capacity.
revcp is offline
Old 01-08-19, 05:28 PM
  #18
Philly Tandem
Senior Member

Join Date: Feb 2010
Location: SE Penna., USA
Posts: 1,095

Bikes: Santana Cabrio triplet, Santana Fusion S&S tandem, Co-Motion Pangea S&S, Co-Motion Nor'wester S&S, Santa Cruz Tallboy, Ellsworth Enlightenment Carbon, Niner EMD9, old-school C'dale F2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If you have room for them in your frame, the 1 liter sized Zefal "Magnum" water bottles are great for touring and fit snugly in any standard cage. I've used them for years. The large Camelbak-style insulated bottles are nice, too, but don't hold as much water relative to their size as the Zefals. They are a bit shorter, though, so may fit where a big Zefal does not (see photo below from my GAP trip this past summer with both types of bottles).

https://www.amazon.com/2-Pack-Magnum.../dp/B01D0KZ7I6

Philly Tandem is offline
Old 01-09-19, 05:17 PM
  #19
Marcus_Ti
Frozen Solid.

Marcus_Ti's Avatar

Join Date: Sep 2014
Location: Lincoln, Nebraska
Posts: 4,672

Bikes: Roadie: Seven Axiom Race Ti w/Chorus 11s. CX/Adventure: Carver Gravel Grinder w/ Di2

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1923 Post(s)
Liked 58 Times in 38 Posts
Originally Posted by DrIsotope View Post
B-RAD 4, Double Barrel adapter, accessory mount (for saddlebag, since replaced with Wolftooth Roll-Top bag,) two Arundel side-loaders. Only on the bike about 4 months out of the year, but man is it worth it. Usually enough for at least 3 hours on +100º days.

Just curious, do you have leg-rub/strike on the bottles with that setup? Just wondering how wide they splay out IRL. No issues with dumping bottles with side-loaders I take it?
Marcus_Ti is offline
Old 01-09-19, 07:13 PM
  #20
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 6,746

Bikes: Nekobasu, Pandicorn

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 3589 Post(s)
Liked 156 Times in 117 Posts
When standing, I will occasionally graze the inside of my calf on the very bottom of the bottles. Impossible to hit 'em when seated, as far as I can tell.

The Arundel side-loaders are pretty grabby. I can't say a bottle coming out would be impossible, but I've never had mine budge.
