Old 04-07-19, 09:31 AM
  #26
Paul Barnard
For The Fun of It
Thread Starter

Paul Barnard's Avatar

Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,535

Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 1,342 Times in 684 Posts
Originally Posted by u235 View Post
The front rods are on a pivot, that red rod holder can move 360 degrees and tightened down resulting in the rod can go almost anywhere you want minus any interference, you can also cut the rods down if needed. The two holders also can put put closer or further apart to work with a variety of frame widths. Example with one rod pointing almost straight down.


Perfect! I had no idea they pivoted. If the rods are long enough to reach down to my eyelets while allowing the rack to clear the 29er tire, then that is my solution.
Paul Barnard is offline
Old 04-07-19, 09:35 AM
  #27
Paul Barnard
For The Fun of It
Thread Starter

Paul Barnard's Avatar

Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,535

Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 1,342 Times in 684 Posts
Originally Posted by fishboat View Post
I think this will work fine. I have 4 of the streamline racks on four bikes..very nice. Also have one attached by the ground-out seat post collar..works great.

The rack can be had from Bikesmiths cycle shop in Milwaukee..local shop for me..good supplier.used them many times, and their prices are often the best you'll find. They have an ebay store or their direct-website.

I have ordered from Bikesmiths before. They are good!
Paul Barnard is offline
Old 04-07-19, 09:46 AM
  #28
Paul Barnard
For The Fun of It
Thread Starter

Paul Barnard's Avatar

Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,535

Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 1,342 Times in 684 Posts
I initially thought about getting some cheap bags since I would rarely use them, but am starting to think differently. I am looking at this size Ortlieb. It would make a nice minimalist bag on the rear of the MTB and can be used as a front bag on the touring bike. I have read enough about Ortlieb to know that it's money well spent.


https://www.bikeinn.com/bike/ortlieb...pair/1097921/p
Paul Barnard is offline
Old 04-07-19, 10:11 AM
  #29
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 12,599
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2496 Post(s)
Liked 784 Times in 653 Posts
Originally Posted by Paul Barnard View Post
I initially thought about getting some cheap bags since I would rarely use them, but am starting to think differently. I am looking at this size Ortlieb. It would make a nice minimalist bag on the rear of the MTB and can be used as a front bag on the touring bike. I have read enough about Ortlieb to know that it's money well spent.


https://www.bikeinn.com/bike/ortlieb...pair/1097921/p
as I have mentioned often here, my 1993 Ortliebs are still alive and kicking and being used, so yes, they are well made and in the long run, worth the money.
This sport packer makes a good rear pannier, its volume can be a bit more than the other front models, but it does weigh a bit more, so I would recommend looking at this page, where you can compare weights etc. I regularly use my front roller plus panniers on the rear of my faster bike, as its nice to have a smaller lighter pannier on when I dont need the larger ones, and they dont stick out as much.
https://www.ortlieb.com/us/products/...front-panniers

the city version is the most economical, and rather light, and the newish "gravel pack" one is the lightest.
djb is offline
Old 04-07-19, 12:19 PM
  #30
Paul Barnard
For The Fun of It
Thread Starter

Paul Barnard's Avatar

Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,535

Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 1,342 Times in 684 Posts
Originally Posted by djb View Post
as I have mentioned often here, my 1993 Ortliebs are still alive and kicking and being used, so yes, they are well made and in the long run, worth the money.
This sport packer makes a good rear pannier, its volume can be a bit more than the other front models, but it does weigh a bit more, so I would recommend looking at this page, where you can compare weights etc. I regularly use my front roller plus panniers on the rear of my faster bike, as its nice to have a smaller lighter pannier on when I dont need the larger ones, and they dont stick out as much.
https://www.ortlieb.com/us/products/...front-panniers

the city version is the most economical, and rather light, and the newish "gravel pack" one is the lightest.
Thanks for all the info you are giving me. I'd love to be able to lay eyes on some of this stuff, but no shop in my area carries any bags, and the racks they carry are very general purpose. When I take measurements on my gear, the size of the front Ortlieb bags start looking pretty small. I have what I consider a fairly compact sleeping bag. It's a Coleman Exponent 32 degree bag. Compressed completely into its stuff sack, it is 13X7.5. That eats up all the room in an Ortlieb front bag according to Ortlieb's dimensions. It's actually too long! Not being able to put my hands on Ortlieb's products makes it difficult to get a feel for how my gear would fit into them. I could get my sleeping bag, mat and pillow into one Bike Packer, then have the other pannier for other goodies. Dimensions can be deceiving though.

With your help I am headed in the right direction. I know the Streamliner 29er Deluxe solves the rack problem.
Paul Barnard is offline
Old 04-07-19, 02:48 PM
  #31
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 12,599
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2496 Post(s)
Liked 784 Times in 653 Posts
no problem, my pleasure.
Ya, without having a bag actually in hand, even with numbers, its not easy to assess how your stuff takes up space.
I have always been rather lucky since I got into bike touring in that there have always been stores with a good selection of things right there in front of you, which helped a lot.

and yes, a sleeping bag and camp mat can easily take up a fair amount of room on their own.
djb is offline
Old 04-07-19, 08:37 PM
  #32
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 9,915

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2910 Post(s)
Liked 1,049 Times in 844 Posts
I always use a compression stuff sack for sleeping bags to get the volume down. Some of my bags are down and compress very well, the synthetic ones take more volume but still a compression sack can be worth it.

While I certainly do not need a waterproof compression sack when I put it in an Ortlieb, since I also use the compression sacks for canoeing and kayaking, I use water proof, quite happy with these ones. I usually stick my down vest in the same sack as the sleeping bag.
https://www.granitegear.com/event-si...n-drysack.html

If you yank on the cord to compress them, that is a good way to tear the cord out of the compression sack. After I stuff the sleeping bag into the sack, I sit on the sack as if it is a stool to get the air out of it and compress it with my weight, then I pull on the cords to take out the slack. That way I do not over-stress it.

There are of course lots of different compression sacks out there that are not water proof, but I have not bought any for over a decade so I can't offer any recommendations.

I have no trouble getting a tent pretty well compressed without a compression sack, so do not use a compression sack with a tent. Some clothing items I also use a compression sack, so some trips I am carrying two.
Tourist in MSN is offline
Old 04-08-19, 05:05 PM
  #33
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,343 Times in 850 Posts
Arkel bags have a support frame https://www.arkel-od.com/en/seatpack...-seat-bag.html

fietsbob is offline
Old 04-08-19, 05:55 PM
  #34
u235
Senior Member

u235's Avatar

Join Date: Mar 2017
Posts: 1,185
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 133 Times in 86 Posts
About sacks... I used these cheap sacks strapped to my rack with a bungy in full days of rain and mud with no issue. I did coat them in additional waterproof spray before hand but not sure if I had to or not. I'm not a full time tourer but the 10 or so time I've used them they worked.

https://www.walmart.com/ip/Outdoor-P...y-Bag/10928125

Last edited by u235; 04-08-19 at 07:39 PM.
u235 is offline
Old 04-08-19, 08:34 PM
  #35
LeeG
Senior Member

Join Date: Sep 2008
Posts: 5,070
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 44 Times in 35 Posts
Originally Posted by Paul Barnard View Post
I may do a few quick overnight offroad trips while I am in CO this summer. My MTB has rack mounts, but the configuration has left me scratching my head. The high lower eyelets on the stay coupled with the low upper eyelets combined with the really high 29er tire have me wondering if a conventional rack will work. Take a look and tell me what you think.

Do you mean one night out and back? Donít bother with rack and panniers. Sleeping bag and pad under handlebars, essential clothes in seat bag.
LeeG is offline
Old 05-25-19, 08:45 AM
  #36
Paul Barnard
For The Fun of It
Thread Starter

Paul Barnard's Avatar

Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,535

Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 1,342 Times in 684 Posts
I wasn't in any hurry to order a rack. I got a 40% off select items coupon from Bikesmith's this morning. One of the few items was the Axiom Streamliner 29er DLX. It is being shipped to my door for $30 even. I'll let you know how it works out once I get it installed. Thanks to all for the help.
Paul Barnard is offline
Old 05-25-19, 11:17 AM
  #37
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,343 Times in 850 Posts
+ in 33 , there is a frame, supporting the bag & you can load even more on top..

bag across the bars and 1 inside the frame , is the new thing..
fietsbob is offline
Old 05-29-19, 04:35 AM
  #38
Paul Barnard
For The Fun of It
Thread Starter

Paul Barnard's Avatar

Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,535

Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 1,342 Times in 684 Posts
The rack came in. It is very well built. The install was ridiculously easy. Bikesmith's was great to deal with. For those that have use this rack, do the lower mounting tabs go inside or outside the dropouts? I put them on the outside because they lined up perfectly there, then got concerned about the "bite" the skewers would get.
Paul Barnard is offline
Old 05-29-19, 05:18 AM
  #39
J.Higgins
2-Wheeled Fool

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,486

Bikes: Surly Ogre, Brompton

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1385 Post(s)
Liked 672 Times in 455 Posts
Originally Posted by djb View Post
I wonder if an OMM would be tall enough, those 29inch tires are pretty darn tall, and any skewer rack is automatically locked into the "skewer to safe distance above the wheel" factor

P clamp or Thule rack at least has the flexibility of allowing the clamps to go on the stays where needed, although limited a bit by those unique mid area eyelets, but it seems to me that p clamps would work well-- again, purely because of light panniers, filed with clothes lets say.

an inexpensive frame pack could do tools that are heavy, and maybe add a reasonably priced handlebar bag or dry bag strapped on to handlebars or something for other stuff to have close at hand.

Paul, what panniers were you thinking of using?
A cheap rear rack with p clamps and arkel dry-lite panniers will give 25 litres of waterproof very light panniers, plus room on top of rack for other light stuff.

I have an OMM on my ECR. Even with the 29+ tires, there is ample room.

OP: I think the OMM racks is your best option, considering that any 5mm eyelets added would cost you dearly. Unfortunately, the best option is not always the best solution. If I were you, and if I had the $$ching, I would hire someone to make me a custom rack - out of titanium tubing - to fit those eyelets. Then it would surely be a worthy addition to your Lynskey frame.
J.Higgins is offline
Old 05-29-19, 08:13 AM
  #40
u235
Senior Member

u235's Avatar

Join Date: Mar 2017
Posts: 1,185
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 133 Times in 86 Posts
Originally Posted by Paul Barnard View Post
The rack came in. It is very well built. The install was ridiculously easy. Bikesmith's was great to deal with. For those that have use this rack, do the lower mounting tabs go inside or outside the dropouts? I put them on the outside because they lined up perfectly there, then got concerned about the "bite" the skewers would get.
It doesn't matter, whatever works. I flipped mine to the inside for additional clearance and even have the hook piece facing the inside. I am not using the QR though. My bags bottom hook can still attach to the rack itself with no problem and the slit /hook on the bracket is not used.

Maybe not mentioned yet but... Use thread locker on the rack screws (although you are using the QR for the bottom so may not apply). I forgot last time and the screws backed out after a few days of gravel even with lock washers. I caught it before any thread damage. Do not try to overcompensate and torque then down harder, you may strip out the boss, it is a tiny m4/m5 thread.

Last edited by u235; 05-29-19 at 09:19 AM.
u235 is offline
Old 05-29-19, 08:52 AM
  #41
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 9,915

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2910 Post(s)
Liked 1,049 Times in 844 Posts
Originally Posted by u235 View Post
...
Maybe not mentioned yet but... Use thread locker on the rack screws (although you are using the QR for the bottom so may not apply). I forgot last time and the screws backed out after a few days of gravel even with lock washers. I caught it before any thread damage. Do not try to overcompensate and torque then down harder, you may strip out the boss, it is a tiny m4/m5 thread.
And when I lost a cleat bolt a couple years ago, now I use a thread locker on cleat bolts too. And also on a few other bolts.

After seeing how many people in the campgrounds have had troubles with rack bolts on tours, I have added a little bottle of a threadlocker to my tool kit to take on tours. The spout on it clogged a few times, I also bring a paper clip (attached to the threadlocker bottle with rubber band) to unclog it.
Tourist in MSN is offline
Old 05-29-19, 09:38 AM
  #42
AusTexMurf
Senior Member

AusTexMurf's Avatar

Join Date: Dec 2012
Location: South Austin, Texas
Posts: 919

Bikes: 2010 Origin8 CX700, 2003 Cannondale Backroads Cross Country, 1997 Trek mtn steel frame converted commuter/tourer, 1983 Univega Sportour, 2010 Surly LHT, Others...

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 15 Times in 12 Posts

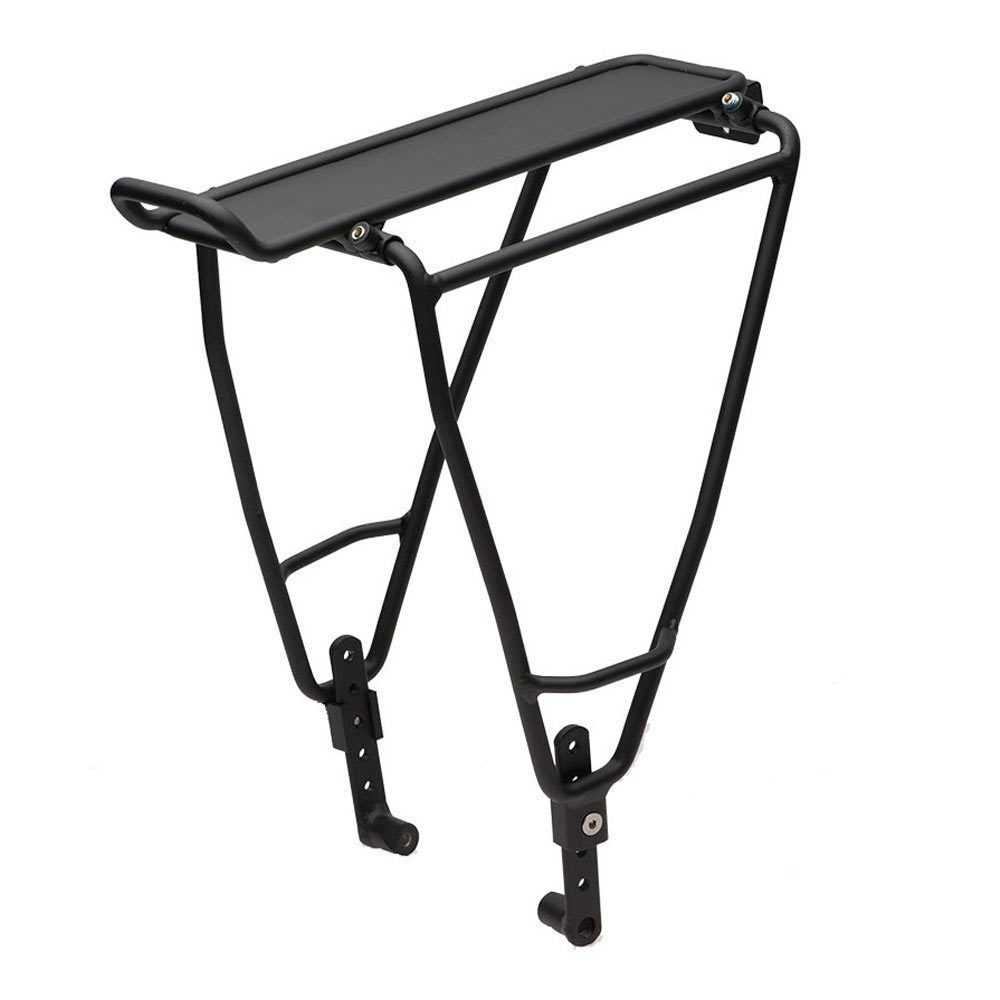

Blackburn Local Deluxe Rack

FROM $44.99Born from the versatility of our Fat Bike Rack, the Local Deluxe Rack is a scaled down version to fit standard width tires. It ships assembled.This rack is very height and width adjustable. Can mount it front or rear.
AusTexMurf is offline
Old 06-30-19, 06:40 AM
  #43
Paul Barnard
For The Fun of It
Thread Starter

Paul Barnard's Avatar

Join Date: May 2007
Location: Louisissippi Coast
Posts: 5,535

Bikes: Lynskey GR300, Lynskey Backroad, Litespeed T6, Lynskey MT29, Burley Duet

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 1,342 Times in 684 Posts

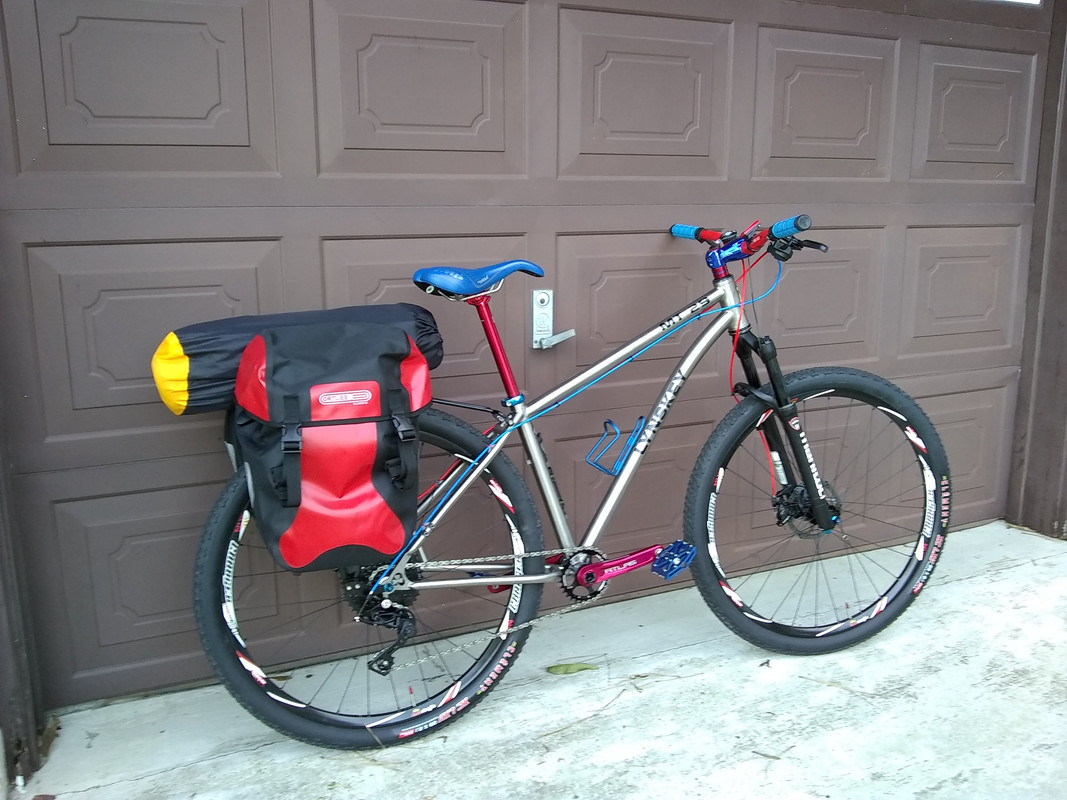

I thought I'd give another update. I ordered and installed a pair of Ortlieb Bike Packer Classics for the Axiom Streamliner 29er DLX rack. I took the rig out for a test spin. Plenty of heel clearance. The weight distribution is fine even with everything over the rear. It is set up well for my Colorado over nighters. I leave on the 4th of July.

Thanks for the advice and information. Y'all got me set up right.

Paul Barnard is offline
Old 06-30-19, 08:09 AM
  #44
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 12,599
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2496 Post(s)
Liked 784 Times in 653 Posts
glad it all works out.
couple of things, dont overtighten the bolts near seatpost, while at the same time, check sometimes in case they loosen from vibrations, a very common thing to happen. This is why its good to use either some loctite or heavy grease on them, helps a lot with stopping vibration loosening.

for packing, put heavier items at bottom of panniers, and in general it also helps having similar weight in each pannier (ish)

if you are riding on really rough stuff a lot, "fattening" up the rack rails with some tape to reduce "rattling" is a good thing, Ive had good experience doing this over rough terrain over long trips, maybe not a big deal for short trips (as with bolt loosening I expect)
djb is offline
Likes For djb:
Old 07-02-19, 01:22 PM
  #45
u235
Senior Member

u235's Avatar

Join Date: Mar 2017
Posts: 1,185
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 133 Times in 86 Posts
Fitting bike colors for a July 4th trip in the US
u235 is offline
Likes For u235:
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
zinadog
General Cycling Discussion
21
09-30-19 03:47 PM
Cyclist0108
Touring
10
05-04-17 03:57 PM
Darth Lefty
Bicycle Mechanics
3
06-06-16 11:15 AM
felsby
Touring
13
12-20-15 11:41 AM
Cheyou
Touring
10
01-16-12 02:43 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
