When a plan comes together, new frame

Notices
Touring Have a dream to ride a bike across your state, across the country, or around the world? Self-contained or fully supported? Trade ideas, adventures, and more in our bicycle touring forum.

When a plan comes together, new frame

Old 10-28-19, 02:24 PM
  #1
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts
When a plan comes together, new frame

Built a new frame over the past 8 months. Wanted long chain stays, low BB height, and 72/73 frame angles. Can't get it off the shelf so I built one myself.

Just a perfectly fitting bike, rides just like it should, and there is plenty of stand over clearance. Rear panniers are centered over the rear axle with plenty of heel clearance, and bosses for 4 H2O bottles.

Chain stays are 47cm and handle bumps very nicely. Turns are slightly wider, but when touring who cares? BB drop is 9cm, 1.5cm lower than most touring rigs, and there is plenty of stand over clearance. Running 38mm tires, but there is room for 40mm tires if needed.

Really liking this bike, and hope to put some miles on it come spring.
TiHabanero is offline
Likes For TiHabanero:
Old 10-28-19, 02:35 PM
  #2
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,315

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4619 Post(s)
Liked 985 Times in 678 Posts
Wait you posted a thread on a new frame and bike that you built and no pics?
bikemig is offline
Likes For bikemig:
Old 10-28-19, 06:47 PM
  #3
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts
Bikemig, I will see if I can snap a few quick pics tomorrow. Didn't think about it until you mentioned it.
TiHabanero is offline
Old 10-29-19, 08:18 AM
  #4
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 10,704

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 4216 Post(s)
Liked 1,235 Times in 774 Posts
Originally Posted by TiHabanero View Post
Bikemig, I will see if I can snap a few quick pics tomorrow. Didn't think about it until you mentioned it.


Pics man, always pics. Especially of built bikes!
mstateglfr is offline
Likes For mstateglfr:
Old 10-29-19, 09:16 AM
  #5
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,043

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2779 Post(s)
Liked 698 Times in 490 Posts
Originally Posted by TiHabanero View Post
Bikemig, I will see if I can snap a few quick pics tomorrow. Didn't think about it until you mentioned it.
Originally Posted by mstateglfr View Post


Pics man, always pics. Especially of built bikes!
+1! Been interested to see more of this bike since you mentioned it in the Framebuilders forum.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 10-29-19, 04:48 PM
  #6
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts
Went to take a pic and the camera app on the phone is messed up. Have to do a hard reset. Android lives up to its reputation once again.
TiHabanero is offline
Old 10-29-19, 05:10 PM
  #7
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,457
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1666 Post(s)
Liked 285 Times in 247 Posts
Originally Posted by TiHabanero View Post
Went to take a pic and the camera app on the phone is messed up. Have to do a hard reset. Android lives up to its reputation once again.
You know hab, I've been a Mac guy from the early 90s, never use Windows, but I've found android phones and tablets to be incredibly reliable and intuitive, sold on android for ages now as a robust, reliable tool.
Can't comment on your why's, but surprised.

Back on topic
I find it totally cool that you made your own frame. Very impressed and must feel great from an accomplishment angle. Enjoy it, and yes, look forward to seeing pixelated evidence.
djb is offline
Old 10-29-19, 06:28 PM
  #8
DanBell
Senior Member

DanBell's Avatar

Join Date: Jul 2010
Location: On the road...
Posts: 558
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by djb View Post
I find it totally cool that you made your own frame. Very impressed and must feel great from an accomplishment angle. Enjoy it, and yes, look forward to seeing pixelated evidence.
Totally agree with this. I have assembled several bikes on my own and it's always a good feeling knowing that I selected all the parts and got the thing up and running with my own hands. Building a frame takes that to another level. I met a German guy in Peru who was bikepacking on a bamboo fatbike he had made himself (from a bamboo bike kit, of course). Inspiring stuff.
DanBell is offline
Old 10-29-19, 06:56 PM
  #9
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,457
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1666 Post(s)
Liked 285 Times in 247 Posts
Originally Posted by DanBell View Post
Totally agree with this. I have assembled several bikes on my own and it's always a good feeling knowing that I selected all the parts and got the thing up and running with my own hands. Building a frame takes that to another level. I met a German guy in Peru who was bikepacking on a bamboo fatbike he had made himself (from a bamboo bike kit, of course). Inspiring stuff.
My folks have a friend who made a wood bike, but one day something broke up front, head tube who knows, fork, and he smashed himself up right proper. Kinda put me off ever riding a wooden bike.
But isolated experience aside, very very neat actually building a frame.
Cheers
djb is offline
Old 10-29-19, 07:34 PM
  #10
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 7,093

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1798 Post(s)
Likes: 0
Liked 251 Times in 212 Posts
From the little bit of welding that I have done, I am quite sure that if I made a frame it would collapse at precisely the worst possible time. That is why I bought frames made by people that know how to make frames and I limited myself to what I know I can do and built up the rest of the bikes from parts.

I have great respect for those that can make a frame themselves, whether it is brazing lugs, silver soldering lugs, fillet brazing, welding, or any other methods that I can't even name.

Now my fleet of bikes is more than adequate, even if I found a great deal I would probably pass on it as I would not have a place to store it.
Tourist in MSN is online now
Old 10-29-19, 09:42 PM
  #11
alan s
Senior Member

alan s's Avatar

Join Date: Oct 2007
Location: Washington, DC
Posts: 6,921
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1466 Post(s)
Liked 154 Times in 108 Posts
This thread is worthless without pitchers. GO NATS!!!

alan s is offline
Likes For alan s:
Old 10-30-19, 01:57 PM
  #12
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts
Djb, I am a Windows user, came from Macs. Honestly once one knows their way around either OS, it is all good. As for droids, all I can say is they are buggy for me. IPhones certainly don't have issues like droids. I think it is bloatware causing issues. If I go droid next time around it will be an Android One, however I am fairly certain it will be an iPhone.

Anyway, did the reset and all is well again. Will take a pic later today.
TiHabanero is offline
Old 11-01-19, 12:21 PM
  #13
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts

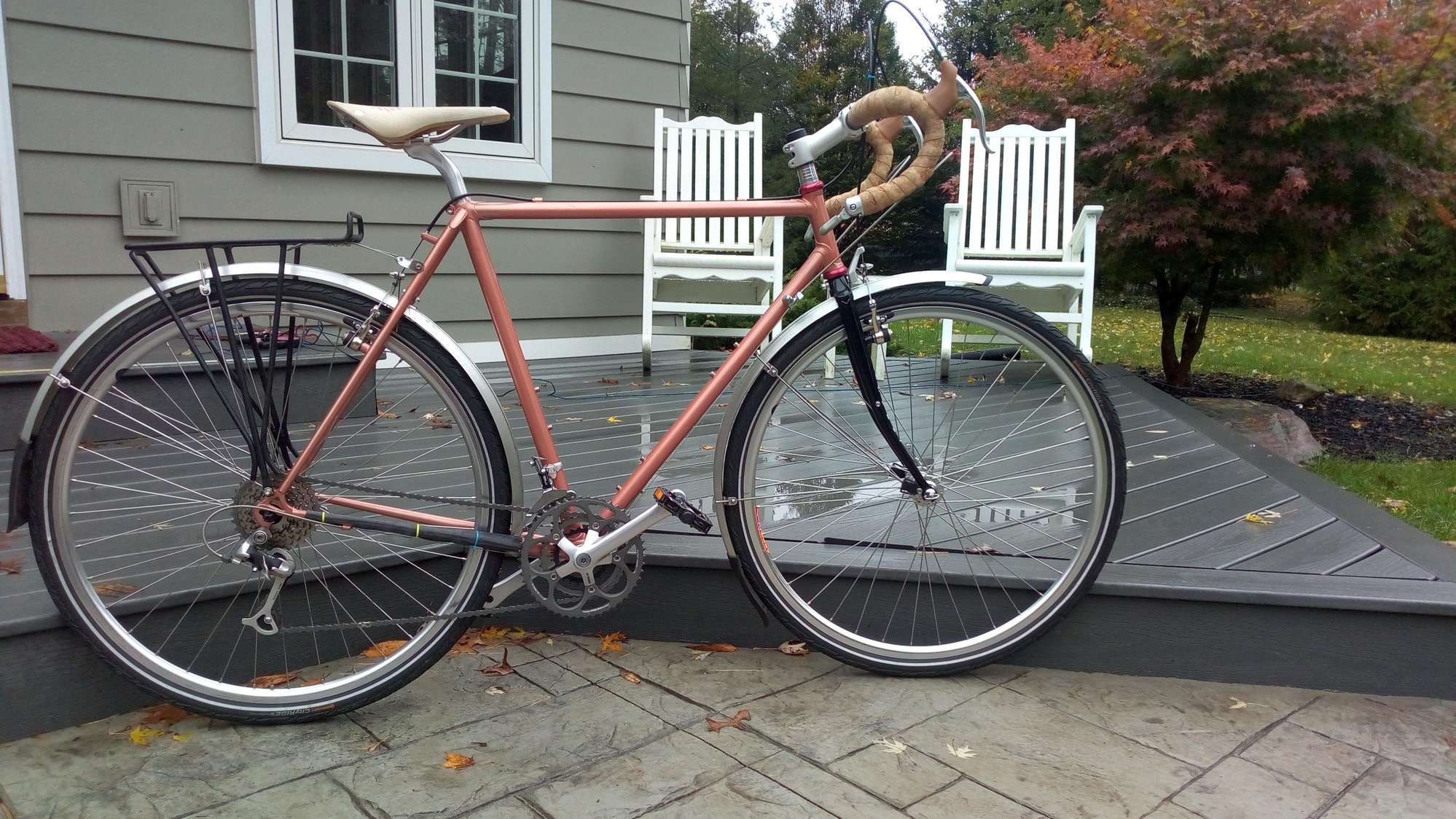

Posted pic, but it didn't make it. Must have clicked the wrong button! Fenders still need adjusting to follow the curvature of the tires correctly.
TiHabanero is offline
Likes For TiHabanero:
Old 11-01-19, 12:40 PM
  #14
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 7,093

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1798 Post(s)
Likes: 0
Liked 251 Times in 212 Posts
Very nice. As mentioned on another thread a day or two ago, I use those same XT rear derailleurs that are a few decades old. Looks like an older Surly fork, have you considered stripping the decals off and painting it to match the frame? Is that a Brooks Cambium saddle?
Tourist in MSN is online now
Old 11-01-19, 08:29 PM
  #15
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,457
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1666 Post(s)
Liked 285 Times in 247 Posts
Neat, and very individual colour also.
The old style hoods have that vintage look, but if you ever find them not as comfortable as you'd like, tektro makes some models that are close to modern sti brifters hoods that are very comfortable.
My gevenelle shifters are basic tektros but the shape isn't bad (but I realize this was probably an aesthetic choice on your part)

Neat seeing the 4 bottle cage setup.
djb is offline
Old 11-04-19, 07:25 PM
  #16
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts
Saddle is the Cambium C17, Works perfectly on this bike, not so much on my road bike. Not sure why other than it is positioned further behind the crank and the bars are higher than the road bike. Really like it and will order one soon. Notice the VO post, it allows the saddle to be properly supported in the middle of the rails. Couple 30mm setback with 72 degree seat tube angle and 175 cranks, and it allows this to be done.

Must mention the Surly fork. 1 inch threadless Crosscheck fork. One of the only Surly products I like enough to use myself. Rides super smooth on the rough stuff. Hard to beat, even if I were to build my own.

The brake levers are Superbe Pro with Rustines hoods. Had the original hoods, but they were fried and bubbly, and really gooey! Rustines are very nice. These levers coupled with the XC Pro canti's it is like having power brakes. Very low effort and stops really well with the stock pads.

All my touring frames are built with 4 cage placements. Only makes sense from a touring point of view, and quite honestly, daily riders should have at least 3. So much easier to reach down to the upper mounted one while riding instead of the lower one. Not sure it can be done well on frames under 54cm, but someday I will draw one up and see.

Bike is slightly portly due to component choice, but in the long run it will be durable and problem free for many miles to come. Had it out Sunday and simply fell in love with it. Beats out my Miyata 1000 and is smoother than the Fuji Touring Series V, which is the softest riding frame I have had up to this point. The long chain stays plus bigger tires are the difference.

Last edited by TiHabanero; 11-04-19 at 07:30 PM.
TiHabanero is offline
Old 11-04-19, 07:50 PM
  #17
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 10,704

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 4216 Post(s)
Liked 1,235 Times in 774 Posts
The spoons on those stays are legit! Miyata would be proud.
mstateglfr is offline
Old 11-04-19, 08:52 PM
  #18
DropBarFan
Senior Member

Join Date: Mar 2011
Posts: 3,151

Bikes: 2013 Surly Disc Trucker, 2004 Novara Randonee , old fixie , etc

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 671 Post(s)
Likes: 0
Liked 45 Times in 39 Posts
Sleek classic look & nice distinctive color.
DropBarFan is offline
Old 11-05-19, 07:56 AM
  #19
indyfabz
Senior Member

indyfabz's Avatar

Join Date: Jan 2010
Posts: 27,375
Mentioned: 193 Post(s)
Tagged: 1 Thread(s)
Quoted: 11642 Post(s)
Liked 3,454 Times in 1,849 Posts
Hot.
indyfabz is offline
Old 11-05-19, 08:18 AM
  #20
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 11,562
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 2146 Post(s)
Liked 686 Times in 404 Posts
Nice
himespau is offline
Old 11-05-19, 09:38 AM
  #21
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,315

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4619 Post(s)
Liked 985 Times in 678 Posts
Originally Posted by TiHabanero View Post
Posted pic, but it didn't make it. Must have clicked the wrong button! Fenders still need adjusting to follow the curvature of the tires correctly.
That's a heck of a good looking bike. What's the crank? A really like suntour xc pro cantilevers and this generation of Deore XT derailleurs.

Does the double water bottle set up on the downtube work when using 24 ounce bottles or do they work better with the smaller water bottles?

Last edited by bikemig; 11-05-19 at 09:44 AM.
bikemig is offline
Old 11-05-19, 02:10 PM
  #22
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts
The crank is an XC Pro set up with 10 speed rings 24/34/50. Perfect gearing for pushing a loaded bike. All the bottle mounts will take the largest size H2O bottle. The underside down tube mount will easily take a small H2O bottle, however it will also accept a large one. On smaller frames it is limited to the small size down there and on the upper one topside of the down tube.

I got this idea from a Moab ride my good friend, Jim, took back in 87. He had bottles strapped to the top tube and one extra on the seat tube. At that time he said he wished there was mounts for 4 bottles on his frame. Thought about adding a 5th mount above the one on the seat tube, but decided against it.

Was going to include spoke holders on the non drive side chain stay, but really did not like the look of it. The spoons on the seat stay caps are a bit different and come from scraps cut from the stays. Was going to do fastback stays, but that would have narrowed clearance at the tire by 10mm. I personally like fastback stays more than traditional side mounted stays.

Rode it again this morning and really like the long stays as the rear wheel trails over rough stuff so nicely. Someday it will take me on a cross country bucket list ride.
TiHabanero is offline
Old 11-05-19, 02:30 PM
  #23
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,457
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1666 Post(s)
Liked 285 Times in 247 Posts
re the 50/34/24. I agree that its a great setup for a loaded bike. I run a 44/32/22 on my heavy touring bike with 26in wheels and it works great for where I have toured on it a lot and what I had to carry (lots of mountainy and more stuff than usual)

and I also ride a 700c bike for my commuter with a 42/34/24 , a low end crankset without crankbolts, ie rivets, but I find it to be a great setup.
I realize that manufacturers dont like smaller cranksets because its "wimpy" and doesnt fit visually and or for slow cadence folks who dont ride much--but for years Ive always wished a 46/34/24 or 22 was available as is, as it really is a nice mix of chainrings (to me anyway, I realize Im in the minority)

Im surprised you still went with a 50t, was that more of an availability thing, or cost, or not using it that much so not worth getting a smaller one?

funny you say you dont like the look of chainstay spoke holders, my old touring bike from 1990 has the two same spokes on the driveside from 1990, and I both like the look of it,and the fact that theyve worked as paint protectors all these years too. I think it looks classy with them on it, but hey, beauty is in the eye of the beholder.

not sure what fastback stays mean, but no matter, again a cool looking bike.
djb is offline
Old 11-05-19, 05:21 PM
  #24
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 3,068
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1050 Post(s)
Liked 344 Times in 189 Posts
All of the chain rings were what I had on hand. Put them on there to see how I liked them, and it was a huge improvement from the half-step gearing on the Fuji and Miyata I have. Now, I have only loaded it with 30 pounds, so don't really know how the 50t will play out, but so far so good. I suspect a 46t will be better for me as I don't need a 50x13 or 14 on a touring bike. As it is, I don't use the 50x13 on it now as an unloaded bike. Spinner, not a pusher.
TiHabanero is offline
Old 11-05-19, 05:36 PM
  #25
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,457
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1666 Post(s)
Liked 285 Times in 247 Posts
when riding with a load, I rarely use the 50t. One of my bikes has a 50/39/30 changed to 50/39/26, and the 39 is always a bit too tall overall, but I rarely ride that bike loaded up, so its my "go (somewhat) faster" bike. Its 50/11 with 700x28's does get used on downhills, and unloaded I do use the 50, but its pretty rare to use that big a chain ring on the flat unless I have a tailwind or a slight downhill.
In general, I find having a top end of a bit over 100 g.i is fine for me for loaded riding (have about 103 on my old 1990 tourer and my Troll) , as long as I can spin up to a bit over 50kph Im happy, and then just let the bike go to whatever I can get it to after that.

I can say with complete confidence that it is extreeeeeemly rare that I can actually pedal at more than 30kph for any length of time more than a minute when touring, so this is why a top end of 100 and a bit gear inches is totally fine, which in any case even with that, if I had a huge tailwind, I could still easily pedal comfortably at 35or 40kph---but I've never had a tailwind that lasted long anyway, or not at those speeds....

re 10 speeds. There is a nice 11-36 cassette, and if you like tighter jumps and can live with a 30t, theres a nice 11-30 or 12-30 that is has really nice short jumps. Its the same as my 9 speed 12-27 but with the 30 added on with the 10 speed.
I use a 9 spd 11-34 on my troll, and my wifes 10 spd 11-36 has slightly closer jumps--but then as noted, there are many 10 spd 11-32 or 34 type cassettes that your rd could probably handle.
djb is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
