Concept of lefty forks on touring bikes?

Notices
Touring Have a dream to ride a bike across your state, across the country, or around the world? Self-contained or fully supported? Trade ideas, adventures, and more in our bicycle touring forum.

Concept of lefty forks on touring bikes?

Old 11-11-19, 11:10 PM
  #1
Aznman
Senior Member
Thread Starter

Join Date: Jan 2013
Posts: 218
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 3 Times in 3 Posts
Concept of lefty forks on touring bikes?

Quick opinions survey of the day: is the lefty fork pretty much antithetical to the very concept of the touring bike frame (abundance of possible rack/pannier placements being the primary concern)?
Aznman is offline
Old 11-11-19, 11:35 PM
  #2
Cyclist0108
Occam's Rotor

Join Date: Jul 2013
Posts: 7,248
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 2,328 Times in 1,161 Posts
If you can somehow attach a low-rider to it, you could have one huge front left pannier, which woudl greatly facilitate counter-clockwise touring.
Cyclist0108 is offline
Likes For Cyclist0108:
Old 11-11-19, 11:45 PM
  #3
saddlesores
Senior Member

saddlesores's Avatar

Join Date: Feb 2004
Location: Bangkok...and....Hainan
Posts: 3,462

Bikes: inferior steel....and....noodly aluminium

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 232 Times in 158 Posts
guess it all depends on your style of touring.

wouldn't work for me to have no spare parts availability and be restricted to proprietary headsets and bearings and hubs and brakes.

there'd gotta be some impressive advantages to having a lefty to justify the price and limitations.

does it actually solve any problems encountered by the average tourist?
saddlesores is offline
Old 11-12-19, 08:19 AM
  #4
staehpj1
Senior Member

staehpj1's Avatar

Join Date: Aug 2006
Location: Tallahassee, FL
Posts: 10,892
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 865 Post(s)
Liked 315 Times in 259 Posts
Meh. I don't see any huge pluses or minuses for my style of touring. Do you have a particular reason to go that route? If you want to run front panniers it is probably a no go. You can run bar bag, bar rolls, and so on just fine. I am sure the setup is plenty reliable enough. Parts availability? If you are that worried have spare parts at home ready to be mailed/shipped to you in a pinch. If it is what you have and what to use it to tour, why not? If you are choosing a new setup to tour on, why?
__________________
Pete in Tallahassee
Check out my profile, articles, and trip journals at:
https:/www.crazyguyonabike.com/staehpj1


staehpj1 is online now
Old 11-12-19, 08:44 AM
  #5
stardognine
Partially Sane.

stardognine's Avatar

Join Date: Jan 2016
Location: Sunny Sacramento.
Posts: 3,189

Bikes: Soma Saga, pre-disc

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 857 Post(s)
Likes: 0
Liked 464 Times in 347 Posts

I've never ridden a bike with a Lefty (yet anyways), so no real opinion on that. Other than a lack of mounting options, as already mentioned, but that might not matter. 🤔

Here's my new-to-me Killer V, which not only works out great for riding various terrain, but it's also far easier to mount. 👍

The only drawback, it has a 1 1/4" headset, which is a little unusual, but shouldn't be too big of an issue. Kinda like your Lefty. 🙂

Good luck.
stardognine is offline
Old 11-12-19, 05:02 PM
  #6
robow
Senior Member

robow's Avatar

Join Date: Aug 2005
Posts: 3,714
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 201 Times in 136 Posts
A solution in search of a problem, and that's all I'm gonna say about that.
robow is offline
Likes For robow:
Old 11-12-19, 07:27 PM
  #7
Happy Feet
Senior Member

Happy Feet's Avatar

Join Date: Sep 2015
Location: Left Coast, Canada
Posts: 5,126
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2235 Post(s)
Liked 1,306 Times in 703 Posts
A Lefty fork does have a place for certain mtb builds as they are lighter than traditional suspension forks but that would be a stretch of a reason for a touring build where weight isn't such a critical factor. I tour without front saddle bags but even still wouldn't see a need for an expensive design like that ordinarily. Where I might see a desire is for a fast, lightweight, off road bike packing capable bike with suspension - ie. gravel bike with suspension. Fairly niche.
Happy Feet is offline
Old 11-12-19, 09:06 PM
  #8
Aznman
Senior Member
Thread Starter

Join Date: Jan 2013
Posts: 218
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by staehpj1 View Post
Meh. I don't see any huge pluses or minuses for my style of touring. Do you have a particular reason to go that route? If you want to run front panniers it is probably a no go. You can run bar bag, bar rolls, and so on just fine. I am sure the setup is plenty reliable enough. Parts availability? If you are that worried have spare parts at home ready to be mailed/shipped to you in a pinch. If it is what you have and what to use it to tour, why not? If you are choosing a new setup to tour on, why?
Hey staehpj. No, I am not looking for a lefty touring bike right now. I was just wanting to know the thoughts of those in the touring domain on lefty bicycles.
Aznman is offline
Old 11-13-19, 08:17 AM
  #9
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,332

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1129 Post(s)
Liked 817 Times in 505 Posts
Originally Posted by Aznman View Post
Quick opinions survey of the day: is the lefty fork pretty much antithetical to the very concept of the touring bike frame (abundance of possible rack/pannier placements being the primary concern)?

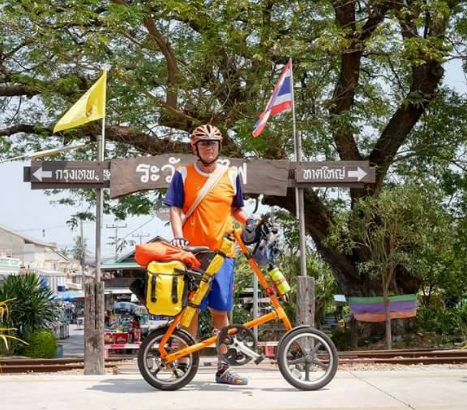

Where there's a will, there's a way. This cat's touring on his lefty fork bike:

tcs is offline
Old 11-13-19, 08:22 AM
  #10
saddlesores
Senior Member

saddlesores's Avatar

Join Date: Feb 2004
Location: Bangkok...and....Hainan
Posts: 3,462

Bikes: inferior steel....and....noodly aluminium

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 232 Times in 158 Posts
Originally Posted by Happy Feet View Post
A Lefty fork does have a place for certain mtb builds as they are lighter than traditional suspension forks.....
i read that yes, the fork itself is lighter, but with the heavier bearings and the beefier headset/tube and crown, along with the honking massive hub, that it's actually a wash weight-wise.
saddlesores is offline
Old 11-13-19, 09:03 AM
  #11
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,482

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5001 Post(s)
Liked 2,582 Times in 1,524 Posts
Originally Posted by Aznman View Post
Quick opinions survey of the day: is the lefty fork pretty much antithetical to the very concept of the touring bike frame (abundance of possible rack/pannier placements being the primary concern)?
For off-road bikepacking, it would be fine with one caveat. Bikepacking tends to be front heavy. That extra load is going to put stress on an axle that is only one sided. The possibility exists of damaging the axle. I'm not saying that it would but the possibility exists.

For regular road touring with panniers, you've already addressed its limitation.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 11-14-19, 07:59 PM
  #12
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,849
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1437 Post(s)
Liked 902 Times in 474 Posts
I have had a Cdale with Lefty and it is one heck of a sus fork. The best I have used for performance riding. Precise, small bump sensitive, and very smooth operating. Virtually no stiction at all. As for touring, it is overkill. Currently there is no good way to attach a front rack to it.

Addressing the hub and axle, I have yet to see one fail. Considering autos have their axles supported on one side, motorcycles have single sided swing arms supporting the rear axle on one side, and formula race cars the same, there is little chance of a failure of the Lefty axle.

Disclaimer, I have been working in a Cdale shop for the past 3 years. Before that it was 30 years in a Specialized shop. Have seen a lot of fork failures, almost all of them, at least 99%, due to lack of maintenance or really, really big hits.
TiHabanero is offline
Old 11-14-19, 11:28 PM
  #13
DropBarFan
Senior Member

Join Date: Mar 2011
Posts: 3,150

Bikes: 2013 Surly Disc Trucker, 2004 Novara Randonee , old fixie , etc

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 671 Post(s)
Likes: 0
Liked 49 Times in 43 Posts
I’d like to see a drop-bar suspension touring bike, if I had money to blow I’d ask custom builders if they’d make one.

Heavier by .5 to 1 kg but narrower lighter tires would negate some of that & higher tire pressure would give lower rolling resistance.

No front rack mounts but perhaps a builder could weld rack mounts to the fork or make a custom rack

Overkill for road touring on smooth roads but much more comfort & some increased safety & speed on the rough roads, bumpy sidewalks or trails that one might commonly encounter.
DropBarFan is offline
Old 11-15-19, 05:14 AM
  #14
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,557

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1279 Post(s)
Liked 864 Times in 599 Posts
Originally Posted by DropBarFan View Post
Id like to see a drop-bar suspension touring bike, if I had money to blow Id ask custom builders if theyd make one.

Heavier by .5 to 1 kg but narrower lighter tires would negate some of that & higher tire pressure would give lower rolling resistance.

No front rack mounts but perhaps a builder could weld rack mounts to the fork or make a custom rack

Overkill for road touring on smooth roads but much more comfort & some increased safety & speed on the rough roads, bumpy sidewalks or trails that one might commonly encounter.
Why not just put drop bars on one and related components on one? People have been doing that with with MTBs for years.

Cheers
Miele Man is offline
Old 11-15-19, 10:58 PM
  #15
DropBarFan
Senior Member

Join Date: Mar 2011
Posts: 3,150

Bikes: 2013 Surly Disc Trucker, 2004 Novara Randonee , old fixie , etc

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 671 Post(s)
Likes: 0
Liked 49 Times in 43 Posts
Originally Posted by Miele Man View Post
Why not just put drop bars on one and related components on one? People have been doing that with with MTBs for years.

Cheers
You mean like a hybrid or German trekking bike? I've tried drop bars on a MTB & the handling is not ideal esp for those who like a more aero position. Also there's no suspension forks with rack mounts AFAIK A bit ironic considering some carbon forks have rack mounts.
DropBarFan is offline
Old 11-15-19, 11:38 PM
  #16
saddlesores
Senior Member

saddlesores's Avatar

Join Date: Feb 2004
Location: Bangkok...and....Hainan
Posts: 3,462

Bikes: inferior steel....and....noodly aluminium

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 232 Times in 158 Posts
Originally Posted by DropBarFan View Post
... Also there's no suspension forks with rack mounts AFAIK A bit ironic considering some carbon forks have rack mounts.
you can add a front rack to a suspension fork, either to the brake studs or with clamps. this one gots lowrider mounts and a platform.

https://www.amazon.com/Minoura-MT-40.../dp/B00FHV0Q92
saddlesores is offline
Old 11-17-19, 01:02 AM
  #17
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,482

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5001 Post(s)
Liked 2,582 Times in 1,524 Posts
Originally Posted by saddlesores View Post
you can add a front rack to a suspension fork, either to the brake studs or with clamps. this one gots lowrider mounts and a platform.

https://www.amazon.com/Minoura-MT-40.../dp/B00FHV0Q92
I cant think of a good suspension fork that has brake studs on it. I cant really think of too many bad ones that have them. This is the age of disc brakes, remember.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 11-17-19, 02:02 AM
  #18
saddlesores
Senior Member

saddlesores's Avatar

Join Date: Feb 2004
Location: Bangkok...and....Hainan
Posts: 3,462

Bikes: inferior steel....and....noodly aluminium

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 232 Times in 158 Posts
Originally Posted by cyccommute View Post
.... This is the age of disc brakes, remember.


disk wha?? only disk I got is slipped.



now git off muh lawn!
saddlesores is offline
Old 11-17-19, 10:16 AM
  #19
stardognine
Partially Sane.

stardognine's Avatar

Join Date: Jan 2016
Location: Sunny Sacramento.
Posts: 3,189

Bikes: Soma Saga, pre-disc

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 857 Post(s)
Likes: 0
Liked 464 Times in 347 Posts
Now you kids are confusing me again, dagnabbit. Is it disc or disk? 🤔
stardognine is offline
Old 11-17-19, 11:13 AM
  #20
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,332

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1129 Post(s)
Liked 817 Times in 505 Posts
Originally Posted by stardognine View Post
Now you kids are confusing me again, dagnabbit. Is it disc or disk? 🤔
It's 'disc', as in 'disc breaks':

tcs is offline
Old 11-17-19, 01:05 PM
  #21
stardognine
Partially Sane.

stardognine's Avatar

Join Date: Jan 2016
Location: Sunny Sacramento.
Posts: 3,189

Bikes: Soma Saga, pre-disc

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 857 Post(s)
Likes: 0
Liked 464 Times in 347 Posts
So, did you break your brake disc, just for this thread? 😁
stardognine is offline
Old 11-17-19, 01:18 PM
  #22
Marcus_Ti
FLIR Kitten to 0.05C

Marcus_Ti's Avatar

Join Date: Sep 2014
Location: Lincoln, Nebraska
Posts: 5,331

Bikes: Roadie: Seven Axiom Race Ti w/Chorus 11s. CX/Adventure: Carver Gravel Grinder w/ Di2

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 2349 Post(s)
Liked 405 Times in 254 Posts
Today Lefty forks are better engineered...they used to be max ASTM condition 2 AKA 6" drops or less (think less than a regulation road-curb in the USA). Problem being everyone treated them like XC equipment....result was lots and lots of people were surprised when they broke prematurely after being abused by people who didn't know they were abusing them.

These days Cannonwhale engineers them to Cond 3 I think.

Either way...they don't gain you much for a touring context at all--and introduce hard-to-source proprietary parts where you don't need them.

Originally Posted by tcs View Post
Where there's a will, there's a way. This cat's touring on his lefty fork bike:
There was a guy a few years ago on Tour de Nebraska that brought a Bike Friday. I remember it because I was about to leave a convenience store on my bike, he rode in, and his front fork snapped. Was just one of those things. He was fine, but his tour was done. No spare parts within who knows how many hundreds of miles, and for a 5 day organized tour he was done, given time constraints.
Marcus_Ti is offline
Old 11-17-19, 08:34 PM
  #23
DropBarFan
Senior Member

Join Date: Mar 2011
Posts: 3,150

Bikes: 2013 Surly Disc Trucker, 2004 Novara Randonee , old fixie , etc

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 671 Post(s)
Likes: 0
Liked 49 Times in 43 Posts
Originally Posted by saddlesores View Post
you can add a front rack to a suspension fork, either to the brake studs or with clamps. this one gots lowrider mounts and a platform.

https://www.amazon.com/Minoura-MT-40.../dp/B00FHV0Q92
Minoura rack...nice that such a model is available but it's massive & heavy. I looked at the Old Man Mountain website that claims new rack production will soon resume. But I don't think there are any production drop-bar touring bikes suitable for swapping in a suspension fork anyway & if I had $5,000 to build a custom susp-fork tourer I'd spend another $1,000 for sweet custom racks. Oh well, my touring bikes are reasonably comfortable so I'm not considering that seriously. I'd email some builders just to see but they're busy guys so I don't want to bother them with theoretical questions.
DropBarFan is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
