Miyata 1000 and Revelate Ripio frame bag

Notices
Touring Have a dream to ride a bike across your state, across the country, or around the world? Self-contained or fully supported? Trade ideas, adventures, and more in our bicycle touring forum.

Miyata 1000 and Revelate Ripio frame bag

Old 04-29-21, 11:46 AM
  #1
balto charlie
Senior Member
Thread Starter

balto charlie's Avatar

Join Date: Aug 2004
Location: Baltimore/DC
Posts: 2,864
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 124 Times in 77 Posts
Miyata 1000 and Revelate Ripio frame bag

Hey all: I am thinking about going in this direction and wondering if anyone has tried a touring bike with the Revelate Ripio frame bag. My bike is a large (58)and I was hoping to fit an XL frame bag trying to maximize the carrying capacity. I measured the bike and seems like XL will work until I cut out a template. I no longer have my middle school protractor so couldn't make the proper angle. It was not even close, due mostly to the seat tube/top bar angle. I used a 90 degree, obviously the bike has a smaller angle. So I made a large size template (still 90), closer but still not right. Revelate does not state the angle of their bags, only the size of each side.

So has anyone done this? They recommend a Ripio for road bikes. As of now I am thinking a large bag.
balto charlie is offline
Old 04-29-21, 12:41 PM
  #2
saddlesores
Senior Member

saddlesores's Avatar

Join Date: Feb 2004
Location: Bangkok...and....Hainan
Posts: 3,351

Bikes: inferior steel....and....noodly aluminium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Liked 188 Times in 130 Posts
Sizing Chart

https://www.revelatedesigns.com/site...izing-2017.pdf

Printable Full Size PDF Pattern

https://www.revelatedesigns.com/site...izing-PDF-.pdf
saddlesores is offline
Old 05-01-21, 05:11 AM
  #3
balto charlie
Senior Member
Thread Starter

balto charlie's Avatar

Join Date: Aug 2004
Location: Baltimore/DC
Posts: 2,864
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 124 Times in 77 Posts
Thanks, I originally used the first link to measure and that is when I found out the seat tube angle is important. I didn't print out the second link hoping some would chime in with their experience. I'll probably print it out and measure it. I hope I print to the correct size, this will be important. They have a 1" comparison marking.
balto charlie is offline
Old 05-02-21, 12:26 AM
  #4
saddlesores
Senior Member

saddlesores's Avatar

Join Date: Feb 2004
Location: Bangkok...and....Hainan
Posts: 3,351

Bikes: inferior steel....and....noodly aluminium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Liked 188 Times in 130 Posts
Originally Posted by balto charlie View Post
Thanks, I originally used the first link to measure and that is when I found out the seat tube angle is important. I didn't print out the second link hoping some would chime in with their experience. I'll probably print it out and measure it. I hope I print to the correct size, this will be important. They have a 1" comparison marking.
most important are the angles, which will be correct (ir)regardless of printout size.
given that you have the exact dimensions, once you print out and tape together,
should be no problem at all to extend the lines to the correct lengths.

or gosh, just print the four pages with the corner angles, see if they match your frame.
saddlesores is offline
Old 08-01-21, 08:15 AM
  #5
balto charlie
Senior Member
Thread Starter

balto charlie's Avatar

Join Date: Aug 2004
Location: Baltimore/DC
Posts: 2,864
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 124 Times in 77 Posts
Originally Posted by saddlesores View Post
most important are the angles, which will be correct (ir)regardless of printout size.
given that you have the exact dimensions, once you print out and tape together,
should be no problem at all to extend the lines to the correct lengths.

or gosh, just print the four pages with the corner angles, see if they match your frame.

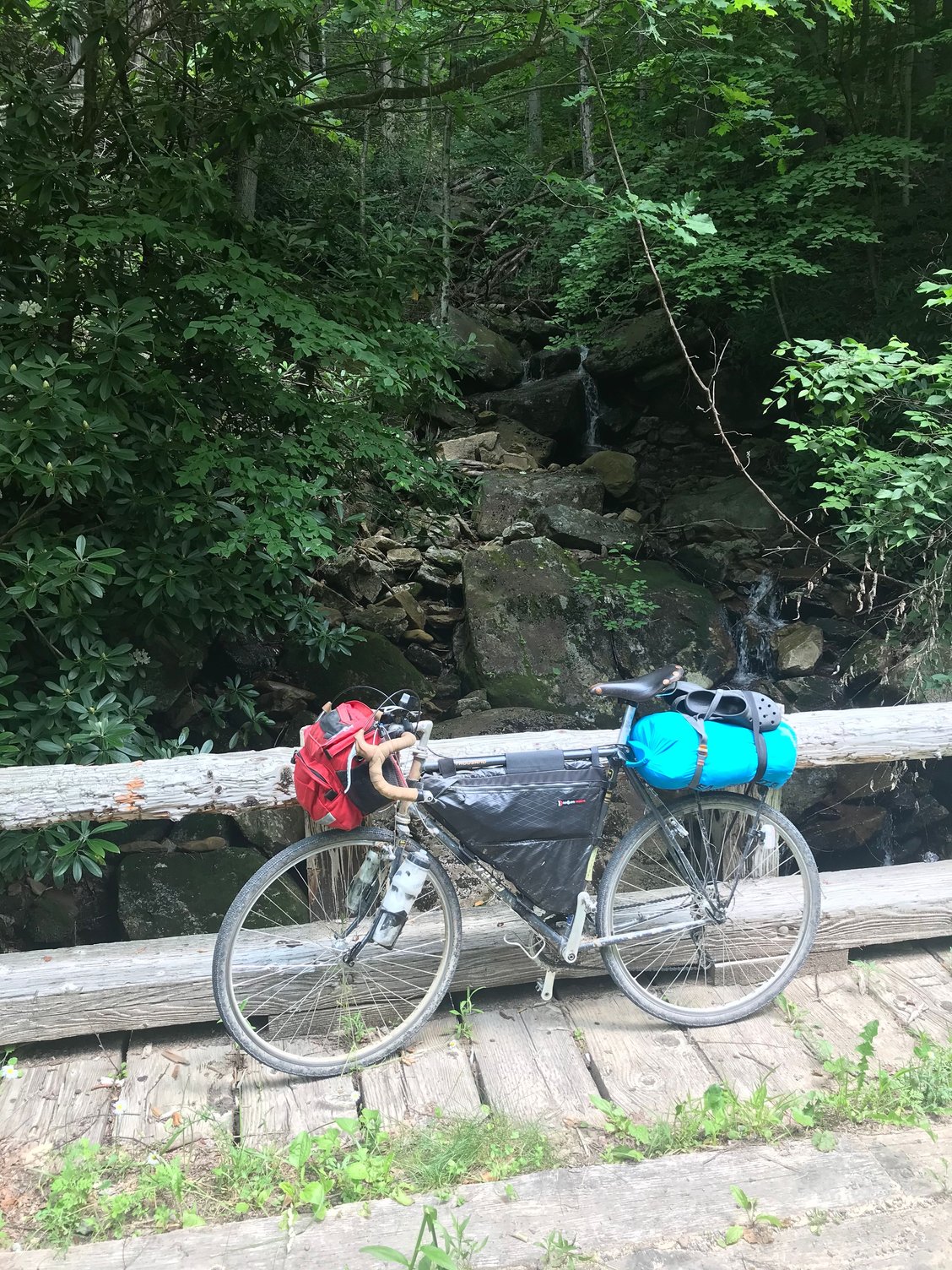

So I finally did this. Worked very well. My Miyata 58/57 cm 1000 needed a large. XL was too big. It did not fit perfect but close enough. I bought it (not cheap) and have used it on a few gravel bikepacking trip. It holds a lot. I easily put all my food for 4 days, cooking stuff etc and bike tools. Used my dry bag for tarp, sleep bag, clothes.
