BarYAK - and Bikepacking Hack: DIY Handlebar Cradle - size

hello dear Friends,

i am currently wondering how to do a diy-bikepacking setup.

well to get some ideas about the size:

there is the BarYAK-handlebar-set. ( see Baryak.com )

- and Bikepacking Hack: DIY Handlebar Cradle - from adam see:

okay they are totally different.




according the BarYAK-handlebar-set. ( see Baryak.com )
what i am wondering: what do you guess - how long is the dimension - in other words - how far is the extension of the BARYAK - handlebar setup - i guess that the length is about 20 cenitimeters

that means in other words: the main handlebar is about 20 cm from the extension away. Is this true!"?

love to hear from you
apollodriver is offline
Likes For apollodriver:
Old 07-04-22, 10:49 AM
  #2
headwind15
Bikeable

headwind15's Avatar

Join Date: Jan 2011
Posts: 304
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 154 Post(s)
Likes: 0
Liked 98 Times in 67 Posts
I have one on one of my bikes and it's 4cm (just over 1.5 inches) from the handle bars to the bar, no where near 20cm. I made my own handlebar harness. It turned out o.k., but I am short/ have low handlebars and ultimately decided that I did not want any chance of my gear (hit a bump) to end up in my front tire. I ultimately decided on using a (small) front rack, instead. (really minor weight penalty) I did also make my own fork harness from 6mm/ 1/4" x 100mm thick/ 4" black pvc 14" long, that did turn out nice/ usable. / saved me some weight compared to a low rider rack and panniers.
headwind15 is offline
Likes For headwind15:
Old 07-04-22, 01:39 PM
  #3
M Rose
Full Member

Join Date: Aug 2021
Location: Northeastern Oregon
Posts: 237

Bikes: 2021 Trek Verve 2 Disk

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 89 Times in 59 Posts
Originally Posted by headwind15 View Post
I have one on one of my bikes and it's 4cm (just over 1.5 inches) from the handle bars to the bar, no where near 20cm. I made my own handlebar harness. It turned out o.k., but I am short/ have low handlebars and ultimately decided that I did not want any chance of my gear (hit a bump) to end up in my front tire. I ultimately decided on using a (small) front rack, instead. (really minor weight penalty) I did also make my own fork harness from 6mm/ 1/4" x 100mm thick/ 4" black pvc 14" long, that did turn out nice/ usable. / saved me some weight compared to a low rider rack and panniers.
the BarYak is a lot longer than 4cm its not the Amazon accessory bar shown in the YouTube video.

to the OP, I agree it looks to be about 20cm long, if not longer.

M Rose is offline
Likes For M Rose:
Old 07-04-22, 03:43 PM
  #4
apollodriver
Newbie
Thread Starter

Join Date: Jun 2020
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 11 Times in 10 Posts
hello dear Headwind hello dear M Rose,

many many thanks for the quick reply - totally agreed with M Rose.


its about 20 cm ( e x a c t l y !!!!!!!) see below

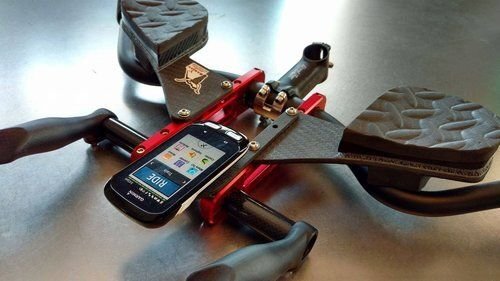

BarYak Expedition SL 2020 - 35 with Carbon Cross Bar & Carbon Bar Ends
https://www.baryak.com/new-products/...ne-4-arm-rest-

BarYak Expedition SL 2020
COMPLETE (without Peregrine 4 arm rest) CARBON X BAR AND CARBON BAR ENDS

Features:
-Stress-tested to 150lbs.
-Rails CNC machined from aluminium billet and anodized
-Carbon fiber bar ends, tube and arm rest
-Weight of complete system, 450Gr / 15.75oz.
-Rails are 7 3/4" from end to end. - > which are pretty exactly 19,685 cm

-Fits 35 and 31.8mm Bars with Optional shim kit.

(Mounts) Pass-through attachment for Strap & 10-32 accessory screw mount, Screw & Strap **Not included**

Mounting: Once Your desired BarYak width is determined, secure the bottom Bracket to the handlebar by inserting the “C" clamp bolts through the Top and into the bottom “C “ bracket, Using the 4mm Allen wrench, evenly tighten these bolts to a torque of 42–63in-lbs. (4.7–7.2N-m). Note: You may have to un-wrap the top section of handlebar tape in order to gain the desired clamping width. Do not route the brake or shift cable housing underneath the aerobar brackets—this will affect braking and/or shifting performance.
many many thanks you both,

greetings apollo
apollodriver is offline
Old 07-04-22, 04:34 PM
  #5
headwind15
Bikeable

headwind15's Avatar

Join Date: Jan 2011
Posts: 304
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 154 Post(s)
Likes: 0
Liked 98 Times in 67 Posts
Sorry, I assumed that the bar yak was what you were calling the bar in the video.
