Help with lowrider front rack

Hello,

I'm a bit green when it comes to understanding the different types mount for racks and am hoping for some guidance. I have a 2019 Felt Breed 30 (feltbicycles.com/products/breed-30-gravel-road-bike) and it has a carbon fork. However I have confirmed from Felt it is capable of carrying about 15 pounds on the front and it does have threaded mounting points on the blades. My intent is only to be able to carry a couple front mounted pannier bags to help balance out my rear rack/panniers for light backpacking. I don't really need a platform.

Anyone happen to have a moment to lend a hand / brand / model suggestion?

Thank you in advance!
cos_jp is offline
Old 09-11-22, 11:15 PM
  #2
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Your best bet would probably be something like a Topeak Versa Cage with a bag like the Revelate Pole Cat or something similar. It looks like the fork only has a single mounting point, so you may need more mounting points to carry the load. The Versa Cage mounts are plastic worm gear clamps that can’t be tightened as much as metal worm gear can and, thus, don’t have as much of a possibility of damaging your fork. There are other cages and bags around but they all cost about the same.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 09-12-22, 07:00 AM
  #3
cos_jp
Newbie
Thread Starter

Join Date: Sep 2022
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 1 Time in 1 Post
Originally Posted by cyccommute View Post
Your best bet would probably be something like a Topeak Versa Cage with a bag like the Revelate Pole Cat or something similar. It looks like the fork only has a single mounting point, so you may need more mounting points to carry the load. The Versa Cage mounts are plastic worm gear clamps that can’t be tightened as much as metal worm gear can and, thus, don’t have as much of a possibility of damaging your fork. There are other cages and bags around but they all cost about the same.
Hi, I'm not sure if this helps, but, I think I actually have two mounting points (pic here: //hexadecim.al/IMG_20220912_063056__01.jpg): the one up the blade from the axle and right below the axle (unless that is a fender mounting point). The Felt Broam has a similar fork/design and they are showing panniers in some of their pics. Of course they don't actually sell a rack lol. I have asked Felt too for some advice.

I will check out the Topeak though thanks!
cos_jp is offline
Old 09-12-22, 09:05 AM
  #4
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Originally Posted by cos_jp View Post
Hi, I'm not sure if this helps, but, I think I actually have two mounting points (pic here: //hexadecim.al/IMG_20220912_063056__01.jpg): the one up the blade from the axle and right below the axle (unless that is a fender mounting point). The Felt Broam has a similar fork/design and they are showing panniers in some of their pics. Of course they don't actually sell a rack lol. I have asked Felt too for some advice.

I will check out the Topeak though thanks!
Your picture link doesnít work but Iíve seen the braze-on on the fork tip. The fork on your bike has the mount point too low for it to work with a regular low rider for panniers. Low rider mounts are usually quite a bit higher on the fork leg as you can see in the picture below. The distance between the two braze-ones is just too small for them to be used together on a low rider rack.

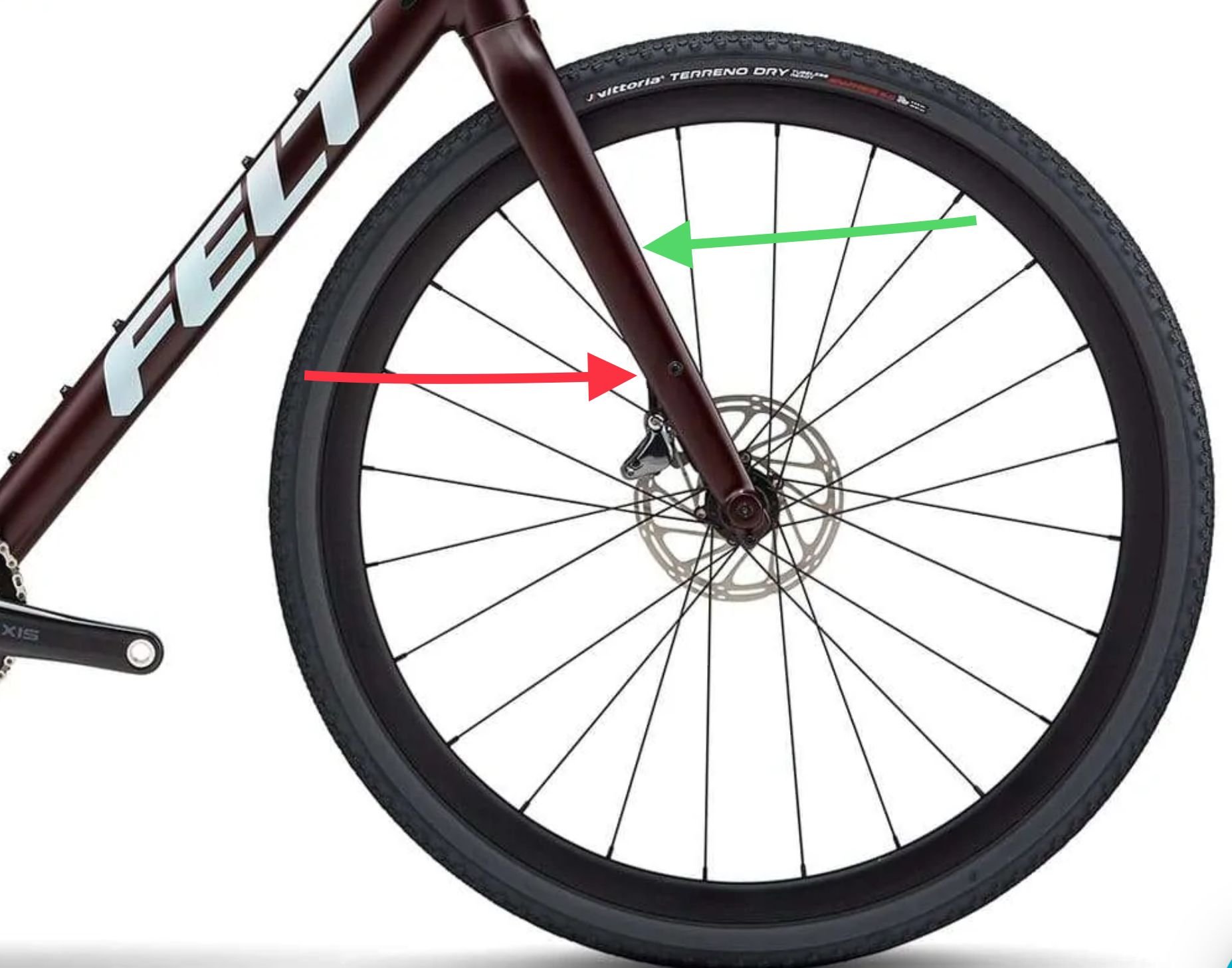

Compare the above to this picture. Red arrow shows the fork braze-on while the green arrow shows about where it should be.




I also donít think you could use the Versa Cage attached to the upper braze-on and attached to the lower one. It would work on the right side but would have to be bolted across the lever on the thru-axle. About the only thing the lower mount is useful for is mounting fenders. You could use the mount on the fork (red arrow) to bolt the lowest bolt hole on the Versa Cage and then use their clamps further up the leg.

As to the pannier pictures that Felt shows, I would bet that they are either using a fork that is regularly offered or that they are using some other adapter for the upper mounting point. There are adapters around but I would be hesitant to use one on a carbon fork. The old Blackburn lowriders used U bolts but those only work on forks with round or very slightly oval profiles. The fork above would be too wide for that solution.

Tubus makes a couple of adaptersÖthe LM-1 and the the LM-BF but I doubt that either one would work. The LM-1 is by far the more stable of the two but it isnít made for wide profile, aerodynamic forks. You might be able to modify them to fit but Itís hard to say how much they would need to be modified. And you have the problem of getting the adapter tight enough to not move but still avoid crushing the carbon fiber.

The other Tubus adapter used metal screw clamps which carry the possibility of crushing the carbon fiber. Itís not the greatest mount to begin with as well.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 09-12-22, 03:42 PM
  #5
cos_jp
Newbie
Thread Starter

Join Date: Sep 2022
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 1 Time in 1 Post
Originally Posted by cyccommute View Post
Your picture link doesnít work but Iíve seen the braze-on on the fork tip. The fork on your bike has the mount point too low for it to work with a regular low rider for panniers. Low rider mounts are usually quite a bit higher on the fork leg as you can see in the picture below. The distance between the two braze-ones is just too small for them to be used together on a low rider rack.

I also donít think you could use the Versa Cage attached to the upper braze-on and attached to the lower one. It would work on the right side but would have to be bolted across the lever on the thru-axle. About the only thing the lower mount is useful for is mounting fenders. You could use the mount on the fork (red arrow) to bolt the lowest bolt hole on the Versa Cage and then use their clamps further up the leg.

As to the pannier pictures that Felt shows, I would bet that they are either using a fork that is regularly offered or that they are using some other adapter for the upper mounting point. There are adapters around but I would be hesitant to use one on a carbon fork. The old Blackburn lowriders used U bolts but those only work on forks with round or very slightly oval profiles. The fork above would be too wide for that solution.

Tubus makes a couple of adaptersÖthe LM-1 and the the LM-BF but I doubt that either one would work. The LM-1 is by far the more stable of the two but it isnít made for wide profile, aerodynamic forks. You might be able to modify them to fit but Itís hard to say how much they would need to be modified. And you have the problem of getting the adapter tight enough to not move but still avoid crushing the carbon fiber.

The other Tubus adapter used metal screw clamps which carry the possibility of crushing the carbon fiber. Itís not the greatest mount to begin with as well.
Thanks again - ya I'm still jailed from submitting any URL's or photos which kind of makes this difficult!

I was trying to sleuth some other photos of the Broam and I'm wondering if they're running a rack liked the Axiom Journey DLX Lowrider. This rack (not the suspension compatible one) uses the lower fork eyelet to bolt, then it clamps onto the blade above. That seem like it might be plausible?

There much be some kind of option because Felt specifically says it's front rack compatible! They just don't say with what kind of rack lol. I've still got the question pending with them though.
cos_jp is offline
Old 09-12-22, 08:08 PM
  #6
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Originally Posted by cos_jp View Post
Thanks again - ya I'm still jailed from submitting any URL's or photos which kind of makes this difficult!

I was trying to sleuth some other photos of the Broam and I'm wondering if they're running a rack liked the Axiom Journey DLX Lowrider. This rack (not the suspension compatible one) uses the lower fork eyelet to bolt, then it clamps onto the blade above. That seem like it might be plausible?

There much be some kind of option because Felt specifically says it's front rack compatible! They just don't say with what kind of rack lol. I've still got the question pending with them though.
The Axiom lowriders use the same u-bolt as the old Blackburn rack. It might work on the fork blade but carbon forks tend to be wide from front to back which makes the Ubolt harder to use. You would also need to be extremely careful about how much pressure you put on the bolts.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 09-13-22, 12:45 AM
  #7
Germany_chris
Iím a little Surly

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 2,045

Bikes: Two Cross Checks and a Karate Monkey

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 530 Post(s)
Liked 950 Times in 494 Posts
I think those mounts are for fenders, they look just high enough to clear the caliper
Germany_chris is offline
Likes For Germany_chris:
Old 09-14-22, 05:16 PM
  #8
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Originally Posted by Germany_chris View Post
I think those mounts are for fenders, they look just high enough to clear the caliper
I wouldnít disagree. However there are also appear to be mounts under the fork tip.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 09-14-22, 05:21 PM
  #9
Ghazmh
Senior Member

Ghazmh's Avatar

Join Date: Jan 2014
Location: The banks of the River Charles
Posts: 1,935

Bikes: 2022 Salsa Beargrease, 2020 Seven Evergreen, 2019 Honey Allroads Ti, 2018 Seven Redsky XX, 2017 Trek Boon 7, 2014 Trek 520

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 654 Post(s)
Liked 791 Times in 437 Posts

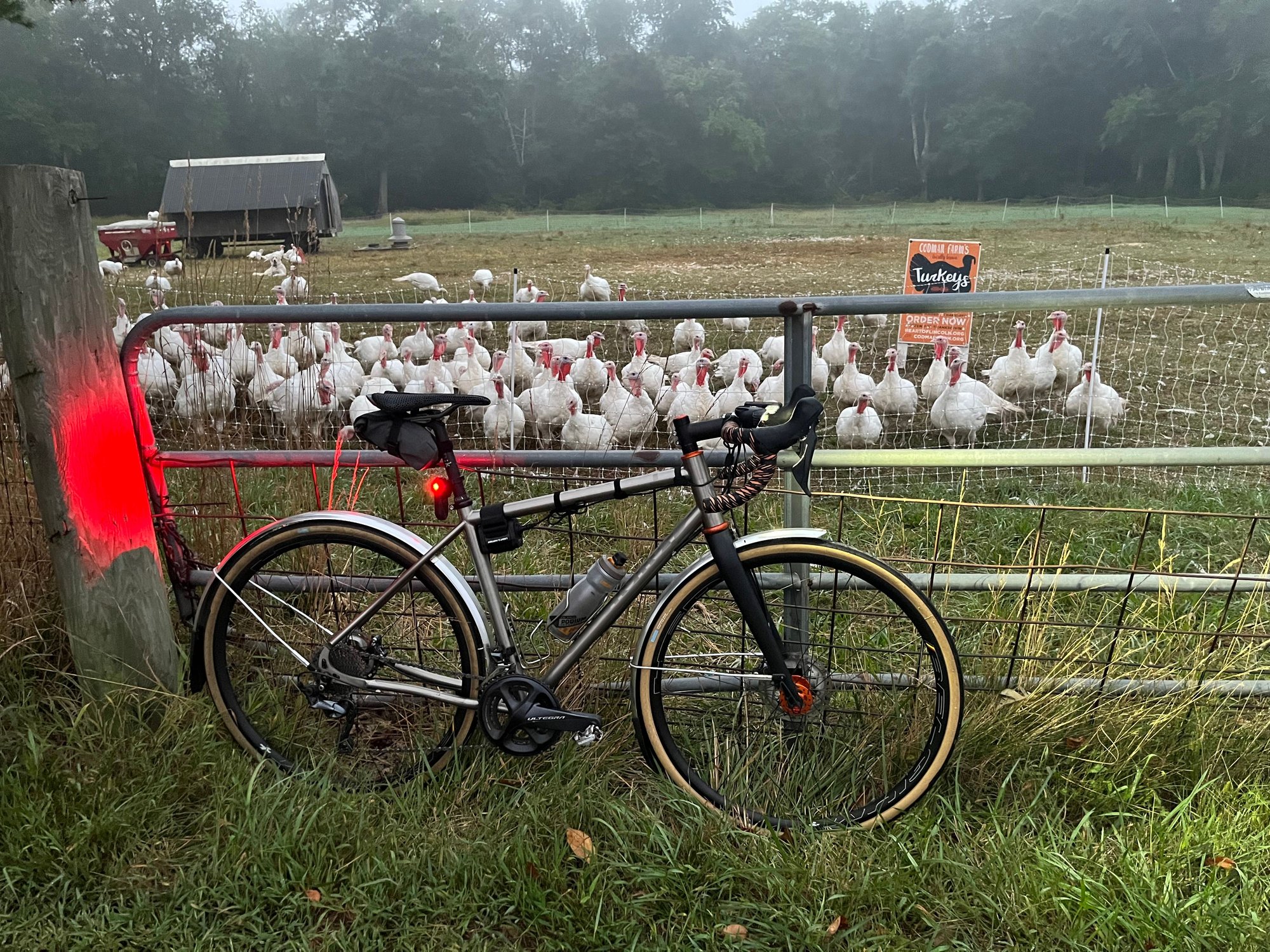

Those mounts look to be similar to where mine are on my rain bike.

Ghazmh is offline
Old 09-23-22, 08:34 PM
  #10
polymorphself
Senior Member

Join Date: Oct 2017
Posts: 1,696
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 688 Post(s)
Liked 809 Times in 395 Posts
Originally Posted by cyccommute View Post
Which lowrider rack is that? Been looking for one similar that doesn't require the fork mounts on the inside of the fork (drilled all the way through).
polymorphself is offline
Old 09-25-22, 03:58 PM
  #11
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,717

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5157 Post(s)
Liked 2,698 Times in 1,596 Posts
Originally Posted by polymorphself View Post
Which lowrider rack is that? Been looking for one similar that doesn't require the fork mounts on the inside of the fork (drilled all the way through).
Tubus Tara
