panniers with heel cut-outs

Touring Have a dream to ride a bike across your state, across the country, or around the world? Self-contained or fully supported? Trade ideas, adventures, and more in our bicycle touring forum.

panniers with heel cut-outs

Reply

Old 07-04-10, 02:52 AM
  #1
georgesv
Newbie
Thread Starter

Join Date: Jun 2010
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
panniers with heel cut-outs

I'm hoping to kit my surly pacer out for touring using a tubus fly rack and have been warned about heel clearance problems. can anyone recommend some bags with a heel cut-out that would work? the ortlieb back roller classics look like they could do the job....

cheers
georgesv is offline
Reply With Quote
Old 07-04-10, 04:49 AM
  #2
chasm54
Banned.

Join Date: May 2010
Location: Uncertain
Posts: 8,651
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I use Vaude They're expensive, but I find them superior to Ortlieb because of their greater rigidity and the fact that the lower "hook" to secure the bottom of the pannier to the rack can be adjusted through a wider range of positions. And their slightly tapered shape, wider at the top, narrower at the bottom, does the job you want in maximising capacity while cutting heelstrike. I take an American size 12.5 shoe, use 450mm chainstays and get no heelstrike.
chasm54 is offline
Reply With Quote
Old 07-04-10, 07:10 AM
  #3
zeppinger
Senior Member

zeppinger's Avatar

Join Date: May 2008
Location: Seoul, South Korea
Posts: 2,011

Bikes: Giant FCR3, Surly LHT

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
I believe that Jannd makes some highly tappered panniers because they are usually used on mountains bikes.
zeppinger is offline
Reply With Quote
Old 07-04-10, 07:18 AM
  #4
spinnaker
Every day a winding road

spinnaker's Avatar

Join Date: Mar 2005
Location: Pittsburgh, PA
Posts: 6,218

Bikes: 2005 Cannondale SR500, 2008 Trek 7.3 FX, Jamis Aurora

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 3158 Post(s)
Ortlieb are slighly tapered. On the cheap end, there is Sunlite.

But talk to Wayne of the TouringStore.com. He should be able to fiz you up with a bracket for your tubus that will allow it to be moved back away from your heels.
spinnaker is online now
Reply With Quote
Old 07-04-10, 11:05 AM
  #5
mr geeker
Day trip lover

mr geeker's Avatar

Join Date: May 2009
Location: capital city of iowa
Posts: 813

Bikes: '16 Giant Escape 3 (fair weather ride), Giant Quasar (work in progress), 2002 saturn vue (crap weather ride)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
axiom makes panniers with heel cut-outs for heel strike avoidance. more than one model too!

axiom cartier
axiom dutch shopper
axiom lasalle
axiom mount royal
mr geeker is offline
Reply With Quote
Old 07-04-10, 11:10 AM
  #6
AdamDZ
Bike addict, dreamer

AdamDZ's Avatar

Join Date: Nov 2009
Location: Queens, New York
Posts: 5,165
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
You can also avoid the heel strike problem by slightly modifying your rack and/or pannier mounting system to move the panniers further back. Many people did this, including myself: I moved the mounting clips and the tensioning hooks/rubberbands on my Axiom panniers that I use on my MTB based commuter. You can easily gain 2" or more of heel clearance this way.
AdamDZ is offline
Reply With Quote
Old 07-04-10, 11:50 AM
  #7
LeeG
Senior Member

Join Date: Sep 2008
Posts: 4,901
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Someone should make a short pannier or saddlebags for sport bikes that aren't carrying huge loads. That way you don't have to move the weight back. Maybe 8" tall 6" wide and 14" long. That should keep it up high enough to prevent heel strike. Or maybe a narrow rear rack with flat 4" side plates for strapping a bindle/dry bag/compression bag onto either side and top.
LeeG is offline
Reply With Quote
Old 07-04-10, 03:23 PM
  #8
sedges
Senior Member

Join Date: Mar 2008
Location: northeast GA, USA
Posts: 216

Bikes: Trek 820 Antelope (1992)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
No cut-outs, but very narrow. The hangers are also adjustable side to side so you can hang them pretty far back. They are not huge, but it sounds like your rack is for lite touring anyway. These are very nice bags.

http://www.arkel-od.com/us/all-categ...cessories.html
sedges is offline
Reply With Quote
Old 07-04-10, 04:27 PM
  #9
Hayduke865
Member

Join Date: Feb 2010
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

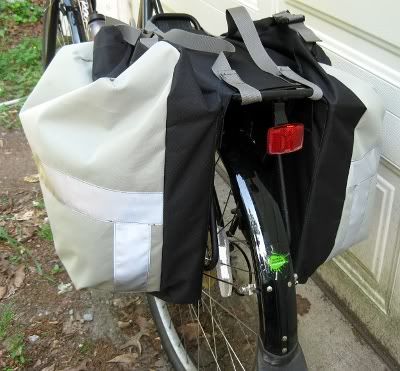

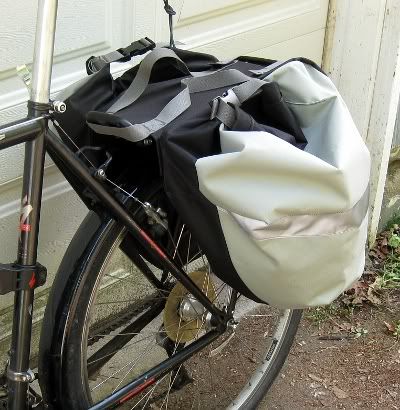

Made some from this pattern: http://cam.ucsd.edu/~spav/play/panniers.html which assumes you're trying to maximize volume vs. heel space.


The profile doesn't really show in the photos, but I measured for heel strike and made a cardboard pattern to get the measurements. I should probably add some cinch straps, but I keep half of a rainsuit loosely balled up in each side when I'm not hauling anything and they work fine. Roll top and seam sealed with silicone caulk dissolved in mineral spirits, so they're very waterproof. They're customized for easy removal and a few other changes from the pattern (many intentional).

Last edited by Hayduke865; 07-04-10 at 04:32 PM.
Hayduke865 is offline
Reply With Quote
Old 07-04-10, 04:56 PM
  #10
jwbnyc
Señor Wences

jwbnyc's Avatar

Join Date: Jul 2005
Posts: 1,035
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The Jandd large mountain panniers.

Originally Posted by zeppinger View Post
I believe that Jannd makes some highly tappered panniers because they are usually used on mountains bikes.
jwbnyc is offline
