Carrying Bikes on Bikes

Does anyone have any good solutions for carrying bikes on bikes? I have an xtracycle, and sometimes I use it to take other bikes to or from work, or to or from a shop. Last time I did it it didnt work out very well.

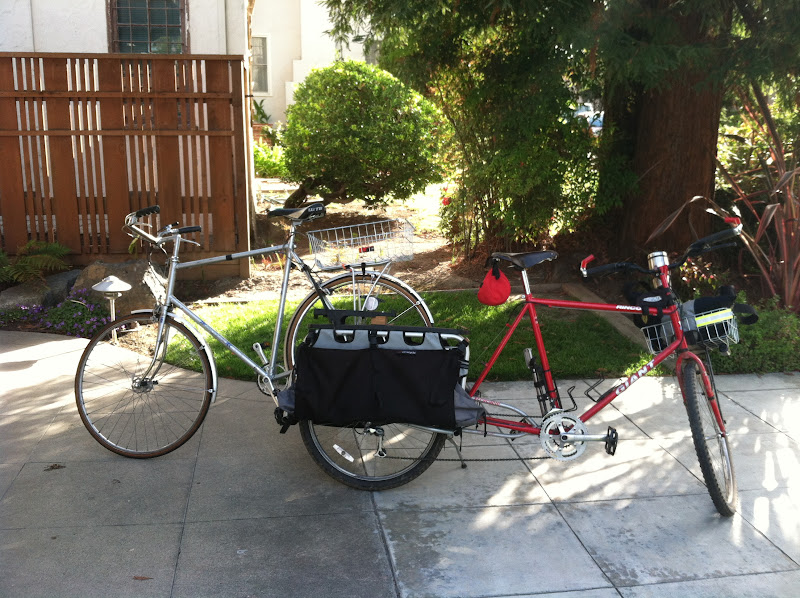

this didnt work because the front wheel would shimmy



this didnt work because the rear wheel would shimmy



I ended up taking the front wheel off and fitting the whole thing on the back but that's not ideal.


so instead i've been thinking about mounting one of those roof rack trays on top of an old BOB Trailer that I never use for anything anymore. It'd be nice if I could fit bikes on it without having to take any wheels off.

That way I could also to it with various other bikes I have if i wanted to. Sometimes the xtracycle is overkill.

Has anyone done anything similar or have any other good ideas?
__________________
I prefer emails to private messages - [email protected]
Jack Taylor Super Tourer Tandem (FOR SALE), Jack Taylor Tour of Britain, Px-10, Carlton Flyer, Fuji The Finest, Litespeed Classic, Salsa Fargo, Santa Cruz Tallboy, Cetma Largo (FOR SALE), Riv Betty Foy (wife's), Gitane 500A Mini Racer (FOR SALE), .
-holiday76 is offline
Reply With Quote
Old 04-24-12, 05:07 PM
  #2
badmother
Senior Member

badmother's Avatar

Join Date: Nov 2007
Posts: 3,733
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Did you search the forums? I remember this has been discussed several times before. I remember bikes front fork atached to rear end of extracykel and towed almost like a trailer. Some atatch a roof rack on one (or both) wideloaders. If you do it on the bob trailer i guess you would have to make the towbar longer?I use your method of putting frontwheel in the bag. Strap the front wheel to the extra rack and also strap the frame to the rack so the towed bike is stiff all the way, no mowement in the headset.
badmother is offline
Reply With Quote
Old 04-27-12, 03:38 PM
  #3
xoalaska
Member

Join Date: Oct 2010
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I like your plan. Though it can be done hauling a bike on my xtra isn't ideal.

Now if you had a Brompton...
xoalaska is offline
Reply With Quote
Old 04-27-12, 09:05 PM
  #4
antonyfhilliard
Senior Member

Join Date: Aug 2006
Location: Toronto
Posts: 145
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
http://www.bikeforums.net/showthread...ke-With-a-Bike
antonyfhilliard is offline
Reply With Quote
Old 04-27-12, 09:26 PM
  #5
deburn
Senior Member

deburn's Avatar

Join Date: May 2008
Location: New England
Posts: 324

Bikes: 2005 LeMond Buenos Aires, 2013 Jamis Coda Elite, 19xx Cannondale Rockhopper

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I used to just hold on to the handle of the second bike and pull it along in parallel
deburn is offline
Reply With Quote
Old 04-30-12, 09:46 AM
  #6
cabledawg
Senior Member

Join Date: Oct 2010
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
I built a bracket plate that bolts to the rear of the Xtra and then use a pickup bed style front fork bracket attached to the plate. Kids bikes dont fit too well , but adult sized bikes are fine. In fact I rode my xtra with my wife's xtra in tow around the house one day. Probably looked goofy, but it rode just fine. Keep in mind this isnt a load bearing setup, so no riders on the towed bike!
cabledawg is offline
Reply With Quote
Old 04-30-12, 10:05 AM
  #7
Ranko Kohime
Senior Member

Ranko Kohime's Avatar

Join Date: Jan 2012
Location: Cincinnati, OH
Posts: 108
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
In regards to the picture of the bike with it's front wheel in the rear bag of an Xtracycle, why not bungies on the towbike, from each side of the handlebar to the seat post, to take some of the squirreliness out?
Ranko Kohime is offline
Reply With Quote
Old 04-30-12, 10:57 AM
  #8
csmith2287
Member

Join Date: Apr 2012
Location: Cleveland, OH
Posts: 25

Bikes: 2012 Surly Cross x Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Idea: Bike hauling trailer, attach roof rack style bike carrier to a trailer.

Thoughts? Any one done this? Mechanic at the LBS stated that the truck bed attachment doesn't work well as a towing mechanism because it does not allow the bike to pivot at the dropouts. Anyone have this experience know a good workaround? I like the trailer idea because you can haul multiple bikes, but its more $$$.
csmith2287 is offline
Reply With Quote
Old 04-30-12, 01:50 PM
  #9
dcrowell
Fat Guy Rolling

dcrowell's Avatar

Join Date: Jul 2008
Location: Louisville Kentucky
Posts: 2,434

Bikes: Bacchetta Agio, 80s Raleigh Record single-speed, Surly Big Dummy

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I just towed a bike with my Big Dummy for the first time last week. I used a lot of bungie cords and it worked well. I put the front wheel in the bag and bungied the crap out of it.

If I had to do it often, I'd use one of the fork-mount things, but for occasional use, this seems fine.
dcrowell is offline
Reply With Quote
Old 04-30-12, 11:31 PM
  #10
Digital_Cowboy
Senior Member

Digital_Cowboy's Avatar

Join Date: May 2009
Location: Tampa/St. Pete, Florida
Posts: 9,318

Bikes: Specialized Hardrock Mountain (Stolen); Giant Seek 2 (Stolen); Diamondback Ascent mid 1980 - 1997

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
What about combining the two ideas? Taking the front wheel off and mounting the fork to the Xtracycle and then "tucking" the rear wheel into the B.O.B.?
Digital_Cowboy is offline
Reply With Quote
Old 05-01-12, 04:41 AM
  #11
cabledawg
Senior Member

Join Date: Oct 2010
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Originally Posted by csmith2287 View Post
Mechanic at the LBS stated that the truck bed attachment doesn't work well as a towing mechanism because it does not allow the bike to pivot at the dropouts. Anyone have this experience know a good workaround?
Unless you are riding rough trails, you dont need alot of up/down articulation. Just dont crank down the fork attachment sooo much that it doesnt move. When I rode with mine, it did fine over curbs and potholes. I did find that you cant turn super sharp, but its because the towed bike will lean into the turn as well and the added weight throws off the balance.

If I remember to do it, I'll snap some pics tonight of our brackets.
cabledawg is offline
Reply With Quote
Old 05-01-12, 12:22 PM
  #12
-holiday76
No one cares
Thread Starter

-holiday76's Avatar

Join Date: Jan 2008
Location: Yardley, Pa
Posts: 6,029
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
i completely forgot that i did this once:





it worked ok but the bike being towed (an internal 3 sp) kept throwing its chain. Ideally I think the best solution is getting the bike being carried completely off the ground, hence the bob trailer idea.
__________________
I prefer emails to private messages - [email protected]
Jack Taylor Super Tourer Tandem (FOR SALE), Jack Taylor Tour of Britain, Px-10, Carlton Flyer, Fuji The Finest, Litespeed Classic, Salsa Fargo, Santa Cruz Tallboy, Cetma Largo (FOR SALE), Riv Betty Foy (wife's), Gitane 500A Mini Racer (FOR SALE), .
-holiday76 is offline
Reply With Quote
Old 05-02-12, 08:31 AM
  #13
dcrowell
Fat Guy Rolling

dcrowell's Avatar

Join Date: Jul 2008
Location: Louisville Kentucky
Posts: 2,434

Bikes: Bacchetta Agio, 80s Raleigh Record single-speed, Surly Big Dummy

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Originally Posted by -holiday76 View Post
i completely forgot that i did this once:





it worked ok but the bike being towed (an internal 3 sp) kept throwing its chain. Ideally I think the best solution is getting the bike being carried completely off the ground, hence the bob trailer idea.
How is that hub mounted to the Xtracycle?

As far as throwing the chain... I used a small bungie to hold one pedal upward. If the pedals rotated they would bump my taillight on the Big Dummy. This seems that it would prevent throwing the chain too.
dcrowell is offline
Reply With Quote
Old 05-02-12, 09:35 AM
  #14
alexaschwanden
Bike rider

alexaschwanden's Avatar

Join Date: Jun 2010
Location: san jose
Posts: 3,167

Bikes: 2017 Raleigh Clubman

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Creative.
alexaschwanden is offline
Reply With Quote
Old 05-09-12, 01:23 PM
  #15
BIG-E
Senior Member

Join Date: Jan 2007
Location: Vermont
Posts: 170
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
You could do something like the hub above, but use U-bolts to solidly attach the hub to the xtracycle. A friend of mine used that method for making a bike rack for his truck. He used quick-releases in the hubs. Worked really well.
BIG-E is offline
Reply With Quote
Old 05-09-12, 02:58 PM
  #16
cabledawg
Senior Member

Join Date: Oct 2010
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)


These are my two mounts. Just some plate steel, a couple u-bolts and a truck bed fork mount. The Thule one works a little better, but both do the job just fine.
Attached Images
File Type: jpg
File Type: jpg
cabledawg is offline
Reply With Quote
Old 05-09-12, 08:34 PM
  #17
Aunt Roady
Senior Member

Aunt Roady's Avatar

Join Date: Sep 2005
Location: Just south of Normal
Posts: 56

Bikes: Specialized Roubaix, Specialized AWOL, Salsa Vaya, Surly Moonlander, Surly Big Dummy, GT Gutterball fixie

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Here's my solution for my Trek Transport. I tried the Yakima Blockhead, but doesn't allow the fork to rotate for going over bumps. But bolting on an actual hub, the towed bike can go up or down independently as it follows uneven ground.

The process on Flikr: http://www.flickr.com/photos/4539023...d091844b990886
Attached Images
File Type: jpg
File Type: jpg

Last edited by Aunt Roady; 05-09-12 at 08:41 PM.
Aunt Roady is offline
Reply With Quote
Old 05-10-12, 07:15 PM
  #18
Underground
Ride On.

Underground's Avatar

Join Date: Aug 2009
Location: Houston, TX
Posts: 315

Bikes: 2010 Trek 1.5, 2010 Specialized Langster, 2010 Specialized Hardrock Sport 29er, 2011 Gary Fisher HiFi Plus 29er

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I was going to do the same thing, but for the rotation reasons you listed Roady, I didn't. Now I am thinking about mounting a hinge to a a Thule mount or finding a cheap hub to use.

Now I did notice Universal Cycles had a cheap Shimano Tiagra front hub with QR for $17. It is hard to beat that! Then I just have to mount it to the bike itself. I could get creative quite easily with that.
Underground is offline
Reply With Quote
Old 05-10-12, 08:54 PM
  #19
Aunt Roady
Senior Member

Aunt Roady's Avatar

Join Date: Sep 2005
Location: Just south of Normal
Posts: 56

Bikes: Specialized Roubaix, Specialized AWOL, Salsa Vaya, Surly Moonlander, Surly Big Dummy, GT Gutterball fixie

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Now that you've said that, I suppose you could mount the front hub directly to that rear most crossbar on the Transport using u-bolts. No need to mount the wooden platform. The only thing I would mention is make sure you keep the front hub high enough to avoid having the pedals of the towed bike bottom out. Good luck!
Aunt Roady is offline
