Fairing Reduces Windchill

Notices
Winter Cycling Don't let snow and ice discourage you this winter. The key element to year-round cycling is proper attire! Check out this winter cycling forum to chat with other ice bike fanatics.

Fairing Reduces Windchill

Old 11-25-21, 05:32 PM
  #1
hotbike
Senior Member
Thread Starter

hotbike's Avatar

Join Date: Dec 2006
Location: Long Island, New York
Posts: 3,532

Bikes: a lowrider BMX, a mountain bike, a faired recumbent, and a loaded touring bike

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 49 Times in 43 Posts
Fairing Reduces Windchill

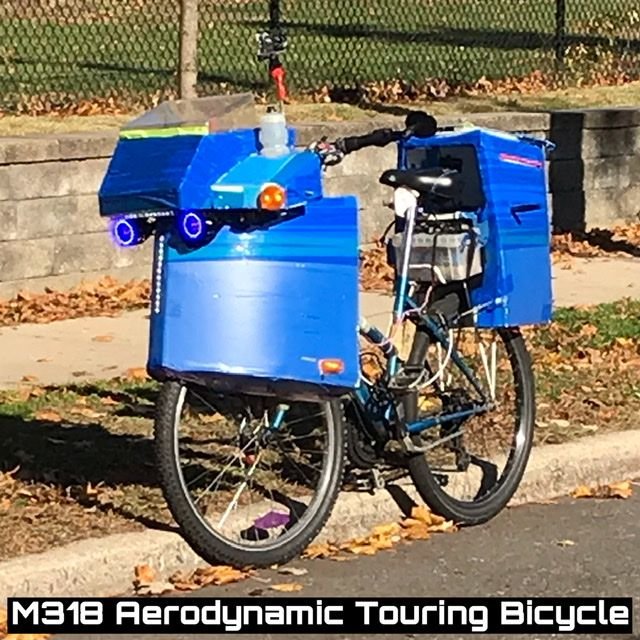

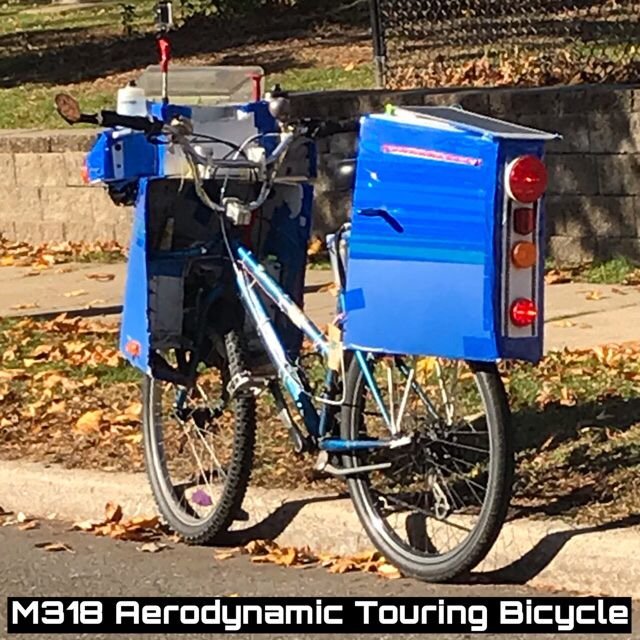

Latest photos. The fairing and Tailbox are made of Coroplast (corrugated polypropylene plastic). The handlebars are BMX because I canít assume a crouch position, itís my neck vertebrae. So therefore I canít mass produce these fairings, they wonít fit any other bike. It is custom fit to install on this bike.
For windchill reduction, I have added extensions on the handlebar nacelles. They each have one stainless steel machine screw, and the edges sealed with blue masking tape . No need to add lots of screws, in fact I think itís better if they rip loose in a collision, and flop around hanging by the one screw. Masking tape is cheap.
Havenít installed the studded tires yet, Iím going to wait and see what the weather does. I have installed Tannus Armour on both wheels.
The cargo space is very small on this bike, I have other cargo bikes, based on the same parameters and construction techniques. I consider this my touring bike.
The LED Lights are also a key feature of my creations. Iíve recently upgraded to motorcycle headlights and LiFePO4 batteries. I had been using lead/acid from 1986 until three weeks ago!

Iíve decided Iím not going to start a business making fairings. It was a student project for engineering school. My fairings suit my riding habits and local conditions. You certainly would not need windchill protection in the equatorial regions of the planet. It would be suicidal to ride without good LED lighting in New York City.

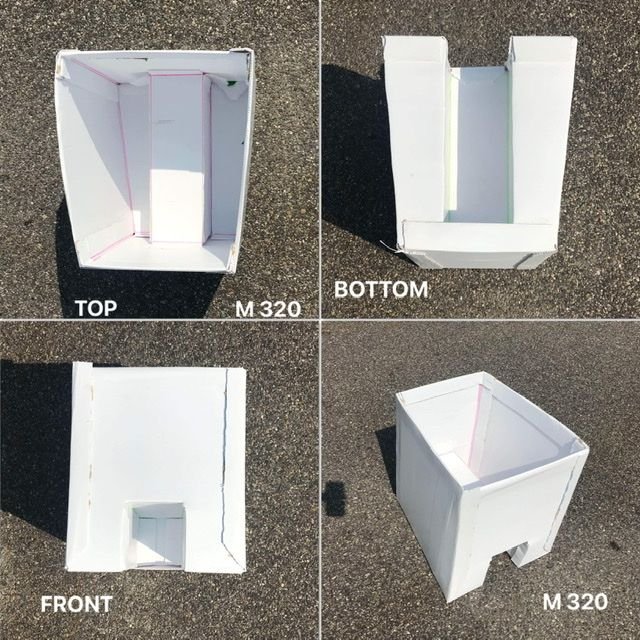

Yes, I keep the design very boxy. Molded curved plastic would require expensive molds. So flat plastic board is used. For the record, the angle of the front surfaces is less than 54į , and the trailing angle of the tailbox is 11į, 5į or 6į on each side. Really the edges should be curved. Feel free to make your own, itís a DIY project. I canít sue anyone for patent infringement.
hotbike is offline
Likes For hotbike:
Old 11-25-21, 05:48 PM
  #2
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,790

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 3063 Post(s)
Liked 1,691 Times in 1,115 Posts
I used a Zzipper fairing for years in Michigan and Seattle. In cold weather, that simple fairing = a full layer of clothes. Also a tooth on a fix gear cog (though I didn't change because the hills stayed the same).
79pmooney is offline
Old 11-25-21, 05:55 PM
  #3
hotbike
Senior Member
Thread Starter

hotbike's Avatar

Join Date: Dec 2006
Location: Long Island, New York
Posts: 3,532

Bikes: a lowrider BMX, a mountain bike, a faired recumbent, and a loaded touring bike

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 49 Times in 43 Posts
Originally Posted by 79pmooney View Post
I used a Zzipper fairing for years in Michigan and Seattle. In cold weather, that simple fairing = a full layer of clothes. Also a tooth on a fix gear cog (though I didn't change because the hills stayed the same).
Yes, thatís my experience. The fairing helps riding in a higher gear. Amazingly the Tailbox added a 6MPH increase in speed. But itís the front fairing that reduces windchill. Would you buy another Zzipper or did you move south?
I wanted something with cargo space, electrical dashboard, solid colors, LED lighting, solar panels,and angular lines, thatís why I built my own. Also I have mounting points for a rain canopy.
hotbike is offline
Likes For hotbike:
Old 11-25-21, 06:24 PM
  #4
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,790

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 3063 Post(s)
Liked 1,691 Times in 1,115 Posts
Originally Posted by hotbike View Post
Yes, that’s my experience. The fairing helps riding in a higher gear. Amazingly the Tailbox added a 6MPH increase in speed. But it’s the front fairing that reduces windchill. Would you buy another Zzipper or did you move south?
I wanted something with cargo space, electrical dashboard, solid colors, LED lighting, solar panels,and angular lines, that’s why I built my own. Also I have mounting points for a rain canopy.
I no longer commute, plus I've tapered off winter riding because crashes have bigger consequences than they used to. Also I've never really liked the brake hood attachment and loss of hand position. As someone who has studied a lot of aerodynamics, I love the Zzippers. That simple shape works very well.

Last edited by 79pmooney; 11-25-21 at 06:25 PM. Reason: typos
79pmooney is offline
Old 11-25-21, 09:10 PM
  #5
_ForceD_
Senior Member

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island
Posts: 1,628

Bikes: Several...from old junk to new all-carbon.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 697 Post(s)
Liked 325 Times in 168 Posts
Nice work. My only concern would be with the use of masking tape. If it gets wet the whole thing might fall apart.

Dan
_ForceD_ is offline
Old 11-25-21, 09:13 PM
  #6
fooferdoggie
Senior Member

Join Date: Jan 2020
Posts: 1,151
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 309 Post(s)
Liked 335 Times in 204 Posts
on our tandem I am my wife's fairing.
fooferdoggie is offline
Old 11-25-21, 09:51 PM
  #7
prairiepedaler
Senior Member

Join Date: Aug 2016
Location: Winnipeg - traffic ticket central
Posts: 1,075

Bikes: Looking for "the One"

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 116 Times in 77 Posts
All I know is that I am a winter rider in Winnipeg and I want to leave here.
prairiepedaler is offline
Likes For prairiepedaler:
