Originally Posted by delicious


What's up with this protuberance on the Croce rear derailleur?

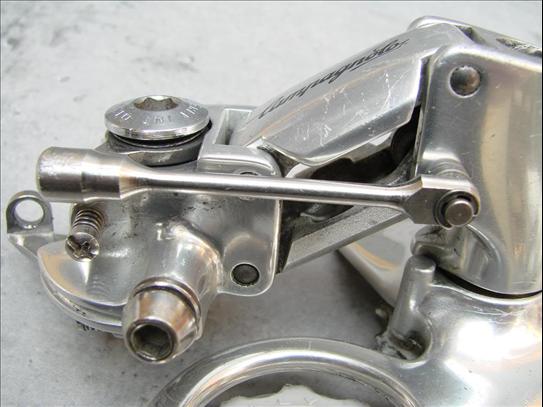

First you need to understand that Campagnolo was very slow in adapting the slant parallelogram derailleur, even though the Suntour patent had expired 4 years earlier. One of the reasons was the European market was not very accepting of the Japanese components, which look was defined by the drop/slant parallelogram. The protuberance on the Croce rear derailleur was simply a sliding control arm (attached to an extension of the lower inside pivot) that opened up the parallelogram as it swung across the cogs of the freewheel, mimicking a slant parallelogram, but retaining the inline parallelogram look of the classic Campy derailleurs.

Attached Images
File Type: jpg
campy b.JPG (22.4 KB, 999 views)
