Front fork fender clearance

I am having some clearance issues at the fork crown with the front fender. Out of curiosity, would filing 1-2mm from the bottom of the crown affect structural integrity? It doesn't seem like an ideal solution, but I was curious if anyone has tried doing this on a similarly built fork. From what I can tell, there are several mm between the bottom of the crown and the hole that is drilled through the crown. The goal would be to shave a very small amount of material from the front of the crown to raise the front portion of the fender by a hair.

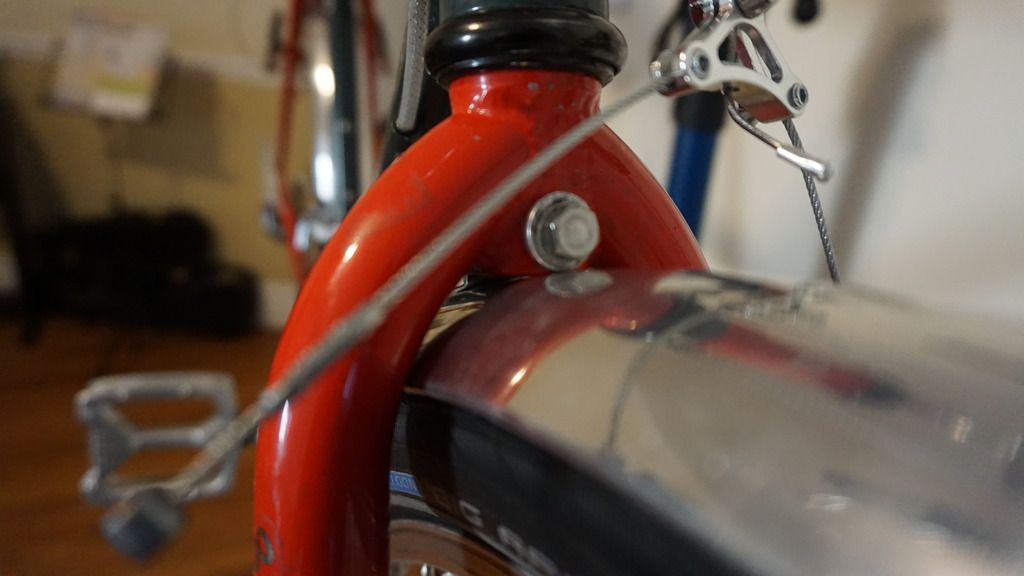

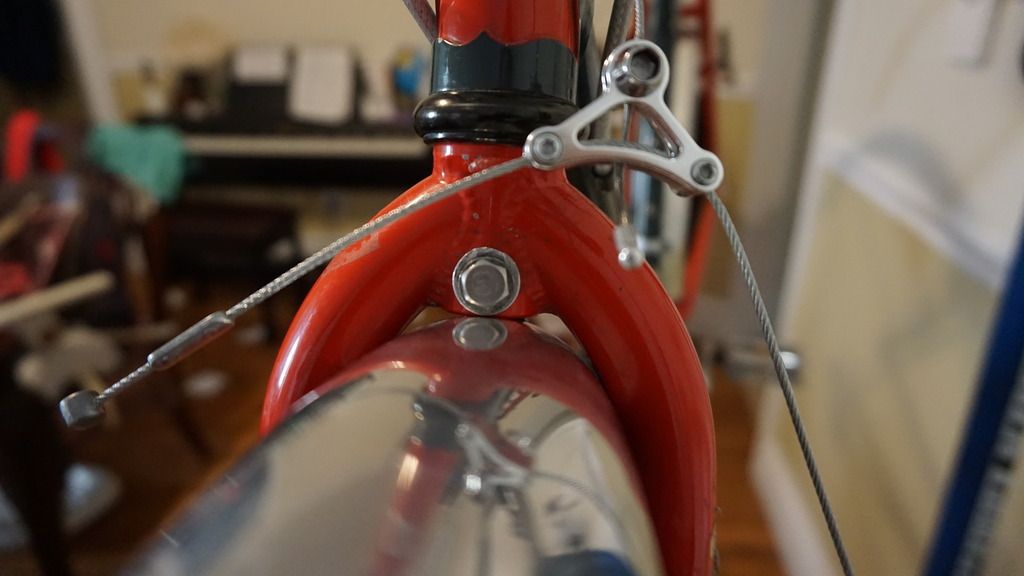

Pictures below:


kalash74 is offline
Old 02-18-17, 11:21 AM
  #2
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,219
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 928 Post(s)
Liked 94 Times in 72 Posts
Making the bottom of the steerer tube concave to match the contour of the fender is perfectly safe until you begin to nibble at the welds holding the fork legs to the steerer.
dabac is offline
Old 02-18-17, 11:34 AM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,569

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 548 Times in 396 Posts
You could go with a socket head cap screw and a small pattern washer, or file the washer, for even more room to file.

It looks like the edges of your fender iare against the fork legs, so unless you bend the fender that may limit how far you can move it up.

I would put some Kapton or helicopter tape or similar between the fender and fork so the fender does not abrade the paint.
dsbrantjr is offline
Old 02-18-17, 02:30 PM
  #4
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,594

Bikes: Yes

Mentioned: 328 Post(s)
Tagged: 0 Thread(s)
Quoted: 1973 Post(s)
Liked 430 Times in 232 Posts
How much clearance do you have between the tire and the fender? It looks really tight, even if you raised the fender by 2mm.
__________________
My Bikes
Andy_K is offline
Old 02-18-17, 04:14 PM
  #5
AlexCyclistRoch
The Infractionator

AlexCyclistRoch's Avatar

Join Date: Mar 2016
Location: Rochester, NY
Posts: 2,202

Bikes: Classic road bikes: 1986 Cannondale, 1978 Trek

Mentioned: 9 Post(s)
Tagged: 1 Thread(s)
Quoted: 875 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
If I were you, I'd manipulate the profile of the fender and the bracket before I'd start grinding away at the fork. I'd bet that you could get another 1mm clearance easily.
AlexCyclistRoch is offline
Old 02-18-17, 04:48 PM
  #6
kalash74
Senior Member
Thread Starter

Join Date: Oct 2015
Posts: 201
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Andy_K View Post
How much clearance do you have between the tire and the fender? It looks really tight, even if you raised the fender by 2mm.
Right now, there is about 5mm or so of clearance between the top of the tire and the front portion of the fender. It's really hard to see between the tire and the underside of the front portion of the fender, but the fender doesn't seem to impede tire motion.

There is a faint squeaky sound every time the tire goes round. It's so faint I wouldn't hear it while riding outside...only when I'm at home alone, and it's quiet, and I put my ear up to the fender. I can't seem to make the sound go away. The tire spins freely--doesn't grind to a halt. I'm wondering if it's the little tire knobby thingies hitting the fender...or if it's rubbing somewhere since the tire is slightly out of round. I have the fender jammed all the way up into the fork, hence the interest in shaving some material from the inside of the crown. If I could shave just a little material off the front of the fork crown to make it follow the curvature of the fender rather than being square, I could raise the front of the fender a bit higher. Thoughts?

It's crazy but in the rear wheel I have huge amounts of space. I really want to stick with this size of tire. Should I just run with it? I've already played with widening the fender profile--problem is that it reduces the overall diameter of the fender.
kalash74 is offline
Old 02-18-17, 05:13 PM
  #7
iradnj
Newbie

Join Date: Feb 2017
Location: NJ
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I would not grind it. If your bolt is tight leave it alone. If it makes noise put some tape where the fender contacts the fork and reinstall the fender.
iradnj is offline
Old 02-18-17, 06:39 PM
  #8
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,569

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 548 Times in 396 Posts
Originally Posted by kalash74 View Post
I'm wondering if it's the little tire knobby thingies hitting the fender...or if it's rubbing somewhere since the tire is slightly out of round.
Those are called "sprues" and I have had them make noise on my bikes too; iI tend to like the largest tires I can fit. A few minutes' work with a diagonal cutter will get rid of them. You should be able to see where it is rubbing, if it is.

If you can you might want to arrange for the rear of the fender to have the closest fit to the tire; if it is larger items which enter at the back through the larger opening may jam when they reach the tighter spot; not fun with a front wheel.
dsbrantjr is offline
Old 02-19-17, 08:49 AM
  #9
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,174

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Liked 416 Times in 252 Posts
Are these metal fenders? If so, perhaps you could form a properly sized dimple in the fender corresponding to the steerer tube projection.
