crank cap removal - how do i ?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

crank cap removal - how do i ?

Old 06-04-17, 12:52 PM
  #1
southpier
Senior Member
Thread Starter

Join Date: Aug 2011
Posts: 359
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 4 Times in 3 Posts
crank cap removal - how do i ?

I've gone and done it now!

not sure if it was over-enthusiasm or the plastic cap had just UV ray degradation, but I've managed to remove the entire outside of the cap but left the threaded part inside the crank. so i'm not getting a socket or crank puller in there now!

anyone suggest a way to dig this out? could I dissolve it was acetone or something equally nasty?

thanks.

oh, yeah - I need two "Sugino" dust caps, too!
southpier is offline
Old 06-04-17, 12:57 PM
  #2
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Posts: 3,797

Bikes: Bianchi San Mateo and a few others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 632 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
A chisel or pick of some sorts, some elbow grease, and a little careful determination.

...at least that's been the consensus when the topic's come up before:
http://www.bikeforums.net/bicycle-me...eck-frame.html
SkyDog75 is offline
Old 06-04-17, 01:04 PM
  #3
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,892

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
Likes: 0
Liked 60 Times in 51 Posts
I'm thinking a small metal tool, perhaps a sharpend paper clip, a pick of some sort (or the right dental tool). Keep it small so damage to threads stays very local and the odds are the crank remover will sort all the damage out when it is used. (Damaging the threads until the remover cannot be started or wrecks th threads is a big problem. With force, you can still get the crank off but its life as a useful bike part is over.

Ben
79pmooney is offline
Old 06-04-17, 01:23 PM
  #4
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 1,840

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
Liked 28 Times in 24 Posts
Get an exacto keyhole saw. Or, if you can't easily find that, a knife with a blade edge that is parallel to the axis of the knife handle (like the pic below). Take that knife and place its sharp edge against the face of a sharp file. Whack it with a hammer. The file should cut little "teeth" in the blade. But a keyhole saw is better.

Saw several radial cuts in the remaining plastic cap, almost to the crank arm threads. Then use a chisel to break off part of the cap. The rest of the cap should then easily be removed using an awl, or a dental pic.

WizardOfBoz is offline
Old 06-04-17, 03:16 PM
  #5
southpier
Senior Member
Thread Starter

Join Date: Aug 2011
Posts: 359
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 4 Times in 3 Posts
I think i'll end up using all of the above!

thanks for the encouragement; will report back when "mission accomplished".
southpier is offline
Old 06-04-17, 03:51 PM
  #6
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,384

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1702 Post(s)
Liked 66 Times in 45 Posts
Usually you can just use a punch to unthread the remains. If the plastic shatters more, big deal. If enough shatters, it will just fall out without unthreading.

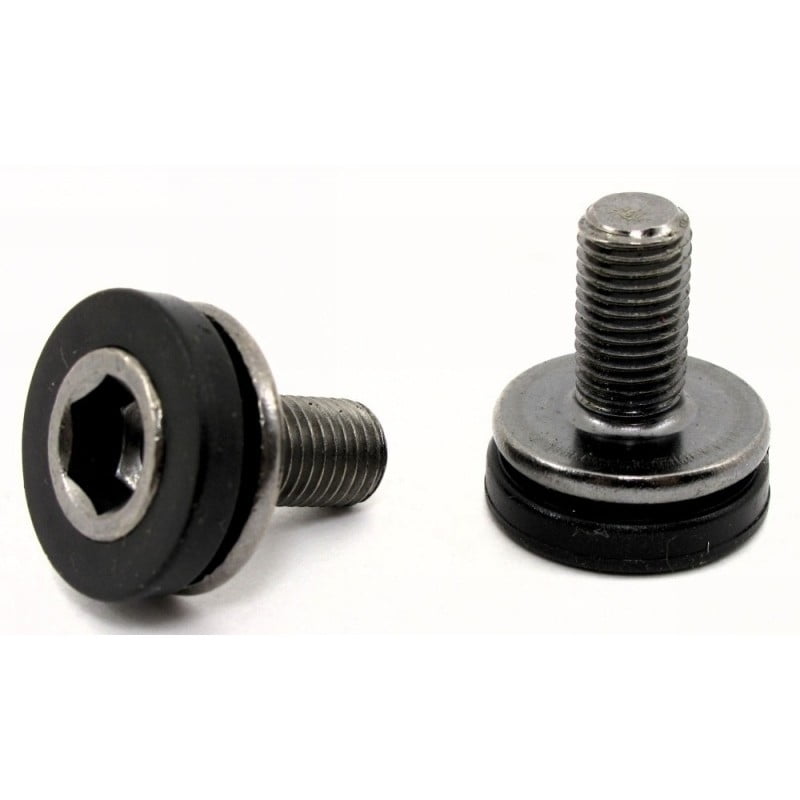

N.B. ther caps aren't strictly necessary, but they do help keep the extractor threads clean. If your bottom bracket has a "female" type axle, you can get Allen head bolts with integral caps to keep the threads clean.

JohnDThompson is offline
Old 06-04-17, 05:54 PM
  #7
southpier
Senior Member
Thread Starter

Join Date: Aug 2011
Posts: 359
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Liked 4 Times in 3 Posts
those are what my Surly LHT has. if they would work, it will save me the hassle searching for covers. right now, the penetrating oil is earning its keep so it might be a couple of days before I summon the courage to attack the crank bolts.

as easy as the rest of the bike fell apart, I think the crank bolts will make up for gained time.
southpier is offline
Old 06-04-17, 05:59 PM
  #8
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 2,990

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by WizardOfBoz View Post
Get an exacto keyhole saw. Or, if you can't easily find that, a knife with a blade edge that is parallel to the axis of the knife handle (like the pic below). Take that knife and place its sharp edge against the face of a sharp file. Whack it with a hammer. The file should cut little "teeth" in the blade. But a keyhole saw is better.

Saw several radial cuts in the remaining plastic cap, almost to the crank arm threads. Then use a chisel to break off part of the cap. The rest of the cap should then easily be removed using an awl, or a dental pic.
++++ X-acto bladed hobby knife.

Or hit the plastic with dry ice or liquid nitrogen, followed by a tap with a punch or screwdriver and the plastic will shatter.
nfmisso is offline
