Problem

Hi everyone!
Here my problem: When i push with a medium amount of force into the pedals there is something into the drivetrain that make an sudden huge sound (same sound as the chain when it jump) and let the crank arm spin almost freely for some very little degree.
  • When the bike is on the table , the chain seems to run normally whitout any jumps or other problems; (also the chain is kinda new).
  • There are no bended tooth on the sprocket;
  • Derailleur is working fine , with the correct align;
  • Cable and cable holders are new;
I have no idea where to cheeck or what can be but since is the smallest cog that really piss me off (since i really use a lot this one).
Ps. This bike is an mtb with 9 speed deore.

thanks for help.
CrowSeph is offline
Old 06-25-18, 06:47 AM
  #2
gazza1286
Newbie

Join Date: Jun 2018
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It seems that one or more of the pawls within the freehub body are sticking.
To repair you will need to be able to remove the cassette and freehub body. This can be relubed or replaced. Unless you have access to the necessary tools then it's a job for your local bike shop. You cannot fix this problem without dismantling.
There's plenty of videos on YouTube to keep you right if you want to give it a go.
gazza1286 is offline
Old 06-25-18, 12:36 PM
  #3
Iride01
more daylight today!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 12,487

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 5114 Post(s)
Liked 3,610 Times in 2,507 Posts
I'd suspect the chain is worn or the sprockets first. Also possible that your DR adjustment is slightly off and your chain is not fully engaged with the cogs. Or, maybe a imperceptibly bent hanger bracket for the rear DR.

The freehub is possible too, but I seldom have issues with them.
Iride01 is offline
Old 06-25-18, 12:47 PM
  #4
Sprout4u
Junior Member

Join Date: Jun 2018
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Does this do it in every gear or just certain ones?
If it does it in all the gears it is most likely stuck pawls.
If it does it in only a couple of gear ask yourself, How old is your chain? How old is the rest of your drivetrain? Were they replaced together?
Sprout4u is offline
Old 06-25-18, 01:14 PM
  #5
CrowSeph
Senior Member
Thread Starter

CrowSeph's Avatar

Join Date: Mar 2016
Location: South Italy
Posts: 795

Bikes: BMC SLR01; Cannondale Trail; Robur 1956 ; Tomasini 1976 ; Chiorda Condorino 1974 ; Frejus/Rola 1937 ; Specialized RockHopper 1990

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 129 Times in 78 Posts
Originally Posted by Sprout4u View Post
Does this do it in every gear or just certain ones?
If it does it in all the gears it is most likely stuck pawls.
If it does it in only a couple of gear ask yourself, How old is your chain? How old is the rest of your drivetrain? Were they replaced together?
Only one cog (last one). Chain and the rest of the drivetrain are pretty old but are still not "worn" by use. I think i can clearly do more ~5k kilometers
CrowSeph is offline
Old 06-25-18, 01:26 PM
  #6
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,325

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1572 Post(s)
Liked 910 Times in 648 Posts
Originally Posted by CrowSeph View Post
........ but since is the smallest cog that really piss me off (since i really use a lot this one).
Ps. This bike is an mtb with 9 speed deore.

thanks for help.
It's probably worn out.
The smallest cogs have the fewest teeth to spread the load.
Bill Kapaun is online now
Old 06-25-18, 02:07 PM
  #7
CrowSeph
Senior Member
Thread Starter

CrowSeph's Avatar

Join Date: Mar 2016
Location: South Italy
Posts: 795

Bikes: BMC SLR01; Cannondale Trail; Robur 1956 ; Tomasini 1976 ; Chiorda Condorino 1974 ; Frejus/Rola 1937 ; Specialized RockHopper 1990

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 129 Times in 78 Posts
In case i need to buy a new one , can i use a 10v cassette instead of my 9v?

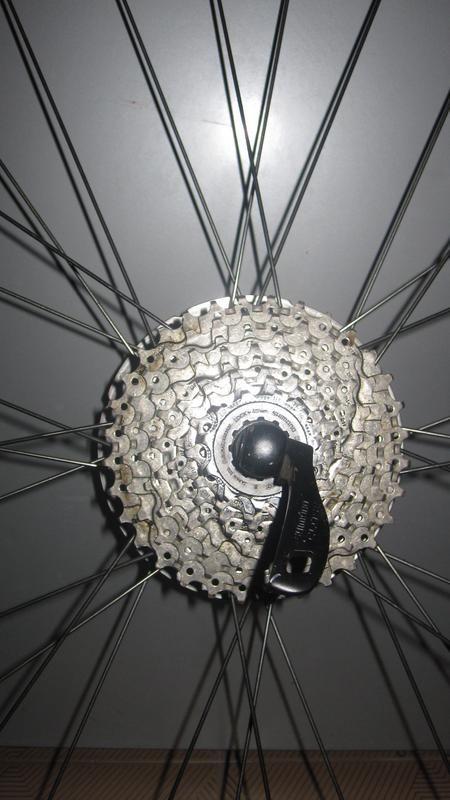

ps: here the image of my cassette, is not rusty is just dirt.. when cleaned is shiny as silver


Last edited by CrowSeph; 06-25-18 at 02:33 PM.
CrowSeph is offline
Old 06-25-18, 02:54 PM
  #8
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 2,991

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by CrowSeph View Post
In case i need to buy a new one , can i use a 10v cassette instead of my 9v?
Not unless you also change your derailleur, and shifters. 10 speed MTB rear derailleurs have different cable pull ratio than up to 9 speed; thus 10 speed shifters will not work properly with 9 or less speed RDs.

Have you measured the chain for wear? All it takes is a ruler; along the top of the chain measure out 12 inches (30.48cm) "As a general rule, if the rivet is less than 1/16″ past the mark, your chain is ok. If itís between 1/16″ and 1/8″ past the mark youíll likely need a new chain, but your sprockets should be ok. If itís more than 1/8″ past the mark, youíll probably have to replace both the chain and cassette." https://cyclingtips.com/2016/09/how-...-chain-wear-2/

There is another possibility: you don't have enough chain wrapped around the 11T cog. This can be due to the chain being too long, and/or the 'B' screw is adjusted too far out.
nfmisso is offline
Old 06-25-18, 03:05 PM
  #9
KLiNCK
Optically Corrected

KLiNCK's Avatar

Join Date: Nov 2011
Location: Toronto, Ontario, Canada.
Posts: 584

Bikes: 2012 Specialized Sirrus , 2012 Specialized Roubaix Comp

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Liked 66 Times in 30 Posts
I had the exact thing happen to me. All components were in good working condition, then one day, I started to get a "skip" in the smallest rear cog. It just didn't make sense - working perfectly then all of a sudden skipping in this one gear. Felt like a worn chain or sprocket - but to happen while riding?!?
Turned out that a small pebble had wedged itself in between the 1st and 2nd cog and wasn't letting the chain fully seat into that gear.
Never had that happen before and obviously an easy fix.
Maybe something similar to this is your issue?
Check for debris between the cogs.
KLiNCK is offline
Old 06-27-18, 02:50 PM
  #10
Sprout4u
Junior Member

Join Date: Jun 2018
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
IF your gears are good. You can also check your derailleur alignment to make sure it is not off in that gear. A bent derailleur hanger will cause that problem as well.
Sprout4u is offline
Old 08-17-18, 12:21 AM
  #11
CrowSeph
Senior Member
Thread Starter

CrowSeph's Avatar

Join Date: Mar 2016
Location: South Italy
Posts: 795

Bikes: BMC SLR01; Cannondale Trail; Robur 1956 ; Tomasini 1976 ; Chiorda Condorino 1974 ; Frejus/Rola 1937 ; Specialized RockHopper 1990

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 129 Times in 78 Posts
Solved , changed the last cog and now everything was fine.... but sadly i spent more to repair this one than getting one new.
CrowSeph is offline
Old 08-17-18, 12:53 PM
  #12
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,225

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 639 Times in 360 Posts
Originally Posted by Bill Kapaun View Post
It's probably worn out.
The smallest cogs have the fewest teeth to spread the load.
That's my guess too. "Smallest cog, use it a lot fairly new chain".

I used to be able to get replacement single cogs but I doubt that'll happen anymore. If one cog is worn that badly, can others be far behind? If it was my bike I'd replace the whole cassette.
