Need help identifying tool for bottom bracket
09-08-18 | 08:00 PM
#1
Thread Starter
Senior Member
Joined: Mar 2014
Posts: 73
Likes: 1
Need help identifying tool for bottom bracket

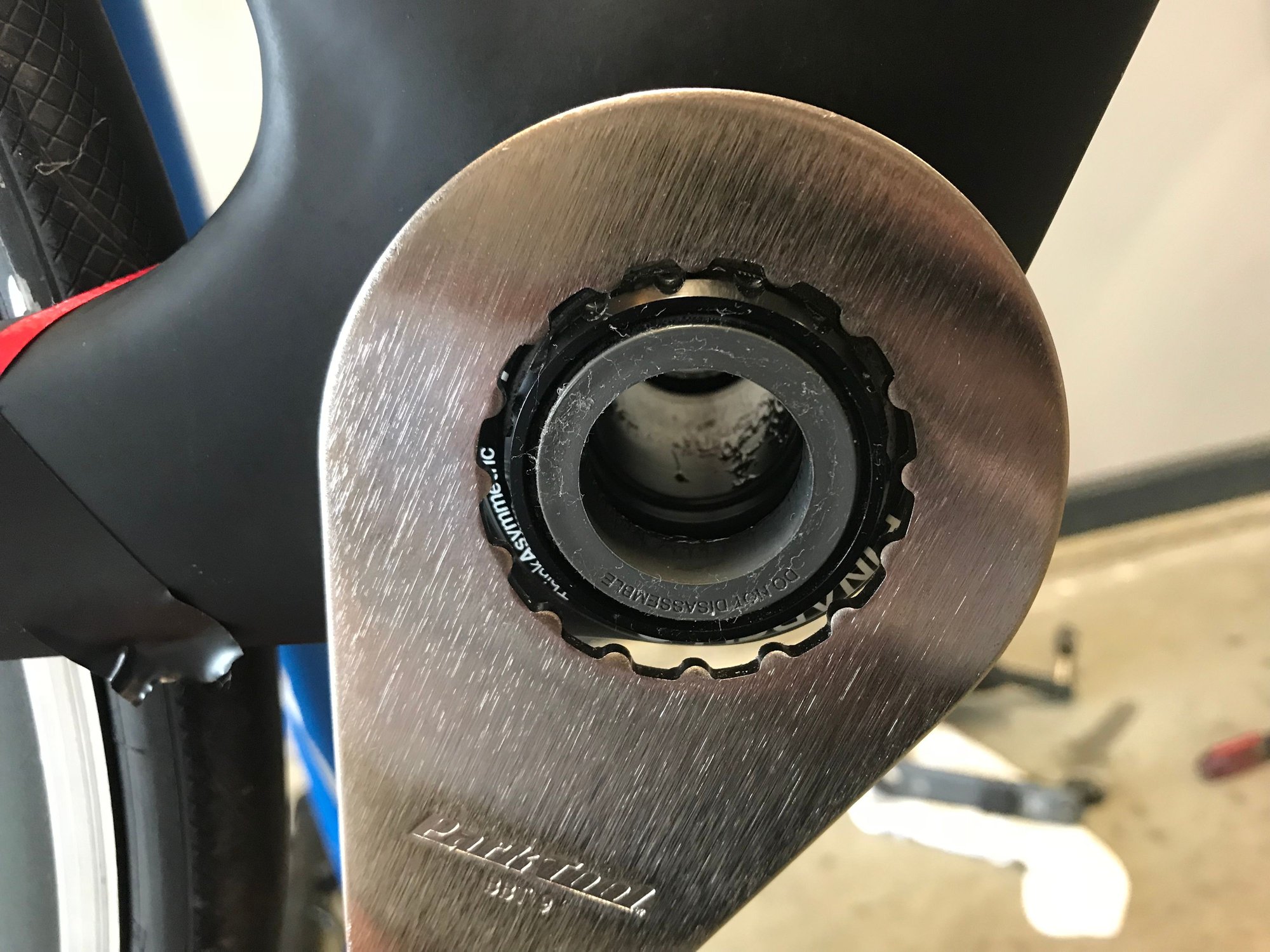

This BB is on my pinarello GAN RS. I had bought the bbt-9 park tool and here’s what it looked like. Any help would be greatly appreciated. The bb is being used by ultegra 6800 hollow tech if that makes any difference in which bb it could be. Thanks in advance!
09-08-18 | 08:15 PM
#2
Senior Member
Joined: Aug 2005
Posts: 33,657
Likes: 1,119
From: Pittsburgh, PA
Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!
The BBT-9 fits 44 mm 16 notch bottom bracket cups and is obviously too big for yours. I believe you need the BBT-59.2 tool which fits 41 mm 16 notch cups used on Shimano BB-R60 and similar bottom brackets
09-08-18 | 10:35 PM
#3
Thread Starter
Senior Member
Joined: Mar 2014
Posts: 73
Likes: 1
