Wheelbuilder question - spoke bend



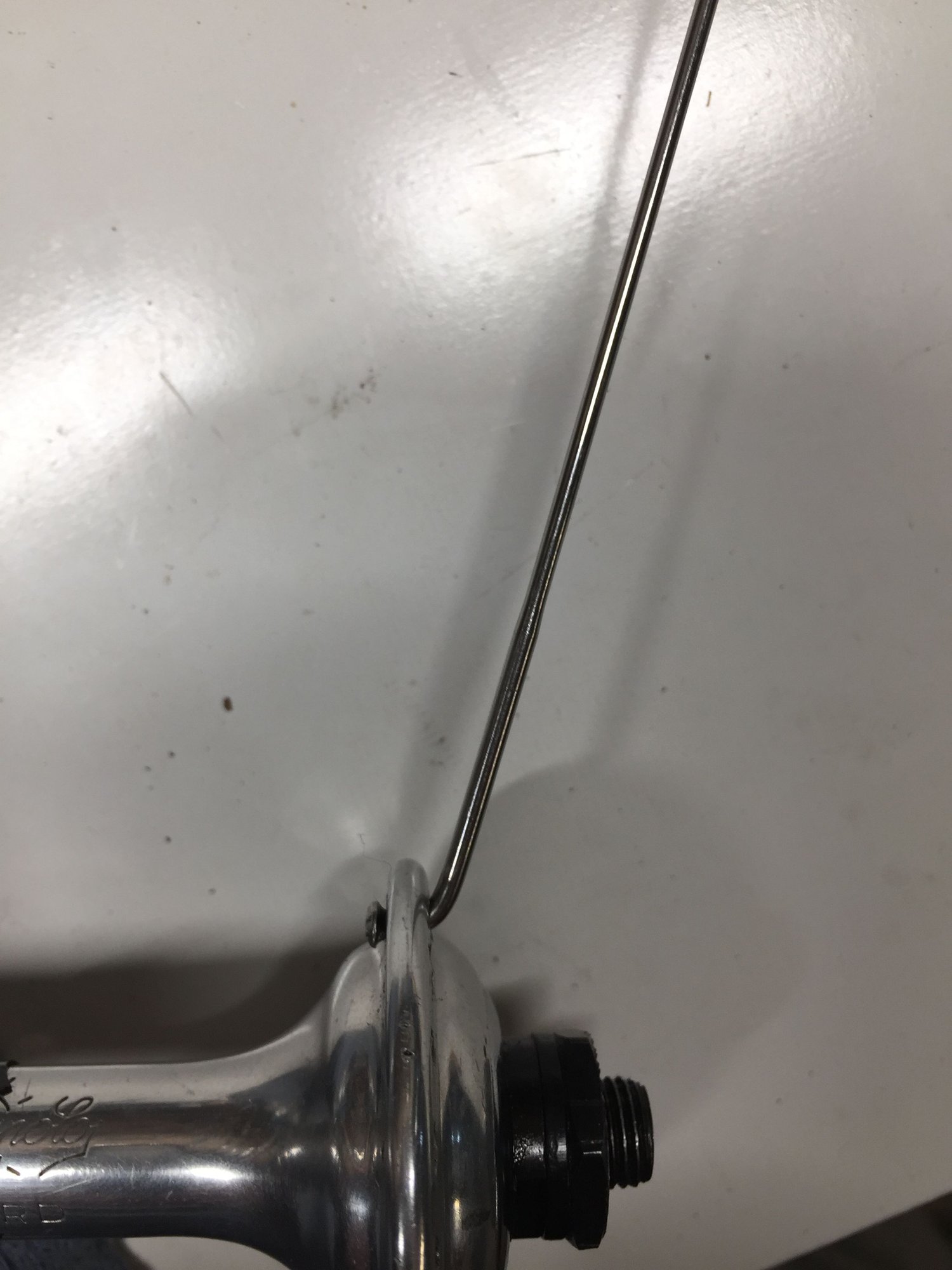

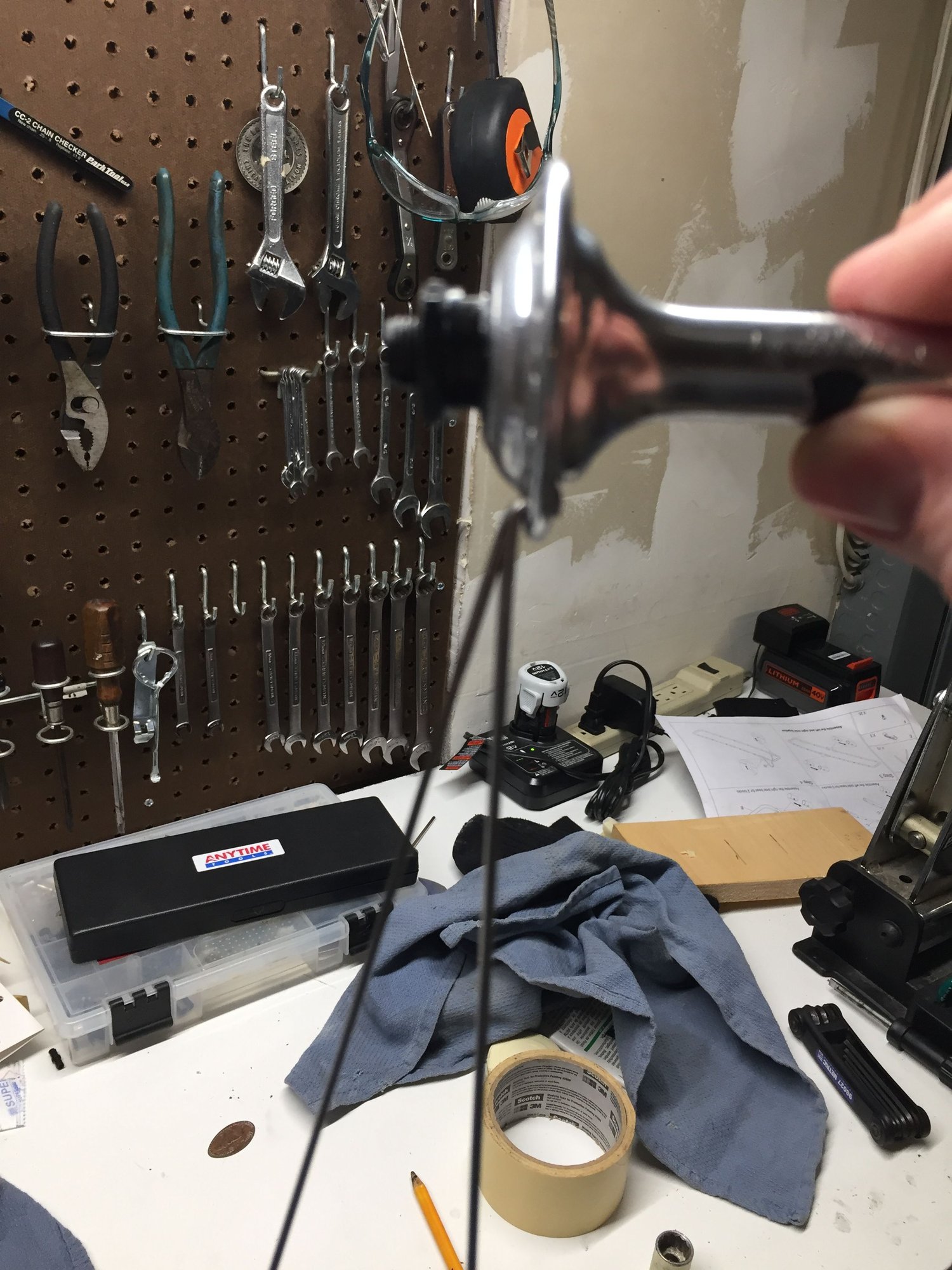

i am ready to start a build with early 80s Record hubs to G40 rims. I want to use Wheelsmith DB14 spokes. This is my second wheel build; first time with Campy 8 speed Record hubs came out great. So got the spokes, just checking things out and inside out spoke comes out at a pretty large angle, which makes me worried about how much bend is needed to get to the eyelet. I checked on 3 other hubs ( no name generic, Royce high flange, another Record) and same thing. Is this OK and if not what should I do differently? Thinner spoke? A no name straight gauge spoke is also in the pic for comparison.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, 89 Cinelli Supercorsa
Spaghetti Legs is offline
Reply With Quote
Old 02-05-19, 06:23 PM
  #2
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 3,382

Bikes: Schwinn Varsity

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1127 Post(s)
I'd use different spokes,,, and this:
Sheldon Brown Initial Spoke Adjustment:
https://www.sheldonbrown.com/wheelbuild.html
trailangel is offline
Reply With Quote
Old 02-05-19, 06:34 PM
  #3
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,127

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1099 Post(s)
What do the spoke holes in the hubs look like? Do they have a chamfer on one or both sides? That spoke doesn't seem to fit into the hub all the way. I'd be looking for a chamfer in the spoke hole.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Reply With Quote
Old 02-05-19, 06:42 PM
  #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,610

Bikes: 8

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 6183 Post(s)
really obsessive on details? the head making machine leaves flashing... back side of the head... file that smooth..

It was a German suggestion, by the people at Rohloff






...

Last edited by fietsbob; 02-05-19 at 09:26 PM.
fietsbob is offline
Reply With Quote
Old 02-05-19, 07:01 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,259

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1625 Post(s)
I was told a long time ago the Campy hubs (and that meant NR and Tipo then) were made to use 15 Ga spokes. Of course we (and I personally) laced them with 14Ga spokes many times with no issues. But this story does explain the greater bowing out of a just installed 14 Ga spoke with these hubs. I bend in the the spoke tighter against the flange after the initial lace up. Done this, maybe, hundreds of times over the years. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 02-05-19, 10:31 PM
  #6
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 8,852
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
^^^ I'll ditto what Andy says. Once you've got the wheel laced but not tensioned it's common practice to push down on the outside spokes so the bend is a little tighter to the flange.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Reply With Quote
Old 02-06-19, 03:00 AM
  #7
Spaghetti Legs
Senior Member
Thread Starter

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,063

Bikes: Numerous

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 729 Post(s)
Thanks all. I think I’ll go ahead and lace up the wheel with these and see how it goes. Hate to have to get a set of 15g...
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, 89 Cinelli Supercorsa
Spaghetti Legs is offline
Reply With Quote
Old 02-06-19, 03:02 PM
  #8
Spaghetti Legs
Senior Member
Thread Starter

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,063

Bikes: Numerous

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 729 Post(s)


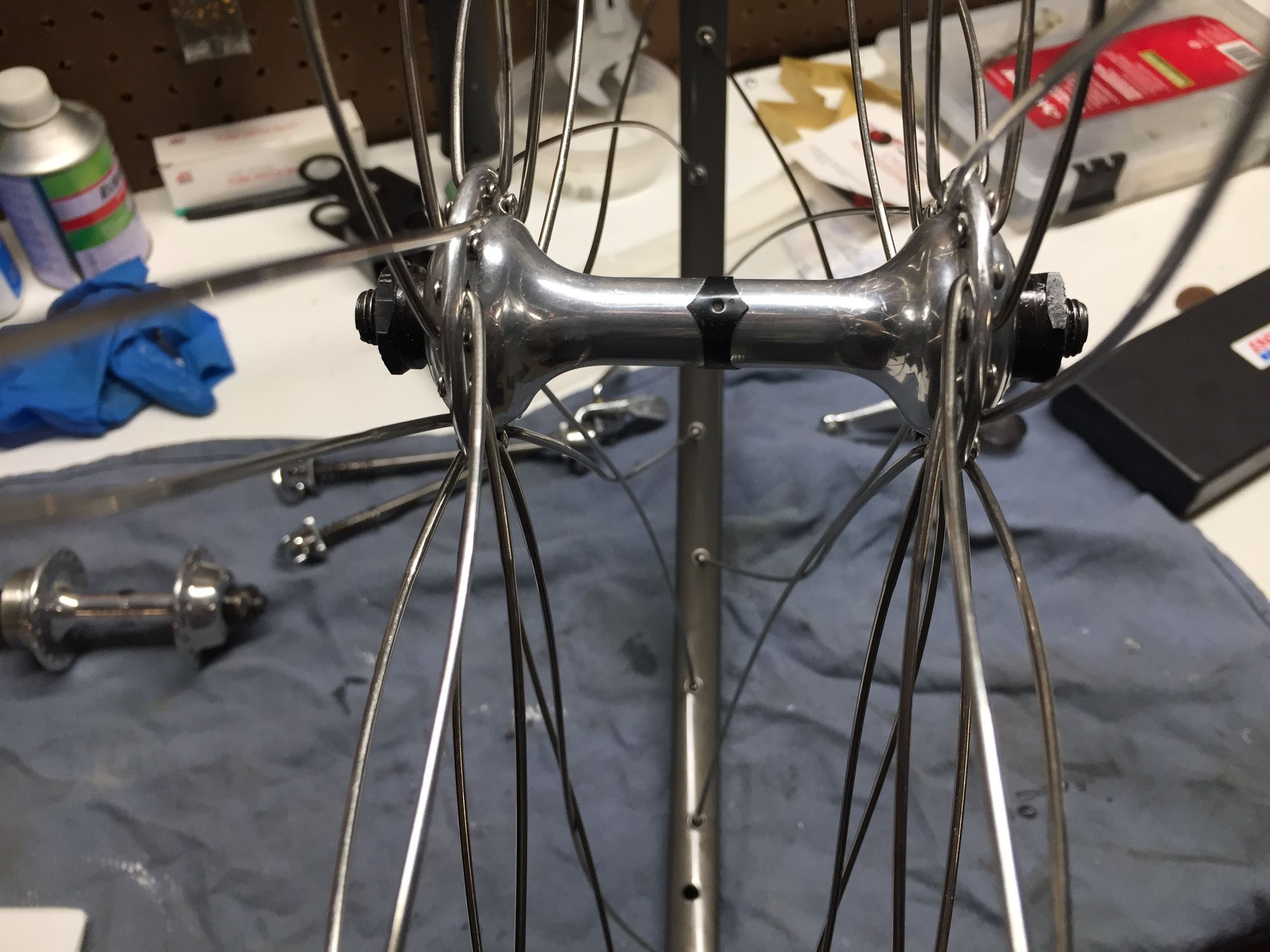

I laced it up today and it went smoothly; no gymnastics required to bring the spoke to the eyelet. The spokes dont lay up against the flange as snugly as Id like but I think its good enough to go ahead and tension it up.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, 89 Cinelli Supercorsa
Spaghetti Legs is offline
Reply With Quote
Old 02-06-19, 04:10 PM
  #9
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,610

Bikes: 8

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 6183 Post(s)
WABAC Find

a NOS Rim?
fietsbob is offline
Reply With Quote
Old 02-06-19, 04:55 PM
  #10
Spaghetti Legs
Senior Member
Thread Starter

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,063

Bikes: Numerous

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 729 Post(s)
Originally Posted by fietsbob View Post
a NOS Rim?
Practically - a little blemish on one sidewall and some of the eyelets have a little corrosion but looks unridden. Got em from Doc Cannondale. I also have a true NOS set of 28h G40s that Im going to build up as soon as I can find the right rear hub. Either that or a set of 32h for 2 sets of 28-32 wheels.

BTW I got the wheel tensioned up and all is well. Looks like needless noob anxiety on my part.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, 89 Cinelli Supercorsa
Spaghetti Legs is offline
Reply With Quote
Old 02-08-19, 12:47 AM
  #11
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,084

Bikes: old ones

Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 13586 Post(s)
....personally, when a wheel I'm building laces up like that, I take it outside where I have a well worn wood sawhorse with a rubber mallet and hit the spokes just outboard of the flanges with the wood supporting the down side and the mallet impacting the top side spoke at each pair. That usually improves the line so that the spokes exiting outward are supported by the flanges (which is important...and they won't always pull up tight against the flange just from tensioning).

This doesn't much help improve the spokes that exit inward, so I pull on those with an old aluminum non-drive side crank arm wrapped in duct tape as a part of the stress relief routine for the bends at the head..
3alarmer is online now
Reply With Quote
Old 02-08-19, 08:13 AM
  #12
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,176
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
To get the spokes to fit up tight along the flanges, I bring the spokes up to just enough tension so they are mostly straight and the wheel is fairly rigid. Then, using any old tool that will fit, insert it between crossing spokes next to the flange and pry gently inward on the heads in spoke and outward on the heads out spoke.

Dan Burkhart is offline
Reply With Quote
Old 02-08-19, 09:57 AM
  #13
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 36,494

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 387 Post(s)
Tagged: 0 Thread(s)
Quoted: 5039 Post(s)
Originally Posted by Dan Burkhart View Post
To get the spokes to fit up tight along the flanges, I bring the spokes up to just enough tension so they are mostly straight and the wheel is fairly rigid. Then, using any old tool that will fit, insert it between crossing spokes next to the flange and pry gently inward on the heads in spoke and outward on the heads out spoke.
Yes, this is ideal. This way, the tension will be caused less by the original bend, once you have bent the spokes to straightness.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

When man invented the bicycle he reached the peak of his attainments. Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 02-08-19, 10:04 AM
  #14
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,259

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1625 Post(s)

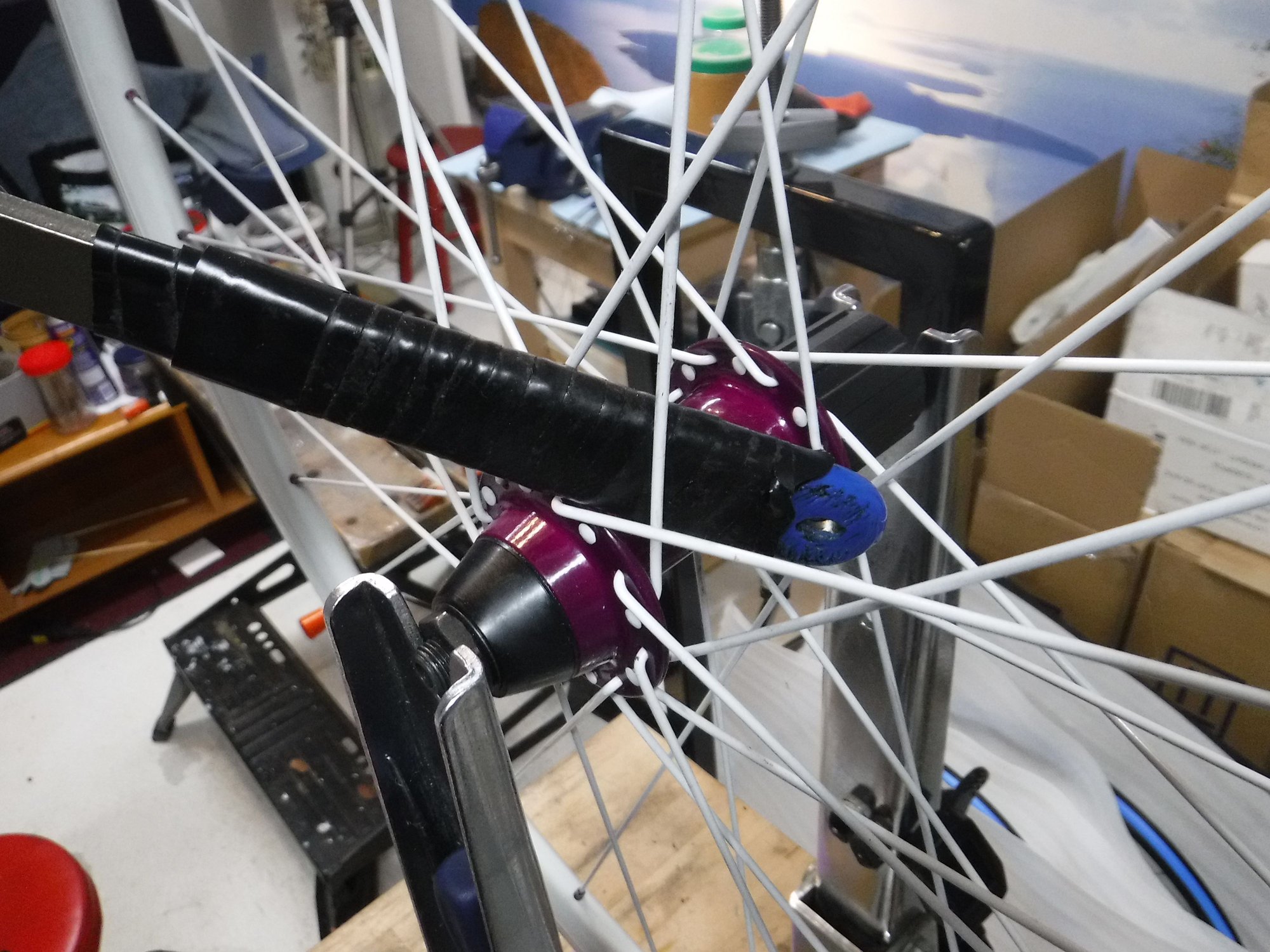

The tools I use to bend in the splaying out loose spokes ate those I can into the world equipped with, my fingers. It's less trying to get the spokes final arrangement (amount of the bending within the elbow, amount just after the elbow) that complete tension will achieve as it's about making the tensioning go faster and the feel of the nipple's turning more reflect the spoke tension increase then the spoke's being bent straight. (And yes some will say this is the same. I say then go build up a cheap steel hub that had thin flanges and little or no spoke splay initially. You'll feel the difference in how the nipples tighten up and how the rim responds during this initial tensioning up phase). Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 02-08-19, 10:08 AM
  #15
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,115

Bikes: I'd rather not count how many, thank you

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 920 Post(s)
Originally Posted by Andrew R Stewart View Post
The tools I use to bend in the splaying out loose spokes ate those I can into the world equipped with, my fingers. It's less trying to get the spokes final arrangement (amount of the bending within the elbow, amount just after the elbow) that complete tension will achieve as it's about making the tensioning go faster and the feel of the nipple's turning more reflect the spoke tension increase then the spoke's being bent straight. (And yes some will say this is the same. I say then go build up a cheap steel hub that had thin flanges and little or no spoke splay initially. You'll feel the difference in how the nipples tighten up and how the rim responds during this initial tensioning up phase). Andy
This.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply With Quote
Old 02-08-19, 11:05 PM
  #16
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 8,852
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Originally Posted by Andrew R Stewart View Post
The tools I use to bend in the splaying out loose spokes ate those I can into the world equipped with, my fingers. It's less trying to get the spokes final arrangement (amount of the bending within the elbow, amount just after the elbow) that complete tension will achieve as it's about making the tensioning go faster and the feel of the nipple's turning more reflect the spoke tension increase then the spoke's being bent straight. (And yes some will say this is the same. I say then go build up a cheap steel hub that had thin flanges and little or no spoke splay initially. You'll feel the difference in how the nipples tighten up and how the rim responds during this initial tensioning up phase). Andy
Ditto. Although I use my thumbs instead of fingers.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Reply With Quote
Old 02-09-19, 12:23 AM
  #17
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,084

Bikes: old ones

Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 13586 Post(s)
Originally Posted by Andrew R Stewart View Post
The tools I use to bend in the splaying out loose spokes ate those I can into the world equipped with, my fingers. It's less trying to get the spokes final arrangement (amount of the bending within the elbow, amount just after the elbow) that complete tension will achieve as it's about making the tensioning go faster and the feel of the nipple's turning more reflect the spoke tension increase then the spoke's being bent straight. (And yes some will say this is the same. I say then go build up a cheap steel hub that had thin flanges and little or no spoke splay initially. You'll feel the difference in how the nipples tighten up and how the rim responds during this initial tensioning up phase). Andy
Originally Posted by rccardr View Post


This.
Originally Posted by Jeff Wills View Post
Ditto. Although I use my thumbs instead of fingers.
....don't you guys ever just want to hit something with a hammer ?
3alarmer is online now
Reply With Quote
Old 02-09-19, 11:15 PM
  #18
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 8,852
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Originally Posted by 3alarmer View Post
....don't you guys ever just want to hit something with a hammer ?
Yes. It's how I extract stubborn bottom bracket cups.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Reply With Quote
Old 02-09-19, 11:57 PM
  #19
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,259

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1625 Post(s)
Originally Posted by 3alarmer View Post
....don't you guys ever just want to hit something with a hammer ?
Last thing I used a hammer on was the chain stay sockets of a BB shell during angle manipulations. Although I have joked for years about the bike shop Olympics contest, "The 5 Meter Hammer Catch. Only the quickest of customers need enter Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 02-12-19, 07:55 AM
  #20
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 910

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 198? Masi Nuovo Strada, 1984 Pinarello Turismo

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Originally Posted by 3alarmer View Post
....don't you guys ever just want to hit something with a hammer ?
As a rule, bicycle mechanics don't force anything. We just get a bigger hammer.
__________________
Dale, NL4T
speedevil is offline
Reply With Quote
