How the flatten a chainring?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How the flatten a chainring?

Old 02-07-19, 07:20 AM
  #1
le mans
Steel is real
Thread Starter

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 757

Bikes: Raleigh Grand Prix 1977. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 11 Posts
How the flatten a chainring?

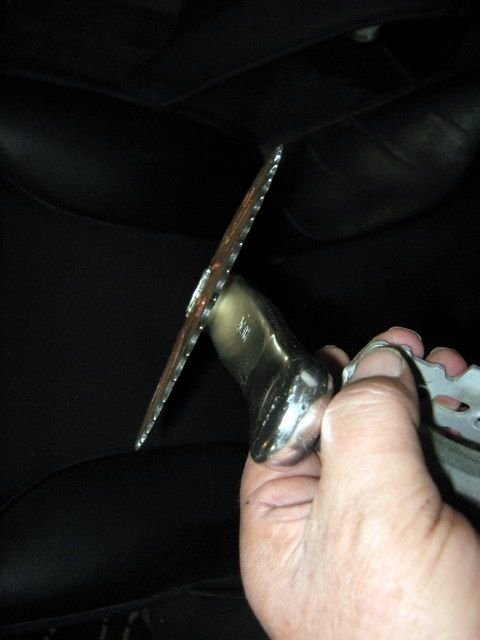

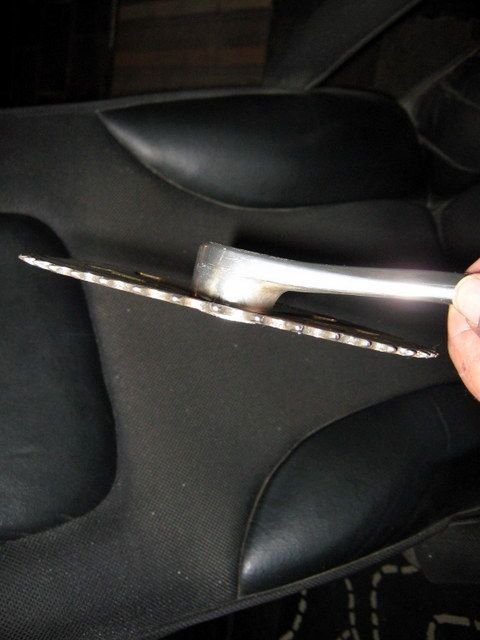

It is slightly bent, any ideas how to panelbeat it straight?.. would be appreciated.

I was going to use a 48 tooth single chainring for a road bike 700c wheels 8 speed nexus 15 sprocket, but i'm guessing it would be way too tall

this was on the frame i'm using when i got it, have the matching peddle arm for the other side, i quite like the look of it.. so would like to use it for that reason as well, it's 42 teeth



le mans is offline
Old 02-07-19, 07:32 AM
  #2
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,216

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 17 Times in 17 Posts
I have only used a large crescent wrench to straighten a chainring, work slow and they come out nice.
easyupbug is offline
Old 02-07-19, 09:11 AM
  #3
leob1
Senior Member

Join Date: Jul 2006
Location: Middle of the road, NJ
Posts: 2,981
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Clamp it in a vise, use your hands to bend it flat. work slow so you don't over do it.
leob1 is offline
Old 02-07-19, 09:49 AM
  #4
stevoo
Stevoo

Join Date: Jun 2013
Location: So Cal
Posts: 200

Bikes: Road and mountain tandems, single bikes too.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
You can straighten it on the bike using the FD cage as a guide to see any wobble.
Pretty simple job, just go slow and you should be fine.
Good luck
stevoo is offline
Old 02-07-19, 10:06 AM
  #5
le mans
Steel is real
Thread Starter

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 757

Bikes: Raleigh Grand Prix 1977. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 11 Posts
Thanks guys, good suggestions

stevoo, what's a FD cage?
le mans is offline
Old 02-07-19, 10:08 AM
  #6
le mans
Steel is real
Thread Starter

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 757

Bikes: Raleigh Grand Prix 1977. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 11 Posts
front delralleur? nooo.. hasn't got one
le mans is offline
Old 02-07-19, 10:12 AM
  #7
stevoo
Stevoo

Join Date: Jun 2013
Location: So Cal
Posts: 200

Bikes: Road and mountain tandems, single bikes too.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Sorry, missed that
A pencil taped to the seat tube where a FD theoretically would be also works well.
stevoo is offline
Old 02-07-19, 10:16 AM
  #8
le mans
Steel is real
Thread Starter

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 757

Bikes: Raleigh Grand Prix 1977. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 11 Posts
Good idea, you could get that pretty precise using a guide of some sort, cheers

Last edited by le mans; 02-07-19 at 12:36 PM.
le mans is offline
Old 02-07-19, 10:18 AM
  #9
le mans
Steel is real
Thread Starter

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 757

Bikes: Raleigh Grand Prix 1977. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 11 Posts
The mind boggles how it dished out a bit, and bent out a bit more in one section?
le mans is offline
Old 02-07-19, 11:49 AM
  #10
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,396

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6921 Post(s)
Liked 245 Times in 203 Posts
Not a thousand Wordsworth *

You riding it when you high sided & hit something? have a flat surface for comparison to know its perfect again ? say a Granite counter top?

have to put it on a BB spindle and rotate it with a fixed reference point for comparison (Like a Front Derailleur ) or your lathe tool rest..

yea pencil OK, but have to put the crank on the bike first...

holding it in the air against a blank background mostly demonstrated you has a camera no un flatness was to be seen ...

*other than computer code for the image..







....

Last edited by fietsbob; 02-07-19 at 12:06 PM.
fietsbob is offline
Old 02-07-19, 12:19 PM
  #11
le mans
Steel is real
Thread Starter

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 757

Bikes: Raleigh Grand Prix 1977. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 11 Posts
no it's something i collected, there's a scratch on the top tube so it must have been hit

high sided? well.. there ya go

but, after cold bending the dropout to suit the hub, the frame alignment is fine, very solid frame (Indi Australia)


"have a flat surface for comparison to know its perfect again ? say a Granite counter top?"

that centre fitting gets in the way, what holds the chainring & arm together, unless i find a flat surface with a hole in it

Last edited by le mans; 02-07-19 at 12:24 PM.
le mans is offline
Old 02-08-19, 02:13 PM
  #12
le mans
Steel is real
Thread Starter

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 757

Bikes: Raleigh Grand Prix 1977. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 11 Posts
Originally Posted by stevoo View Post
Sorry, missed that
A pencil taped to the seat tube where a FD theoretically would be also works well.
Used one of those plastic caliper sliding rulers, so i could slide it towards the chainring
found it wasn't all dish outwards, one section was bent inwards, didn't take long to fix!

le mans is offline
