Derailleur clamp

I just bought a new carbon frame and with all the dire warnings on the internet about crushing the fiber, I'm being a little paranoid. I picked up a carbon derailleur clamp in 34.9, and it's too small. At least, there's an 1/8"+ gap when I try to close the clamp. Does my frame need a custom size clamp or is this okay? (Yes, I measured the clamp and its 34.9mm). I tried an aluminum clamp and its the same.

The frame has a dimple/indentation around 4" up from the bottom bracket - is that just to provide clearance to the chain or FD?
CyclingFool95 is offline
Old 05-21-19, 05:30 AM
  #2
CyclingFool95
Senior Member
Thread Starter

Join Date: Apr 2019
Location: Northern NJ
Posts: 121

Bikes: 1987 Pinarello Montello, 1995 Litespeed Classic, 1996 Colnago Master Light, 2006 Opera Leonardo FP

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 5 Posts

CyclingFool95 is offline
Old 05-21-19, 06:56 AM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,546

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1695 Post(s)
Likes: 0
Liked 23 Times in 20 Posts
The der's height above the shell is determined by the large ring clearance, where the frame dimple then lines up will suggest what it's for. I do suspect the dimple is for parallelogram clearances. Have you tried the carbon der clamp on a steel or metal tube yet to see how it fits something else? It's pretty common for clamps to seem a tad small/tight at first. Too bad that clamp uses one bolt to do two things. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-21-19, 07:14 AM
  #4
TimothyH
- Soli Deo Gloria -

TimothyH's Avatar

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 13,815

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 6232 Post(s)
Liked 223 Times in 151 Posts
Parlee?

I own two of those clamps.

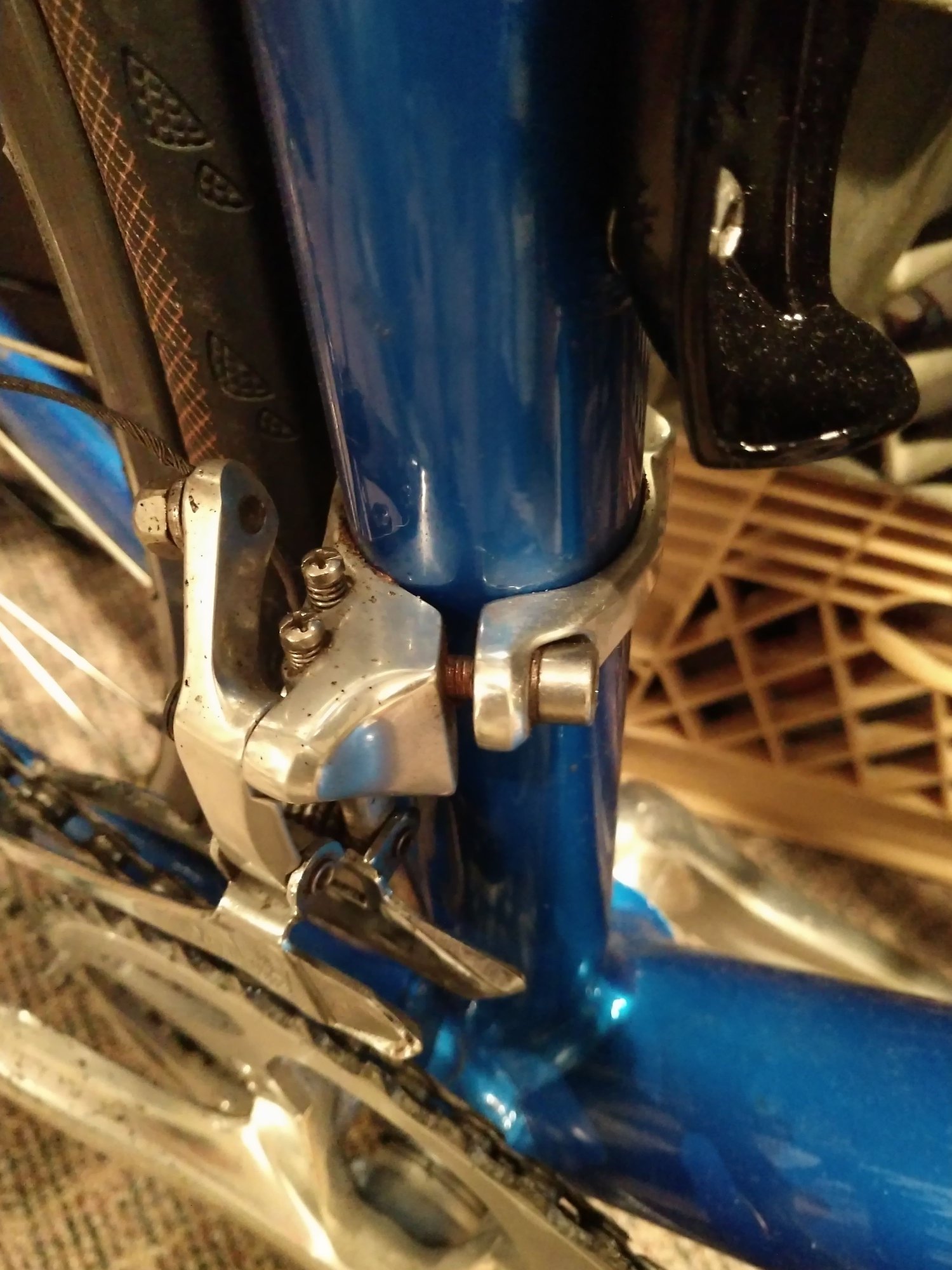

The one in the photo above isn't right. The clamp is too small or the tube is too large. Tightening the bolt is going to deform the thin concave portion of the clamp in contact with the front derailleur. It likely won't hold the derailleur properly resulting in poor shifting performance.

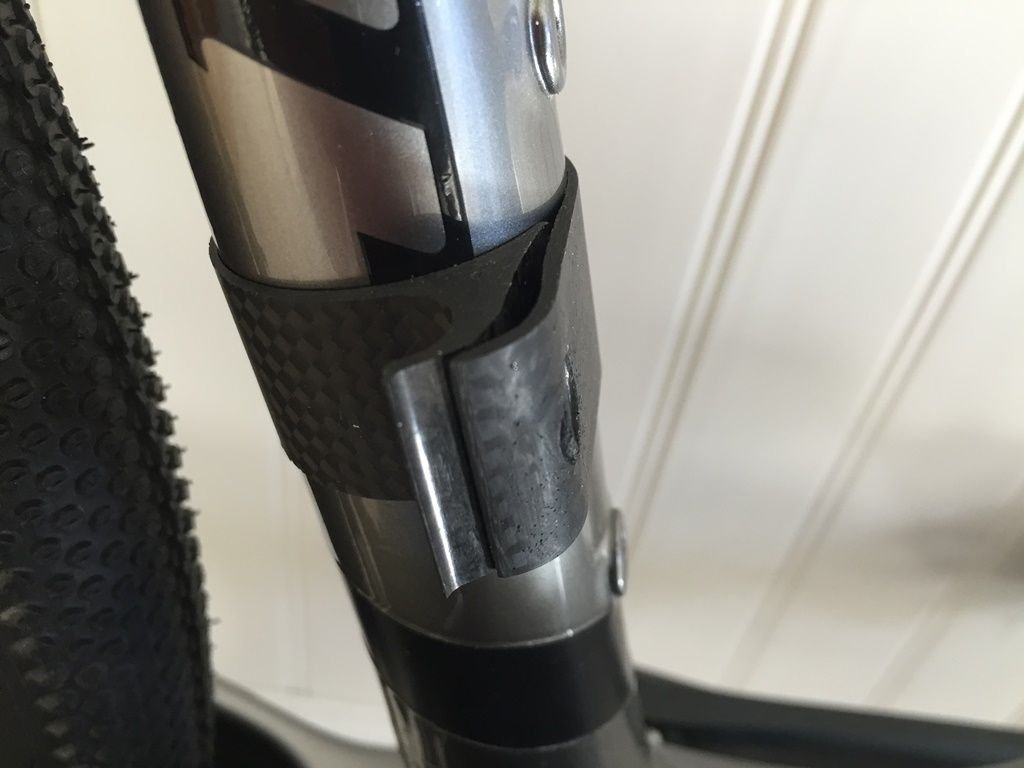

My experience is that carbon frame tube diameters are less precise compared to alloy or steel. The photo below is how it looked when tried on a Niner RLT 9 RDO carbon frame. It could not be used this way and a Dura Ace clamp was reluctantly used.

The same clamp works perfectly on an alloy bike which has a layer of powder coat on it.





-Tim-

Last edited by TimothyH; 05-21-19 at 07:18 AM.
TimothyH is offline
Old 05-21-19, 07:58 AM
  #5
CyclingFool95
Senior Member
Thread Starter

Join Date: Apr 2019
Location: Northern NJ
Posts: 121

Bikes: 1987 Pinarello Montello, 1995 Litespeed Classic, 1996 Colnago Master Light, 2006 Opera Leonardo FP

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Omni Racer. It measured right. The tube is just big. A metal clamp is also too small. I had the same issue with an aluminum frame, same manufacturer. That one also has the dimple. The derailleur is Campy.

CyclingFool95 is offline
Old 05-21-19, 10:56 AM
  #6
CyclingFool95
Senior Member
Thread Starter

Join Date: Apr 2019
Location: Northern NJ
Posts: 121

Bikes: 1987 Pinarello Montello, 1995 Litespeed Classic, 1996 Colnago Master Light, 2006 Opera Leonardo FP

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
I just measured. It's right on, from front to back, but from side to side is 35.6mm
CyclingFool95 is offline
Old 05-21-19, 03:41 PM
  #7
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,114

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 613 Post(s)
Likes: 0
Liked 17 Times in 17 Posts
Time for some patient file work, or a Dremel-type tool with a sanding drum. For the clamp of course.
dsbrantjr is offline
Old 05-21-19, 05:22 PM
  #8
CyclingFool95
Senior Member
Thread Starter

Join Date: Apr 2019
Location: Northern NJ
Posts: 121

Bikes: 1987 Pinarello Montello, 1995 Litespeed Classic, 1996 Colnago Master Light, 2006 Opera Leonardo FP

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by dsbrantjr View Post
Time for some patient file work, or a Dremel-type tool with a sanding drum. For the clamp of course.
Not with the CF clamp, but maybe with the aluminum one. I may just try forming it a little to better conform to the shape of the tube. I really didn't want to use an aluminum clamp.
CyclingFool95 is offline
Old 05-23-19, 10:06 AM
  #9
CyclingFool95
Senior Member
Thread Starter

Join Date: Apr 2019
Location: Northern NJ
Posts: 121

Bikes: 1987 Pinarello Montello, 1995 Litespeed Classic, 1996 Colnago Master Light, 2006 Opera Leonardo FP

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Digging around in my cycling closet, I found a Campy clamp. No better than the others but I suppose it's the best I'll do.

I may try 3D printing a spacer and see how the carbon one does with some support.
CyclingFool95 is offline
Old 05-23-19, 02:47 PM
  #10
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,440

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6711 Post(s)
Likes: 0
Liked 132 Times in 112 Posts
K edge is another maker of CNC US made clamp on FD mounts..

+ an overshift chain catcher to go on the same bolt..
fietsbob is offline
Old 05-23-19, 03:02 PM
  #11
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,328
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 178 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Call the mfr. of the frame. They may make, or recommend, a specific mount for yours.
Crankycrank is offline
Old 05-24-19, 07:57 AM
  #12
CyclingFool95
Senior Member
Thread Starter

Join Date: Apr 2019
Location: Northern NJ
Posts: 121

Bikes: 1987 Pinarello Montello, 1995 Litespeed Classic, 1996 Colnago Master Light, 2006 Opera Leonardo FP

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
I reached out to Pinarello, and to the shop I bought the frame from. I'll share if I hear anything.
CyclingFool95 is offline
