What causes a tire wave

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What causes a tire wave

Old 05-26-19, 07:53 AM
  #1
number1bike
Member
Thread Starter

Join Date: Jun 2005
Location: Chicago
Posts: 31

Bikes: Schwinn Varsity 1975, Mongoose Threshold 1995

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
What causes a tire wave

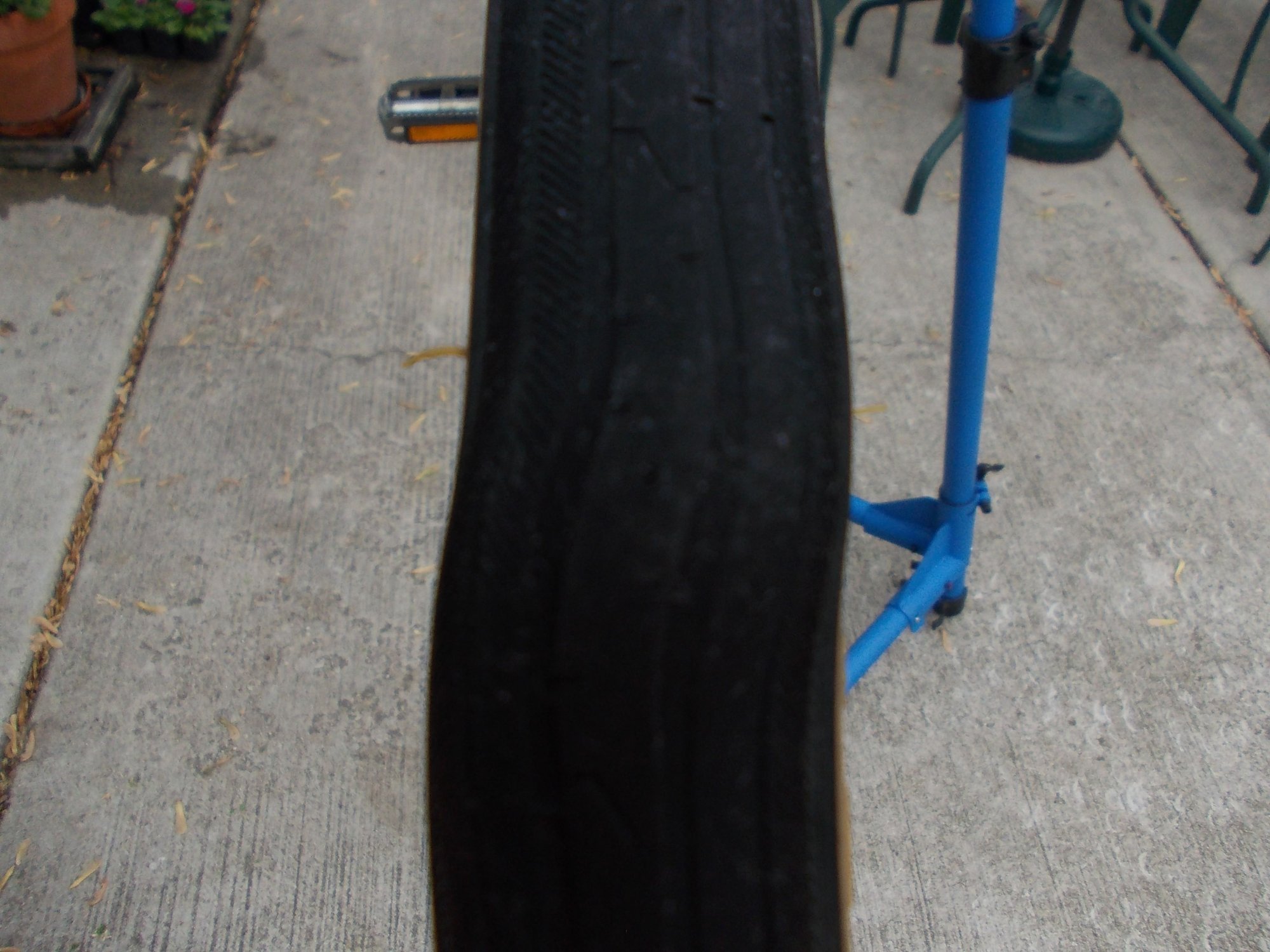

While doing weekly maintenance I noticed an odd distortion on the tire. Kind of a wave. I cannot feel it, probably because it does not rise causing a bump, just a wave.

I'm going to order a new tire to be safe, but curious on what happened under the surface and is it just a manufacturing defect or something with the mounting.? The tire has been mounted for about 930 miles and it just happened in the past 100 miles.

number1bike is offline
Old 05-26-19, 08:55 AM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,969

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3729 Post(s)
Liked 2,786 Times in 1,730 Posts
Tire casings have the structural part, the casing cords usually in a ribbon/strip like form before molding, and the rubber part. The rubber will conform to whatever shape it's being "told" to adopt by the casing cords. When the strips of casing threads gets deformed the rubber follows suit too. casing cords can break, shift, be poorly positioned when molded. These situations are fairly common and, to a degree, present in every tire (when new and having passed the manufacture's QC test these are so minor few notice) and can develop over time and use. Do replace the tire ASAP as if the casing cords are breaking the tire could fail during riding, the resulting change of control might not go over so well Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-26-19, 08:57 AM
  #3
number1bike
Member
Thread Starter

Join Date: Jun 2005
Location: Chicago
Posts: 31

Bikes: Schwinn Varsity 1975, Mongoose Threshold 1995

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Thanks for the detailed information.
number1bike is offline
Old 05-26-19, 09:07 AM
  #4
rydabent
Senior Member

rydabent's Avatar

Join Date: Apr 2010
Location: Lincoln Ne
Posts: 9,716

Bikes: RANS Stratus TerraTrike Tour II

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 3114 Post(s)
Liked 961 Times in 577 Posts
Some tires wave when they see other tires.
rydabent is offline
Old 05-27-19, 12:37 PM
  #5
Eric S.
Senior Member

Eric S.'s Avatar

Join Date: Aug 2005
Location: Las Vegas, NV
Posts: 932

Bikes: '04 LeMond Buenos Aires, '82 Bianchi Nuova Racing, De Rosa SLX, Bridgestone MB-1, Guerciotti TSX, Torpado Aelle, LeMond Tourmalet 853, Bridgestone Radac

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 45 Times in 35 Posts
I call that "the dreaded S-bulge". I got one at mile 80 of a century ride; luckily it lasted to the finish.
Eric S. is offline
Old 05-28-19, 07:14 AM
  #6
leob1
Senior Member

Join Date: Jul 2006
Location: Middle of the road, NJ
Posts: 3,137
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 102 Times in 66 Posts
Originally Posted by Andrew R Stewart View Post
Tire casings have the structural part, the casing cords usually in a ribbon/strip like form before molding, and the rubber part. The rubber will conform to whatever shape it's being "told" to adopt by the casing cords. When the strips of casing threads gets deformed the rubber follows suit too. casing cords can break, shift, be poorly positioned when molded. These situations are fairly common and, to a degree, present in every tire (when new and having passed the manufacture's QC test these are so minor few notice) and can develop over time and use. Do replace the tire ASAP as if the casing cords are breaking the tire could fail during riding, the resulting change of control might not go over so well Andy
In other words; your tire is broken and needs to be replaced.
leob1 is offline
Old 05-28-19, 08:01 AM
  #7
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,506

Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4908 Post(s)
Liked 2,888 Times in 1,932 Posts
fwiw: this tire came to me in the mail in a big flat box



It mounted up OK & didn't wobble when pumped up. but I wrote to the retailer to so they would know. they said sometimes tires get squished in transport but will likely cause no ill effect. but I thought they should know one of their ppl put that tire, in that conditions in a box to ship to a customer & the box was not damaged at all. it was their employee's decision to ship that product to me. they offered to replace it if it caused a problem, but it didn't, so I used it all winter. when I took it off the deformation came back, but not as severe. so this tire is permanently deformed when not pressurized. I plan on using it again next winter

I have other tires that have "tire wobble" even tho there is no visible deformation. they are wide mountain bike tires. I massage them as best I can when mounting, taking quite a bit of time to remove the subtle wobble but I can never get rid of it entirely. I bought those same tires in 2 different sizes & use them on two different bikes. of each pair, there is one with more wobble that the other. but to look at them you wouldn't notice anything, until you spin them
rumrunn6 is online now
Old 05-28-19, 08:04 AM
  #8
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,506

Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4908 Post(s)
Liked 2,888 Times in 1,932 Posts
Originally Posted by number1bike View Post
While doing weekly maintenance I noticed an odd distortion on the tire. Kind of a wave. I cannot feel it, probably because it does not rise causing a bump, just a wave.I'm going to order a new tire to be safe, but curious on what happened under the surface and is it just a manufacturing defect or something with the mounting.? The tire has been mounted for about 930 miles and it just happened in the past 100 miles.
thanks for sharing! that's a pretty severe wave for a tire to develop after you've been riding it. maybe you can get a discount from the manufacturer on your replacement
rumrunn6 is online now
Old 05-28-19, 08:27 AM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,969

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3729 Post(s)
Liked 2,786 Times in 1,730 Posts
Originally Posted by rumrunn6 View Post
fwiw: this tire came to me in the mail in a big flat box



It mounted up OK & didn't wobble when pumped up. but I wrote to the retailer to so they would know. they said sometimes tires get squished in transport but will likely cause no ill effect. but I thought they should know one of their ppl put that tire, in that conditions in a box to ship to a customer & the box was not damaged at all. it was their employee's decision to ship that product to me. they offered to replace it if it caused a problem, but it didn't, so I used it all winter. when I took it off the deformation came back, but not as severe. so this tire is permanently deformed when not pressurized. I plan on using it again next winter

I have other tires that have "tire wobble" even tho there is no visible deformation. they are wide mountain bike tires. I massage them as best I can when mounting, taking quite a bit of time to remove the subtle wobble but I can never get rid of it entirely. I bought those same tires in 2 different sizes & use them on two different bikes. of each pair, there is one with more wobble that the other. but to look at them you wouldn't notice anything, until you spin them
The sidewall ripple should spread out with air pressure/inflation. The bead kink, if steel wire, can be "back bent" with one's fingers to straighten it. If this tire has a folding bead then the kink isn't. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-28-19, 08:57 AM
  #10
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 28,506

Bikes: Bottecchia Sprint, GT Timberline 29r, Trek FX Alpha 7.0

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 4908 Post(s)
Liked 2,888 Times in 1,932 Posts
schwalbe marathon winters have a wire bead. ask me how I know ...

rumrunn6 is online now
Old 05-28-19, 07:39 PM
  #11
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,546

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 287 Times in 230 Posts
Once that wave starts it never stops. You might get another hundred or two miles out of it before it blows. Might as well replace it before that happens.
ramzilla is offline
