The long and short of it
07-02-19 | 11:24 AM
#1
Thread Starter
Full Member
Joined: Apr 2015
Posts: 297
Likes: 5
From: Rogers, AR
Bikes: '87 Giant Iguana, Nishiki designed Kamra Aero II, Schwinn Loop folder, 1985 Fuji Pallisade Mixte
The long and short of it
Ok, dumb question time: Does "long pull" levers vs "short pull" levers refer to the lever travel, or to how much the cable gets pulled?
07-02-19 | 11:50 AM
#3
Senior Member
Joined: Aug 2005
Posts: 33,657
Likes: 1,119
From: Pittsburgh, PA
Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!
It refers to how much cable gets pulled for the same lever travel. Long pull levers have the cable anchor and pivot point further apart than short pull levers.
07-02-19 | 01:12 PM
#4
Really Old Senior Member
Joined: Feb 2007
Posts: 14,667
Likes: 1,904
From: Mid Willamette Valley, Orygun
Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds. 2019 Giant Explore E+3

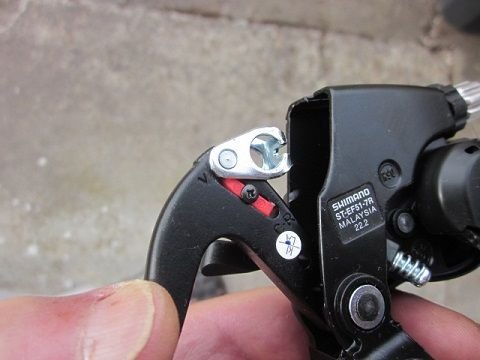

The red "plug" in this pic can be positioned so this brake can be used in either configuration.
Short pull is about 1" from pivot center to cable.
Long pull is about 1.7"
.
Short pull is about 1" from pivot center to cable.
Long pull is about 1.7"
.
07-04-19 | 08:41 PM
#6
Senior Member
Joined: Jul 2010
Posts: 13,919
Likes: 1,243
From: Montreal Canada
07-05-19 | 07:15 AM
#7
Senior Member
Joined: Aug 2005
Posts: 33,657
Likes: 1,119
From: Pittsburgh, PA
Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!
What brakes and levers do you have now? As a guideline:
Cantilever, caliper and "road" mechanical disc brakes use short pull levers.
V-brakes and "MTB" mechanical disc brakes use long pull levers.
Some "shorty" V's use short pull levers.
Newer Shimano road levers (11-speed groups) use an intermediate pull lever but closer to long pull.
Cantilever, caliper and "road" mechanical disc brakes use short pull levers.
V-brakes and "MTB" mechanical disc brakes use long pull levers.
Some "shorty" V's use short pull levers.
Newer Shimano road levers (11-speed groups) use an intermediate pull lever but closer to long pull.
08-07-19 | 07:19 PM
#9
Senior Member
Joined: Jul 2010
Posts: 13,919
Likes: 1,243
From: Montreal Canada
I'm only (sort of) familiar with mechanical discs, and having to match up levers and brake types (road vs mtb)
