How to fine-tune MTB cleat position?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How to fine-tune MTB cleat position?

Old 07-30-19, 05:21 PM
Vegan on a bicycle
Thread Starter
smasha's Avatar
Join Date: Sep 2009
Location: wellington NZ (via NJ & NC)
Posts: 1,042
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 1 Time in 1 Post
How to fine-tune MTB cleat position?

So the Crank-brothers Shoe Shields are not really compatible with Shimano cleats.

I wanted this to work, because with new shoes I usually need to fine-tune how the cleats are mounted. Once the "teeth" on the cleats dig in to the shoes, making small adjustments is very difficult. I was hoping that I could use the Shoe-Shields to keep the teeth from digging too much into the shoes, then fine-tune the cleat position as needed... But this is not the ideal solution I was hoping for.

What's a better solution?

Pictured: Crank-brothers Shoe Shield on top of Shimano SPD cleat.

Crank-brothers Shoe Shield on top of Shimano SPD cleat.
smasha is offline
Old 07-30-19, 09:03 PM
Andrew R Stewart
Senior Member
Andrew R Stewart's Avatar
Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,336 Times in 934 Posts
Back in the day of nail on cleats we had a harder time changing cleat position on the shoe. So we would ride the shoes with quill pedals long enough to emboss the pedal's cages into the shoe sole. Cleat angle will be square to these wear marks. Finding the ball of foot balance point is pretty easy with a friend marking the show sole when you're good with the fore/aft location. Side to side is all about clearance WRT the crank arm and your natural "Q" width. (This is perhaps the least direct an aspect but also, perhaps, the least effecting dimension for most riders).

The short answer is to not tighten your first mounting of cleats too much and test ride at sub max efforts until you're good with cleat positioning. The long answer is that even with the Fit Kit's RAD pedals cleat location is as much preference as is a measurable spot. At some point you have to work for the knowledge specific to your body at the current condition of your body. Andy
Andrew R Stewart is offline
Old 07-31-19, 03:13 AM
Senior Member
Join Date: Apr 2019
Location: Honolulu
Posts: 262
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 138 Times in 74 Posts

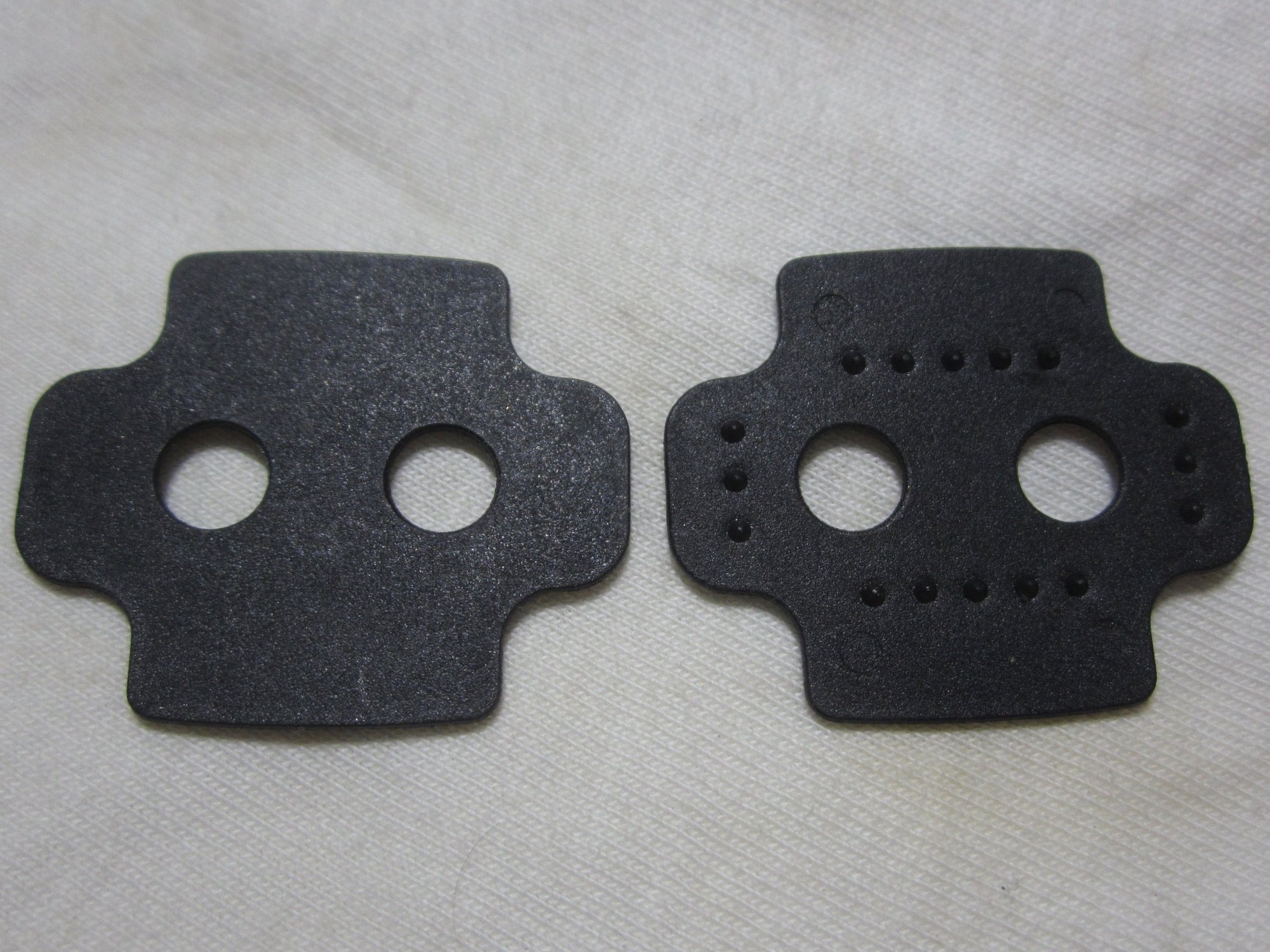

CB newer cleats also come with plastic shields:

I don't use them for I need the stainless version.

Actually, I would just cut up something like a plastic bottle and make some gaskets. Maybe even try cutting up a soda can.
jideta is offline
Old 08-01-19, 08:17 AM
Reynolds 531
Senior Member
Join Date: Oct 2014
Location: Reno nevada
Posts: 483

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 216 Post(s)
Liked 70 Times in 43 Posts
Originally Posted by jideta View Post

Actually, I would just cut up something like a plastic bottle and make some gaskets. Maybe even try cutting up a soda can.
I buy thin sheets of carbon fiber from ebay, and cut (with scissors) a shield. I have also made complete insoles by buying two sheets.
Reynolds 531 is offline
