Steel Frame Surface Rust

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Steel Frame Surface Rust

Old 03-06-20, 08:04 PM
  #1
50 Mission Cap
Senior Member
Thread Starter

Join Date: Mar 2008
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Steel Frame Surface Rust

Pulled the fender off my cross check today and found this. Anything I can do about it? Is the frame totally screwed?
50 Mission Cap is offline
Old 03-06-20, 08:59 PM
  #2
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,569

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 548 Times in 396 Posts
I would apply a rust converter, a Web search will yield many suggestions, which will turn the rust into a stable substance which will act a a primer, then paint over the area to inhibit further rust. Get the converter into the mounting holes and frame tubes as well as you can. I doubt the frame is seriously compromised but frame experts on the forum may chime in.
dsbrantjr is offline
Likes For dsbrantjr:
Old 03-06-20, 09:05 PM
  #3
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,573

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 353 Times in 222 Posts
I am not a frame or metal expert, but, I agree with dsbrantjr's assessment. I use a spray made by Lock-tite, Extend Rust Neutralizer. In my experience, it works well.
delbiker1 is offline
Old 03-06-20, 09:11 PM
  #4
50 Mission Cap
Senior Member
Thread Starter

Join Date: Mar 2008
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dsbrantjr View Post
I would apply a rust converter, a Web search will yield many suggestions, which will turn the rust into a stable substance which will act a a primer, then paint over the area to inhibit further rust. Get the converter into the mounting holes and frame tubes as well as you can. I doubt the frame is seriously compromised but frame experts on the forum may chime in.
will spraying that into the tubes damage the bb at all?
50 Mission Cap is offline
Old 03-06-20, 09:36 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,794

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2500 Post(s)
Liked 573 Times in 441 Posts
Frame is toast, what size is it???

Really it's just aging. Best- Scrape/sand off all rust you can, and prime/paint with model/touch up paint. Pull off all components and apply rust converter (I use https://www.evaporust.com/ ) internally and then rust inhibitor (Frame Saver). Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 03-07-20, 12:51 AM
  #6
ChrisAlbertson
Senior Member

Join Date: Dec 2019
Location: Southern California
Posts: 151

Bikes: 70's frame, newer parts

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 34 Times in 25 Posts
Originally Posted by delbiker1 View Post
I am not a frame or metal expert, but, I agree with dsbrantjr's assessment. I use a spray made by Lock-tite, Extend Rust Neutralizer. In my experience, it works well.
Do more then just spray over the rust. Use mechanical abrasion to remove what comes off easily. A 3M pad can work. A good rust remover that is gentle is "Bar Keeper's Freind" it is a powered cleaner for use in the kitchen, kind of like Comet but it is acidic and removes corrosion. Some of that on a scrubby sponge will remove light surface rust. It costs about $1.50 per can. It is abrasive enough to dull gloss paint so watch how you use it. It works best on stainless steel cookware but also on most matal bike parts. Make a paste and use it with a toothbrush to remove light oxide on aluminum too. Or as a chrome polish.

Then after removing what you can, rinse well, let it dry a good long time then use the converter, primer then paint. Paint is best applied with a brush because spray paint gets into everything
ChrisAlbertson is offline
Old 03-07-20, 03:02 AM
  #7
guy153
Senior Member

Join Date: Dec 2019
Posts: 270
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked 52 Times in 44 Posts
The frame is fine. That little bridge has very little structural value anyway, its main purpose is just as a fender mount. But as others have said you want to get some kind of schmoo down in there to try to stop it rusting any more.
guy153 is offline
Old 03-07-20, 05:13 AM
  #8
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,573

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 353 Times in 222 Posts
Keep in mind, rust converters, like the Lock-tite product, state that rust must be present for them to work.
delbiker1 is offline
Old 03-07-20, 10:10 AM
  #9
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,283
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 443 Post(s)
Likes: 0
Liked 66 Times in 60 Posts
Ospho works. Is Phosphoric acid that chemically turns the rust to iron Phosphate. You can either paint over it or leave it.
https://www.worldpaintsupply.com/osp...tal-treatment/
davidad is online now
Old 03-07-20, 10:44 AM
  #10
50 Mission Cap
Senior Member
Thread Starter

Join Date: Mar 2008
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks all. Got some Loctite naval jelly. What should I use for paint after Iíve applied the Loctite?
50 Mission Cap is offline
Old 03-07-20, 10:54 AM
  #11
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,524

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1104 Post(s)
Liked 500 Times in 360 Posts
Originally Posted by 50 Mission Cap View Post
Thanks all. Got some Loctite naval jelly. What should I use for paint after Iíve applied the Loctite?
Ideally, an etching or bare metal primer, then your enamel or lacquer of choice.

Keep in mind that the naval jelly can form phosphate crystals, which are grayish-white and powdery, on the treated steel. Ospho recommends wiping with mineral spirits to remove them before painting.
Unca_Sam is offline
Old 03-07-20, 10:57 AM
  #12
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,524

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1104 Post(s)
Liked 500 Times in 360 Posts
Originally Posted by delbiker1 View Post
Keep in mind, rust converters, like the Lock-tite product, state that rust must be present for them to work.
Assume any bare steel has an oxide layer after exposure to oxygen. It may not be visible, but it's there.
Unca_Sam is offline
Old 03-10-20, 03:19 PM
  #13
depechegore
Junior Member

depechegore's Avatar

Join Date: Mar 2015
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 1 Time in 1 Post
(spanish native lang here)

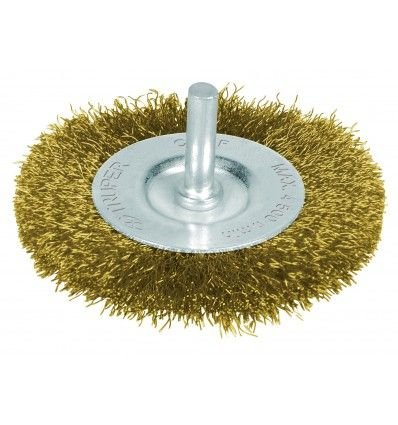

I see in the pic that its over the metal, isnt corroding the metal, you can also repaint your frame, use premier paint and then the desired color, you can use a drill with a cable ball thing adapter (i dont know how is named in english) and you can strip all out paint and specially oxide parts and you will see that the oxide is over the metal layer, the issue i dont like to use much this method is that let some micro scratches on the metal, no big deal but i dont like it

depechegore is offline
Likes For depechegore:
Old 03-11-20, 08:02 AM
  #14
Wilfred Laurier
SeŮor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 5,031
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 627 Post(s)
Liked 261 Times in 191 Posts
Totally screwed? Nope. You're just getting started!

As others have said, that rust is absolutely minimal, that part is not structural, and even if it were, you can see from your picture that it still have loads of wall thickness left.

It may be a bit jarring when you have a newish bike to see a patch of rust, but rust moves very slowly and it would take years and years of very abusive conditions to get to the point where the frame is compromised. If youa re using it as a winter bike in a place where the roads are salted then this might be 5 years of solid Winter use with no maintenance. Probably more than 5 years, but at least 5 years. If you live in a place where the roads are not salted, expect decades of use before rust becomes an issue. It is far more likely that every part of the bike wears out, or the bike is totalled by 'misadventure', before there is a problem with the frame due to rust.

If I were you I would sand the surface rust off as much as is easy to get at, then use nail polish to cover the bare patch, then remount your fenders to cover the nail polish.
Wilfred Laurier is online now
Old 03-11-20, 08:19 AM
  #15
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,524

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1104 Post(s)
Liked 500 Times in 360 Posts
Originally Posted by Wilfred Laurier View Post
Totally screwed? Nope. You're just getting started!

As others have said, that rust is absolutely minimal, that part is not structural, and even if it were, you can see from your picture that it still have loads of wall thickness left.

It may be a bit jarring when you have a newish bike to see a patch of rust, but rust moves very slowly and it would take years and years of very abusive conditions to get to the point where the frame is compromised. If youa re using it as a winter bike in a place where the roads are salted then this might be 5 years of solid Winter use with no maintenance. Probably more than 5 years, but at least 5 years. If you live in a place where the roads are not salted, expect decades of use before rust becomes an issue. It is far more likely that every part of the bike wears out, or the bike is totalled by 'misadventure', before there is a problem with the frame due to rust.

If I were you I would sand the surface rust off as much as is easy to get at, then use nail polish to cover the bare patch, then remount your fenders to cover the nail polish.
Best practice, apply a rust converter/bare metal primer, then the nail polish. Ospho or Corroseal will stop the rusting process and provide a base that the steel won't rust through. Ospho has no pigment, but it will turn red rust black, while Corroseal seems to turn the whole thing black and works like a traditional primer.
Unca_Sam is offline
