What's the best way to measure ERD for one measurement?
04-15-20 | 03:41 PM
#1
Thread Starter
Senior Member
Joined: Jul 2015
Posts: 606
Likes: 2
What's the best way to measure ERD for one measurement?
Measure a few times, take the average.
But for one measurement, what's the best way to get that? I'm thinking, take two spokes, secure those together after put through the rim. Pull everything tight. Mark where the spokes meet so you can put it back together later. Then pull the spokes out of the rim, put them back the way they just were, and then measure from just below the nipple head.... over to what point on the j-hook side that goes into the hub?
Or is there an idiot-proof tool that will give you a quick ERD measurement? (No, not just a tape measure.) Or maybe yes a tape measure? Up to the inner part of the rim. Then measure how much rim thickeness there is to where the nipple head would be.
Must not be a quick tool for it... Otherwise Park Tool would have something out already.
But for one measurement, what's the best way to get that? I'm thinking, take two spokes, secure those together after put through the rim. Pull everything tight. Mark where the spokes meet so you can put it back together later. Then pull the spokes out of the rim, put them back the way they just were, and then measure from just below the nipple head.... over to what point on the j-hook side that goes into the hub?
Or is there an idiot-proof tool that will give you a quick ERD measurement? (No, not just a tape measure.) Or maybe yes a tape measure? Up to the inner part of the rim. Then measure how much rim thickeness there is to where the nipple head would be.
Must not be a quick tool for it... Otherwise Park Tool would have something out already.
04-15-20 | 03:44 PM
#2
Thread Starter
Senior Member
Joined: Jul 2015
Posts: 606
Likes: 2
Nice.
https://www.parktool.com/blog/calvin...e-rim-diameter
Two spokes, spoke up to the screwdriver head point on the nipple, pinch together with calipers like the middle picture. That looks easy enough. You still have to measure each side though. Every measurement is one more point to be a little off instead of measuring the whole thing at once.
https://www.parktool.com/blog/calvin...e-rim-diameter
Two spokes, spoke up to the screwdriver head point on the nipple, pinch together with calipers like the middle picture. That looks easy enough. You still have to measure each side though. Every measurement is one more point to be a little off instead of measuring the whole thing at once.
04-15-20 | 03:46 PM
#3
Senior Member
Joined: Sep 2005
Posts: 3,487
Likes: 1,553
From: Oakland, CA
Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited
The spoke method is explained in the middle of this page: https://www.parktool.com/blog/calvin...e-rim-diameter
04-15-20 | 03:46 PM
#4
Senior Member
Joined: Sep 2005
Posts: 3,487
Likes: 1,553
From: Oakland, CA
Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited
Nice.
https://www.parktool.com/blog/calvin...e-rim-diameter
Two spokes, spoke up to the screwdriver head point on the nipple, pinch together with calipers like the middle picture. That looks easy enough. You still have to measure each side though. Every measurement is one more point to be a little off instead of measuring the whole thing at once.
https://www.parktool.com/blog/calvin...e-rim-diameter
Two spokes, spoke up to the screwdriver head point on the nipple, pinch together with calipers like the middle picture. That looks easy enough. You still have to measure each side though. Every measurement is one more point to be a little off instead of measuring the whole thing at once.
04-15-20 | 08:25 PM
#5
Senior Member
Joined: Feb 2012
Posts: 19,371
Likes: 5,515
From: Rochester, NY
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
Phil supplies their spoke cutter with the other method of measuring ERD. A flexible tape is used to measure the rim's upper edge circumference. Using Circumference=Diameter x PI (3.1415) ((is that still 7th grade math?) you can calculate the rim's outer edge diameter. Then measure from that outer edge to the spoke nipple bed in the rim. A straight edge held across the rim's edges with a ruler or other device to capture the depth to the nipple bed. Subtract two nipple depths from the rim's outer edge diameter and you have the ERD. IIRC the kit Phil supplies is the Sutherland's one.
At one time DT offered a poster with a direct ERD scale that you could hold the rim against and by using a couple of specific spoke nipples a direct reading could be made.
The two spoke method is a version of the Wheelsmith kit with their measuring rods.
I have the DT poster on my basement wall (laminated in plastic years ago) and have the Phil/Sutherlands kit at work. Both work well once you get the hang of them.
If you've never measured ERD I strongly suggest doing it a couple of different ways as well as a few times each way and averaging the totals. It's easy to have a mm or two of variance as you struggle to hold all the "tools" in place. Andy
At one time DT offered a poster with a direct ERD scale that you could hold the rim against and by using a couple of specific spoke nipples a direct reading could be made.
The two spoke method is a version of the Wheelsmith kit with their measuring rods.
I have the DT poster on my basement wall (laminated in plastic years ago) and have the Phil/Sutherlands kit at work. Both work well once you get the hang of them.
If you've never measured ERD I strongly suggest doing it a couple of different ways as well as a few times each way and averaging the totals. It's easy to have a mm or two of variance as you struggle to hold all the "tools" in place. Andy
__________________
AndrewRStewart
AndrewRStewart
Last edited by Andrew R Stewart; 04-15-20 at 08:28 PM.
04-26-20 | 01:43 PM
#7
Senior Member
Joined: Feb 2004
Posts: 30,225
Likes: 649
From: St Peters, Missouri
Bikes: Catrike 559 I own some others but they don't get ridden very much.
Also, make sure you're measuring spoke holes that are exactly opposite one another. Look for the valve hole and the welded or pinned joint opposite.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
04-28-20 | 09:33 AM
#8
Thread Starter
Senior Member
Joined: Jul 2015
Posts: 606
Likes: 2
This last pic on this 2009 thread is incorrect, isn't it?
You measure ERD from the bottom of the nipple head, not the top? In other words, this pic is probably add 2+2mm or 4mm extra on the ERD? That's assuming the nipple head is the slot for the screwdriver.
Mavic A719 ERD
You measure ERD from the bottom of the nipple head, not the top? In other words, this pic is probably add 2+2mm or 4mm extra on the ERD? That's assuming the nipple head is the slot for the screwdriver.
Mavic A719 ERD
04-28-20 | 11:56 AM
#9
Mad bike riding scientist
Joined: Nov 2004
Posts: 29,183
Likes: 6,261
From: Denver, CO
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
Reddog3, a poster on BikeForums, long ago (2011) developed an easy homemade tool to make for determining the ERD. Unfortunately that was back before Photo Bucket changed their policy so his pictures don’t work. Here’s what I put together for my wheel building class.

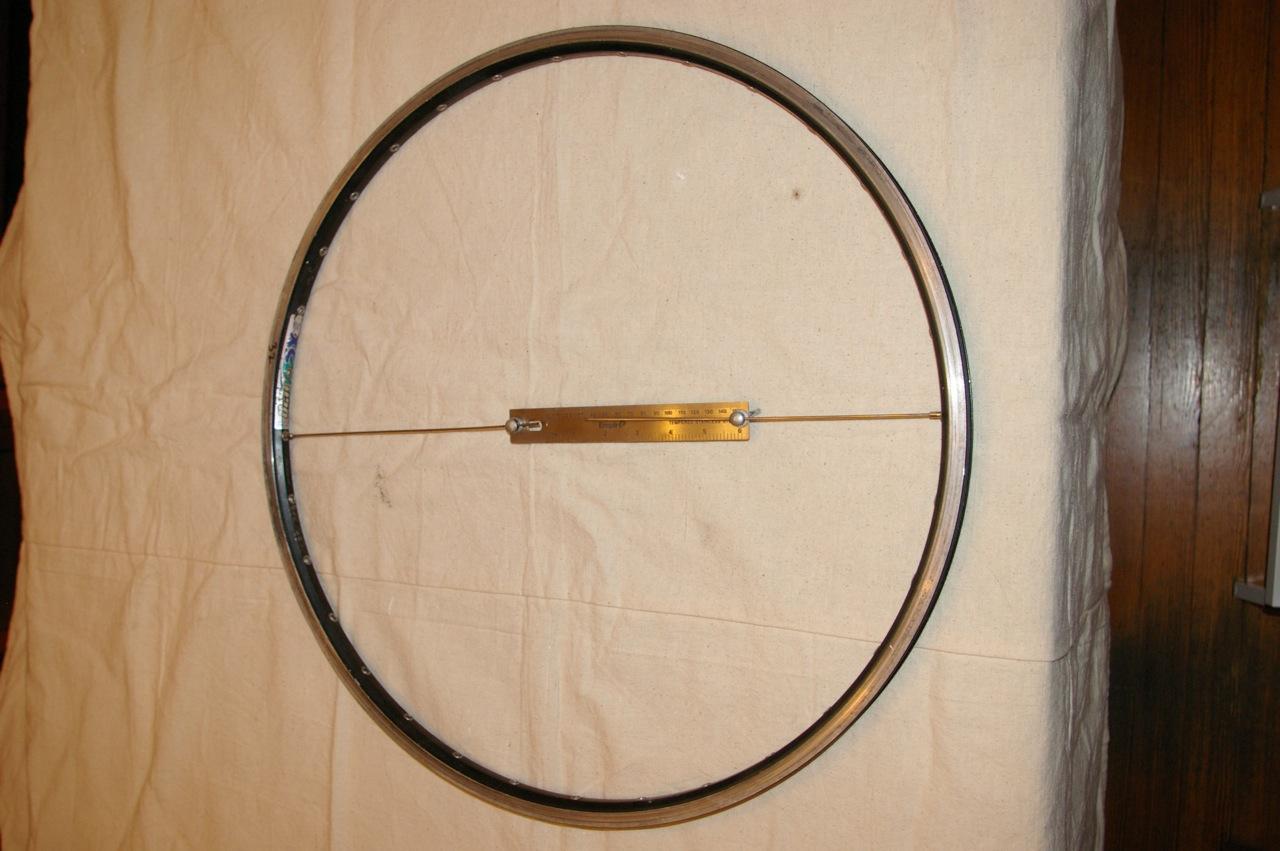

A metal rule is drilled at both ends and a fender bolt or pinch bolt from a brake cable is used to clamp two spokes to the rule. Each spoke is cut to a known length from the seat of the spoke nipple. 250 mm is a good dimension for 700C and 26” wheels. The cut spokes are clamped in the fender bolts like the figure below.
The distance between the two ends is read directly off the rule and added to the overall length of the two spokes as shown in the picture below.
In this case the length added is 36mm for a total ERD of 536mm.
The hardest part of the process was finding the rule.
A metal rule is drilled at both ends and a fender bolt or pinch bolt from a brake cable is used to clamp two spokes to the rule. Each spoke is cut to a known length from the seat of the spoke nipple. 250 mm is a good dimension for 700C and 26” wheels. The cut spokes are clamped in the fender bolts like the figure below.
The distance between the two ends is read directly off the rule and added to the overall length of the two spokes as shown in the picture below.
In this case the length added is 36mm for a total ERD of 536mm.
The hardest part of the process was finding the rule.
