BB problems on Road Bike

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

BB problems on Road Bike

Old 04-24-20, 01:30 PM
  #1
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
BB problems on Road Bike

I think I need some BB work done. But thinking I can do this myself.

road bike is an Argon 18

Argon 18

Radon

I have a SRAM Apex crank

When I am riding . I all of a sudden get moments where you hear all this metal on metal screaming noise.

So I was able to take it all apart myself and look inside

I noticed I only had 4 ball bearings left . the bearings seem to sit and held in place by grease.

I am wondering how many bearings would i need to place here? as it is odd i could only find 4 bearings here. Should the whole circular of the BB have more bearings?



or would i need a new BB. here are some pics of the crank. I don’t have a pic from inside.

suggestions of what i should do, as per do it at home situation for now. as my LBS is backed up for a few weeks now.



Help and suggestions please. thanks


Last edited by CanadianBiker32; 04-24-20 at 02:22 PM.
CanadianBiker32 is offline
Old 04-24-20, 01:41 PM
  #2
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,292

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 4690 Post(s)
Liked 1,348 Times in 786 Posts
Knowing what year and model of the bike would help a whole lot. But if there are as you say only 4 ball bearings left, that is a serious problem, and that whole BB needs to be replaced, as (so far as I know) any GXP BB would use cartridge bearings-- so there should be no way for individual balls to "fall out."
__________________
DrIsotope is offline
Old 04-24-20, 02:03 PM
  #3
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
Bike is

Argon 18.
2006 year
CanadianBiker32 is offline
Old 04-24-20, 02:12 PM
  #4
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,292

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 4690 Post(s)
Liked 1,348 Times in 786 Posts
Argon 18 is the brand, the model could be Gallium, Platinum, Krypton, etc, etc. Knowing the mfr. doesn't help much.
__________________
DrIsotope is offline
Old 04-24-20, 02:22 PM
  #5
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
Argon 18

Radon
CanadianBiker32 is offline
Old 04-24-20, 05:45 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,563

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2417 Post(s)
Liked 478 Times in 369 Posts
Were you able to actually count the balls? if so then the cartridge bearings (one unit a side) were far more worn/broken down then should ever have been continued to be used. If this really is the case then the crank would have been slopping about with in the massively loose and unable to be supported by the lack of, maybe, 75% of the balls. Typical cartridge bearings will have 10+ balls evenly about the race and often held apart by a ring.

So what's the real story? How about some photos of the bearings? Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-24-20, 06:17 PM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,581

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1221 Post(s)
Liked 633 Times in 432 Posts
Those are pictures of the crank. The bottom bracket is behind it mounted in the frame.
dedhed is online now
Old 04-24-20, 07:31 PM
  #8
TakingMyTime
Senior Member

Join Date: Aug 2012
Location: Los Alamitos, Calif.
Posts: 1,882

Bikes: Trek 7.4 FX, 5200 & 7700

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 609 Post(s)
Liked 329 Times in 217 Posts
Your pictures aren't helping. How did you tear this down, see the problem and not provide pics of the problem?
TakingMyTime is offline
Old 04-24-20, 09:36 PM
  #9
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,691

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 44 Times in 40 Posts
Yeah I don't see the 4 balls
tFUnK is offline
Old 04-25-20, 11:13 AM
  #10
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post

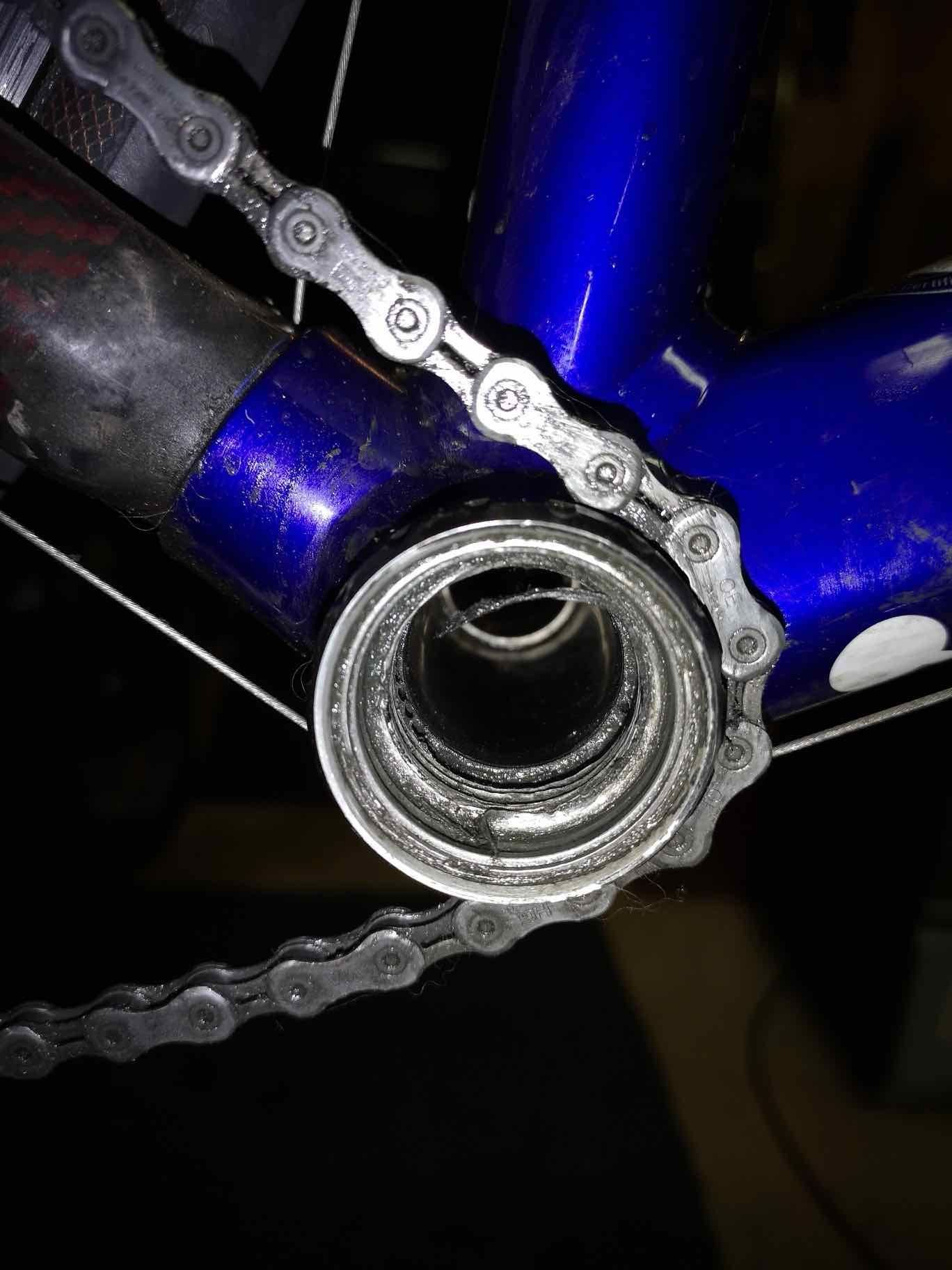

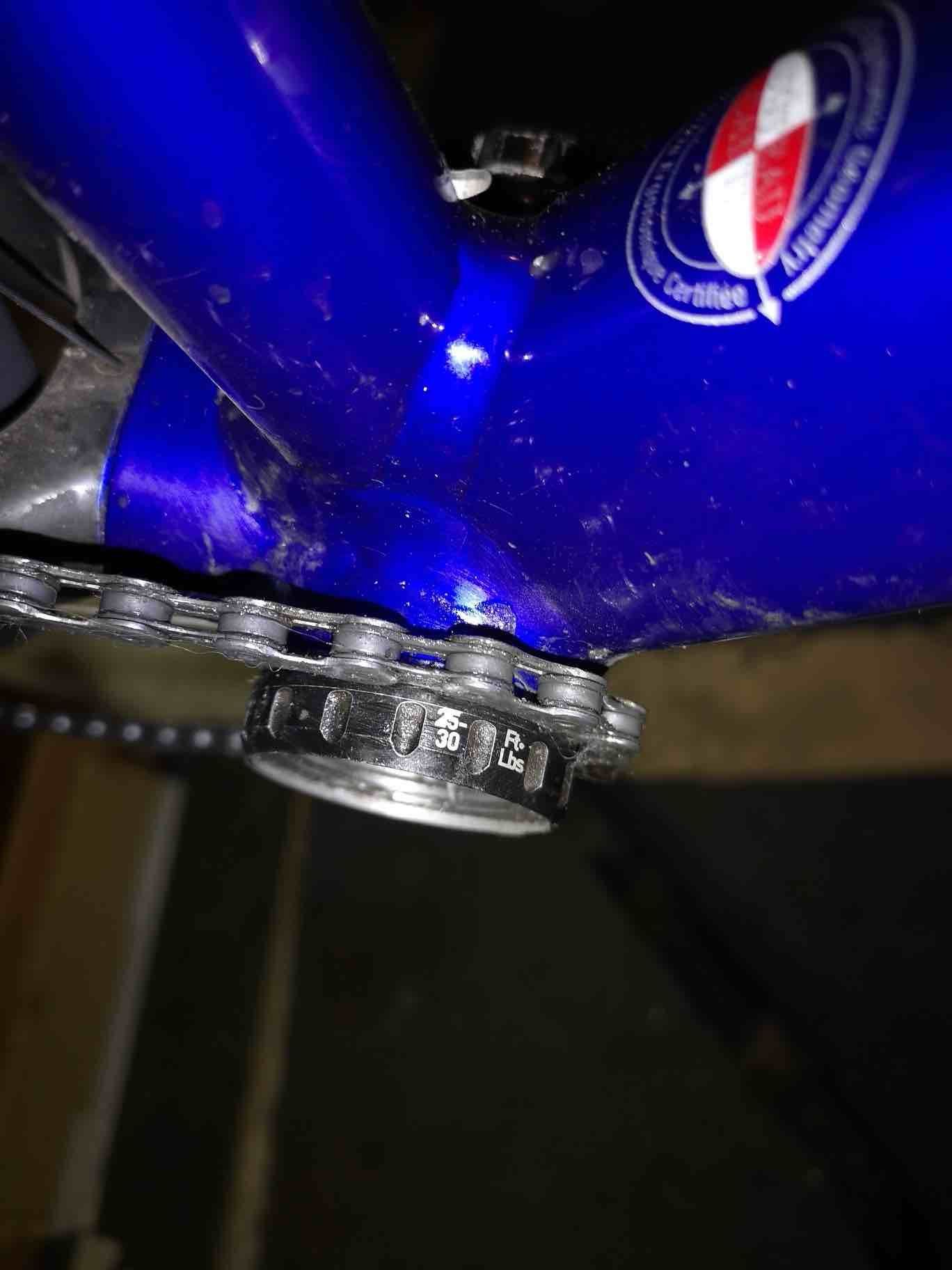

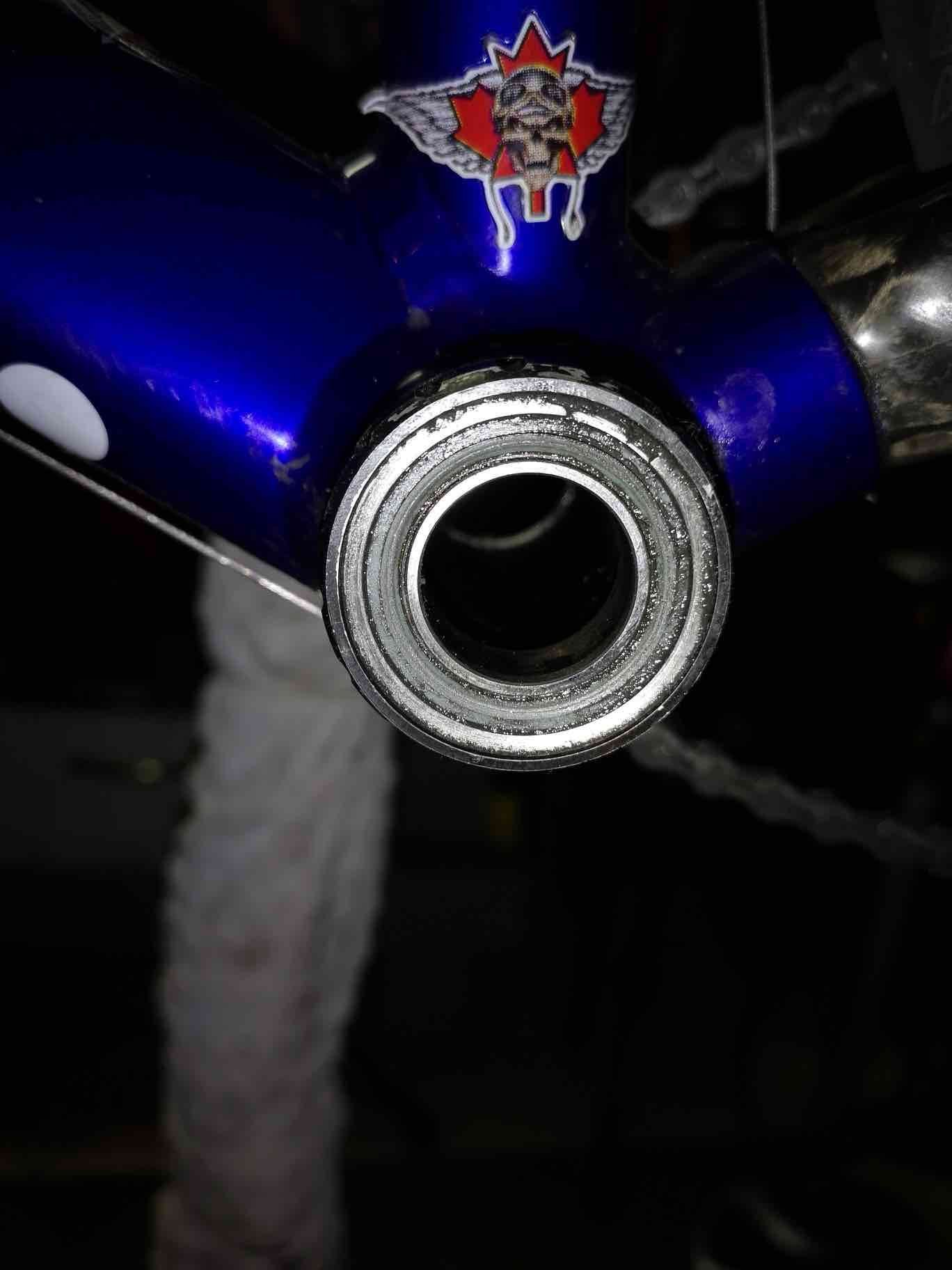

hi all here is a pic of the BB


CanadianBiker32 is offline
Old 04-25-20, 11:39 AM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,581

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1221 Post(s)
Liked 633 Times in 432 Posts
You don't replace the bearings you replace the complete bottom bracket.

https://www.sram.com/en/sram/models/bb-gxp-a1
dedhed is online now
Old 04-25-20, 12:04 PM
  #12
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,292

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 4690 Post(s)
Liked 1,348 Times in 786 Posts
That cartridge bearing done fell apart. It's amazing the cranks will even turn. Is the inner bearing race stuck on the crank spindle?
__________________
DrIsotope is offline
Old 04-25-20, 07:08 PM
  #13
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
yea. it was turning when riding. but i would get a loud metal on metal sound
CanadianBiker32 is offline
Old 04-25-20, 08:39 PM
  #14
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,691

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 44 Times in 40 Posts
Get a new BB
tFUnK is offline
Old 04-26-20, 02:37 AM
  #15
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,682

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Liked 133 Times in 111 Posts
https://www.amazon.com/SRAM-Bottom-B...7890128&sr=8-5 + https://www.amazon.com/Acekit-Bracke...890201&sr=8-23 and pray that being in a completely destroyed BB didn't mess up the spindle of the crank too badly.
cpach is offline
Likes For cpach:
Old 04-28-20, 07:44 AM
  #16
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
tool bb

what tools would i use to take out old bb and install new one?
CanadianBiker32 is offline
Old 04-28-20, 07:50 AM
  #17
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,292

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 4690 Post(s)
Liked 1,348 Times in 786 Posts
Any tool similar to the one linked in post #15 .
__________________
DrIsotope is offline
Old 04-28-20, 08:50 AM
  #18
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
now to determine the proper size of BB, just go by the numbers on it? and size of tool? or most quite universal?
CanadianBiker32 is offline
Old 04-28-20, 09:47 AM
  #19
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 3,771

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1405 Post(s)
Liked 374 Times in 289 Posts
By the time you obtain all the stuff you need you might be better off with a bike shop doing it. The tools sometimes cost more than the bb and if your next crank and bb are a different type, then those tools will sit unused forevermore.

As well, they'll probably put the crank back in for you correctly and even tune up the DR for little to no additional cost.
Iride01 is offline
Old 04-28-20, 09:56 AM
  #20
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
no problem i found the tool, i had one all along and i was able to get the BB off now with no problems, just have to order the new one, thanks everything
CanadianBiker32 is offline
Old 04-28-20, 09:57 AM
  #21
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
if i went with a lower priced brand of BB would it still work with my crankset? would that be a bad idea? in regards to wear if using a cheaper BB over the type/brand i am already using?
CanadianBiker32 is offline
Old 04-28-20, 12:40 PM
  #22
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 3,761
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Liked 271 Times in 176 Posts
The bottom bracket for that crank is proprietary. There are no cheaper substitutes
alcjphil is offline
Old 04-28-20, 01:24 PM
  #23
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,581

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1221 Post(s)
Liked 633 Times in 432 Posts
Originally Posted by CanadianBiker32 View Post
if i went with a lower priced brand of BB would it still work with my crankset? would that be a bad idea? in regards to wear if using a cheaper BB over the type/brand i am already using?
That'll look cheap if you look at better ones.

https://www.retro-gression.com/produ...bottom-bracket
dedhed is online now
Old 04-28-20, 02:17 PM
  #24
CanadianBiker32
Senior Member
Thread Starter

CanadianBiker32's Avatar

Join Date: Jul 2012
Location: Canada
Posts: 892

Bikes: Maxim, Rocky Mountain, Argon 18, Cervelo S2 Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 1 Time in 1 Post
i think i order the right one

says SRAM Bottom Bracket GXP Team Cups English 73/68mm
i assume thats the normal dimension/ otherwise how do i measure it properly?

when i measure from across it is 9cm or 90mm? across?

or what size do i select?

or how do i measure?

Last edited by CanadianBiker32; 04-28-20 at 02:23 PM. Reason: wrong sizes
CanadianBiker32 is offline
Old 04-28-20, 02:54 PM
  #25
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 3,771

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1405 Post(s)
Liked 374 Times in 289 Posts
Gosh.... bb's are expensive in Canada. The same BB here is only $19.00 USD. Hope you shopped around.
Iride01 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
