RD will not gut far enough to align w/ small cog

Old 05-07-20, 06:21 PM
  #1
hobkirk
Retired dabbler
Thread Starter

hobkirk's Avatar

Join Date: May 2010
Location: Acton, MA (20 miles west of Boston) - GORGEOUS cycling territory!
Posts: 788

Bikes: 2007 Specialized Roubaix Elite Triple - 1st ride = century 9/19/2010 , Ultegra

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
RD will not gut far enough to align w/ small cog

MY APOLOGIES! I expected this was going to be fairly simple - "Oh, you forgot to do XYZ..." - Now that I read your replies, I wish I had done more before I posted.
  • I will dig deeper tomorrow: removing the RD, measuring the alignment angles of the rear cassette relative to the chain rings, vertically and horizontally, use string to test overall alignment, check the alignment of L & R chain-stays to each other.
=====================
The original post is below
=====================
  • The RD is a Shimano Deore XT M772 with long cage.
    • This is a NTB 9 speed RD, but the throw = 10-speed Shimano road system.
    • I've replacing an earlier version, the M771, and I've used that for over 5 years.
  • The Ultegra shifters have not changed (except for a new cable).
  • NO FD for now! But I do 96% of my riding on the middle chain ring so it's no big deal, and it removes one variable from the mix.
  • The alignment of the frame, hanger, crank, etc. all seem perfect from any angle. The only things I've charged are the cable, the RD, and the chain.

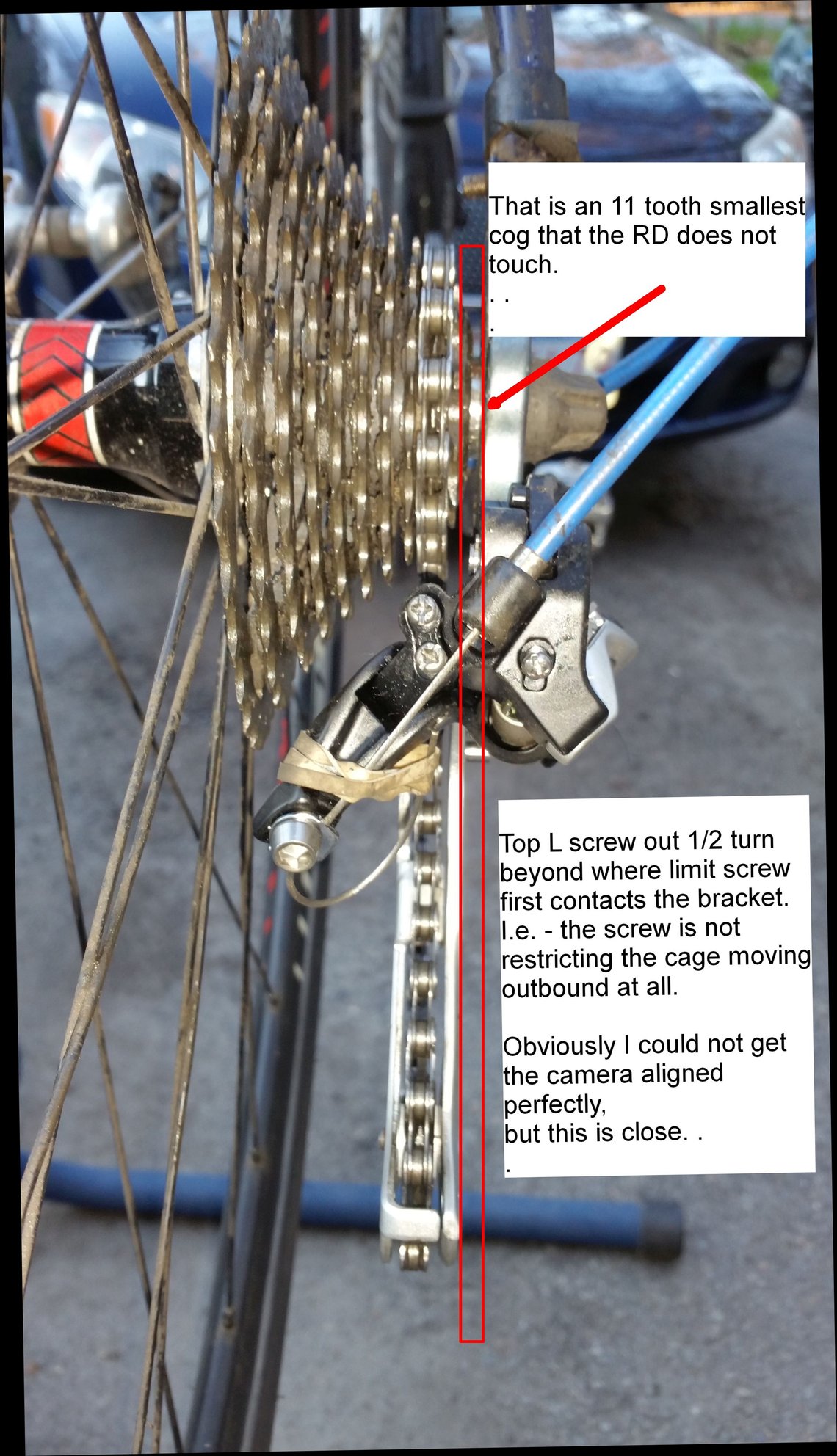

I hope the picture is sufficient to explain better. I rotated the image 1 to correct the vertical alignment.



Last edited by hobkirk; 05-07-20 at 09:41 PM. Reason: Apology
hobkirk is offline
Old 05-07-20, 06:30 PM
  #2
danmyersmn
Senior Member

Join Date: Jul 2007
Location: Charleston, SC
Posts: 333
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 28 Times in 15 Posts
Is this a frame you cold set and you need to align the derailleur hanger after?
danmyersmn is offline
Old 05-07-20, 06:34 PM
  #3
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,436

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1812 Post(s)
Liked 1,950 Times in 1,196 Posts
Two things, smallest cog is the high gear, so you adjust the H screw. Also, the cable may be stopping it and you will have to loosen the cable at the derailleur and allow for more. And, make sure you re-adjust the L screw so the derailleur doesn't go into the wheel.

John
70sSanO is offline
Old 05-07-20, 06:35 PM
  #4
hobkirk
Retired dabbler
Thread Starter

hobkirk's Avatar

Join Date: May 2010
Location: Acton, MA (20 miles west of Boston) - GORGEOUS cycling territory!
Posts: 788

Bikes: 2007 Specialized Roubaix Elite Triple - 1st ride = century 9/19/2010 , Ultegra

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by danmyersmn View Post
Is this a frame you cold set and you need to align the derailleur hanger after?
I don't know what cold set means - the hanger is solidly mounted, aligns perfectly as far as I can tell...
hobkirk is offline
Old 05-07-20, 06:43 PM
  #5
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,291

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1423 Post(s)
Liked 1,055 Times in 705 Posts
Does the derailleur go far enough with the shift wire removed and the "H" (not "L") screw backed out?
dsbrantjr is offline
Old 05-07-20, 06:56 PM
  #6
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,005

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 106 Times in 89 Posts
To start loosen the cable clamp on the derailleur and if it shifts to the small thentthen cable was to tight.
if not adjust the limit screws. It's easy just watch how it moves as you turn the bolt.
A bit of trial and error will have it working.
But be very carefully you don't adjust it the wrong way so the derailleur can shift into the spokes. Double check when you are finished.
I usually shift it in to the low gear and then snug the limit screw up. And I also push on the derailleur hard to make sure it can't
Remember if it can shift into the spokes it eventually will and be a disaster so take your time.
blamester is offline
Old 05-07-20, 07:45 PM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,437

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 2311 Post(s)
Liked 2,455 Times in 1,517 Posts
Originally Posted by hobkirk View Post
I don't know what cold set means - the hanger is solidly mounted, aligns perfectly as far as I can tell...
Aligned perfectly by eye for 8 speed and up is just "not good enough" in the real world. You really should get the hanger aligned.
dedhed is offline
Old 05-07-20, 08:05 PM
  #8
hobkirk
Retired dabbler
Thread Starter

hobkirk's Avatar

Join Date: May 2010
Location: Acton, MA (20 miles west of Boston) - GORGEOUS cycling territory!
Posts: 788

Bikes: 2007 Specialized Roubaix Elite Triple - 1st ride = century 9/19/2010 , Ultegra

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dedhed View Post
Aligned perfectly by eye for 8 speed and up is just "not good enough" in the real world. You really should get the hanger aligned.
Does that need to done by a "big time" LBS?
Can I do it myself using precise straight edges, etc.?
hobkirk is offline
Old 05-07-20, 08:06 PM
  #9
hobkirk
Retired dabbler
Thread Starter

hobkirk's Avatar

Join Date: May 2010
Location: Acton, MA (20 miles west of Boston) - GORGEOUS cycling territory!
Posts: 788

Bikes: 2007 Specialized Roubaix Elite Triple - 1st ride = century 9/19/2010 , Ultegra

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dsbrantjr View Post
Does the derailleur go far enough with the shift wire removed and the "H" (not "L") screw backed out?
Interesting Q - I will check it tomorrow...
hobkirk is offline
Old 05-07-20, 08:12 PM
  #10
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,789

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3656 Post(s)
Liked 2,610 Times in 1,635 Posts
One of the first methods to assess a situation is to separate the various elements from each other's influence and see how each sub unit functions. Andy
