Seat post keeps sliding down while riding

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Seat post keeps sliding down while riding

Old 07-27-20, 08:44 PM
  #1
Rooney
Member
Thread Starter

Join Date: Apr 2018
Posts: 34

Bikes: '84 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 9 Times in 7 Posts
Seat post keeps sliding down while riding

I replaced the seat post on my 84 Schwinn Voyageur SP recently, and now it frequently slides down while riding. I've made sure the bolt is tight, but it doesn't seem to ever hold completely. The seat post is 26.6, which should be correct for the year and model. I'm wondering if the bolt is a replacement, and isn't able to tighten properly due to being too long, or if the Voyageur's cable hanger could be the culprit. Has anyone else with a Voyageur (or similar cable hanger) had this problem before?

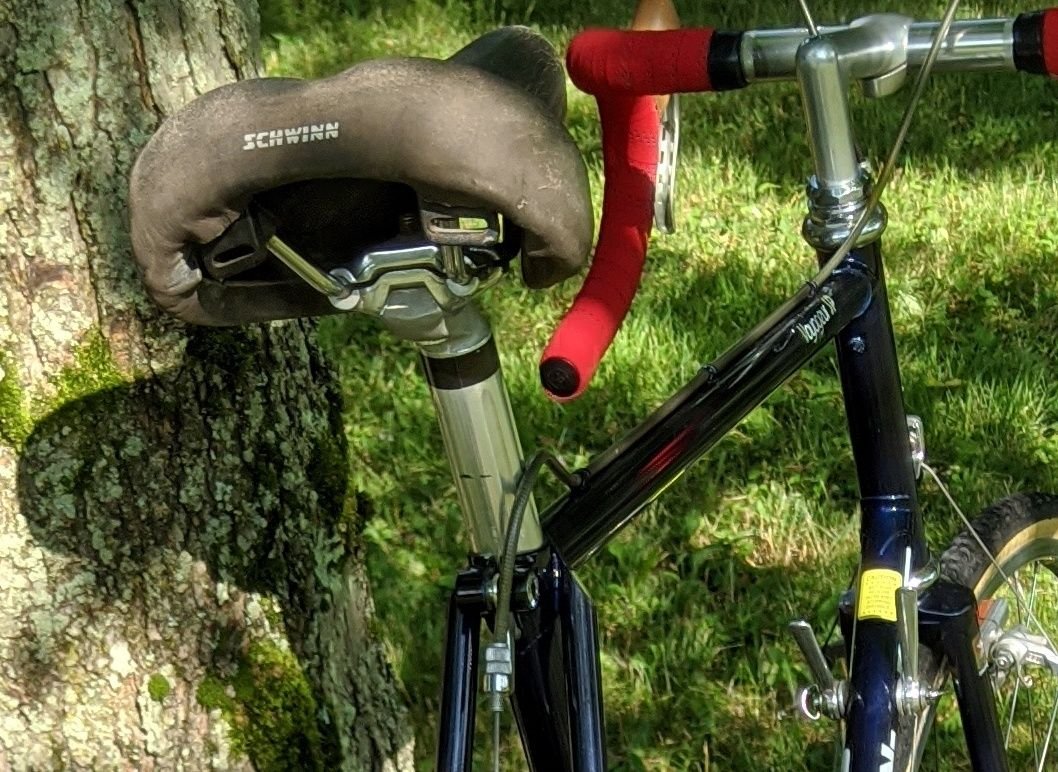

I've attached some cell phone shots of the seat post bolt boosted the shadows a bit to try showing it more clearly.



Rooney is offline
Old 07-27-20, 09:25 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,790

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2498 Post(s)
Liked 568 Times in 439 Posts
Simple experiment is to remove the brake hanger/stop and then ride the bike and see what happens. Or sub a different bolt that isn't an Allen wrench one. In the as imaged condition can you pivot the cable hanger about (with the cable tension released)? If not then the hanger's thickness is possibly the reason the lug won't clamp the post fully. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Likes For Andrew R Stewart:
Old 07-27-20, 09:54 PM
  #3
MarcusT
Senior Member

MarcusT's Avatar

Join Date: Apr 2017
Location: NE Italy
Posts: 922
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 423 Post(s)
Liked 151 Times in 94 Posts
Looks like the cable hanger. If you cannot loose the hanger, then get a 26.7/26.8 seat post. Adapter sleeves may work.
Also make sure that everything is squeaky clean, use alcohol to make sure there are no oils and such
MarcusT is offline
Old 07-27-20, 10:59 PM
  #4
Rooney
Member
Thread Starter

Join Date: Apr 2018
Posts: 34

Bikes: '84 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by Andrew R Stewart View Post
Simple experiment is to remove the brake hanger/stop and then ride the bike and see what happens. Or sub a different bolt that isn't an Allen wrench one. In the as imaged condition can you pivot the cable hanger about (with the cable tension released)? If not then the hanger's thickness is possibly the reason the lug won't clamp the post fully. Andy
It's late enough I'm not going to ride again tonight, but tomorrow I'll try tightening with the hanger removed to see what happens. The hanger can't be moved so that may be the problem, but it's original to the bike so I feel like it shouldn't be the cause, right? I'll try a different bolt as well.

Originally Posted by MarcusT View Post
Looks like the cable hanger. If you cannot loose the hanger, then get a 26.7/26.8 seat post. Adapter sleeves may work.
Also make sure that everything is squeaky clean, use alcohol to make sure there are no oils and such
I hadn't thought of an adapter sleeve, thanks! I guess it's worth noting, this didn't happen until the seat post changed. Maybe this new one isn't as truly 26.6 as the last (if the last even was — no markings of any kind). I'll also be sure to give everything a good cleaning before doing anything else.

EDIT: Measured the seat post with a caliper and got anywhere from 26.492 to 26.516. Are seat posts typically smaller than marked? Fully tightened (hanger in-place), the seat post opening measured 26.67 with the calipers.

Last edited by Rooney; 07-27-20 at 11:11 PM.
Rooney is offline
Old 07-27-20, 11:05 PM
  #5
cubewheels
Senior Member

Join Date: Jun 2020
Location: Manila, Philippines
Posts: 530

Bikes: A really old BMX bike and a 2020 Phantom 20" hybrid

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked 95 Times in 77 Posts
Originally Posted by Andrew R Stewart View Post
Simple experiment is to remove the brake hanger/stop and then ride the bike and see what happens. Or sub a different bolt that isn't an Allen wrench one. In the as imaged condition can you pivot the cable hanger about (with the cable tension released)? If not then the hanger's thickness is possibly the reason the lug won't clamp the post fully. Andy
Good one!

I think OP can also remove the hanger and replace the hanger beside the nut or bolt head so that he retains full braking capacity while testing the bike. The hanger will be offset though and may not be a long term solution due to more cable rub.
cubewheels is offline
Old 07-28-20, 12:12 AM
  #6
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,050
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1613 Post(s)
Liked 670 Times in 512 Posts
The old seat post probably is marked, but with 30+ year old seat posts, I often have to use both a bright LED task light and a magnifier to find it.

Are the bolt/nut bottoming out?

Is the cable hanger original?
madpogue is offline
Old 07-28-20, 01:06 AM
  #7
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,754

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Liked 155 Times in 124 Posts
Also, if you have it, there's nothing wrong with trying some carbon assembly paste in there.
cpach is offline
Old 07-28-20, 04:55 AM
  #8
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,567

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 546 Times in 394 Posts
Originally Posted by Rooney View Post
EDIT: Measured the seat post with a caliper and got anywhere from 26.492 to 26.516. Are seat posts typically smaller than marked? Fully tightened (hanger in-place), the seat post opening measured 26.67 with the calipers.
There you go, the opening is larger than the post, so it will not clamp tightly. I would suggest moving the cable hanger to one side as suggested and see if you get different results.
dsbrantjr is offline
Old 07-28-20, 06:06 AM
  #9
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,173

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 679 Post(s)
Liked 416 Times in 252 Posts
Originally Posted by Rooney View Post
EDIT: Measured the seat post with a caliper and got anywhere from 26.492 to 26.516. Are seat posts typically smaller than marked? Fully tightened (hanger in-place), the seat post opening measured 26.67 with the calipers.
Measuring a seat tube with calipers will give you inconsistent measurements. The insert type of gauge is best. I'd say that from your measurements, the 26.6 spec is probably accurate. It's clear that the cable hanger is interfering with the clamping, and this is easy to check. To fix, you can move it to the side as others have recommended, mount a different hanger (like the one in the picture below).

I would recommend first to file the hanger a bit thinner at the clamp end. Half a mm make make all the difference.


Moe Zhoost is offline
Likes For Moe Zhoost:
Old 07-28-20, 06:43 AM
  #10
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,790

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2498 Post(s)
Liked 568 Times in 439 Posts
Originally Posted by Rooney View Post
It's late enough I'm not going to ride again tonight, but tomorrow I'll try tightening with the hanger removed to see what happens. The hanger can't be moved so that may be the problem, but it's original to the bike so I feel like it shouldn't be the cause, right? I'll try a different bolt as well.



I hadn't thought of an adapter sleeve, thanks! I guess it's worth noting, this didn't happen until the seat post changed. Maybe this new one isn't as truly 26.6 as the last (if the last even was — no markings of any kind). I'll also be sure to give everything a good cleaning before doing anything else.

EDIT: Measured the seat post with a caliper and got anywhere from 26.492 to 26.516. Are seat posts typically smaller than marked? Fully tightened (hanger in-place), the seat post opening measured 26.67 with the calipers.
Yes, posts are often slightly undersized. I'll also add that measuring the seat tube ID is not going to get you a specific dimension. There's too much distortion from heat unevenly applied during construction and then the binder slot further changes both the "roundness" and the spread of that upper portion of the ID.

Here's a link to a seat post size thread from a few years ago. I decided to actually measure the various posts I had on hand with a nice micrometer. Scroll down to post 8 Another delay seat post size Andy

Then check oy post 12. This last one is the key IMO. Andy
__________________
AndrewRStewart

Last edited by Andrew R Stewart; 07-28-20 at 06:45 AM. Reason: added content
Andrew R Stewart is online now
Old 07-28-20, 06:58 AM
  #11
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,567

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 546 Times in 394 Posts
Originally Posted by Moe Zhoost View Post
Measuring a seat tube with calipers will give you inconsistent measurements. The insert type of gauge is best. I'd say that from your measurements, the 26.6 spec is probably accurate. It's clear that the cable hanger is interfering with the clamping, and this is easy to check. To fix, you can move it to the side as others have recommended, mount a different hanger (like the one in the picture below).

I would recommend first to file the hanger a bit thinner at the clamp end. Half a mm make make all the difference.


This solution will address the root cause of the problem (and provide a handy quick-release).
dsbrantjr is offline
Old 07-28-20, 07:01 AM
  #12
Canker
Senior Member

Join Date: Aug 2005
Posts: 1,415
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked 68 Times in 34 Posts
Aluminum soda can. Cut one up and use it as a shim.

And carbon assembly paste
Canker is offline
Old 07-28-20, 07:26 AM
  #13
bldegle2
Dangerous Old Man

Join Date: Sep 2017
Location: San Francisco
Posts: 96

Bikes: 2 custom built full Carbon road bikes, built by Moi...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 12 Times in 10 Posts
Carbon Fiber grip FTW...
bldegle2 is offline
Old 07-28-20, 09:05 AM
  #14
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,283 Times in 801 Posts
I'm on the side of the >rear brake hanger is interfering with the seat post clamp squeezing the post sufficiently..< team.

& it looks like the post is chromed steel too..
fietsbob is offline
Old 07-28-20, 09:52 AM
  #15
Rooney
Member
Thread Starter

Join Date: Apr 2018
Posts: 34

Bikes: '84 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 9 Times in 7 Posts
I'm learning quite a bit from these responses, thank you! I have a background in woodworking so I'm familiar with listed dimensions not being a true representation. I wasn't sure if that also applied here now I've got my answer. I tried moving the hanger to the side but still had slippage. It actually seemed less secure. I'm gonna see if the bike shop has some carbon grip since so many people have suggested it.

Originally Posted by fietsbob View Post
I'm on the side of the >rear brake hanger is interfering with the seat post clamp squeezing the post sufficiently..< team.

& it looks like the post is chromed steel too..
What's the significance of it being chromed steel? More likely to slide???
Rooney is offline
Old 07-28-20, 10:04 AM
  #16
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,916

Bikes: old ones

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 18651 Post(s)
Liked 2,161 Times in 1,589 Posts
Originally Posted by Rooney View Post

EDIT: Measured the seat post with a caliper and got anywhere from 26.492 to 26.516. Are seat posts typically smaller than marked? Fully tightened (hanger in-place), the seat post opening measured 26.67 with the calipers.
...I don't know about the newest ones, but over the years they vary as much as .1 mm from the diameter marked on the post. It's best practice when replacing a post to measure the old one with calipers, and try to replace it with a new one you measure with calipers to make certain they are close. The best measure of a post to seat tube fit is sliding it in and feeling it make contact with the seat tube as it slides down, which is often not possible when you are buying a new one off the internet. You want to feel just the slightest bit of resistance as it slides down into the greased tube, ideally.
3alarmer is offline
Old 07-28-20, 10:57 AM
  #17
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,244

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Liked 233 Times in 170 Posts
So I’ll give you some bad advice. Take a thin file and remove a little thickness off the ears and see if it helps. If we are really talking about .2mm (.008”) I doubt the bike will fall apart. Mine didn’t... at least not yet.

John
70sSanO is offline
Old 07-28-20, 01:05 PM
  #18
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,283 Times in 801 Posts
Originally Posted by Rooney View Post


What's the significance of it being chromed steel? More likely to slide???
It's a harder surface.

But I put one in a Schwinn Merada and it did not slip
fietsbob is offline
Old 07-28-20, 01:11 PM
  #19
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,050
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1613 Post(s)
Liked 670 Times in 512 Posts
So with the brake hanger out of the way, you were still unable to get the ears to come together enough to grip the post tightly enough? Did the ears come all the way together with the brake hanger no longer between them? If not, then you need to check (still no answer) if the bolt and nut are bottoming out.
madpogue is offline
Old 07-28-20, 01:20 PM
  #20
Rooney
Member
Thread Starter

Join Date: Apr 2018
Posts: 34

Bikes: '84 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 9 Times in 7 Posts
I definitely should have checked the old seat post more carefully. It was pretty trashed when I bought the bike and wouldn't maintain the seat angle. I'd start riding with a nice level saddle, and 20 minutes later it'd be pointed towards the sky, applying lots of unwanted pressure. There were no markings to be found. The 26.6 was obscured enough that I checked the old Schwinn catalogs to make sure it was 26.6 and not 26.8. I tossed it as soon as the new one arrived, trusting the numbers a little too much it appears. Live and learn!

I ran out (in some stupid hot heat) and grabbed a tube of Park Tool Supergrip Carbon and Alloy Assembly Compound yada-yada — what a name! Applied it to the seat post, installed it (noticed more resistance even at this stage), and gave it a weight test in the apartment. The seat post seems to be unmoved. It's still stupidly hot, so I'll wait until this evening to give a test ride, but I'm feeling cautiously optimistic right now.

Originally Posted by madpogue View Post
So with the brake hanger out of the way, you were still unable to get the ears to come together enough to grip the post tightly enough? Did the ears come all the way together with the brake hanger no longer between them? If not, then you need to check (still no answer) if the bolt and nut are bottoming out.
At this point, I don't believe the bolt is bottoming out. The ears definitely came together more tightly but the post still slid pretty easily with pressure applied. The carbon grip seems to have made a difference. I'll find out later tonight.

Last edited by Rooney; 07-28-20 at 01:31 PM.
Rooney is offline
Old 07-28-20, 08:23 PM
  #21
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 57 Times in 32 Posts
Originally Posted by Rooney View Post
...the old Schwinn catalogs to make sure it was 26.6 ...
Posted to Rooney just now in the C&V forum that my 1984 has a 27.2mm SR Foursir seatpost, so the catalog and PDF are incorrect for the SP at least.

__________________
72 Super Course,73 Gitane TDF, 73 Sports Tourer, 74 Paramount, 80 Univega Gran Premio, 82 Dawes Atlantis, 83 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte,
Schreck83 is offline
Old 07-28-20, 09:06 PM
  #22
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,050
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1613 Post(s)
Liked 670 Times in 512 Posts
^^^^^ Wow, HUGE difference. That means that with a 26.2 post, the seat lug ears are being squeezed too close together. OP should definitely go for a larger post. Fortunately, 27.2 is a very common size and easily found.
madpogue is offline
Old 07-29-20, 08:17 AM
  #23
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 57 Times in 32 Posts
Double-checked this morning and it is 27.2. I don't know much about different tubesets, but perhaps 26.6 is correct for the Tenax tubeset used on the Voyageur, but incorrect for the SP/SLX tubset on the Voyageur SP. Both the 1984 and 1985 catalogs show 26.6 for both variants..

__________________
72 Super Course,73 Gitane TDF, 73 Sports Tourer, 74 Paramount, 80 Univega Gran Premio, 82 Dawes Atlantis, 83 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte,
Schreck83 is offline
Old 07-31-20, 12:25 AM
  #24
Rooney
Member
Thread Starter

Join Date: Apr 2018
Posts: 34

Bikes: '84 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 9 Times in 7 Posts
I went for a ride today without any problems. The carbon grip seems to have solved the issue for now. I'll continue keeping an eye on things. I am still interested to hear what either of the other 84/85 SP owners in the Voyageur thread have to say about their seatpost diameter.
Rooney is offline
Old 08-03-20, 07:22 PM
  #25
Rooney
Member
Thread Starter

Join Date: Apr 2018
Posts: 34

Bikes: '84 Schwinn Voyageur SP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 9 Times in 7 Posts
UPDATE:

I posted this in the Voyageur thread, but I'll post it here as well in case anyone comes across this later. This thread has three more 84/85 VSP owners, in addition to Schreck, saying their seatposts are marked 27.2. So, it would seem I do have the wrong size on my bike currently. The carbon grip has been holding, but I think I'll be looking for a 27.2 seatpost now.
Rooney is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
